Haier HRF- 329AA Manual de usuario

REFRIGERATOR

Service Manual

Features

lAenergy

lAutomatic controlling temperature

lThree-cooling system

lBright VFD display

Haier Group

Serial number: ER03SM0415-01

Version number: 00.00

Edition: 2003-04-15

Models:

HRF-329AA

HRF-349AA

HRF-369AA

CONTENT

1. Content 1

2. Productcode illumination and Series Introduction 2

3. Specifications ... .3

4. Safetyprecautions ... 4

5. Parts and Functions .7

6. Function Schedule ...... .8

7. System FlowChart .. ... .9

8. Program Diagram .. .10

9. Maintenance Service and Trouble Shooting ...... 11

CONTENT

Product code illumination andSeries Introduction

HRF 369AA

Haierproduct

Refrigerator

Freezer

Gross capacity(according to

export countrystandard)

series

Product code illumination and Series Introduction

Specifications

Models HRF-329AAHRF-349AAHRF-369AA

Netcapacity(L) 239 259 289

Color Silver SilverSilver

Power Supply(V/Hz) 220-240~/50220-240~/50220-240~/50

Rated Input Power (W)

130 130 130

Power Consumption

(kW.·h/24h) 0.62 0.650.68

NetWeight (kg)

72 74 86

Gross Weight (kg)

96 96 97

Unit Dimension

(D*W*H) (mm) 660*600*1652660*600*1672 660*600*1872

Packing Dimension

(D*W*H) (mm) 833*740*1719 833*740*1719 833*740*1800

Container Quantity

40’(PCS) 42 42 42

Container Quantity

40’HC(PCS) 42 42 42

Specifications

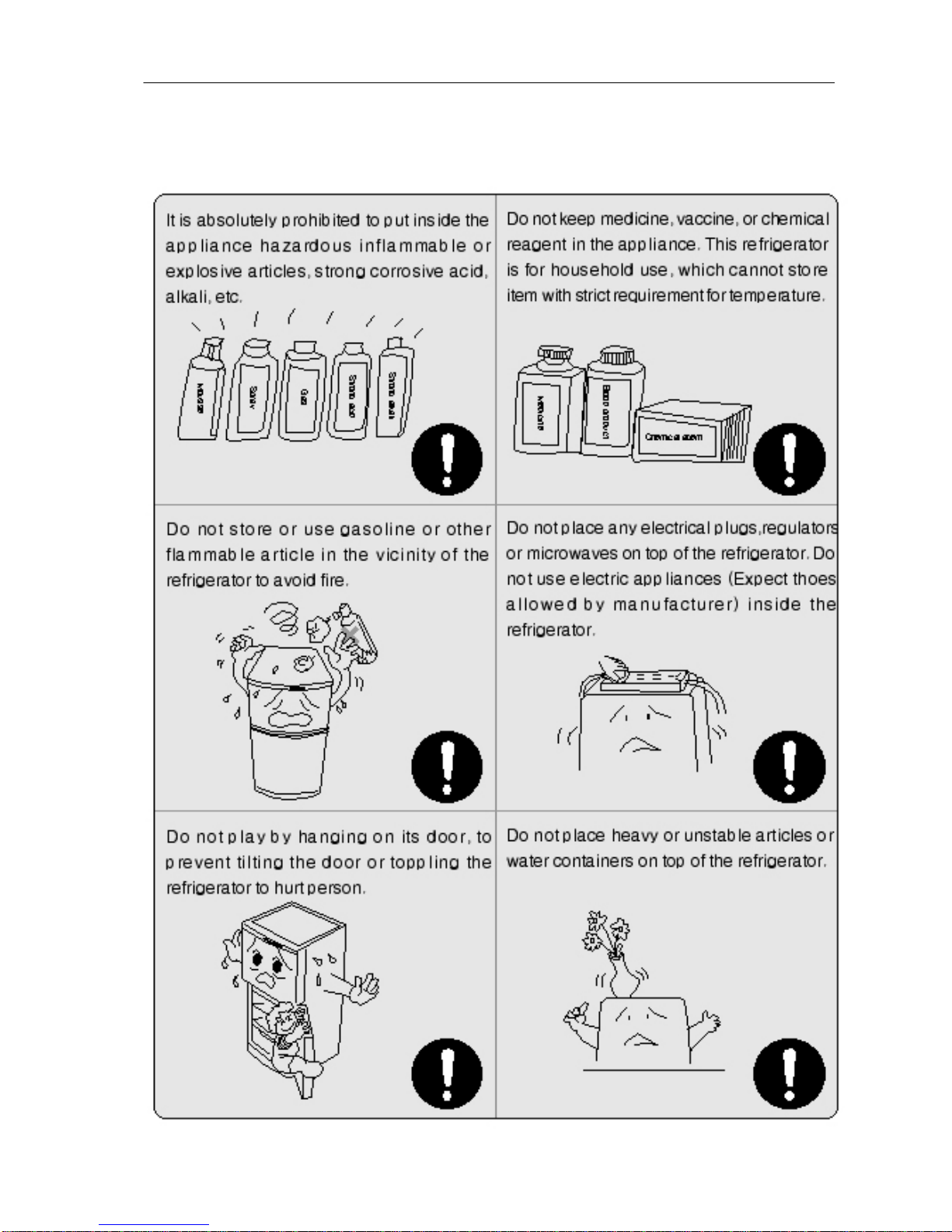

Safety precautions

Parts andFunctions

Partsand Functions

FunctionSchedule

1. Three cooling system

Therearethree separatecoolingpartsin the refrigerator refrigerator、

freezer and soft freezer.seperately

2. Automatic temperaturecontrol

Automatic temperature control under varied ambient temperature

conditions for anoptimizedcoolingachievement

3. Application of inverter technology

Theadvancedinverter technologyis appliedforintegrationofnoise

reduction andsuper freezing.Working frequencyof the compressor is

automaticallyadjusted with thevariation of ambient temperature.

Unique inverter operation:Therefrigerator can beset automaticallyfor

lowspeed and lownoiseoperationat night.

4. Energy-efficiency

Thick heat insulationisused to minimizetemperature gain and to

optimize thecooling system for themost efficient coolingresult.

5. VFD display

Applicationof VFDtechnologyfor displayof therefrigerator operation

status andtemperatures inrefrigerator、freezer andsoft freezer.

6. Over temp warning

Thewarningfunction is activatedwhenfreezer temperature exceedsthe

set temperaturevalue.

7. Crisperwithadjustable moisture

Moistureinthecrisper can be adjustedfor satisfactionofvegetables and

fruits storage

Function Schedule

System FlowChart

1 Schematic diagram ofSystemFlowChart

2 BriefDescription ofSystem FlowChart

The refrigeratingsystem of directcoolingthree-system refrigerator

belongsto the categoryof three circulatingsystem. It isformedby adding

another 3-waysolenoid valve andacapillaryto adouble-system. Wecan

control the twovalves to make refrigerant gothrough differentlines.For

example, 1->2->3->4->5->6->7->9 、1->2->3->4->5->6->8->9 or

1->2->3->4->5->9.

Whentherefrigerator is just powered on, the refrigerant flowsthrough

the adjusttemperature compartmentevaporatorsandfreezer

compartmentevaporators. Afterthe adjust temperature compartment

temperaturehas reachedtherequired value,thesolenoidvalveis

energized, thus causetherefrigerant toflowthroughtheRefrigerator

Compartment evaporators、freezercompartment evaporatorsor soft freezer

compartment evaporators.

1 Compressor

2 Hot Tube

3 Condenser

4 DryFilter

5 SolenoidValve 1

6 SolenoidValve 2

6 Evaporator for Soft Freezer

Compartment

7 Evaporator for Refrigerator

Compartment

8 Evaporator for Freezer

Compartment

System FlowChart
