Haier LE39B7000C Manual de usuario

LE32B7000C

LE39B7000C

Please read this manual carefully before operating the unit,and keep it for

future reference.

Welcome

Important Information

01 Safety Warnings

Safety notice

Warning and cautions

Caution

Base Stand Assembly Instruction

02 Introduction

Main Features 5

Main Parameter 5

Installation 5

PC Supported Mode 6

Wall Mounting Installation Guidelines

Front Control Panel

Rear/Side Sockets 8

Connecting to your Haier TV

Common Interface

Remote Control

03 Remote Control

Teletext 13

Installation Guide

04 Operation

CHANNEL MENU 14

AutoTuning (DVB-T) 14

AutoTuning (DVB-C) 15

DTV Manual Tuning (DVB-T)

DTV Manual Tuning (DVB-C)

ATV Manual Tu

Channel edit

Signal Information (Only for DTV)

ning

PICTURE MENU 17

Audio MENU 17

Clock MENU 17

SETUP MENU

LOCK MENU

EPG Menu(Electronic Program Guide) 19

PVR File System(only forTV) 19

Prepare to record the program 20

Record the program 20

Play the recording 20

Time shift 21

USB Player 22

Trouble shooting

05 Trouble shooting

icationSpecif 27

Common Interface

06 Specification

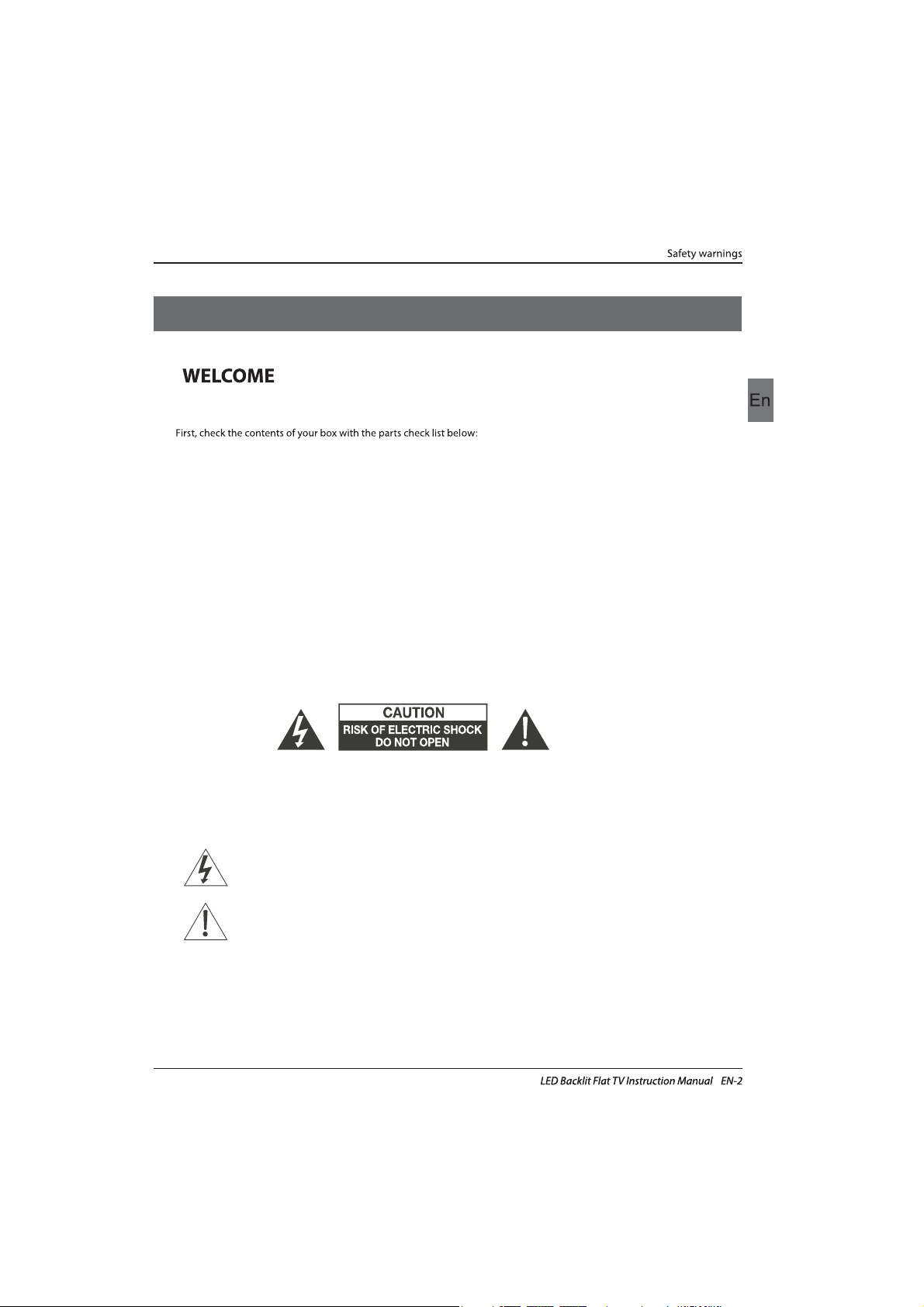

Thanks for buying this 32"/39" LED LCD TV.This guide will help you set up and begin using your TV.

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.

FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN

THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF

CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE

CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR

SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE

THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT

DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Now you can get started!

01 Safety warnings

32”/39” HD Digital LED LCD TV

Remote control

AAA battery x2

Instruction Manual

Quick start guide

Warranty Card

Screws

Stand

AV adaptor cable

YPbPr adaptor cable

Safety notice

EN-3

CAUTION:When the apparatus was in

electrostatic circumstance, it maybe

malfunction and need to reset by user.

Dim:515*320mm(不包括底座）

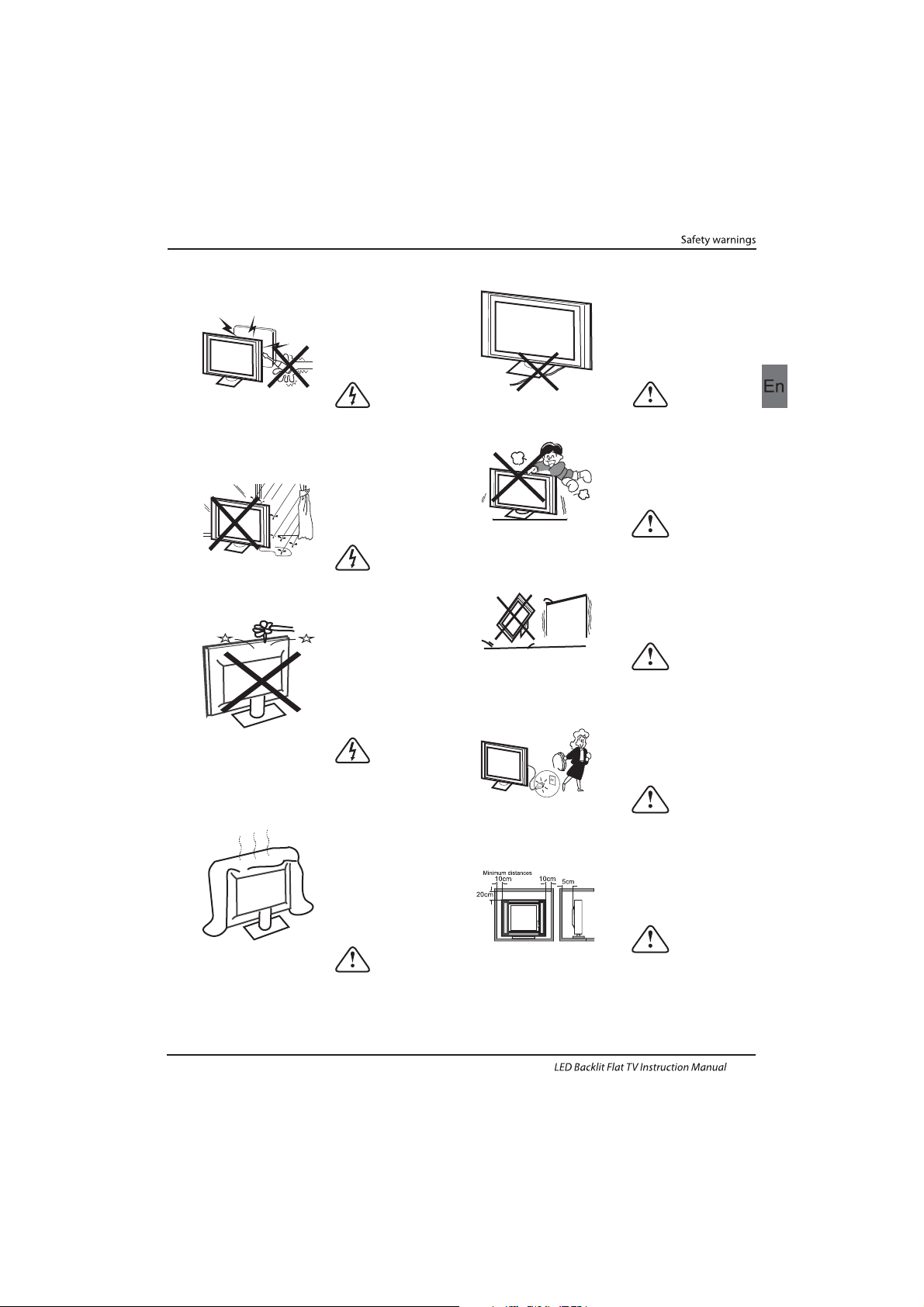

Warning

High voltages are used in the operation of this

television receiver. Do not remove the cabinet

back from your set. Refer servicing to qualified

service personnel.

Warning

To prevent fire or electrical shock hazard, do

not expose the television receiver to rain or

moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings. Never

spill any kind of liquid on the television

receiver.

Caution

Do not block the ventilation holes in the back

cover. Adequate ventilation is essential to

prevent failure of electrical components.

Caution

Do not trap the power supply cord under the

television receiver.

Caution

Never stand on, lean on, or suddenly push the

television or its stand. You should pay special

attention to children. Serious injury may result if

it should fall.

Caution

Do not place your television on an unstable cart,

stand, shelf or table. Serious injury to an

individual , and damage to the television, may

result if it should fall.

Caution

When the television receiver is not used for an

extended period of time, it is advisable to

disconnect the AC power cord from the AC

outlet.

Caution

If the television is to be built into a compartment

or similar enclosure, the minimum distances must

be maintained. Heat build-up can reduce the

service life of your television, and can also be

dangerous.

WARNING AND CAUTIONS

EN-4

Panel

PAL-B/G ,I , D/K

PAL/SECAM/MPEG2/MPEG4/H.264

AC 100 -240V 50/60Hz

2x8W

Analog RGB(PC) x1; PC audio x1

H nterface (HDMI) x 3

Composite Input x 1

YPbPr x 1

SCART Input x 1

32" 39"

CI x 1

USB x 2

RF x 1

Composite video input >=350

YPbPr >=400

Headphone x 1

COAXIAL x 1

TV System

Video Signal System

Input Power Voltage

Power consumption

Standby Power consumption

Audio Output Power (THD7%)

Signal Input

Signal output

Horiz TVline

SECAM-B/G , D/K , L

≤0.30W

DVB-T, DVB-C

INSTALLATIONCAUTION

*Locate the TV in the room where light does

not strike the screen directly.

*Total darkness or a r tion on the picture

screen can cause eyestrain. Soft and indirect

lighting is recommended for comfortable

viewing.

*Allow enough space between the TV and the

wall to permit ventilation.

*Avoid excessively warm locations to prevent

possible damage to the cabinet or premature

component failure.

*Do not cover the ventilation openings when

using theTV.

Main parameter

Main features

4 NICAM˗

5 T˗ime-shift

HDMI interface and SCART

Interface˗

High luminance, wide viewing

angle˗

Used as Television, display terminal,

PC display˗

Never tamper with any components inside the

TV, or any other adjustment controls not

described in this manual. All LED-TV's are high

voltage electrical equipment.

When you clean dust or any water dr

SCREEN or CABINET or around any of the

buttons or connectors, the power cabled should

be removed from the power socket. Wipe the TV

with a soft, dry, dust free cloth.

During thunderstorms, unplug the power cable

and aerial / antenna cable to prevent damage to

your TV and any other devices connected to it.

All repairs to this TV should only be performed

bTV service

personnel.

02 Introdution

Introduction

EN-5

1000(DTV);99(ATV)Storage channel number

60W 74W

SUPPORTED MODE

1024x768 60

640x480 60 31.47

800x600 60 37.88

48.36

RESOLUTION V.Freq.(KHz) H.Freq.(KHz)

1360x768 60 47.7

Introduction

EN-6

Base Stand Assembly Instruction

Locate theTV in a room where light does not strike the screen directly. Total darkness or a

reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for

comfortable viewing.

Allow enough space between theTV and the wall to permit ventilation.

Please do not attempt to rotate theTV on the stand.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature

component failure.

INSTALLATION NOTES

2. Attach the stand base set to the bottom

4pcs black screws.

1.Place theTV with the display side down on a flat

surface. Use a cloth to protect the display. Attach the

the supplied 4pcs silver screws.

WALL MOUNTING INSTALLATION GUIDELINES

(39”)

(32”)

This television can be wall mounted as follows:

400mm

200mm

Introduction

EN-7

holes on the back of the television.

200mm

Introduction

EN-8

Rear/Side Sockets

input/output

SCART

input

HDMI1

PC AUDIO

input

HDMI2 input

HDMI3 input

input

VGA

input

146

578

910 11 13

12 14

Remote control sensor.

Indicator LED:

RED: STAND BY.

Key board.

SOURCE

Displa1

y the input source menu.

MENU Display main MENU.

CH+/CH- In TV mode,press CH+ or CH- to change

the channel up and down.

In MENU, press CH+ or CH- to select items .

POWER

VOL+/VOL- Adjust sound level.

In MENU,adjust the item that you selected.

Front control panel

30 30

≤8m

CH+

CH-

VOL+

VOL-

SOURCE 1

POWER 5

VOL +

CH +

CH -

SOURCE

POWER

VOL -

COMMON INTERFACE(CI) input

input

analogue audio output

HEADPHONE

YPbPr

input

digital audio output

DIGITAL AUDIO OUTPUT( )COAXIAL

input

USB2

input

USB1

HDMI1 HDMI2 HDMI3

SCART PC AUDIO VGA RF

COMMON INTERFACE(CI) USB1 USB2

HEADPHONE

AV YPbPr DIGITAL AUDIO OUTPUT

(COAXIAL)

Introduction

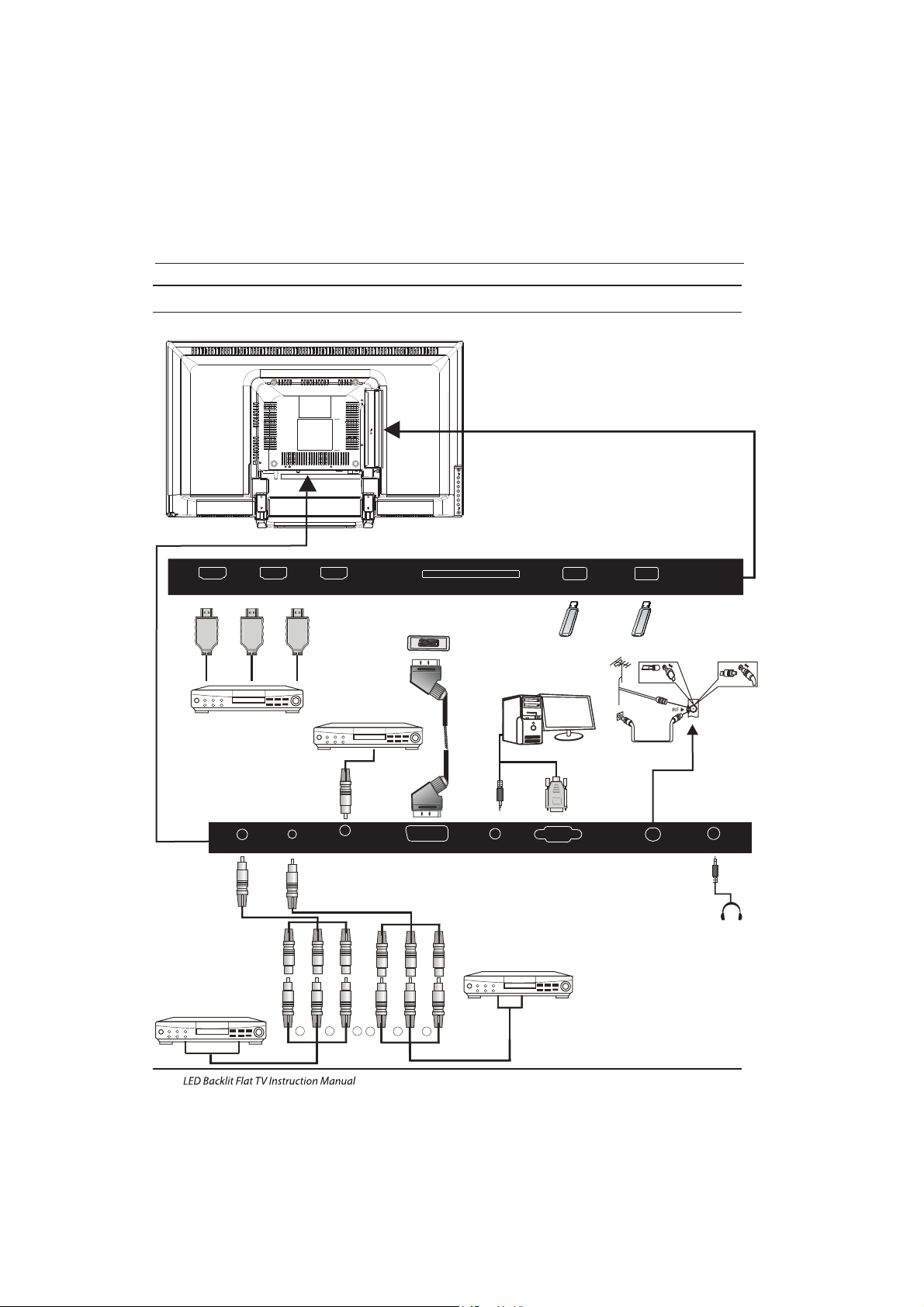

Connecting to your HaierTV

G Green Y

B Blue PbCb

W WhiteAUDIOL 

R Red AUDIORPrCr

Y Yellow VIDEO

Amplifier

EN-9

CVBSDVD Player or other

machine withYPbPrYCbCr

5< :

CVBSDVD Player or other

machine with CVBSSVideo

HDMI1 HDMI2 HDMI3

SCART PC AUDIO VGA RF

COMMON INTERFACE(CI) USB1 USB2

HEADPHONE

AV YPbPr DIGITAL AUDIO OUTPUT

(COAXIAL)

AudioVideo machine

with HDMI interfaces
