OWNER`S MANUAL
Please READ thismanual carefully before
operating your TV, and retain it for future
reference.
Congratulations on yourpurchase, and welcome to the family !
Dear Haier product owner:
Thank you for your confidence in Haier. You`veselected one of the
best-built, best-backed products available today. We`ll do everything
in our powerto keep you happy with yourpurchase for many years to
come.
As a member of the Haier family, you`re entitled to protection by
one of themost comprehensive warranties and outstanding service
networks in theindustry.
thanks for investingin a Haier product.
""
""
CONTENTCONTENT
BEFORE OPERATING
Warning..............................................................................................................1
Important Safety Instructions..............................................................................2
Buttons and interface location........................................................................... 4
Remote controller .............................................................................................6
keys of Remote control ......................................................................................7
External equipment connections........................................................................8
BASIC OPERATING
Switching on/off the TV set................................................................................13
Choose the Menu language............................................................................. 13
Choose the Input Source ................................................................................. 13
Searching Channel............................................................................................14
Watching TV Program........................................................................................17
Picture Control Functions................................................................................. .18
Sound Control Functions....................................................................................20
Timer Functions..................................................................................................22
Function Menu...................................................................................................23
Adjust Menu.......................................................................................................26
Lock Setup ........................................................................................................27
OTHERS
Others functions................................................................................................29
Maintenance......................................................................................................30
Troubleshooting.................................................................................................31
Specifications ...................................................................................................32
Format..............................................................................................................33
Accessories
Remote controller User's manual Alkaline battery
(AAA) 2 Power cable
REC
TIMESHIFT
ENTER
ZOOM
HELP
PIP
SWAP
PIC.SIZE
DISPLAY
I/II
SCAN
OK
SHUTTLE
H.LOCK
SLEEP
MENU
TV/AV
RETURN
USB
ZOOM/MOVE
TIME.SKIP
PSM
SM
Q.VIEW
STILL
-/--
CH-
CH+
VO
L
-
VOL+
S
CH.EDIT
WARNING
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
Explanation for signs
Dear Users:
Above all,please accept oursincere appreciation foryour choice ofHaier TV; and for
the sake ofmaking you easierto read instructionsand use TV, the company will explain in
detail the signsappeared in theinstructions as follows:
Warning instructions:
Keep the TV from droppingor spraying waterto prevent fire,electric shock orother dangers.
Do not putthe container withwater (vase, cup,makeup box etc.)on the TV (including the
frame); do notput naked firesources on theequipment, such asburning candles.
Do not removethe earthing pinof plug.
Do not openthe rear coverby yourself foravoiding the electricshock.
Make sure thereis no otheradditional spare partinside the shell.
If you cannot put theplug into thesocket, please contactprofessional electricians anddo
not remove itby yourself.
Installation:
Maintaining Good Ventilation
If you useLCD TV chassis (optional accessory),please leave atleast 10cm spacingfrom
the top, leftand right sidesof the TV; and 6cmfrom the bottom;7cm from theback. Andif
you choose otherinstallation method, makesure there isat least 10cmspacing from thetop,
bottom, left andright sides ofthe TV; and not lessthan 1.9cm fromthe back.
Avoid the installation ofthe product nearthe equipment withelectromagnetic wave
radiation which willresult in interferenceto TV picture and sound;therefore you mustbear
in mind thatkeep the videoequipment away fromthe product.
Important Safety Instructions
The symbol remindsyou that this
place has veryimportant components;
therefore, if youneed to replace it or
perform other operations,please refer
to relevant technicalinstructions.
The symbol remindsyou that there
may be highvoltage here, so please
be careful lestyou are exposed to
electric shock.
1
Important Safety Instructions
Attentions
Phenomena Inspection
Dark spots on
the screen
The TV is manufactured withtechnology of extrahigh precision,
however there possiblyis pixel lossor light spoton the screen
sometimes. This is not aproblem.
Burn-in
Do not makethe still picturesdisplay too longbecause it probably
bring permanent burn-inon the TV screen (stillpictures include
signs, video games,computer figures, electronictexts and the
pictures displaying inthe mode of4: 3).
If there ispermanent burn-in onthe TV screen caused byusing
still pictures whichaffect the quality of picture,it is notin the
scope of maintenanceservice.
The product doesnot apply todisplay still picturesfor a longtime.
The equipment appliesto be usedin the placewith relatively weakelectromagnetic
interference. If theequipment is usedin the placewith strong electromagneticfield or
input signals forelectric noise covering,there would befluctuations in picturesand
sounds, noise orother interference phenomena.Therefore please put the equipment
in the placefar away fromstrong electromagnetic fieldfor the purposeof avoiding
damages to theequipment.
Since LCD TV is onekind of high-precisiondisplay equipment, hencethere would be
black screen, blurredscreen, stand-by orother similar phenomenawhen it isunder
lighting stroke orimpact of highstrength static.At this moment,you should turn off
and turn onthe TV; and if thephenomena disappear afterthe on-off, it would notbe
considered as malfunction.
2
Important Safety Instructions
The product should be tightly fixed to avoid
drop damages and even fire.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Do not locate the product close to water
or oil, which may cause fire hazards.
Unplug the power supply and antenna of
the product when there is a rainstorm,
especially
Thunderstorm.
Do not use damaged or worn electric plugs
and keep electric cord away from heat sources
to avoid electric shocks or fire hazards.
Do not connect excessive sockets in parallel
or share the same socket by multiple plugs
to avoid fire hazards.
The product must be placed on a solid and
stable surface to avoid collapse.
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact
authorized after-sales
service if technical
service is needed.
Keep the product away from a transformer
or heat source to avoid fire hazards.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.
3
Important Safety Instructions
Don't use or store inflammable materials
near the product to avoid explosion or fire
hazards.
Don't place the product in a humid area to
avoid fire hazards.
The antenna of the product should be away
from electric cable to avoid
electric shocks.
Never touch the plug when your hand is wet
as this might cause electric shocks.
Always make sure that the televisionis well
plugged as poor electric
connection might cause fire.
When antenna is used, measures should be
taken to prevent water
from flowing down
along the cable into
the television.
Unplug the television, use soft fabric, never
chemicals, if you are going to make
cleaning of the product.
Make sure that no
water drops in the
product.
The plug and electric cable must be kept
clean to avoid electric
shocks or fire
hazards.
Disconnect the television from power supply
and antenna when there is a
rainstorm or thunderstorm
to avoid electric shocks
or fire hazards.
Disconnect the television from power supply
to avoid electric shocks or fire
hazards in a long
vocation.
4
Front panel Control
- This is a simplified representation of front panel.
- Here shownmay be somewhat different from your TV.
Buttons and interface location
1. TV/AV button
2. MENU button
3. VOL-/+ : Volume decrease/increase,adjusting the menu
4. CH-/+ : Channel numberdecrease/ increase
Remote Sensor
Indicator
TV/AV
MENU
VOL+
VOL-
CH+
CH-
1
2
3
4
USB jack
Right audio
HDMI jack
Power
Left audio
Video
5
Buttons and interface location
Rear panel Control

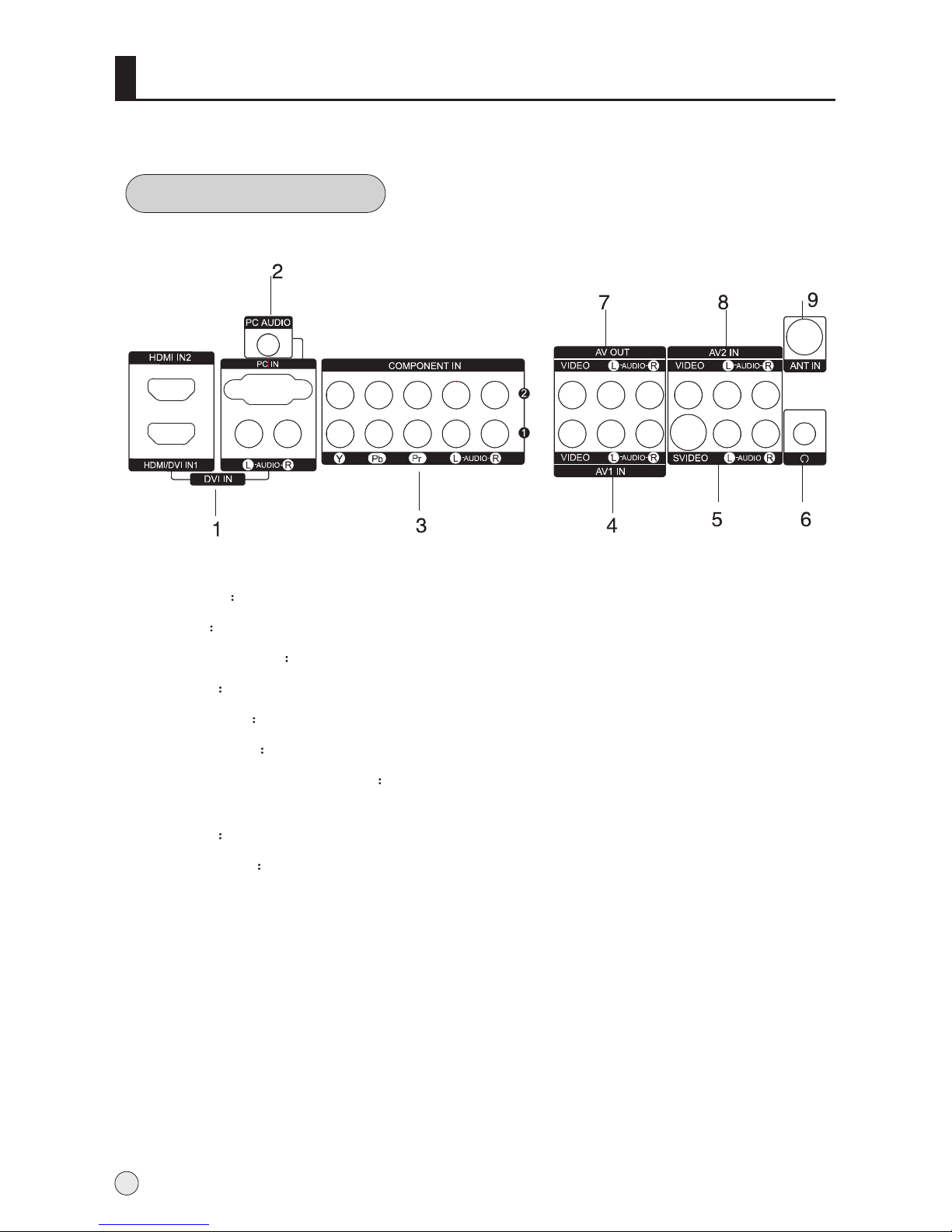

1HDMI Input Connnect a signalto HDMI/DVI
2PC Input
3
4AV1
5
6
7
9
Connect the monitoroutput connector froma PC tothe jack
Component Input Connect a componentvideo/audiodevice to thesejacks.
Input Connect audio/video outfrom an audio/videodevice to thesejacks.
S-Video Input Connect S-Video out from aS-Video device to these jacks.
Earphone jack Earphone Audio output terminal
Antenna Input Connect cable orantenna signals tothe TV, either directlyor
through your cablebox.
Video/Audio output terminal
Connect ordinary video/audioor other applianceaudio input terminals.
8Input Connect audio/video outfrom an audio/videodevice to thesejacks.AV2
6
Remote controller
Precautions
Battery loading
1.Slide open the cover of the battery compartment on the back of the remote controller.
2.Load two 7# (AAA)alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the cover of the battery compartment.
Make sure that there is no obstacle
between the remote controller and
television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller away from
heat source or humid area to ensure
effective performance of the remote
controller.
Make sure that two AAA alkaline
batteries are loaded. The batteries must
be of the same type. The batteries must
be located properly. The batteries are not
rechargeable.
3
12
7
