Haier HR18D2VAE Manual de usuario

No.0150505381 D

HR18D2VAE

HR24D2VAE

HR30D2VAE

13 SEER 1.5 to 5.0 Tons

HR36D2VAE

HR42D1VAE

HR48D1VAE

HR60D1VAE

! WARNING

These instructions are intended as an aid to qualified, licensed service personnel for proper installation,

adjustment and operation of this unit. Read these instructions thoroughly before attempting installation

or operation. Failure to follow these instructions may result in improper installation, adjustment,

service or maintenance possibly resulting in fire, electrical shock, property damage, personal injury

or death.

This product is designed and manufactured to permit installation in accordance with National Codes. It

is the installer's responsibility to install the product in accordance with National Codes and/or

prevailing local codes and regulations. The manufacturer assumes no responsibility for equipment installed

in violation of any codes or regulations.

The United States Environmental Protection Agency (EPA) has issued various regulations regarding

the introduction and disposal of refrigerants in this unit. Failure to follow these regulations may harm

the environment and can lead to the imposition of substantial fines. Because these regulations may vary

dueto the passage of new laws we suggest that any work on this unit be done by a certified technician.

Should you have any questions please contact the local EPA office.

The manufacturer's warranty does not cover any damage or defect to the air conditioner caused by the

attachment or use of any components, accessoriesor devices (other than those authorized by the manufacturer)

into, onto, or in conjunction with the air conditioner. You should be aware that the use of unauthorized

components, accessories or devices may adversely affect the operation of the air conditioner and

may also endanger life and property. The manufacturer disclaims any responsibility for such loss or

injury resulting from the use of such unauthorized components, accessories or devices.

Attach the service panel to the outdoor unit securely. If the service panel is not attached securely, it

could result in a fire or an electric shock due to dust, water, etc.

Message to Owner

These instructions should be carefully read and kept near the product for future reference. While the instructions are

addressed primarily to the installer, useful maintenance information is included. Have your installer acquaint you with

the operating characteristics of the product and periodic maintenance requirements.

TABLE OF CONTENT

1.Introduction --------------------------------------------------------------------------------------- 1

2.Nomenclature for Model Number --------------------------------------------------------------1

3.Specification ------------------------------------------------------------------------------------- 2

4.Unit Inspection ----------------------------------------------------------------------------------- 5

5.Equipment Protection From Environment ----------------------------------------------------5

6.Installation -----------------------------------------------------------------------------------------5

6.1. General --------------------------------------------------------------------------------------- 5

6.2.Unit clearances ------------------------------------------------------------------------------ 6

6.3.Refrigerant piping --------------------------------------------------------------------------- 6

6.4.Electrical wiring ----------------------------------------------------------------------------- 11

7.System Startup ----------------------------------------------------------------------------------- 12

8.Operation ----------------------------------------------------------------------------------------- 13

9.Miscellaneous ------------------------------------------------------------------------------------ 13

9.1.Replacement parts -------------------------------------------------------------------------- 13

9.2.Troubleshooting guide --------------------------------------------------------------------- 13

9.3.Wiring diagram ----------------------------------------------------------------------------- 13

1.INTRODUCTION

This manual contains the installation and operating instructions for your new Heat Pump.

Improper installation can result in unsatisfactory operation or dangerous conditions. Carefully

read this manual and any instructions packaged with separate equipment required to make up

the system prior to installation. Give this manual to the owner and explain its provisions. The

owner should retain this manual for future reference.

Example:HR24D2VAE

Design series. 1-1st Generation,2-2nd Generation

Electric:V=208/230-1-60;C=208/230-3-60;D=460-3-60,Y=575-3-60

Body style

Refrigerant type R:R22;E:R410A

Brand symbol-H:Haier

System type-C:Air conditioner;R:Heat pump

Nominal capacity in (000) Btu/h

SEER designation. D=13,E=14

2.NOMENCLATURE FOR MODEL NUMBER

The dimensions for the condensing unit are illustrated in Figure 1. Physical and electrical

specifications are provided in Table 1 for 13 SEER systems respectively.

The Figure 2 show a schematic of a heat pump on the cooling cycle and the heating cycle.

3.SPECIFICATION

Table1: Model:HR18-36D2VAE HR42-60D1VAE

D06

HEAV1D24RH

D63RHEAV2D03

V2D42RHEAV

9 5

.41 7.7

12 6

12 9.82

02 5

353 0

spmA d

R1.7 5.

87.

12.3

17.51 7.51 2.1

spmA g

inn

R dekcoL

4 3

4 45 47 8

uF 9

0 9

0 4.1 2.

2 0

2 4

H d

aR 7/1 7/1 4/1 5

/1 3

01 00

1000

5.9["8/3 ]2

[

3 ]

5.9

8/3 ]25.9["

5.9["8/3 ]

5.9["8

3 ]

["8

3 ]

3]22

/7 ]

[

/7 ]

22.22

[

7 ]

22.2

[

7]22.22[

8/7

]03

3[701 ]0313

[

1]032

[

1]0893[041 ]034

[26

2]033

[322 ]0328[092

03*

1 42

[

3*4/

]

8/3 0

*4/

42*

]

16[

8/3

*4/1

1 42

]

[

8/1 6

*8/

77*97

[

4*8/5

01*

77[

4*8

5 03*

/5 03

]7111*

977[

23*8/7 6

*8/7

]318*286*28

[

/7 62*8

7 62

]

318*286*286[

3*8/

62*8/7 6

]318*286*2

*8/7 6

*8/7

]318*286*286

[

2/1 73* 2/1 23* 2/1 23

]159*528*528[

8/3 14* 2/1 23* 2/1 23

]1501*528*528[

61/5

4*2/1

/1 23

]

[

]

57[

1 ]

[

61 ]

[191 ]8

[

]28[081 ]38

[

9[702 ]59[

02 ]131[882 ]341[513 ]941[823

EDOM

ega

loV ylp

tin

UHP1 zH06 0

gat

oV lam

roN 3

52-

791

ucri

min

C xa

)

(

rotoM naF

nI-snoisnemi

nip

S（)mm

H*D*

]

k[sbL-

hgi

W teN

]gk[s

L-

hgi

W g

nip

xor

)

(nI

O e

diu

)

DO en

paV

(zO

014

-R

)mm(

nI-s

noi

emiD

H*D*W

960 960

Figure 1

Table2: System Capacity

cooling

heating

Capacity SEER CFM 80 85 90 95 100 105 110 115

HR18D2VAEHB2400VD2M20M18000136702034019746190801800017730174601719016920

HR24D2VAEHB2400VD2M20H24000139002712026328254402400023640232802292022560

HR30D2VAE HB3600VD2M20-T L 30000 13 1125 33900 32910 31800 30000 29550 29100 28650 28200

HR36D2VAE HB3600VD2M20-T H 34000 13 1300 38420 37298 36040 34000 33490 32980 32470 31960

HR42D1VAEHB4800VD3M22L410001314804633044977434604100040385397703915538540

HR48D1VAEHB4800VD3M22H475001315605367552108503504750046788460754536344650

HR60D1VAE HB6000VD1M22-T H 57500 13 1730 64975 63078 60950 57500 56638 55775 54913 54050

ARI data of indoor Cooling Capacity with different outdoor temperature

Outdoor Indoor Indoor fan speed

Capacity HSPF CFM -10 0 10 20 30 40 50 60

HR18D2VAEHB2400VD2M20M168007.76705568748893761129513152154741823221000

HR24D2VAEHB2400VD2M20H220007.790070009413117871420016533194532292026400

HR30D2VAE HB3600VD2M20-T L 27800 7.7 1125 8845 11895 14894 17944 20892 24582 28963 33360

HR36D2VAE HB3600VD2M20-T H 32000 7.7 1300 10182 13692 17144 20655 24048 28296 33338 38400

HR42D1VAEHB4800VD3M22L410007.714801304517543219662646430812362544271549200

HR48D1VAEHB4800VD3M22H475007.715601511420324254483065935697420014948657000

HR60D1VAE HB6000VD1M22-T H 57000 7.7 1730 18136 24389 30538 36791 42836 50402 59384 68400

Outdoor Indoor Indoor fan speed ARI data of indoor Heating Capacity with different outdoor temperature

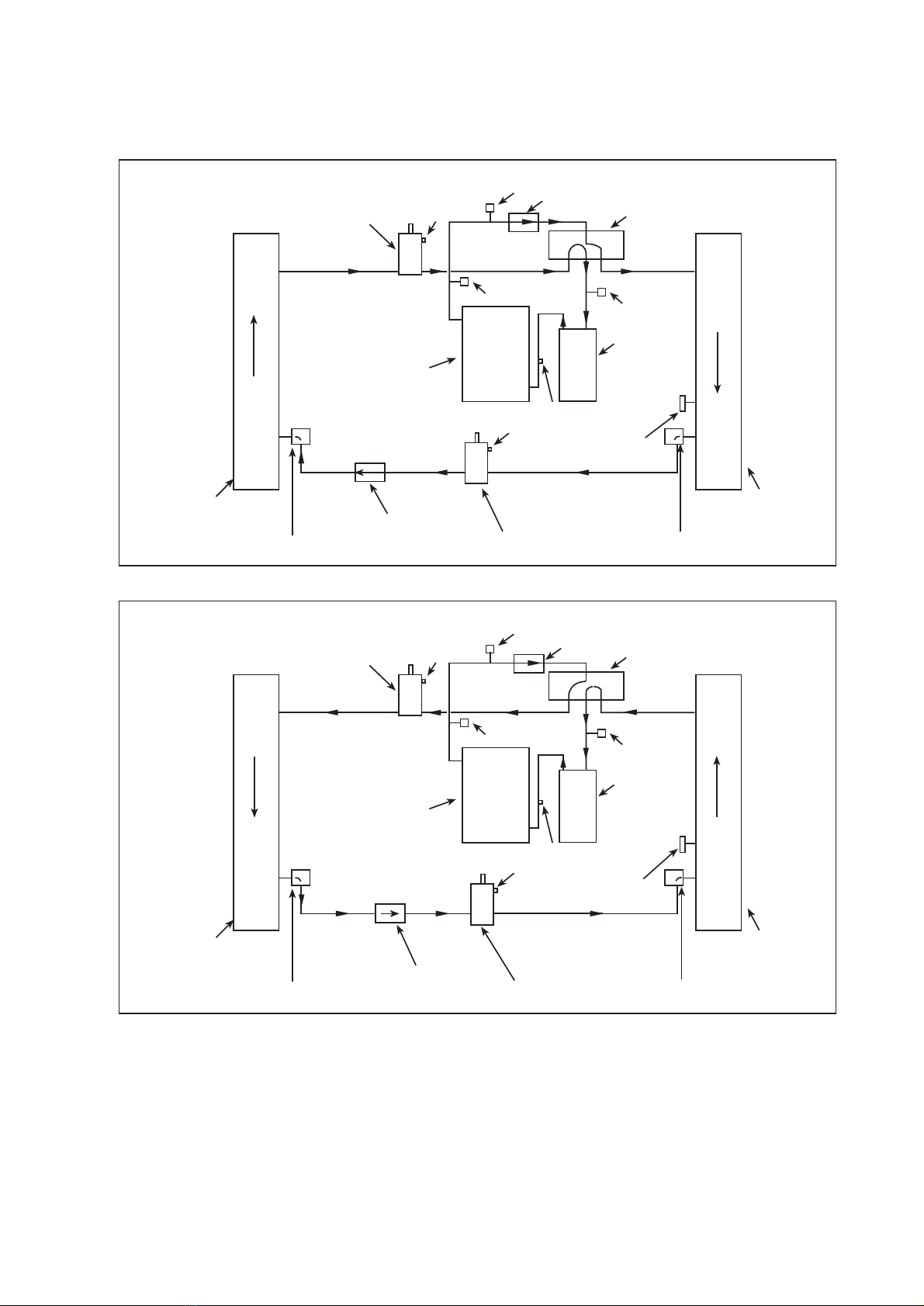

Figure 2 Heat Pump Refrigerant Circuit

SERVICE VALVE

SERVICE PORT

DISCHARGE TEMP. SENSOR

INDOOR COIL

DISTRIBUTOR

OUTDOOR COIL

COMPRESSOR

SERVICE PORT

ACCUMULATOR

HIGH PRESSURE

SWITCH

LOW PRESSURE

DEFROST SENSOR

DRIER

Cooling

SERVICE VALVE

SERVICE PORT

DISCHARGE TEMP. SENSOR

INDOOR COIL

DISTRIBUTOR

OUTDOOR COIL

COMPRESSOR

SERVICE PORT

ACCUMULATOR

HIGH PRESSURE SWITCH

LOW PRESSURE

DEFROST SENSOR

DRIER

Heating

REVERSING VALVE

NEDNOC

ROPAV

REVERSING VALVE

OPA

SERVICE VALVE

SERVICE PORT

SERVICE VALVE

SERVICE PORT

DISTRIBUTOR

SWITCH

CHECK VALVE

4.UNIT INSPECTION

This product has been inspected at the factory and released to the transportation agency without

known damage. Inspect exterior of carton for evidence of rough handling in shipment. Unpack

carefully. If damage is found, report immediately to the transportation agency.

5.EQUIPMENT PROTECTION FROM ENVIRONMENT

The metal parts of the unit may be subject to rust or corrosion in adverse environmental conditions.

This oxidation could shorten the unit life. Salt spray or mist in seacoast areas, sulphur or chlorine

from lawn watering systems and various chemical contaminants from industries such as paper mills

and petroleum refineries are especially corrosive.

If the unit is to be installed in an area where contaminants are likely to be a problem, special attention

should be given to the equipment location and exposure.

Avoid having lawn sprinkler heads spray directly on the unit cabinet.

In coastal areas, locate the unit on the side of the building away from the waterfront.

Shielding provided by fence or shrubs may give some protection.

Regular maintenance will reduce the buildup of contaminants and help to protect the unit's finish.

! WARNING - Disconnect all electrical power to the unit before servicing. Disconnect power to

both the indoor and outdoor units.

NOTE: There may be more than one electrical disconnect switch. Failure to shut off power can

cause electrical shock resulting in personal injury or death.

Frequent washing of the cabinet, fan blade and coil with fresh water.

Regular cleaning and waxing of the cabinet with good automobile polish.

A good liquid cleaner may be used several times a year to remove matter that will not wash

off with water.

The best protection is frequent cleaning, maintenance and minimal exposure to contaminants.

6.INSTALLATION

6.1.GENERAL

These units are designed for outdoor installations. They can be mounted on a slab or rooftop. It

is important to consult your local code authorities at the time the first installation is made.

Check following points before attempting any installation:

Structural strength of supporting members.

Clearances and provision for servicing.

Power supply and wiring.

Location for minimum noise, where operating sounds will not disturb owner or neighbors.

Location where there is no risk of combustible gas leakage.

Location where external water drainage cannot collect around the unit.

Location where roof runoff water does not pour directly on the unit. Provide gutter or other

shielding at roof level. Don't locate unit in an area where excessive snow drifting may occur

or accumulate.

Provide a level concrete slab. To prevent transmission of noise or vibration, slab should not be connected

to building structure. Some sort of sound-absorbing material should be placed between the condenser

and the slab. A good material to use is rubber and cork pad.

For rooftop application, make sure the building construction can support the weight and that proper

consideration is given to the weather-tight integrity of the roof. The condensing unit contains moving

parts and can vibrate. Therefore, sound is also a consideration in rooftop applications.

! WARNING - Install the unit securely in a place that can bear the weight of the unit. When installed

in an insufficiently strong place, the unit could fall causing injury.

6.2.UNIT CLEARANCES

The minimum clearances for the unit are illustrated in Figure 3. Condenser air enters from three sides.

Air discharges upward from the top of the unit. Refrigerant tube and electrical connections are made

from the service access area. The most common application will find the unit best located about 10"

from back wall with connection side facing the wall. This application minimizes exposed tubing and

wiring, minimizing the space for youngsters to run around the unit with subsequent damage to the

tubing or wiring.

In more confined application spaces, such as corners provide a minimum of 10" clearance on all air

inlet sides. For service access to the compressor and control box, allow 18" minimum clearance. Ensure

top is unobstructed. If units are to be located under an overhang, there should be a minimum of 36"

clearance and provision made to deflect the warm discharge air out from the overhang.

In order to have an unrestricted air flow, owners should be advised to avoid lawn mower discharge

toward the unit depositing debris on the fin coil surface reducing the unit efficiency.

6.3.REFRIGERANT PIPING

The refrigerant piping is very important as it affects the proper operation and efficiency of the air

conditioning system. Note the following guidelines:

10" Min.

Service Access

18" Min.

Figure 3

10" Min.

10"

Service Access

18" Min.

OUTDOOR UNIT

LIQUID LINE

PITCH SUCTION LINE TOWARD OUTDOOR

UNIT 1/2" FOR EVERY10' OF LINE

INDOOR UNIT ABOVE OR

LEVEL TO OUTDOOR UNIT

INDOOR UNIT

OUTDOOR UNIT

ADDITIONAL SUCTION LINE

OIL TRAP FOR EACH 20 FOOT

RISE OF PIPE

INDOOR UNIT

LIQUID LINE

SUCTION LINE OIL

TRAP WHEN INDOOR

UNIT IS 4 FEET OR

MORE BELOW

OUTDOOR UNIT

INDOOR UNIT BELOW OUTDOOR UNIT

70'

MAX.

Figure 4

Only refrigeration-grade copper piping (dehydrated and sealed) should be used. Take extreme care to keep

the refrigerant tubing clean and dry prior to and during installation. If in doubt, blow out the tubing

with dry nitrogen to remove any chips or debris before connection. Always keep tubing sealed until it is

in place and the connections are to be made.

Refrigerant piping should be as short as possible, with a minimum of elbows or bends, to avoid capacity

loss and increased operating costs.

Refrigerant lines must be adequately supported. If metal strapping is used to secure the tubing, do not allow

the strapping to directly contact the tubing. Use a closed cell insulation to separate the strapping from the

tubing.

Do not kink or twist the tubing.

Refrigerant piping should not be installed in a cement slab, as this limits access to the refrigerant should a

leak be suspected.

To ensure good oil return to the compressor, it is important to pitch the horizontal suction line toward

the compressor, approximately 1/2" for every 10' of line.

Line Insulation

Suction line requires insulation in order to prevent condensation from forming on the piping and to

prevent heat gain caused by surrounding air. Generally 3/8" wall thickness of Armflex or equivalent

is satisfactory. In severe application (hot, high humidity areas) greater thickness may be required.Apply

the line insulation by sliding it on the sealed tuing before cutting and making connections.

Liquid line does not necessarily need insulation, however, if they are exposed to high ambient temperatures

(i.e. kitchen, boiler rooms, hot attics & rooftop surface), then, they should be insulated. Make sure to

use the proper size tubing for the liquid line to prevent liquid refrigerant flashing to a vapor within

the liquid line.

Do not allow the vapor line and liquid line to touch together. This would cause an undesirable heat

transfer resulting in capacity loss and increased power consumption.

INVERTED LOOP

LIQUID LINE

OUTDOOR UNIT

SUCTION LINE

INDOOR UNIT 50'

MAX.

6' B-1

B-2

Refrigerant Line Sizing

Check the following table (Table 3) for correct suction and liquid line sizes for any combination of

the unit size and the maximum refrigerant line length.

Table 3:Refrigerant Line Sizing

The factory charge is sufficient for 15 feet of standard liquid line. For longer or shorter liquid line

lengths, adjust the charge as follows:

1/4" Line +/- 0.3 oz. Per foot

5/16" Line +/- 0.4 oz. Per foot

3/8" Line +/- 0.6 oz. Per foot

1/2" Line +/- 1.2 oz. Per foot.

Vertical Separation between Indoor and Outdoor Units

Maximum allowable vertical separations between indoor and outdoor units are illustrated in Figure

4-B-1 and Figure 4-B-2. It's 70' when the indoor unit is below the outdoor unit (Figure 4-B-1), and 50'

when the indoor unit is above the outdoor unit (Figure 4-B-2).

To ensure good oil return to the compressor when the indoor unit is below the outdoor unit, suction

line oil trap should be used as illustrated in Figure 4-B-1.

Tubing Connections

! CAUTION - Use extreme caution in removing the caps from the suction and liquid line fittings, as

there is pressure present. A fitting is on the liquid line to remove pressure.

! CAUTION - Heat Pumps are charged with refrigerant. Heat Pump liquid and suction valves are

closed to contain the charge within the unit. Do not force the valve stem against the retaining ring. If

the valve stem is backed out past the retaining ring, system pressure could force the valve stem out

of the valve body and possibly cause personal injury.

! CAUTION - The piston is in the accessory bag. Don't forget to take it out and put into the indoor

liquid pipe orifice.

Instructions on the field tubing connections and valve opening procedure are as follow:

Suction Liquid Suction Liquid Suction Liquid

1.5 3/4 3/8 3/4 3/8 3/4 3/8 13

2.0 3/4 3/8 3/4 3/8 3/4 3/8 13

2.5 7/8 3/8 7/8 3/8 7/8 3/8 13

3.0 7/8 3/8 7/8 3/8 7/8 3/8 13

3.5 7/8 3/8 7/8 3/8 1 1/8 3/8 13

4.0 7/8 3/8 1 1/8 3/8 1 1/8 1/2 13

5.0 7/8 3/8 1 1/8 1/2 1 1/8 1/2 13

Unit Size

(Ton)

Refrigerant Line Length (Ft)

Up to 25 26-50 51-75 Seer
