Thank you for buying this under counter freezer. To ensure that you get the best results from your

new freezer, please take time to read through these simple instructions in this booklet.

Please ensure that the packaging material is disposal of in accordance with the current

environmental requirements.

If the appliance is visibly damaged, do not connect it to the power supply, contact the store from

where you purchased the appliance.

ELECTRICAL CONNECTION (UK ONLY)

For your safety please read the following information.

Warning: This appliance must be earthed.

The appliance must be connected to a 220 - 240 volts 50 cycle AC supply by means of a three pin

socket, suitably earthed and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse.

Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved

to BS1362.

If the mains plug is unsuitable for the socket outlet in your home or is removed for any other

reason, then the cut off plug should be disposed of safely, do not insert the cut off plug into a

mains outlet to prevent the hazard of electric shock. Remove the fuse before disposal.

There is a danger of electric shock if the cut off plug is inserted into any 13-amp socket outlet.

How to wire a 13 amp plug:

Important

The wires in the mains lead on this appliance are colored in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug

proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the

letter E or with the earth symbol or colored green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the mains cord is firmly secured under the cord clamp.

Warnings:

Keep ventilation openings, in the appliance enclosure or in the built in structure,

clear of obstructions.

Do not use mechanical devices or other means to accelerate the defrost process,

other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical devices inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

THANK YOU FOR PURCHASING THIS HAIER PRODUCT

This booklet contains the information you will require to install and operate your new

appliance.

It is important and worthwhile spending time to fully read this booklet so you will

understand how to operate the appliance safely and efficiently.

Please keep this booklet in a safe place so that you can refer to it when required.

Safety information

This information is provided in the interest of your safety. Please read the following

carefully before carrying out the installation or use of the appliance.

If you are discarding an old freezer or refrigerator with a lock / catch fitted to the

door, ensure that it is left in a safe condition to prevent the entrapment of young

children when playing.

As old refrigeration equipment may contain CFC’s which will damage the ozone

layer, when disposing of any refrigeration equipment please contact your local waste

disposal department for advice on the correct method of disposal

This appliance must only be used for its intended purpose i.e. the freezing and storage

of domestic edible foodstuffs and should not be used for any other purpose

If the mains cable becomes damaged, it must be replaced by the manufacturer, its

service agent or a similarly qualified person to avoid a hazard.

Installation

Position the appliance and allow to stand for two to three hours before it is turned on

for the first time to allow the system to settle. Do not position next to any heat source

e.g. cooker, boiler or in direct sunlight etc.

A clearance of 10 cm must be left between the sides of the appliance and any adjacent

cabinets or walls to allow for adequate air circulation. The appliance is not designed

for recessed installation (“building in”).

Install on a good firm level surface, and any unevenness of the floor should be

corrected prior to installation, slight unevenness can be overcome by adjusting the

front feet.

NOTE: If the appliance is positioned on a carpet, soft floor covering you should re-

adjust the front feet once the appliance has had time to settle.

IMPORTANT SAFETY INFORMATION

This appliance must be used on the electric voltage shown on the rating plate

on the base of this appliance, failure to use the correct voltage will render the

guarantee VOID.

This appliance is intended for domestic use only, any other use may invalidate

the warranty and might be dangerous.

This appliance is intended for indoor use only, do not use outdoors.

Accessible surfaces may get hot during operation, use handles and knobs at all

times.

To protect against electric shock do not immerse cord, plugs, or appliance in

water or other liquid.

Do not attempt to dislodge food when product is in operation.

Unplug from outlet when not in use and before cleaning. Remove food before

cleaning the appliance.

If the mains lead becomes damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified person with a lead of the same type and

rating to avoid a hazard.

Do not operate the appliance with a damaged cord or plug or after the

appliance malfunctions or has been damaged in any way. Consult the retail

store where you bought the appliance for advice.

The cooling circuit must not be damaged in any way.

Do not insert over sized food as this could cause a hazard.

Do not let cord hang over edge of the surface, or touch hot surfaces.

Do not place appliance on or near hot surfaces, or in direct sunlight.

Extreme caution must be used when moving an appliance.

Always attach a plug to appliance, then plug cord in the wall outlet. To

disconnect, turn the switch OFF, then remove the plug from wall outlet.

A short power-supply cord is provided to reduce the risk of a tripping

hazard.

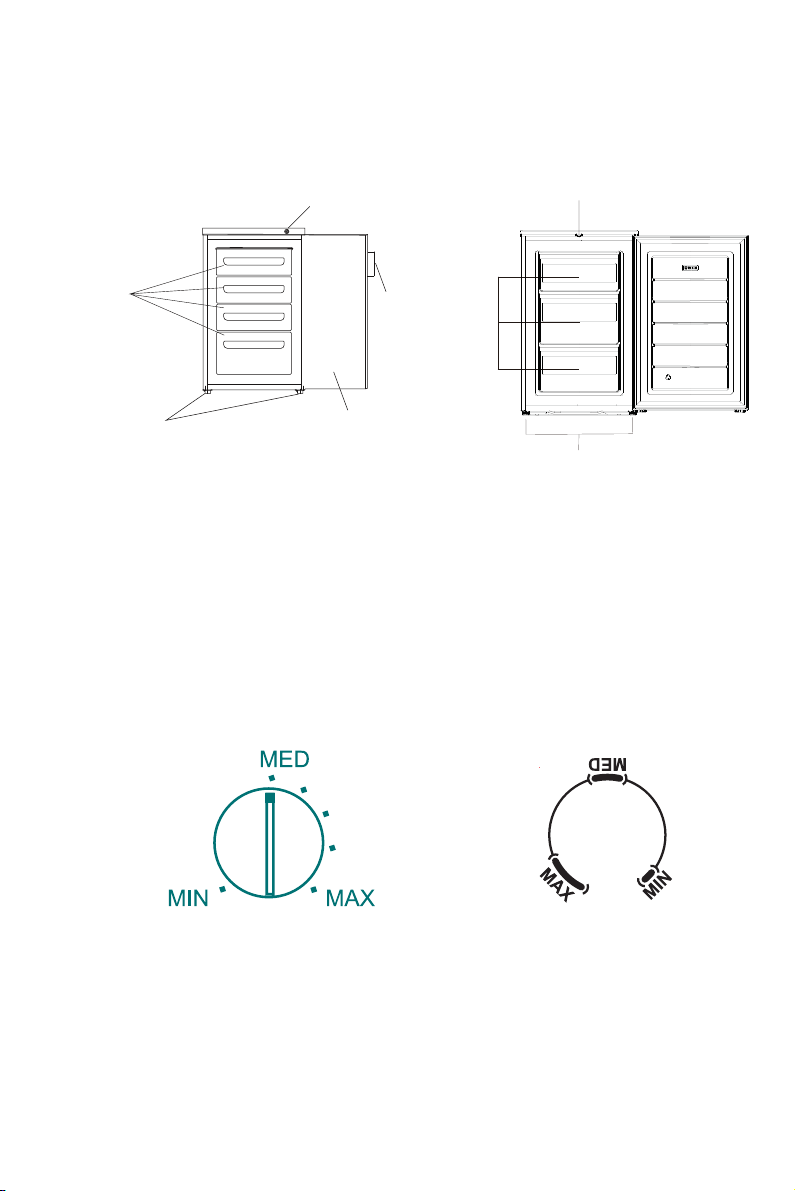

Storage Drawers

Control Unit

Adjustable Foot Door

handle

Description of the Appliance

Control Unit









HTTZ-506W

HTTZ-506S





HTTZ-607W

+77=:

HTTZ-506W

HTTZ-506S





HTTZ-607W

+77=:

T his appliance is des igned for

domestic use only, s pecifically for the

storage of edible foods tuffs.

T his appliance is des igned to operate in

ambient temperatures (surrounding air

temperature) between 16 and 32

If these temperatures are exceeded i.e.,

colder or warmer, the appliance will not

operate correctly. S hould the ambient

temperatures be exceeded for long periods,

the temperature in the freez er will rise

above -18 C and food spoilage may occur.

Before Use

Remove all securing tapes.

W a s h the ins ide of the a pplia nc e with luke wa rm

wa ter with a little bica rbona te of s oda a dde d ( 5ml

to 0. 5 litre of water). Do not use s oa p or

detergent as the s mell may linger. Dry the

applia nce thoroughly.

To S tart the A ppliance

1. Allow the a ppliance to s ta nd for 2 hours

after installation.

2. P lug in the appliance and s witch on at the

mains supply.

3. T urn the the rmos ta t c ontrol to the required

s etting. The MEDsetting is usually s uitable

for normal operation (see thermostat control).

4. Leave the appliance for approximately 4

hours for the c orre c t tempera ture to be

reached before placing food inside.

Thermos tat Control

The thermostat control situated in the control

panel regulates the temperature of the freezer

c ompa rtme nt.

P os ition "Min" - C old

R oom temperature

How often the door is opened

How much food is s tored

P os itio n of the a pplia nc e

To determinethe correct temperaure control

setting, all these factors have to be considered

USING THE APPLIANCE

Do notuse detergents, abrasive

powders, highly perfumed cleaning

products, wa x polishes or products

containing alcohol.

P os ition "Max" - C oldes t

T he temperature will be affected by:

the compre ss or will work continously.

and some experimentation may be necessary

D o not a llow c hildre n to ta mpe r with the

c ontrols or pla y with the produc t.

INSTALLATION

SITTING OF THE APPLIANCE

Do not keep your appliance in a room where the temperature is likely to fall below 16ºC

(61ºF) at night, especially in winter, as it is designed to operate in ambient temperatures

between +16and +32ºC (61 and 90ºF). At lower temperatures the appliance may not

operate, resulting in a reduction in the storage life of the food.

Do not place the appliance near cookers or radiators or in direct sunlight, as this will

cause extra strain on the appliance’s functions. If installed next to a source of heat or

fridge, maintain the following minimum clearances.

Choose a well-ventilated location with no less than 10cm clearance around the freezer.

Place the freezer in a location with a firm base. In order to prevent vibration and

excessive noise. Level the freezer by adjusting the two front feet.

DO NOT PLACE THIS PRODUCT IN AN EXCESSIVELY COLD OR HUMID AREA S U C H A S A

GARAGE OR CELLAR ETC.

WAIT2 TO 3 HOURS BEFOREPLUGGINGINAND SWITCHING O N THIS PRODUCT.THE COOLANT

FLUID NEEDS TIME T O SETTLE.

DO N O T S TO RE F O O D IN T H E FREEZER U N T I L IT HAS BEEN RUNNING F OR

AT LEAST 2 HOURS.

UNDER NO CICUMSTANCES MUST THE COOLANT CIRCUIT BE DAMAGED.

THIS PRODUCT IS INTENDED FOR DOMESTIC USE ONLY, ANY OTHER USE MAY

INVALIDATE THE WARRANTY AND MIGHT BE DANGEROUS

If you are discarding an old appliance with a lock or catch fitted to the door, ensure that it is

left with the door catch disabled to avoid child entrapment when playing.

We suggest you contact your local authority for information on the correct and safe

method of disposal.

Dispose of all packaging in an environmentally friendly way.

Your freezer is suitable for the long-term storage of commercially frozen foods and can be

used to freeze and store fresh food.

If there is a power failure, do not open the door. Frozen food should not be affected if the

failure lasts for less than 12 hrs. If the failure is longer, then the food should be checked

and either eaten immediately or cooked and then re-frozen.

NOISES INSIDE THE FREEZER

If you have not owned a freezer before, you may notice that it makes some rather unusual

noises. Most of these are perfectly normal, but you should be aware of them!

GURGLING, WHOOSHING

These noises are caused by circulation of refrigerant in the cooling system. It has become

more pronounced since the introduction of CFC free gases. This is not a fault and will not

affect the performance of your freezer.

HUMMING, PURRING OR PULSATING

This is the compressor motor working, as it pumps the refrigerant around the system.

SHOPPING FOR FROZEN FOODS

Your Freezer is 4 star.

When you are buying frozen food, look at the Storage Guidelines on the packaging. You

will be able to store each item of frozen food for the period shown against the 4 star

rating. This is usually the period stated as ‘Best Before’, on the front of the packaging.

CHECK THE FREEZER TEMPERATURE

Check the temperature of the frozen food cabinet in the shop where you buy your frozen

foods. It should show a temperature lower than -18°C.

CHOOSE PACKS CAREFULLY

Take a quick look at the frozen food package and make sure it is in perfect condition.

PURCHASE FROZEN FOOD LAST

Always buy frozen products last on your visit to the supermarket.

KEEP FROZEN FOODS TOGETHER

When you are going around the supermarket and when you are travelling home, if you

keep all the frozen foods together they will help to keep each other cold.

STORE FOOD STRAIGHT AWAY

Don’t buy frozen food unless you can freeze it straight away. Special insulated bags can

be bought from most supermarkets and hardware shops. These keep frozen food cold for

longer.

FREEZING FRESH FOOD

Prepare the food to be frozen in small portions for ease of freezing and eventual thawing.

Wrap the food in purpose-made polythene or aluminium foil, if possible airtight. Make a

note of the date of freezing on the wrap and place it in the freezer drawer. The thermostat

setting does not need to be altered when freezing food.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Congelador de Haier

Haier

Haier HUF168EA Instrucciones de montaje

Haier

Haier BD-314 Manual de usuario

Haier

Haier HVF170VW Manual de usuario

Haier

Haier HCM050EC - 5.0 cu. Ft. Capacity Freezer Manual de usuario

Haier

Haier HF-180T Manual de usuario

Haier

Haier HVF430VW Manual de usuario

Haier

Haier HF-155W Manual de usuario

Haier

Haier SC-280 Manual de usuario

Haier

Haier LW-110G Manual de usuario

Haier

Haier JC-NC204A Manual de usuario

Haier

Haier Thermocool HF-220 Manual de usuario

Haier

Haier HCF-66 Manual de usuario

Haier

Haier BD-106A Manual de usuario

Haier

Haier HF-100 Manual de operación y mantenimiento

Haier

Haier HZY-8Z Manual de usuario

Haier

Haier HUM013EA Manual de usuario

Haier

Haier HF50CW20W Instrucciones de funcionamiento

Haier

Haier JF-NC429A Manual de usuario

Haier

Haier HCF524 Manual de usuario

Haier

Haier BD-429GAA Manual de usuario

Haier

Haier HUM030PA Manual de usuario

Haier

Haier HF09CM10NW Instrucciones de montaje

Haier

Haier SC-180 Manual de usuario

Haier

Haier HCE259R Manual de usuario

Manuales populares de Congelador de otras marcas

Siemens

Siemens GU..D SERIES Manual de usuario

Omcan

Omcan FR-CN-0155 Manual de usuario

Beko

Beko FNE290E24W Manual de usuario

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manual de usuario

Electrolux

Electrolux EUF2042AOX Manual de usuario

Dometic

Dometic CoolFreeze CFX95DZ Manual de usuario

Electrolux

Electrolux EUF7000W1 Manual de usuario

Polar Electro

Polar Electro CT330 Manual de usuario

MPM

MPM MPM-145-SK Series Manual de usuario

SAF

SAF PRESTOTIG 200AC/DC Guía rápida

Zanussi

Zanussi ZFT11407WA Manual de usuario

AEG

AEG A63190GT Manual de usuario

AEG

AEG A81000TNW0 Manual de usuario

Matsui

Matsui MUC50S15E Manual de usuario

NEFF

NEFF G4344X8 Manual de usuario

Frigidaire

Frigidaire FV 1246 H Manual de usuario

Frigidaire

Frigidaire FFC13K1AW Manual de usuario

Electrolux

Electrolux EU 2400C Manual de usuario
