Safety Is Very Important

Carefully remove and dispose of the packing material.

Check to make sure that the appliance is not damaged. If in doubt, contact the retailer it was purchased

from.

This dishwasher is designed for washing household dishes and cooking utensils.

Do not install this appliance outdoors, even if a roof covers the area.

Do not lean or sit on the door when it is open, as it may over turn the dishwasher.

Do not touch the heating element during or after a wash cycle.

If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the wall

socket and refer to the section entitled, "Troubleshooting". If you cannot solve the problem, contact an

authorised service centre/agent.

Only selected service centres/agents are authorised to make repairs.

If the supply cord is damaged ,it must be replaced by the manufacture, a service agent of similar qualified

persons in order to avoid a hazard.

The appliance is not instruct for use of young children of infirm persons without supervision. Young

children should be supervised to ensure that they do not play with the appliance.

Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid con-

tact with the skin and eyes and keep children away from the dishwasher when the door is open. Check

that the detergent receptacle is empty after completion of the wash cycle.

Do not use extension cords or multiple sockets.

The plug must be accessible after installation.

During installation the power cord must not be bent or flattened excessively.

If the appliance is not operating properly,disconnect the appliance from the power supply.

Carefully read the instructions contained in this manual, as it provides information that is essential to safe

and proper installation, use and maintenance of this appliance.

To maintain the EFFICIENCY and SAFETY of this appliance:

Only call a authorised service centre.

Always use original Spare Parts.

Children and infirm must be supervised at all times during use of the dishwasher by an adult.

Warning

Dishwasher detergents can be extremely dangerous if swallowed. Avoid contact with skin,

eyes and keep children away from the dishwasher when the door is open. Check that the

detergent receptacle is empty after completion of the wash cycle.

Close-up View (Control Panel)

"END" Light

"POWER" Button Knob For Selecting Cycle

Handle For Opening Door

Close-up View (Interior)

Upper Rack

Rack Height Adjustor

Top Spray Arm

Lower Rack

Washing Filter

Bottom Spray Arm

Detergent and Rinse Aid Dispenser

Heat Indicator Light

Detergent and Rinse Aid...

Detergent

Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled be-

fore the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The deter-

gent dispenser is located on the inside panel the door.

Rinse Aid

This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the

inside panel of the door and should be filled after every 80 wash cycle (or when the rinse aid indicator light

comes on for models with this feature).

Loading the detergent

To open the "A" cover on the dispenser, press the "B" button. The

detergent for the wash cycle should be poured into the "C"

compartment.The detergent for the pre-wash cycle should be poured

into the “D” compartment.

After the detergent has been placed in the dispenser, close the cover

and press down until it clicks in place.

Important

Proper dosage of the rinse aid improves drying.

If drops of water remain on the dishes or spotting occurs, the dosage adjuster should be turned to a higher

setting.

If the dishes have white streaks, turn the dosage adjuster to a lower setting.

Loading the Rinse Aid

To open the dispenser, turn the "E" cap in an anti-clockwise direction

and then pour in the rinse aid, making sure not to overfill. The amount

of rinse aid used for each cycle, turn the dosage adjuster "F", beneath

the cap, with a screwdriver. There are 6 different settings; the normal

dosage setting is 3.

Notice:

To facilitate closing the cover, remove any excess detergent on the edges of the dispenser.

Dishwasher detergents are stronly alkaline. They can be extremely dangerous if swallowed.

Avoid contact with the skin and eyes and keep children away from the dishwasher when the

door is open. Check that the detergent receptable is empty after completion of the wash cycle.

Loading the Dishwasher

Before placing the dishes in the dishwasher, remove the larger food

particles to prevent the filter from becoming clogged.

If the pots and pans have baked-on food thatis extremely hard to remove,

we recommend they are soaked before washing. This will eliminate the

need for extra wash cycles.

Pull out the rack to load the dishwasher.

The lower rack

Place the most difficult to clean items on the bottom rack: pots, pans,

lids, serving dishes and bowls.

It is preferable to place serving dishes and lids on the sides of the racks

in order to avoid blocking the rotation of the top spray arm.

- Pots, serving bowls, etc. must always be placed face down.

- Deep pots should be tilted to allow the water to flow out.

The upper rack

The upper rack is designed to hold more delicate and lighter dishes,

such as glasses, cups and saucers, plates and small bowls.

- Position the dishes so that they do not move by the spray of the water.

To adjust the height of the upper rack, rotate the caps located on the

end of the rack guide rails to the side, remove the rack-

completely and refit using the alternate set of wheels (see fig.B).

Adjust the upper basket to the higher level to allow more height in

the bottom basket for large items.

Information on comparability tests imple-

mented in compliance with AS/NZS 2007

Appliance loaded in accordance with standard specifications.

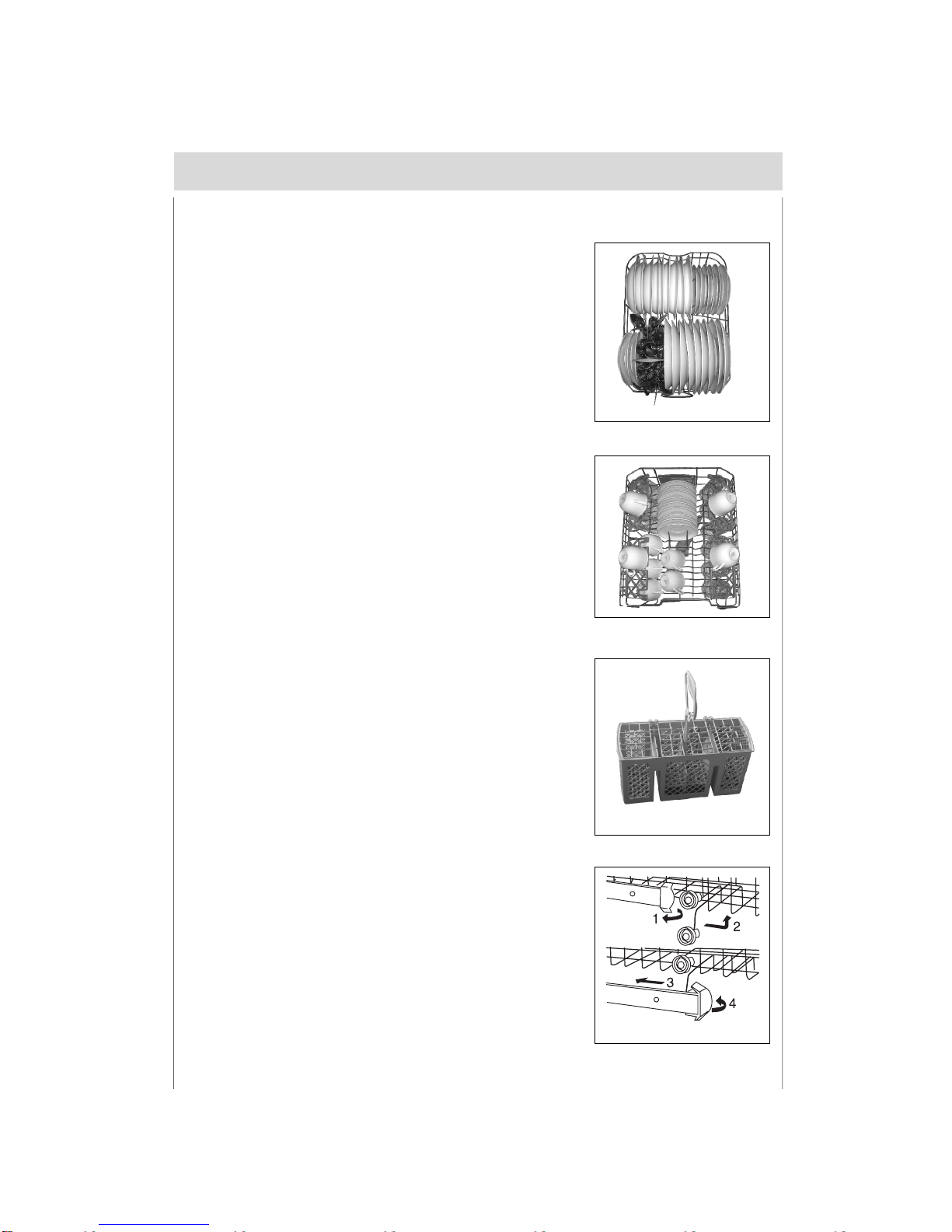

Example of loaded dishwasher: See fig. A and B.

Capacity: 12 place settings

Comparability programme: NORMAL wash

Rinse-aid setting: 5

Detergent: 25+5g

Height-adjustable top-basket must be inserted in the uppermost position.

If the comparability tests do not comply fully with AS/NZS 2007, e.g.,

degree of soiling, type of dishes

and cutlery, etc., contact the appliance manufacturer before starting the

test.

Lower Rack

Upper Rack

Load for 9 Standard Settings

fig.A

fig.B

Notice:

When washing, the knob will not rotate itself.

Turning on the Appliance

Starting a wash cycle...

Make sure that the plug for the appliance is inserted into the wall socket.

Make sure that the water supply is turned on to full pressure.

Load the dishes.

Pour in the detergent.

Press the "POWER" button, and the “END” light will turn on.

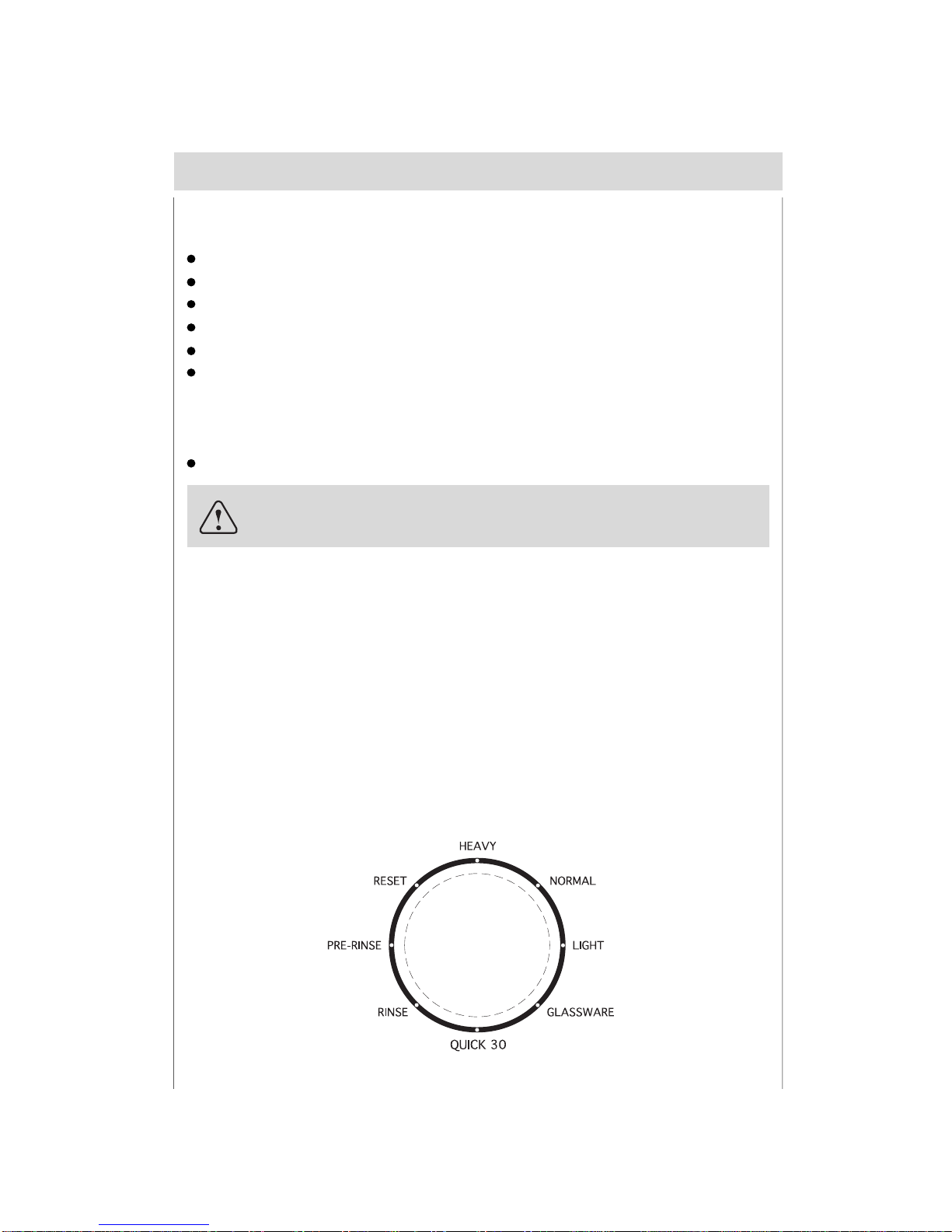

Turn the knob located on the right of the control panel until the number or symbol for the cycle setting is

aligned with the refrence mark (see the section entitled, program overview).If the knob rightly aligned with

the refrence mark you want to choose, you must turn the knob to with the mark of “RESET” .Then back to

first step.

After five seconds the “END” light will turn off, the wash cycle will begin.

When the buzzer constantly beeps six times, the “END” light will turn on and the cycle has finished. Turn off

the appliance using the "POWER" button, turn off the water supply and open the door of the dishwasher.

Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are

still hot and more susceptible to breakage. They will also dry better.

At the end of the wash cycle...

Acycle that is underway can only be modified if it has been running for a short time. Otherwise, the detergent

may have already been used, and the appliance may have already drained the wash water. If this is the

case, the detergent dispenser must be refilled (see the paragraph entitled, "Loading the Detergent").Rotate

the knob to the mark of “RESET” then select right programme.

Cancelling or modifying a wash cycle setting...

It is important to try and run the dishwasher when it is fully loaded to save on energy.

Rather than run a full cycle for a half load, you can run the "PRE-RINSE" cycle which will prevent odours

from forming and food from caking onto the dishes.

Choose the right wash cycle: the choice of cycle depends on the type of dishware, cookware and utensils

being washed and how dirty they are.

Use the right amount of detergent: if you use too much detergent, the result will not be cleaner dishes, but,

rather, a greater negative impact on the environment.

Energy Saving Tips

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture

and odors are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be laid

on its back.

Seals

One of the reasons that odours form in the dishwasher is that food get trapped in the seals. Periodic clean-

ing with a sponge will prevent this.

DO NOT LAY THE MACHINE ON ITS RIGHT HAND SIDE

Solvents or Abrasive Cleaning Products

Do not use solvents or abrasive cleaning products to clean the exterior and rubber parts of the dishwasher,

use only a cloth and warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white

vinegar, or a cleaning product made specifically for dishwashers.

When You Go on Holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then

remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar.

This will help the seals last longer and prevent odours from forming.

How to Keep Your Dishwasher in Shape

Wash Cycle Table

()AS/NZS 2007 test with rinse aid setting 5

Wash

programme Description of cycle

Pre-wash with hot water.

Extended wash at 70°C.

Rinses with cold water.

Rinse with hot water.

Drying.

Pre-wash use cold water.

Extended wash at 50°C.

Rinse with cold water.

Rinse with hot water.

Drying.

Hot rinse at 65°C.

Drying.

Short wash at 40°C.

Cold rinse.

Short cold wash to pre-

vent food residue from

drying on the dishes.

Pre-wash use cold water.

Extended wash at 50°C.

Rinse with cold water.

Rinse with hot water.

Drying.

Wash at 45°C.

Rinse with cold water.

Hot rinse.

Drying.

HEAVY

NORMAL

(AS/NZS 2007)

LIGHT

RINSE

GLASSWARE

PRE-RINSE

QUICK 30

Very dirty dishes,

pots and pans. (Not

to be used with deli-

cate items.)

Normal load of dirty

dishes, pots and

pans, Standard daily

cycle.

Lightly soiled deli-

cate items.

Economic cycle for

delicate items. Run

immediately after

dishes are used.

Very lightly solied

mixed dishes.

For dishes that only

require a rinse and

dry.

Pre-rinse of dishes

while waiting for a

full load.

Types of load Detergent

Extended

Wash

Prewash

25g

15g

Rinse

Aid

( )

Cleaning and Special Maintenance

Filter Assembly

For the best performance and results, the filter assembly must be keep clean.

The filter removes food particles from the wash water, allowing the water to be recirculated during the cycle.

For this reason, it is a good idea to remove any food particles trapped in the filter after each wash cycle by

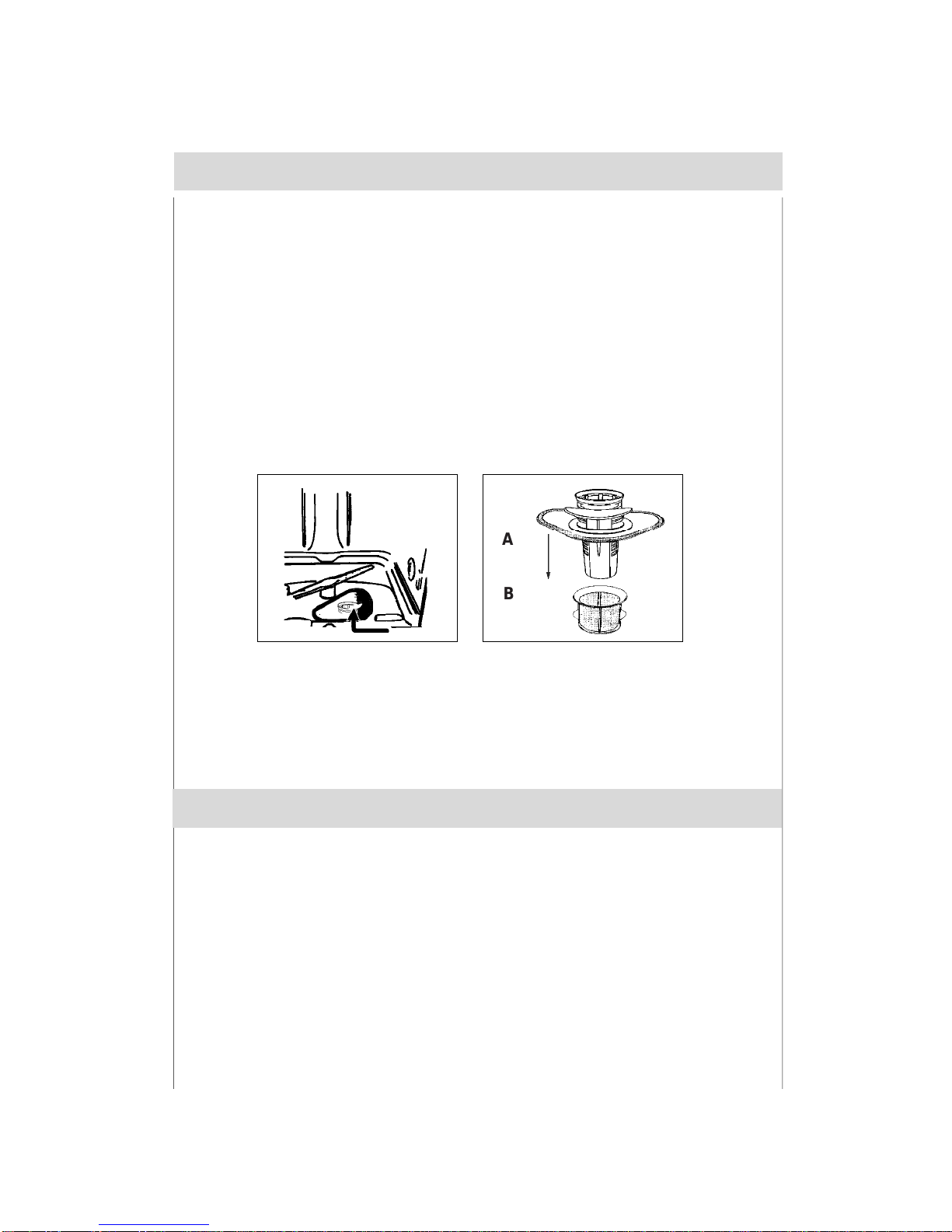

rinsing the semi-circular filter and cup "A" under running water. To remove the filter assembly, pull the

handle in an upward direction. The entire filter assembly (made up of the semicircular filter "A" and the fine

filter "B") should be cleaned at least once a month use a soft brush. To reassemble, insert the entire assem-

bly into the dishwasher, locate it correctly in its seat and pressing downward.

The dishwasher must not be used without the filters. Improper replacement of the filters may reduce the

performance of the appliance.

Cleaning the Spray Arms

Food particles may become encrusted on the spray arms and block the hole (see "Close up view [interior]"

on page 3, letters C-E ). Check the spray arms periodically and clean them when needed.

Troubleshooting

Resolving minor problems yourself

Experience has shown that you can resolve most problems that rise during normal daily usage yourself,

without having to call out a service engineer.Not only does this save costs,but it also means that the appli-

ance is available for use again that much sooner. The following list of common occurrences and their rem-

edies should help you identify the causes of most problems.

Problems...

...when the appliance is switched on

Appliance does not start up

Otros manuales para HDW9SST

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Haier

Haier

Haier DW12-EFETME Manual de usuario

Haier

Haier WQP12-ABM2 Manual de usuario

Haier

Haier DWL3525DBWW Manual de usuario

Haier

Haier GE GDF450P R0 Series Cómo utilizar

Haier

Haier DW12-HFE1 Manual de usuario

Haier

Haier HDW9TFE3SS HA AA Manual de usuario

Haier

Haier WQP12-BFESS Manual de usuario

Haier

Haier DW12-CBE6 IS Manual de usuario

Haier

Haier DW12-PFE1 S Manual de usuario

Haier

Haier DWL2825DDBB Instrucciones de montaje

Haier

Haier HDT18PA - Space Saver Compact Dishwasher Manual de usuario

Haier

Haier WQP12-AFM2 Manual de usuario

Haier

Haier DW12-BFE ME Manual de usuario

Haier

Haier DW12-CBE4 Manual de usuario

Haier

Haier ESD 300 Series Manual de usuario

Haier

Haier HDC2406TW Instrucciones de montaje

Haier

Haier HDC1804TW - 07-09 Manual de usuario

Haier

Haier 120505609 Manual de usuario

Haier

Haier DW9-TFE3 Series Manual de usuario

Haier

Haier WQP4-3N Manual de usuario

Haier

Haier DW15-PFE2ME Manual de usuario

Haier

Haier DW9-LBE Manual de usuario

Haier

Haier DW9-AFM ME Manual de usuario

Haier

Haier GE GDF510P M4 Series Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
