BuiJto_nDishwasher

User Manual° Mo_l#

Guide de FU_s_e_E _ Modele#

M_nu_ de_ U_u_ _Modelo#

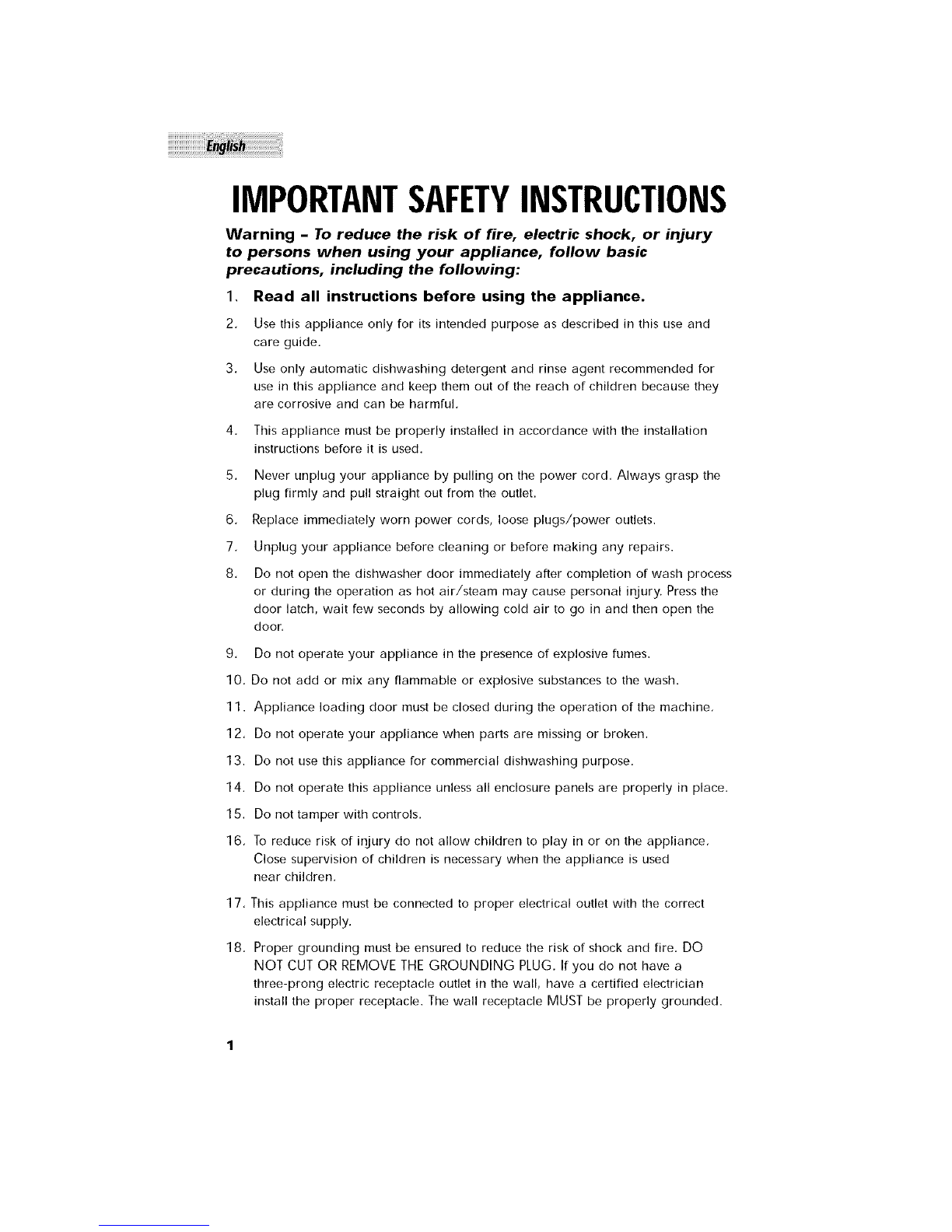

IMPORTANTSAFETYINSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended purpose as described in this use and

care guide.

3. Use only automatic dishwashing detergent and rinse agent recommended for

use in this appliance and keep them out of the reach of children because they

are corrosive and can be harmful.

4. This appliance must be properly installed in accordance with the installation

instructions before it is used.

5. Never unplug your appliance by pulling on the power cord. Always grasp the

plug firmly and pull straight out from the outlet.

6. Replace immediately worn power cords, loose plugs/power outlets.

7. Unplug your appliance before cleaning or before making any repairs.

8. Do not open the dishwasher door immediately after completion of wash process

or during the operation as hot air/steam may cause personal injury. Press the

door latch, wait few seconds by allowing cold air to go in and then open the

door.

9. Do not operate your appliance in the presence of explosive fumes.

10. Do not add or mix any flammable or explosive substances to the wash.

11. Appliance loading door must be closed during the operation of the machine.

12. Do not operate your appliance when parts are missing or broken.

13. Do not use this appliance for commercial dishwashing purpose.

14. Do not operate this appliance unless all enclosure panels are properly in place.

15. Do not tamper with controls.

16. To reduce risk of injury do not allow children to play in or on the appliance.

Close supervision of children is necessary when the appliance is used

near children.

17. This appliance must be connected to proper electrical outlet with the correct

electrical supply.

18. Proper grounding must be ensured to reduce the risk of shock and fire. DO

NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have a

three-prong electric receptacle outlet in the wall, have a certified electrician

install the proper receptacle. The wall receptacle MUST be properly grounded.

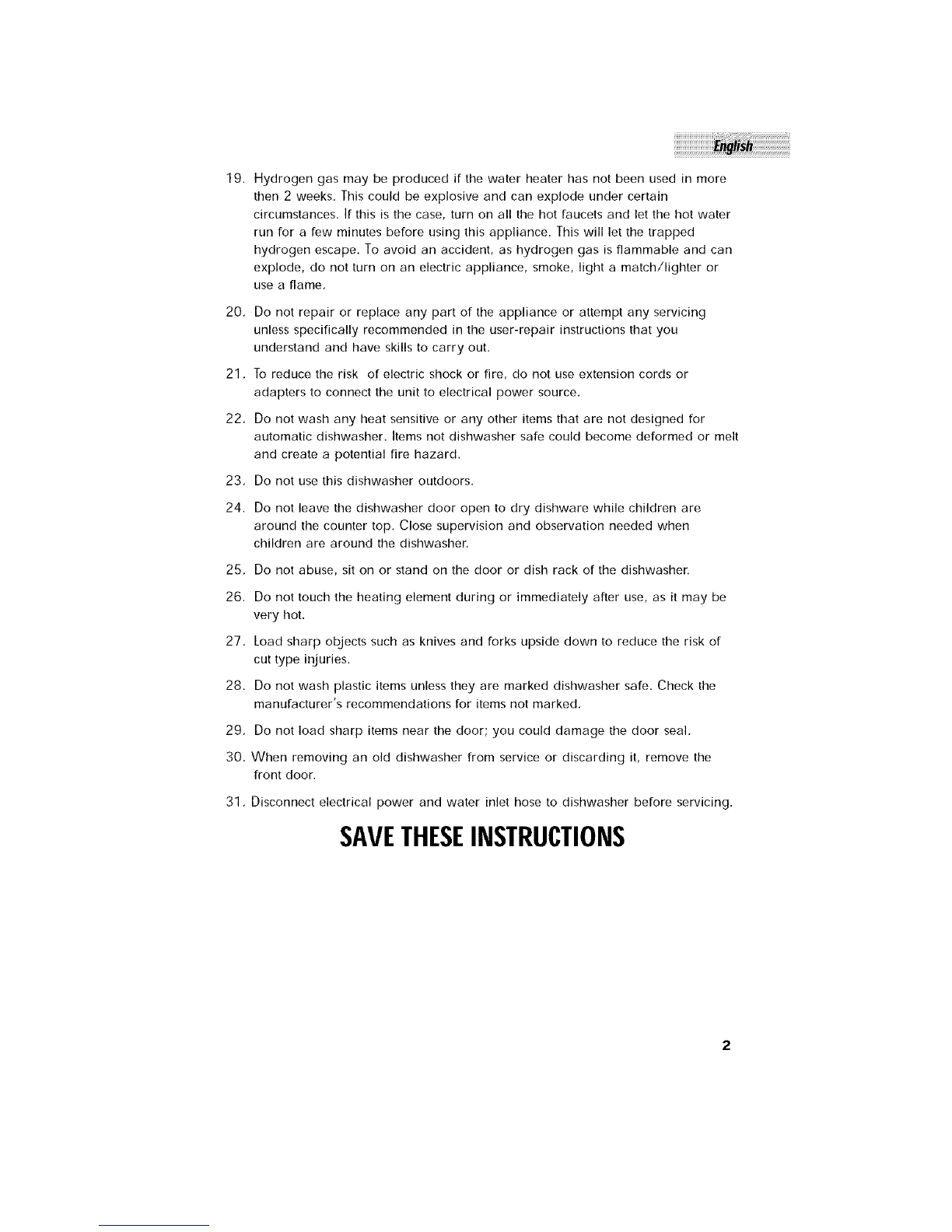

19.Hydrogengasmaybeproducedifthewaterheaterhasnotbeenusedinmore

then2weeks.Thiscouldbeexplosiveandcanexplodeundercertain

circumstances.Ifthisisthecase,turnonallthehotfaucetsandletthehotwater

runforafewminutesbeforeusingthisappliance.Thiswillletthetrapped

hydrogenescape.Toavoidanaccident,ashydrogengasisflammableandcan

explode,donotturnonanelectricappliance,smoke,lightamatch/lighteror

useaflame,

20.Donotrepairorreplaceanypartoftheapplianceorattemptanyservicing

unlessspecificallyrecommendedintheuser-repairinstructionsthatyou

understandandhaveskillstocarryout.

21.Toreducetheriskofelectricshockorfire,donotuseextensioncordsor

adapterstoconnecttheunittoelectricalpowersource.

22.Donotwashanyheatsensitiveoranyotheritemsthatarenotdesignedfor

automaticdishwasher.Itemsnotdishwashersafecouldbecomedeformedormelt

andcreateapotentialfirehazard.

23.Donotusethisdishwasheroutdoors.

24.Donotleavethedishwasherdooropentodrydishwarewhilechildrenare

aroundthecountertop.Closesupervisionandobservationneededwhen

childrenarearoundthedishwasher.

25.Donotabuse,sitonorstandonthedoorordishrackofthedishwasher.

26.Donottouchtheheatingelementduringorimmediatelyafteruse,asitmaybe

veryhot.

27.Loadsharpobjectssuchasknivesandforksupsidedowntoreducetheriskof

cuttypeinjuries.

28.Donotwashplasticitemsunlesstheyaremarkeddishwashersafe.Checkthe

manufacturer'srecommendationsforitemsnotmarked.

29.Donotloadsharpitemsnearthedoor;youcoulddamagethedoorseal.

30.Whenremovinganolddishwasherfromserviceordiscardingit,removethe

frontdoor.

31.Disconnectelectricalpowerandwaterinlethosetodishwasherbeforeservicing.

SAVETHESEINSTRUCTIONS

PAGE

SAFETY INSTRUCTIONS ................................................................ 1-2

Knowing Your Dishwasher ........................................................ 4-6

Using Your Dishwasher ............................................................ 7-16

Understanding The Filtration System ........................................ 17

Dishwasher Safe or Hand Wash .......................................... 18-20

Care & Cleaning Of Your Dishwasher ...................................... 21

Troubleshooting ........................................................................ 22-26

Warranty ........................................................................................ 27

Thank you for purchasing our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your dishwasher.

Remember to record the model and

serial number, They are on a label in

back of the dishwasher,

Model number

Serial number

Date of purchase

Staple your receipt to your manual, You will need it to obtain

warranty service.

All figures in this use & care manual are for illustration purposes only. The

illustrated parts shown in figures may be different on the actual unit,

Specifications and features are subject to change without prior notice.

Parts and Features

(Front View with Open Door)

®©

1. Upper Sprayer

2. Deluxe 2 Position Adjustable Upper

Rack with Stemware Holders

3. Middle Spray Arm

4. Pressure Relief Valves (One located at

the upper left corner (not shown)

5. Lower Rack

6. Removable Split Silverware Basket

7, Rinse Aid Compartment

8. Pre-Wash Detergent Compartment

9, Main Wash Detergent Compartment

10, Triple Filtration System (Located at

the bottom under Lower Rack)

11 .Heating Element (Located at rear and

under lower rack)

12. Lower Spray Arm

(Front View with Door Closed)

I'_ier

r_r-T_,XP"

©p_

o© RI_._E & HOLD POTI9 & P_&t,_

_a__ f_,_,,j_,o_

1. Hi-Temp Wash Button (On/Off)

2. Power On Indicator Light

3. Power Button (On/Off)

4. Rinse Check Indicator Light

5, Wash Selector Knob

(Rear View)

(Z)_

1. Drain Hose (Factory Attached)

2. Electrical Connection Junction Box

(120v/6OHz - Plug not Included)

3. Rear Leveling Legs

4. Water Inlet

5, Rear Insulation Panel

Understanding the Dishwasher Control Panel:

Power Button:

• Press "POWER" button in to turn the power "ON".

• Press this button again to turn the power "OFF",

Note: You will see the "Power On indicator Light" lit when the unit is on.

Hi-Temp Wash Button:

• Press "HI-TEMP WASH" button in to turn the "HI-TEMP WASH"

option "ON'.

• Press this button again to turn the "HI-TEMP WASH" option "OFF",

WAlk-[

"Rinse _/" Indicator Light:

• When "RINSE 4" indicator light is lit, this means the rinse aid

detergent is empty in the rinse aid compartment. You need to

refill rinse aid at this time,

O _,

RINSE

Door Latch:

• To lock the door, push the door with

light force until you hear the "Click."

• To unlock the door, squeeze the door

latch and pull towards you.

Wash Selector Knob:

• When selecting a wash cycle, turn the knob

"CLOCKWISE" to your desired setting by matching

the knob "Pointer" symbol to the cycle "dot" symbol,

Once both are lined up, press "Power" button to

begin the wash process, (You will hear "Click" and

the wash cycle will start automatically,) A "Click" will

signify the automatic start at the wash cycle.

_A_SWAR£ _

Warning: The wash selector knob is designed to work only in a

clockwise direction. DO NOT turn the knob "COUNTER

CLOCKWISE." Turning in a counter clockwise direction

may cause damage to the wash selector.

Selecting Wash Cycles

• Select the appropriate cycle based on the load

and soil level. For your convenience, the

dishwasher has Pots & Pans, Normal,

Glassware and Rinse & Hold wash cycles that

you can select from.

Pots & Pans Wash Cycle:

• This cycle is used for heavily soiled pots & pans,

I_O'I'S&I_&I_'S

'31,b.SSWb._£

cookware, dishware, silverware and glassware items with dried-on or baked-on

soils.

Note: This cycle may not remove burned-on foods,

Normal Wash Cycle:

• This cycle is used for medium or heavily soiled dishware, glassware and

silverware,

Glassware Wash Cycle:

• This cycle is used for lightly soiled glassware, chinaware, pre-rinsed dishes and

silverware.

Rinse &Hold Cycle:

• This cycle is used for rinsing partial loads that will be washed later.

Note: Do not use detergent with this cycle.

Selecting Wash Option

Hi-Temp Wash:

• You can select this option with Pots &Pans, Normal or Glassware wash cycles.

Note: Do not use this option with Rinse & Hold Cycle.

Note: When this option is selected, water temperature boosts up between

161 ° F- 167 ° F. "HI-TEMP WASH" helps: kill bacteria, dissolve detergents,

remove sticky and greasy substances off the dishware and as well as

effective cleaning.

Note: Any interruption during wash and rinse cycles or if the incoming water

temperature is too low, proper water heating temperature cannot be

achieved and the Hi-Temp Wash heating temperature conditions may be

affected.

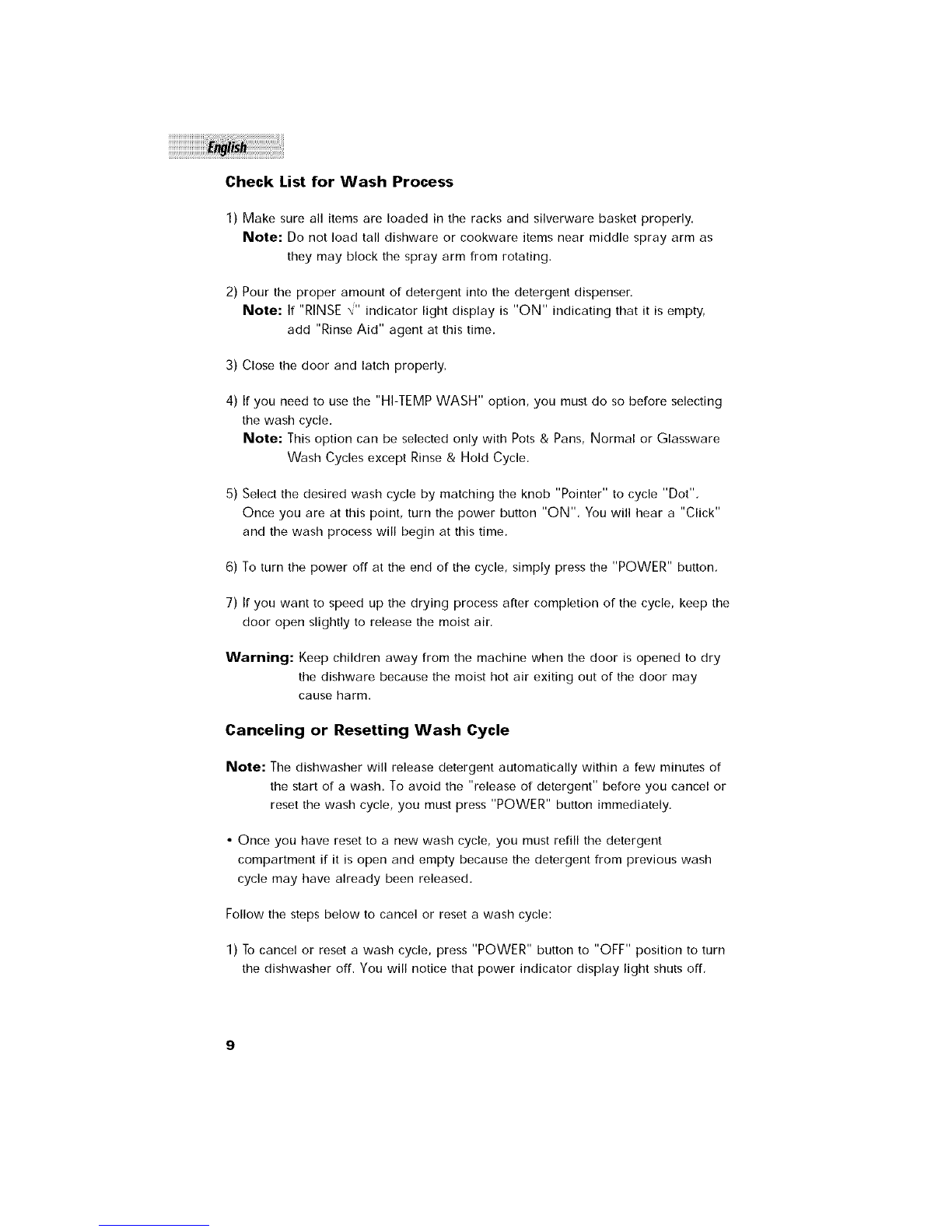

Check List for Wash Process

1) Make sure all items are loaded in the racks and silverware basket properly.

Note: Do not load tall dishware or cookware items near middle spray arm as

they may block the spray arm from rotating.

2) Pour the proper amount of detergent into the detergent dispenser.

Note: If "RINSE 4" indicator light display is "ON" indicating that it is empty,

add "Rinse Aid" agent at this time.

3) Close the door and latch properly.

4) If you need to use the "HI-TEMP WASH" option, you must do so before selecting

the wash cycle.

Note" This option can be selected only with Pots & Pans, Normal or Glassware

Wash Cycles except Rinse & Hold Cycle,

5) Select the desired wash cycle by matching the knob "Pointer" to cycle "Dot",

Once you are at this point, turn the power button "ON", You will hear a "Click"

and the wash process will begin at this time.

6) To turn the power off at the end of the cycle, simply press the "POWER" button,

7) If you want to speed up the drying process after completion of the cycle, keep the

door open slightly to release the moist air,

Warning: Keep children away from the machine when the door is opened to dry

the dishware because the moist hot air exiting out of the door may

cause harm.

Canceling or Resetting Wash Cycle

Note: The dishwasher will release detergent automatically within a few minutes of

the start of a wash. To avoid the "release of detergent" before you cancel or

reset the wash cycle, you must press "POWER" button immediately.

•Once you have reset to a new wash cycle, you must refill the detergent

compartment if it is open and empty because the detergent from previous wash

cycle may have already been released,

Follow the steps below to cancel or reset a wash cycle:

1) To cancel or reset a wash cycle, press "POWER" button to "OFF" position to turn

the dishwasher off. You will notice that power indicator display light shuts off,

Otros manuales para ESD100

Tabla de contenidos

Idiomas:

Otros manuales de Lavavajillas de Haier

Haier

Haier HDW15V2 2 Series Manual de usuario

Haier

Haier DW12-BFE SS Manual de usuario

Haier

Haier DWL2825DDBB Instrucciones de montaje

Haier

Haier DW15-PFE S Instrucciones de instalación y mantenimiento

Haier

Haier HDW6WH Manual de usuario

Haier

Haier DW-8888-22 Manual de usuario

Haier

Haier DW9-TFE3 Series Manual de usuario

Haier

Haier DW12-LFESS Manual de usuario

Haier

Haier ESD 400 Series Manual de usuario

Haier

Haier XPB55-12S Manual de usuario

Haier

Haier WQP4-3N Manual de usuario

Haier

Haier DWL3025DBBB Instrucciones de montaje

Haier

Haier DW12-PFE2-U Manual de usuario

Haier

Haier WQP4-3N Manual de usuario

Haier

Haier HDB24EA - 08-04 Manual de usuario

Haier

Haier HDT18PA - Space Saver Compact Dishwasher Manual de usuario

Haier

Haier DW12-TFE5 Manual de usuario

Haier

Haier WQP12-EFMSA Manual de usuario

Haier

Haier DW12-EFM S Manual de usuario

Haier

Haier ESD401 Manual de usuario

Haier

Haier DWL3525DBWW Manual de usuario

Haier

Haier HDW9WHT HA AA Manual de usuario

Haier

Haier HDC2406TW Manual de usuario

Haier

Haier DW12-KFE ME Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
