Haier HW-09CV03 Manual de usuario
HW-09CV03
HW-12CV03
No.0010503559
Contents
Parts Name ................................................................................................
1
2-4
5-7
8
9
10-12
Operation Guide .......................................................................................
Maintenance .............................................................................................
Cautions ......................................................................................................
Trouble Shooting ..........................................................................................
Installation Guide ...................................................................................

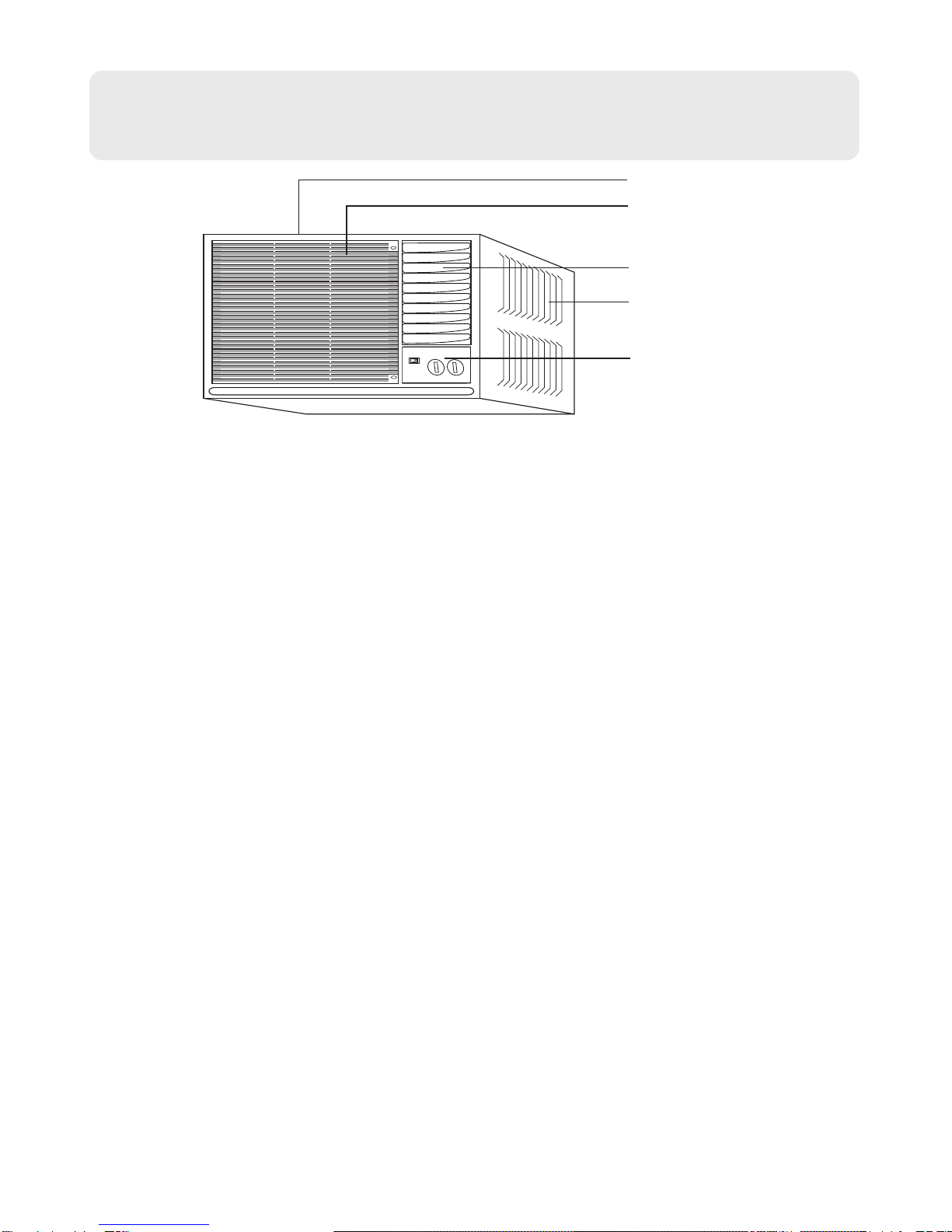

Parts Name
panel
panel
1
HW-12CV03
HW-09CV03
Front
Air inlet(indoorside)
Air outlet(indoorside)
Air inlet(outdoorside)

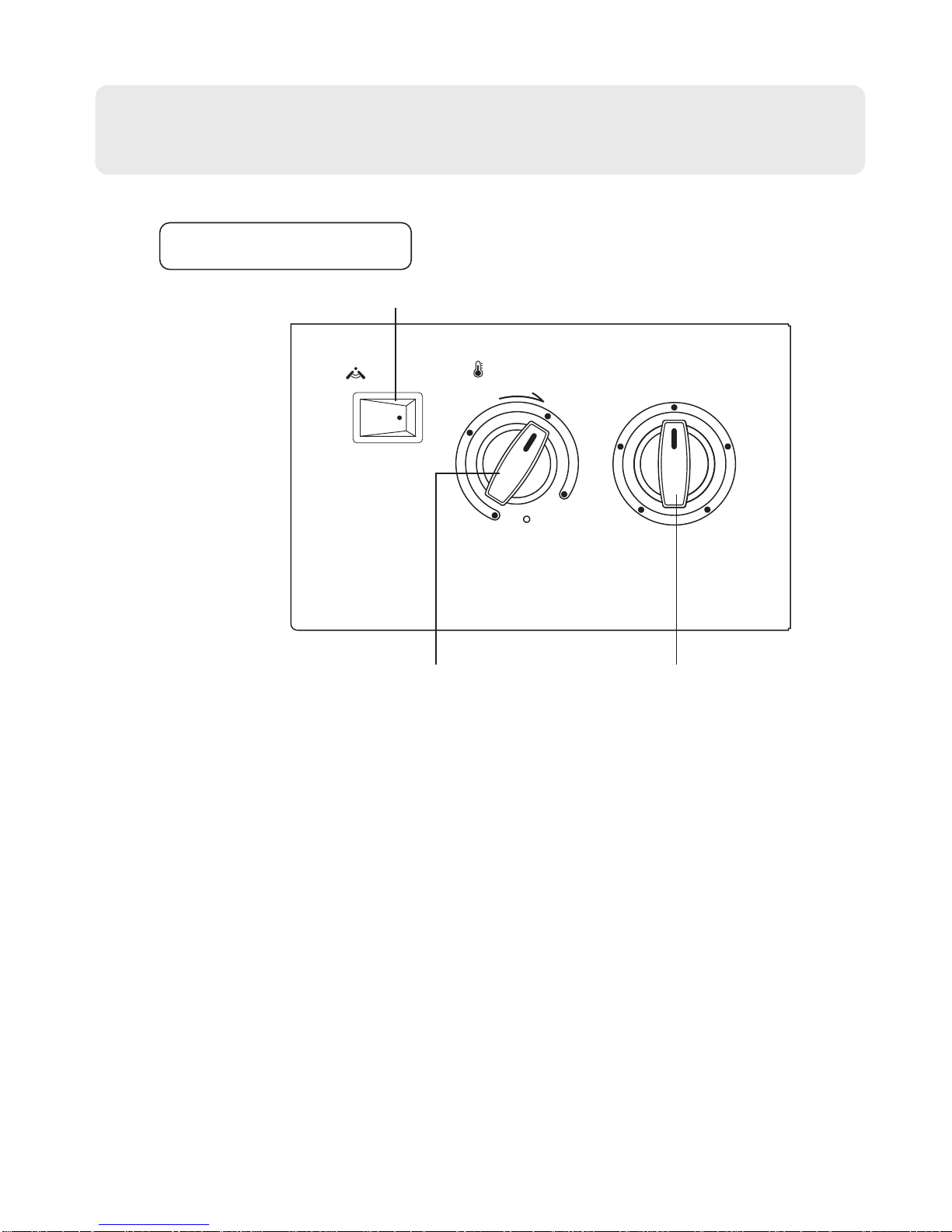

Operation
Operation panel
After unit stops, don't restart it until 3 min. have elapsed.
Mode selection
OFF ON
Auto swing Temp. setting
COOL
1
36
9
Test
run LO
cool HI
cool
HI
fan
LO
fan
OFF
Auto swing switch
Mode selection switchThermostat switch

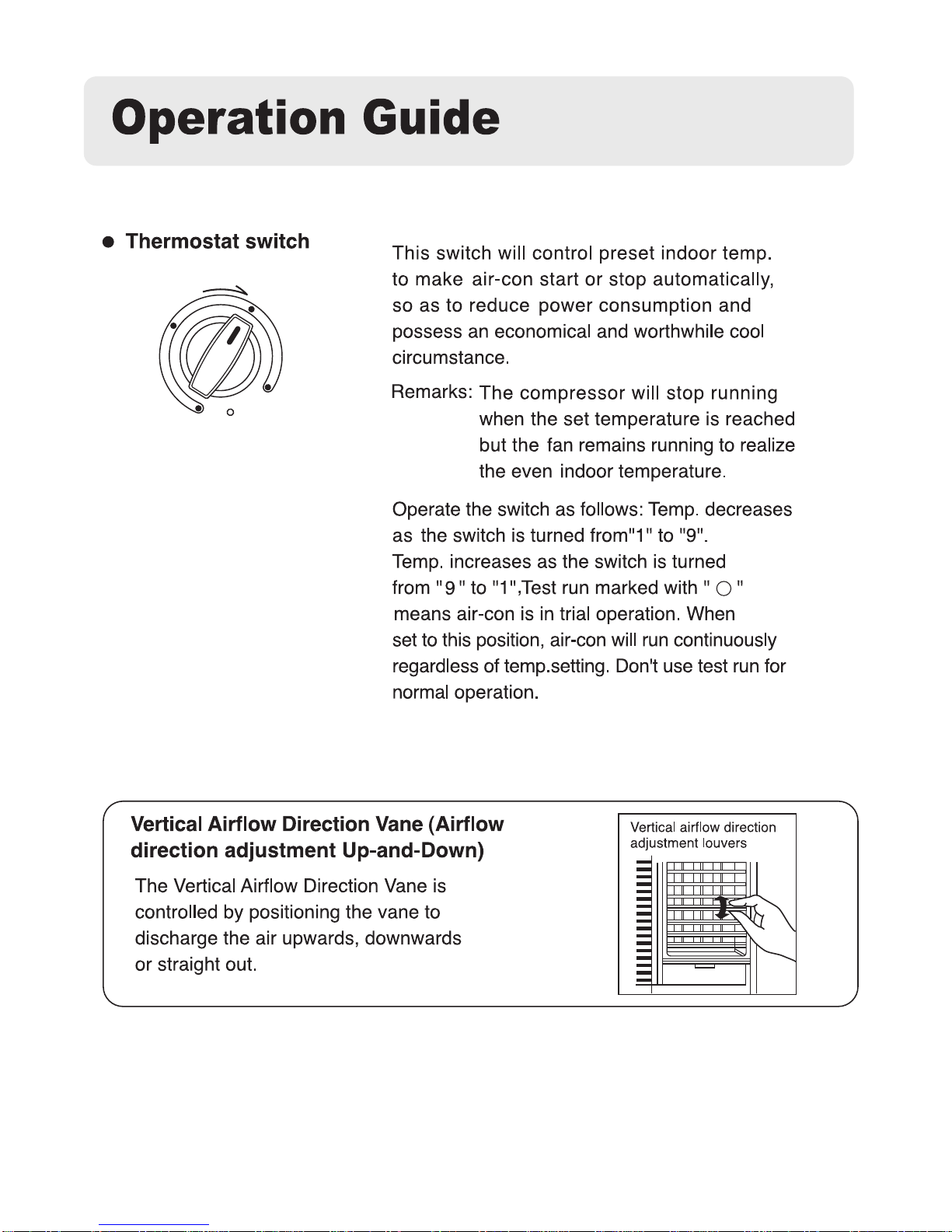

Operation Guide
2
3
Mode selection switch Mode switch controls the fan motor
speed. Cooling speed or fan speed.
<1>
<2>
<3>
<4>
<5>
When set to "HIfan", fan motor runs at high
speed to blow out strong air.
When set to "LO fan", fan motor runs at low
speed to blow out gentle air.
When set to "HI cool", air-con will start
speedy cooling, blowing out strong air.
When set to "LO cool", air-con will start
cooling at low speed , blowing out gentle air.
When set to "OFF", air conditioner stops
running.
LO
cool HI
cool
HI
fan
LO
fan
OFF
position.

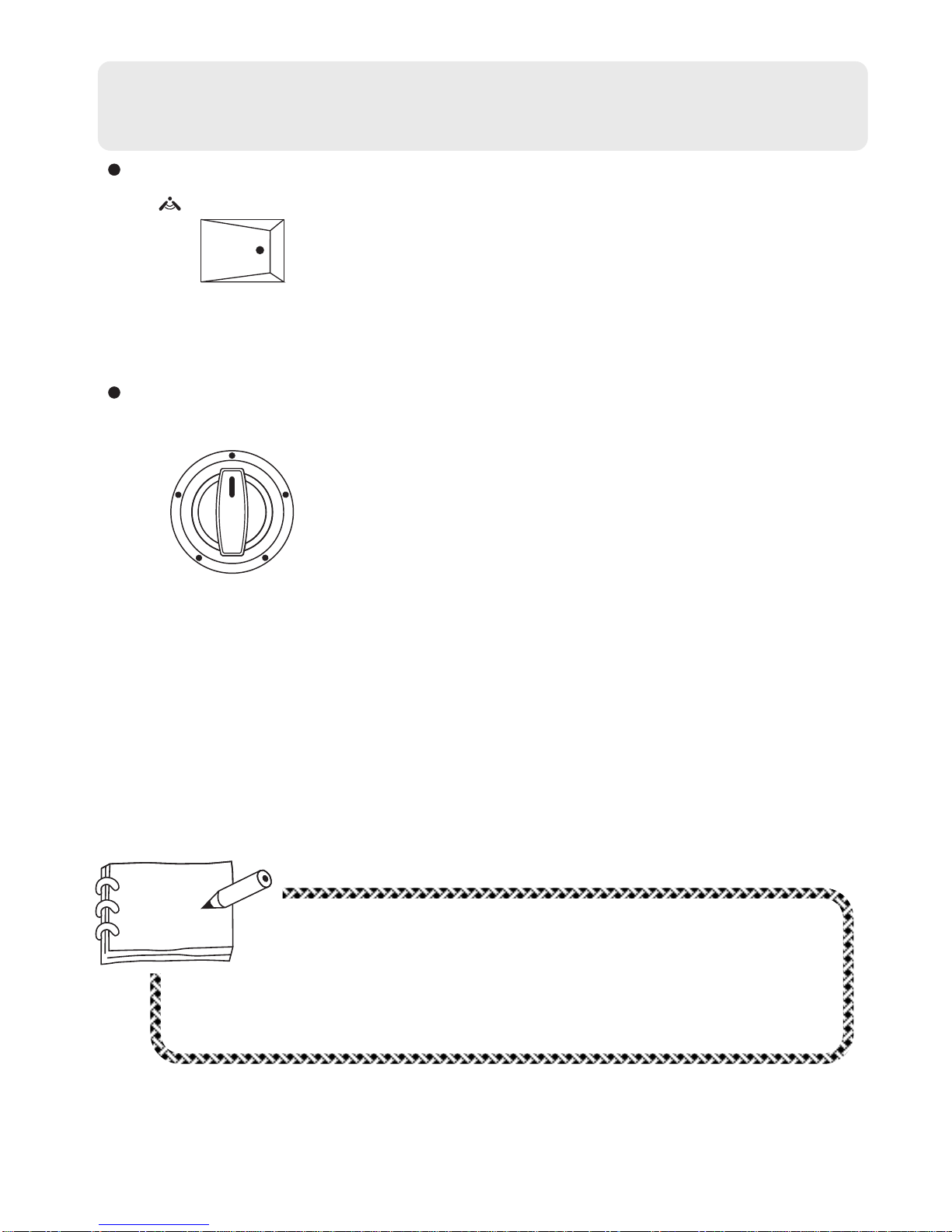

Auto swing
ONOFF
Auto swing switch
When mode selection switch is shifted to "HIfan" or"LO fan",
air-con will only blow out air without cooling. While the air
conditioner running, its mode selection shouldn't be shifted
frequently between "HI fan" and "HI cool", "LO fan" and "LO
cool".
Hint
Operation Guide
When the switch is set to " ON ", vertical louver will swing
from side to side, delivering gentle air thus making you
feel very comfortable.
When it is set to " OFF ", vertical louver will stop at
4
COOL
1
36
9
Test
run
Maintenance
5
NOTE: Always unplug the air conditioner before servicing or
moving it.
When dirt accumulates on air filter, air circulation will be blocked, which causes
poor cooling. It is advisable to clean air filter every two weeks for longer operation.
Removal of air filter
Air filter cleaning
1. Gently flap the dirt off the air filter.
2. Carefully wash air filter in warm water
(below 40°C). To obtain better cleaning
effect, soap water or neutral detergent
may be used.
3. Flush air filter carefully with clean water
after removing dirt. Let it dry completely.
Installation of filter
1. Replacing the air filter.
2. Push the air inlet marked with "PUSH" until you hear a click.
Washing
air filter
1. Loose the air inlet by pushing "PUSH"
at both sides of air inlet.
2. Open the air inlet.
3. Remove the air filter.
PUSH
PUSH
6

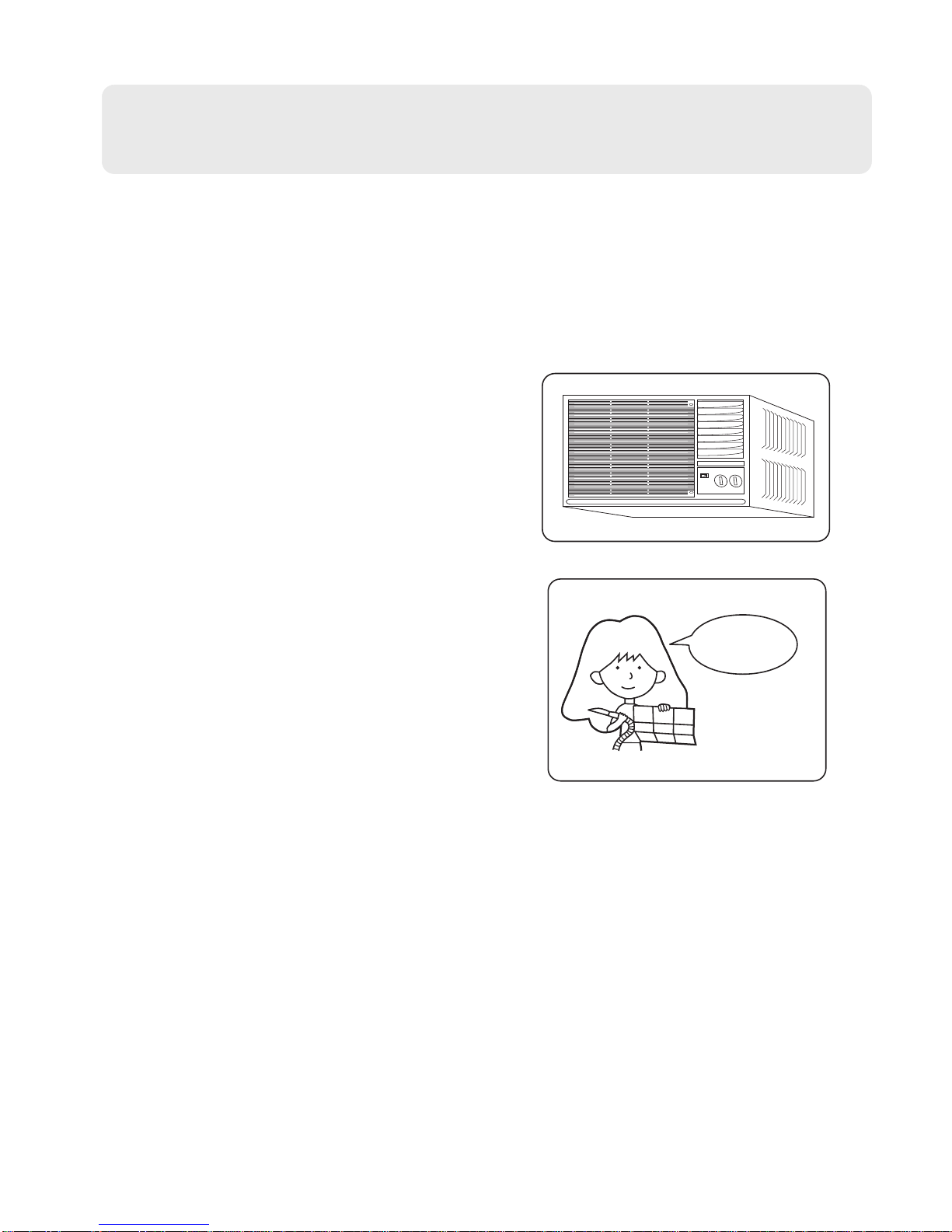

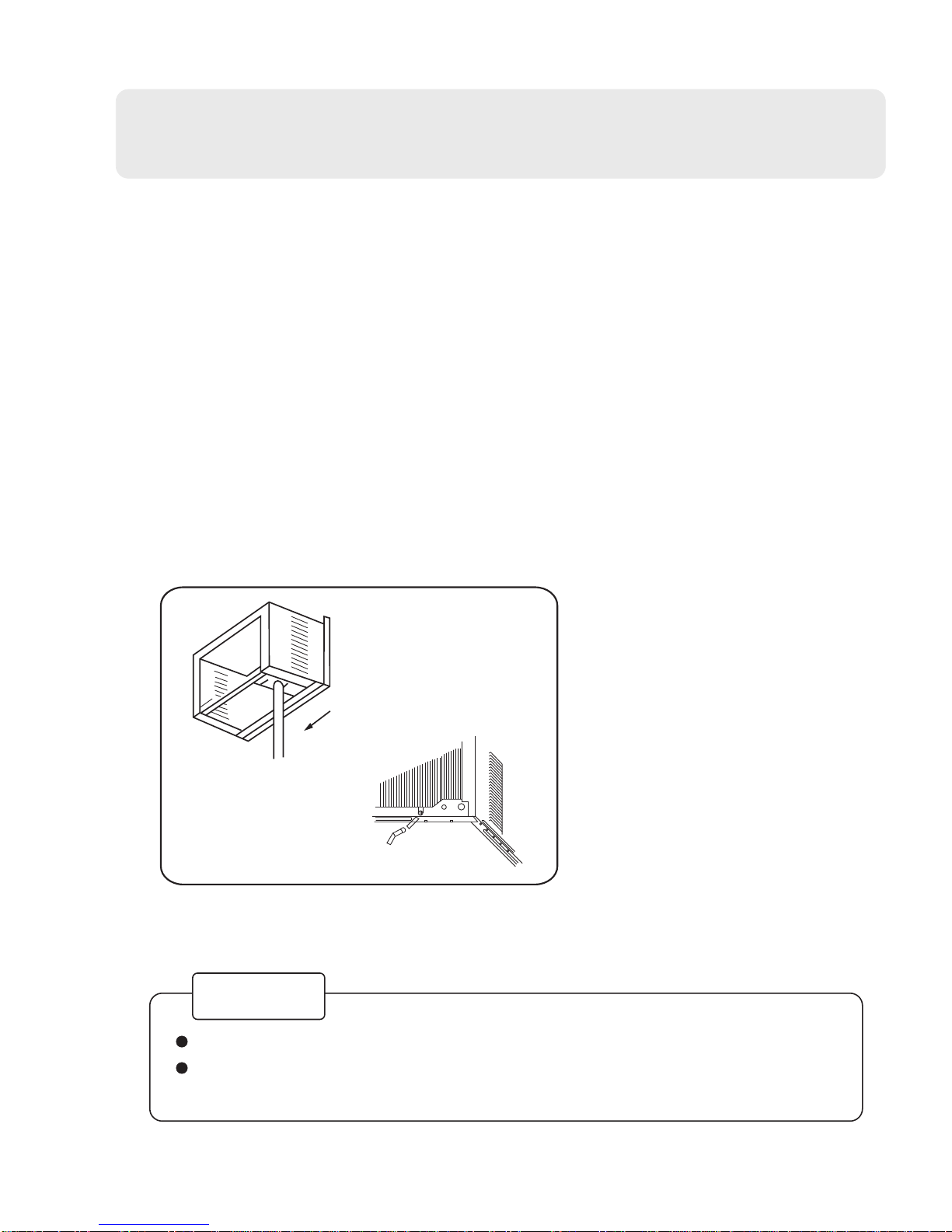

Disposal of condensate
Cautions
The drain hole on the bottom of the air conditioner will be clogged by a rubber
stopper to make the condensate in the bottom tray be spattered onto the
condensation to raise efficiency of heat exchange. If the spattering sound disturbs
you, you can adopt the method illustrated below.
Condensate runs out from the drain hole on the back of the unit.
Remove the rubber stopper from the drain hole on the bottom in order to make
the condensate run out. In this method the efficiency of air conditioner will be
slightly lowered.
In the both methods above, an extended hose (available on the market) can be
connected to the drain connecting pipe if necessary.
Power cord: Be sure to use the exclusive power cord.
Change installation place: If air-con need to be changed to
another place please contact the dealer, who sold you the unit.
1.
2.
Extended
pipe (hose)
Maintenance
Maintenance
Don't be exposed to cold air for
a long time.
Keep heat source away from
air conditioner.
After unit stops, don't restart it
until 3 min. have elapsed.
7
Avoid opening door and window
unless necessary.
Use curtain or blind
Direct sunlight may reduce cooling
effect, always use window curtain.
Set temp. a little bit higher
before going to bed.
No entrance
Keep away from me
OK! enjoy a
3-min nap
8
Cautions
Don't hang clothes in the vicinity
of air inlet. This will decrease
cooling effect and cause abnormal
operation.
Temperature should be set
properly when there are infant,
child, the aged or disabled
in room.
Before operating mode selection
switch, check if the air inlet or
outlet have been blocked.
For longer and trouble-free operation of the unit, pay special attention
to the following:
Install air-con at a place strong enough to support the unit.
Leave enough space around air inlet and outlet for better circulation.
Avoid places where flammable gas leaks.
Problems may occur if unit is installed in the following places:
Place where oil exists in the air including engine oil or seaside with
salt breeze blowing and hot spring area with sulphureous gas in the air.
Baby has
gone sleep
had better adjust
suitable temp.
Go away!
