Haier AU482FIBHA Manual de usuario

2003.12

MANUAL CODE: SYJS-026-03 rev.0

Haier Group

AC Inverter

Auto-restart function

Group control(if with a group controller)

Auto-changeover

The Outdoor unit can match with max. 8 indoor unit

Electronic expansion valve out to MP3(MP2),more silence

Healthy negative ion generation function(optional)

Features

Service Manual

Commercial Air Conditioning

Home MRV

AU48NFIBIA

AU482FIBHA

CONTENTS

- 1 -

CONTENTS

1. Description of Products & Features

2. Specifications

3. Safety precaution

4. Net dimensions of indoor and outdoor unit

5. Installation instructions

6. Parts and functions

7. Remote controller functions

8. Refrigerant diagram

9. Electrical control functions

10. Diagnostic information(trouble shooting)

11. Electrical data

12. Exploded views and parts lists

13. Perdormance curves

14. Noise level charts

15. Air velocity distribution

Contents

1 DESCRIPTION OF PRODUCTS & FEATURES

lIndoor unit:

Model of indoor unit

AS092 FMBHA

1 2 34 5 6 7 8 9 10 1 Product symbol (A stands for air conditioner)

2 Product mode (S stands for split type air conditioner)

3 , 4 Product specification (09 stands for cooling/heating capacity is 9000BTU/h)

5 Applicable voltage (2 stands for 220-240V/50Hz)

6 Product series (F stands for free combination)

7 Appearance character (M stands for 28 large arc normal air inlet grille 1232084

back frame )

8 Product type (B stands for heat pump type, refrigerant is R407C)

9 Design number (H stands for inverter heat pump air conditioner)

10 Climate type (A stands for T1 climate)

Model of indoor unit

AP18 2 FAB HA

1 2 3 4 5 6 7 8 9 10 1 Product symbol (A stands for air conditioner)

2 Product mode (P stands for packaged type air conditioner)

3 , 4 Product specification (18 stands for cooling/heating capacity is 18,000BTU)

5 Applicable voltage (2 stands for 220-240V/50Hz)

6 Product series (F stands for free combination)

7 Appearance character (A stands for appearance of inverter packaged type air

conditioner)

8 Product type (B stands for heat pump type, refrigerant is R407C)

9 Design number (H stands for inverter heat pump air conditioner)

10 Climate type (A stands for T1 climate)

lOutdoor unit:

Model of outdoor unit

AU48 2 FIBH A

1 2 34 5 6 7 8 9 10 1 Product symbol (A stands for air conditioner)

2 Product mode (U stands for split type air conditioner outdoor unit)

3 , 4 Product specification (48 stands for cooling/heating capacity is 48,000BTU)

5 Applicable voltage (2 stands for 220-240V/50Hz, N stands for 380~400V/Hz)

6 Product series (F stands for free combination)

7 Appearance character (H stands for 5HP outdoor unit)

8 Product type (B stands for heat pump type, refrigerant is R407C)

9 Design number

10 Climate type (A stands for T1 climate)

1. Nomenclature

coolin

heatin

Min. Max

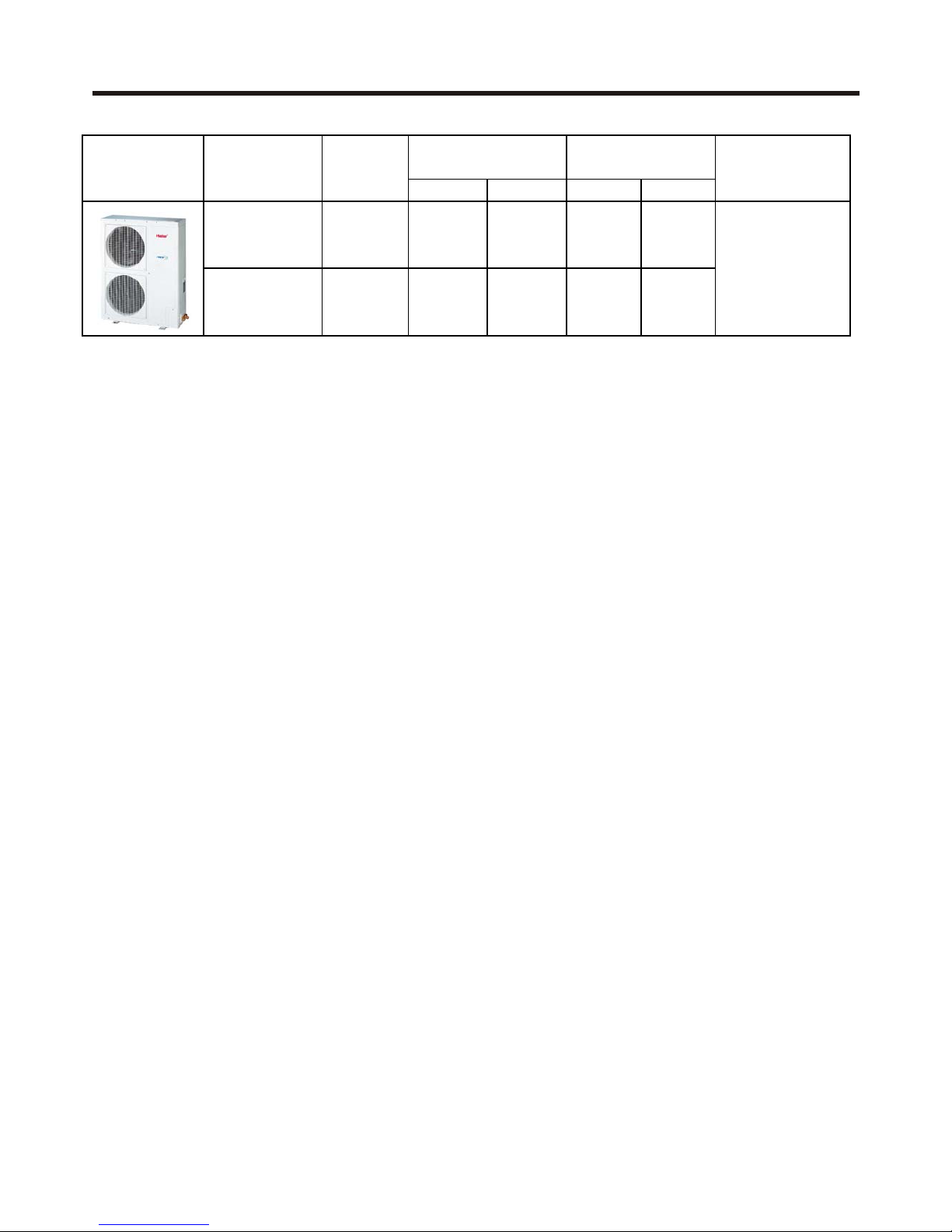

AU482FIBHAR407C 48000 61000 2.5 6.5

AU48NFIBIAR407C 48000 61000 2.5 6.5

outdoor units

capacity(BTU/h) connect

acit

)

appearance model refrigeran

Max. indoo

units can be

connected

indoor units

coolin

heatin

coolin

heatin

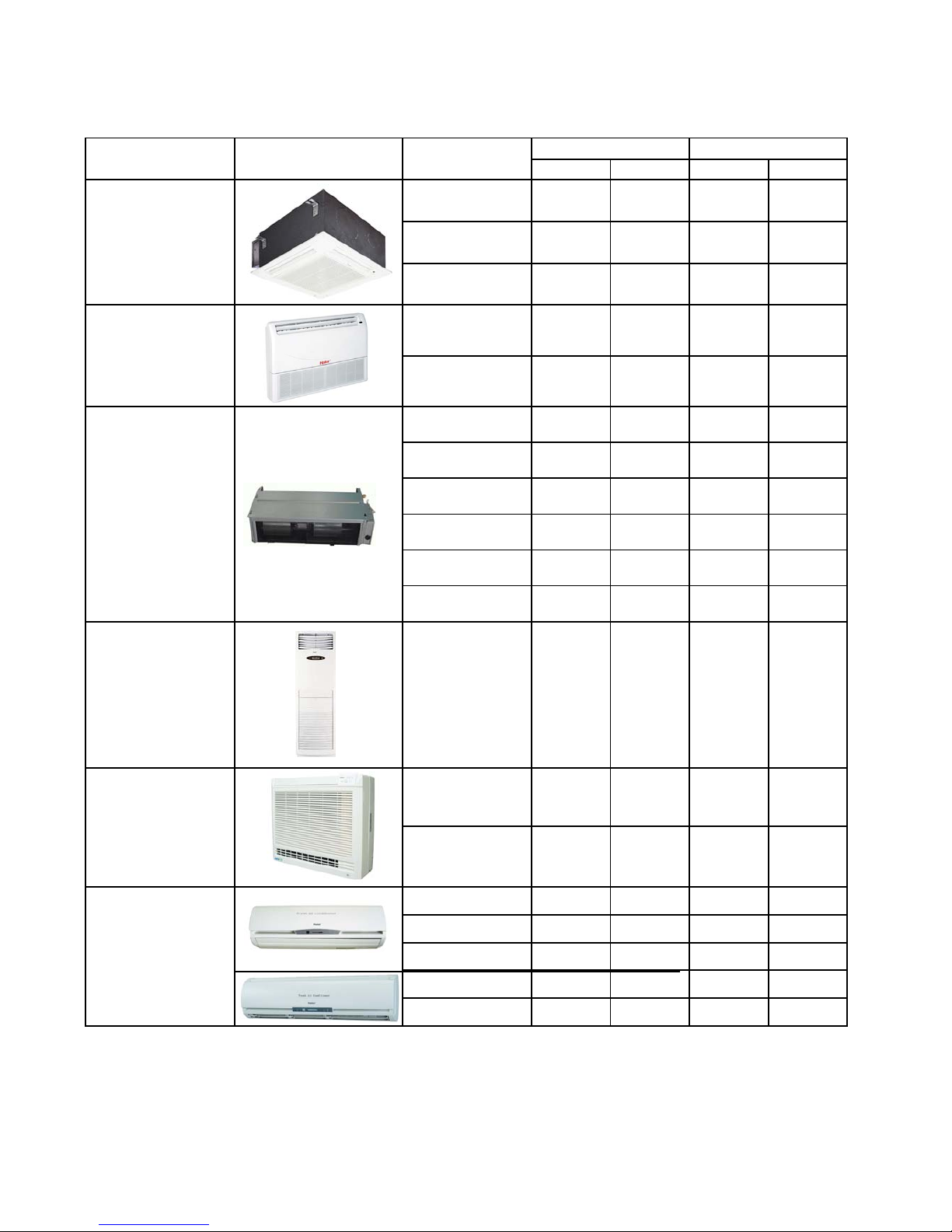

AB092FCBHA 9000 12000 2600 3500

AB142FCBHA 14000 16000 4100 4700

AB182FCBHA 18000 20000 5300 5900

AC142FCBHA 14000 16000 4100 4700

AC182FCBHA 18000 21000 5300 6200

AE072FCBKA 7000 9000 2100 2600

AE092FCBKA 9000 10000 2600 2900

AE122FCBKA 12000 14000 3500 4100

AE142FCBKA 14000 16000 4100 4680

AE182FCBKA 18000 21000 5300 6200

AE242FCBKA 24000 27000 7000 7900

Cabinet AP182FABHA 18000 21000 5300 6200

AF092FCBHA 9000 11000 2600 3200

AF122FCBHA 12000 13500 3500 4000

AS072FCBHA 7000 7500 2000 2200

AS092FCBHA 9000 10000 2600 2900

AS122FCBHA 12000 14000 3500 4100

AS142FCBHA 14000 16000 4100 4680

AS182FCBHA 18000 21000 5300 6200

Four way cassette

Wall-mounted

Console

Ceiling concealed

Convertible

capacity(BTU/h) capacity(W)

type appearance model

(colorful screen)

4. Character of Products

1) The length of horizontal refrigerant pipe can reach 70m,the total pipe length can reach

100m, the height difference between indoors unit and outdoor unit can reach 50m, the

height difference between indoor units can reach 10m.

2) 1000m super far distance communication between indoor and outdoor units, convenient

control and easy to enlarge the scale of units assembly.

3) Indoor unit can be controlled separately.

4) Equipped with computer-checking interface, conveniently for service work.

5) Far distance sending of refrigerant, and distribute refrigerant intelligently and reasonably

according to the needs of each room, high efficient and energy saving.

6) Display of automatic test of trouble.

7) Healthy negative ion generation function can refresh the air and excite the oxygen,it is optional.

8) The AE and AS indoor units move the indoor electronic expansion valve out to

MP3 (electronic expansion valve box), completely avoid the flow sound of EEV,

extremely lower noise, and realize super-silence running in deed.

9) The ceiling concealed models all have return air box, it will be set back return air

when out of factory.When installation, bottom plate 2 can be removed and installed

on the back, consequently, return air mode has been ransferred to down return

air.

10)In order to remain the best running state of indoor unit, control the refrigerant flow

by MP3 (MP2), so as to realize energy saving for every unit and the most

comfortable operation.

11)The units except for convertible model are all wired controller and remote controller

models.If you want a wired control unit or a remote control unit, please inform us ahead of

schedule.

The unit with remote controller is matched with receive display.

The unit with wired controller equipped with wired controller,can make remote operation on

wired controller with remote controller such as YR-H71, but the remote controller is

additionally purchased.

Function cooling heating

Capacity kW 14000 18000

Capacity BTU/h 48000 61000

W6500 6000

W7500 7500

EER or COP W/W 2.15 3.0

Power cabl

Power source N，V，Hz

A / A

Start Current A

Unit model

(

color

)

Model / Manufacture

Type

Type × Number

Speed r/min

Fan motor output power kW

ir-flow

(

H-M-L

)

m³/h

Type / Diameter mm

Total area m²

Temp. scope ℃

External （L×W×H）mm×mm×mm

Package （L×W×H）mm×mm×mm

Refrigerant control method mm/mm

Volume of Accumulator L

Noise level dB(A)

material of reduce noise

kg / kg

e / Char

Recharge quantity g/m

Liquid mm

Gas mm

Connecting Method

Defrosting

Weight (Net / Shipping)

Norminal condition: indoor temperature (cooling): 27 ℃DB/19℃WB, indoor temperature (heating): 20℃DB

Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7℃DB/6℃WB

φ19.05

flared

Between I.D &O.D

MAX.Dro

indoor&outdoor

)

MAX.Piping length 100

Compressor

Fan

Heat exchanger

Dimension

R407C/4200

φ9.52 liquid pipe:65g×actual length,φ6.35

liquid pipe:30g×actual length

φ9.52

PIPING

Refrigerant

Pipe

XPE

120/135

PMV and capillary

auto

1075X1260X445

7480/6490/4370

TP2M/φ9.52

0.92

item Model AU482FIBHA

cooling: 34A/42 A heating: 30A/40A

axial flow*2

AU482FIBHA( white)

EEV48FAL1 MITSUBISHIELECTRIC

scroll

Running /Max.Running

Outdoor unit

1PH~,220V,50Hz

MAX.Dro

indoor&indoor

)

Total power input

Max. power input

8mm2

H:1060±30; M:920±40; L:620±50

120*2

43-60

948X1125X380

SPECIFICATIONS:

AB092FCBHA AB142FCBHA

Cooling capacity Btu／h 9000 14000

Heating capacity Btu／h 12000 16000

Cooling capacity W 2600 4100

Heating capacity W 3500 4700

Dehumidifying capacity 10‐³×m³/h 1.6 2.1

Power source N，V，Hz 1PH 220V-230V 50HZ 1PH 220V-230V 50HZ

Power consumption W 15 15

Running current A 0.07 0.07

Starting current A 0.2 0.2

Refrigerant R407C R407C

Noise level(H/M/L) dB(A)

42.6/35.0/31.7 42.6/35.0/31.7

Type × Number

centrifugal fan×1 centrifugal fan×1

Air-flow(H-M-L) m³/h 705/624/511 705/624/511

Fan motor output W 15 15

starting mothod Relay control Relay control

Heat exchanger

Refrigerant control method

External mm×mm×mm 570×570×27

570×570×27

Shipping mm×mm×mm 715×715×361 715×715×361

External mm×mm×mm 630×630×8

630×630×8

Shipping mm×mm×mm 685×685×15

685×685×15

Net kg / kg 26/4.2 26/4.2

Shipping kg / kg 28/6.3 28/6.3

Liquid mm (inch) 6.35

(

1/4"

)

6.35

(

1/4"

)

Gas mm (inch) 9.52

(

3/8"

)

12.7

(

1/2"

)

Connection method flared flared

Suited area m2 12~23 17~27

Controller type

AB182FCBHA AC142FCBHA

Cooling capacity

Btu／h18000 14000

Heating capacity

Btu／h21000 16000

Cooling capacity W 5300 4100

Heating capacity W 6200 4700

Dehumidifying capacity 10‐³×m³/h 2.1 2.1

Power source N，V，Hz 1PH 220V-230V 50HZ 1PH 220V-230V 50HZ

Power consumption W 20 70

Running current

0.09 0.3

Starting current

0.3 0.9

Refrigerant R407C R407C

Noise level(H/M/L) dB(A)

42.6/35.0/31.7 48/44/38

Type × Number

centrifu

al fan×1 centrifu

al fan×1

ir-flow(H-M-L) m³/h 705/624/511 900/815/704

Fan motor output W 20 70

starting mothod Relay control Relay control

Heat exchanger

Refrigerant control method

External mm×mm×mm 570×570×276 990×655×199

Shipping

mm×mm×mm 715×715×361 1160×760×310

External mm×mm×mm 630×630×80 /

Shipping mm×mm×mm 685×685×150 /

Net kg / kg 26/4.2 30

Shipping kg / kg 28/6.3 39

Liquid mm (inch) 9.52

(

3/8"

)

9.52

(

3/8"

)

Gas mm (inch) 15.88

(

5/8"

)

15.88

(

5/8"

)

Connection method flared flared

Suited area m2 22~33 16~23

Controller type

wired controller or remote

controller

remote controller

Combination of wave cranny radiation fin and copper

pipe

Capillary + Electronic expansion valve

Combination of wave cranny radiation fin and copper

Capillary + Electronic expansion valve

wired controller or remote controller

Piping

Item model

Fan

Panel dimension (L×W×

Weight(unit/panel)

Dimension （L×W×H）

Fan

Item model

Dimension （L×W×H）

Panel dimension (L×W×

)

AC182FCBHA AP182FABHA

Cooling capacity Btu／h18000 18000

Heating capacity Btu／h21000 21000

Cooling capacity W 5300 5300

Heating capacity W 6200 6200

Dehumidifying capacity 10‐³×m³/h 2.1 2.6

Power source N，V，Hz 1PH 220V-230V 50HZ 1PH 220V-230V 50HZ

Power consumption W 70 100

Running current A 0.3 0.6

Starting current A 0.9 2.0

Refrigerant R407C R407C

Noise level(H/M/L) dB(A) 48/44/38 48/45/39

Type × Number centrifugal fan×1 centrifugal fan×1

Air-flow(H-M-L) m³/h 900/815/704 820/725/630

Fan motor output W70 70

starting mothod Relay control Relay control

Heat exchanger

Refrigerant control method

External mm×mm×mm 990×655×19

1746×500×25

Shipping mm×mm×mm 1160×760×31

1862×610×40

Net kg / kg 30 36

Shipping kg / kg 39 49

Liquid mm (inch) 9.52(3/8") 9.52(3/8")

Gas mm (inch) 15.88(5/8") 15.88(5/8")

Connection method flared flared

Suited area m2 22~33 23~36

Controller type remote controller wired controller or remote

controller

AF092FCBHA AF122FCBHA

Cooling capacity Btu／h9000 12000

Heating capacity Btu／h11000 13500

Cooling capacity W 2600 3500

Heating capacity W 3200 4000

Dehumidifying capacity 10‐³×m³/h 1.6 1.6

Power source N，V，Hz 1PH 220V-230V 50HZ 1PH 220V-230V 50HZ

Power consumption W 40 40

Running current A 0.2 0.2

Starting current A 0.6 0.6

Refrigerant R407C R407C

Noise level(H/M/L) dB(A) 37/34/30 37/34/30

Type × Number cross-flow fan×2 cross-flow fan×2

Air-flow(H-M-L) m³/h 620/530/480 620/530/480

Fan motor output W 20+11 20+11

starting mothod Relay control Relay control

Heat exchanger

Refrigerant control method

External mm×mm×mm 783×225×440 783×225×440

Shipping mm×mm×mm 936×298×533 936×298×533

Net kg / kg 17 17

Shipping kg / kg 17.7 17.7

Liquid mm (inch) 6.35(1/4") 6.35(1/4")

Gas mm (inch) 12.7(1/2") 12.7(1/2")

Connection method flared flared

Suited area m2 12~23 17~27

Controller type wired controller or remote

controller

wired controller or remote

controller

Combination of wave cranny radiation fin and copper

Capillary + Electronic expansion valve

Combination of wave cranny radiation fin and copper

Capillary + Electronic expansion valve

Piping

Item model

Fan

Dimension （L×W×H）

Weight(unit/panel)

Item model

Fan

Dimension （L×W×H）

Weight(unit/panel)

—— Cooling Heating Cooling Heating

BTU/h 7000 9500 9000 10000

W2000 2800 2600 3200

10‐³×m³/h 1.0 / 1.0 /

——

N, V, Hz

A / A 0.10 0.10 0.10 0.10

——

Type × Number ——

Speed r/min

Motor output power W

Air-flows (H/M/L) m³/h

Type / Diameter mm

Total area m²

Temp. scope ℃

External mm

Package mm

Drainage pipe material, diameter mm

——

Noise level H/M/L dB(A)

Weight Net / Shipping kg / kg

Refrigerant Type ——

Liquid mm

Gas mm

——

—— Cooling Heating Cooling Heating

BTU/h 12000 15000 14000 17000

W3500 4500 4000 5000

10‐³×m³/h 1.6 / 2.0 /

——

N, V, Hz

A / A 0.15 0.15 0.15 0.15

——

Type × Number ——

Speed r/min

Motor output power W

Air-flows (H-M-L) m³/h

Type / Diameter mm

Total area m²

Temp. scope ℃

External mm

Package mm

Drainage pipe material, diameter mm

——

Noise level H/M/L dB(A)

Weight Net / Shipping kg / kg

Refrigerant Type ——

Liquid mm

Gas mm

——

Piping

Pipe

Connecting method

12.7

Flared

R407C

6.35

Dimension

(L×W×H)

cooling: 6~7 / heating: 43~60

PVC, 11.4/16.4

795×197×265 928×197×265

880×315×330 1025×309×330

Indoor unit

Unit model (color)

Fan

Heat exchanger

Dimension

(L×W×H)

Controller type

Refrigerant control

Controller type Phone type infrared

Refrigerant control Capillary tube

39/37/30 44/41/38

7.6/10.6 11/14

CROSS×1 CROSS×1

about 0.20 about 0.20

1250/1050/900 1250/1050/900

630/520/410 640/570/450

TP2M / 6.35×0.7

3 × 0.75mm2

Communication cable

1, 220~230, 50

AS122FCBHA (white) AS142FCBHA (white)

Running current

Indoor unit

Unit model (color)

Fan

Heat exchanger

Capacity

Dehumidifying capacity

Power source

Power cable

Item Model AS122FCBHA AS142FCBHA

Function

Flared

Piping

Pipe

Connecting method

R407C

6.35

12.7

7.6/10.6 7.6/10.6

36/33/29 37/35/30

Capillary tube

Phone type infrared

795×197×265 795×197×265

880×315×330 880×315×330

520/410/300 600/500/410

PVC, 11.4/16.4

about 0.15 about 0.15

cooling: 6~7 / heating: 43~60

Running current

AS072FCBHA (white) AS092FCBHA (white)

(

0.75~1.25mm2

)

TP2M / 6.35×0.7

CROSS×1 CROSS×1

1050/900/800 1250/1050/900

3 ×

(

1.0~1.5mm2

)

Communication cable

Power source 1, 220~230, 50

(

0.75~1.25mm2

)

Capacity

Dehumidifying capacity

Power cable

Item Model AS072FCBHA AS092FCBHA

Function

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Haier

Haier

Haier AS25TADHRA-CLC Manual de usuario

Haier

Haier H-MRV Series Manual de usuario

Haier

Haier HSU-09LEB13-H - annexe 1 Manual de usuario

Haier

Haier HWR18VC7 - annexe 2 Manual de instrucciones

Haier

Haier AB25S2SC1FA Instrucciones de instalación y funcionamiento

Haier

Haier CA0065EANR Manual de usuario

Haier

Haier MRVII-C ERV0260ANN Manual de usuario

Haier

Haier AS25S2SN1FA-NRC Manual de usuario

Haier

Haier AP88NACBEA Manual de usuario

Haier

Haier HSU-09LEK13/R2 Manual de usuario

Haier

Haier HSU-07C03 Manual de usuario

Haier

Haier HSU-12CH13 HSU-083C01 Manual de usuario

Haier

Haier HPNFD14XCT Manual de usuario

Haier

Haier HWR08XC7 - annexe 1 Manual de usuario

Haier

Haier 1U09JE7ERA Manual de usuario

Haier

Haier 1U68WEGFRA Manual de usuario

Haier

Haier HSU-09LEK13 Manual de usuario

Haier

Haier HWR05XC6 - 5200 BTU Electronic Control Room Air... Manual de usuario

Haier

Haier AS25S2SN1FA-NR Manual de usuario

Haier

Haier HSU-09H03/K(F) Manual de usuario

Haier

Haier Thermocool HW-09CU03 Manual de usuario

Haier

Haier AS12NB1HRA-White Manual de usuario

Haier

Haier HW-18CM03 Manual de usuario

Haier

Haier HWR12XCB Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
