Haier AS072AZNBA Manual de usuario

AS072AZNBA

AU072ABNCA

(HSU-07CG03/R1)

AS092AMNBA

AU092ABNCA

(HSU-09CG03/R1)

AS122AYNBA

AU122ABNCA

(HSU-12CG03/R1)

AS162ATNBA

AU162AFNBA

(HSU-16CG03/R1)

AS182ASNBA

AU182AFNDA

(HSU-18CG03/R1)

AS222AJNBA

AU222AHNBA

(HSU-22CG03/R1)

No.0010544375

Please read this operation manual before using the air conditioner.

Contents

Cautions

Parts and functions

Operation

Maintenance

Trouble shooting

1-2

3-5

6-13

14-16

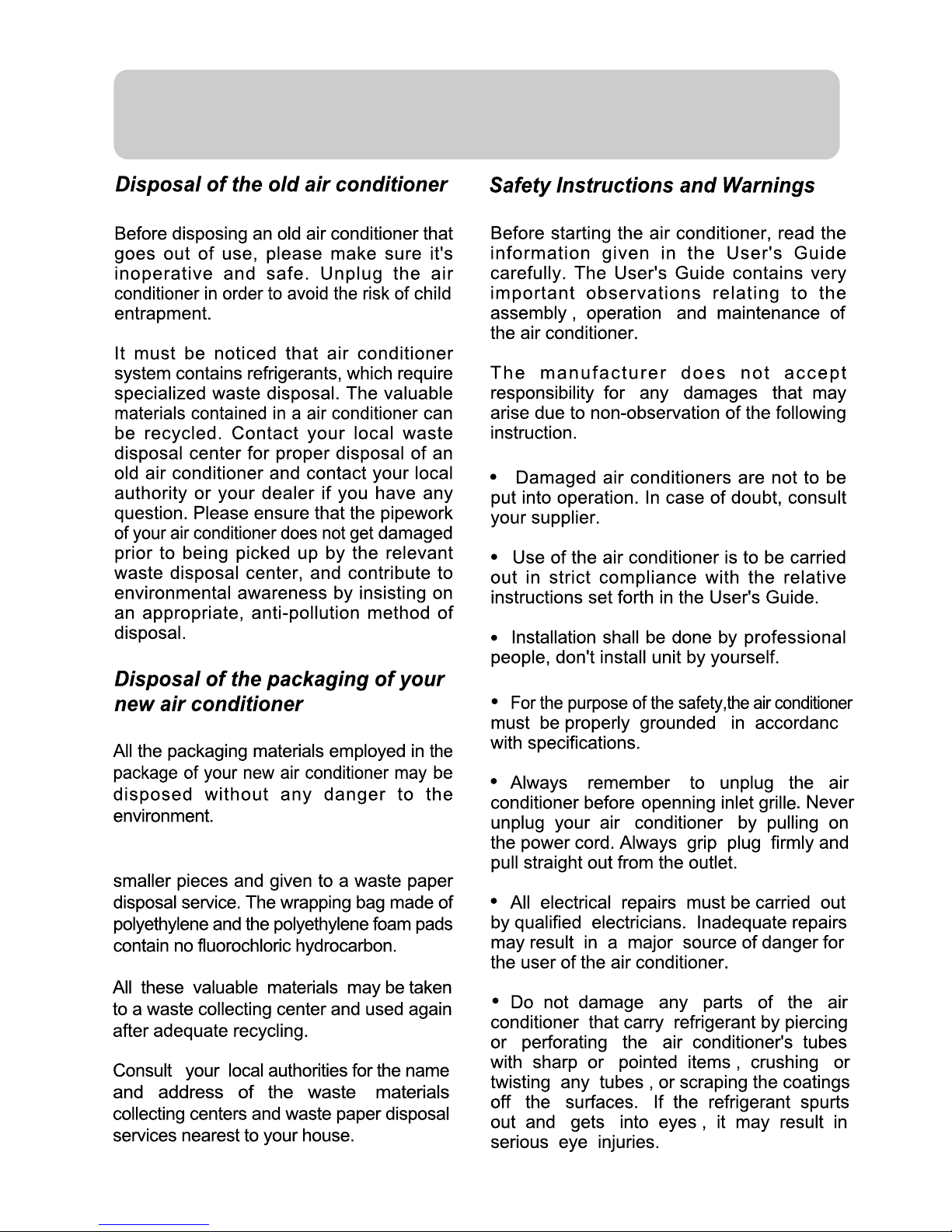

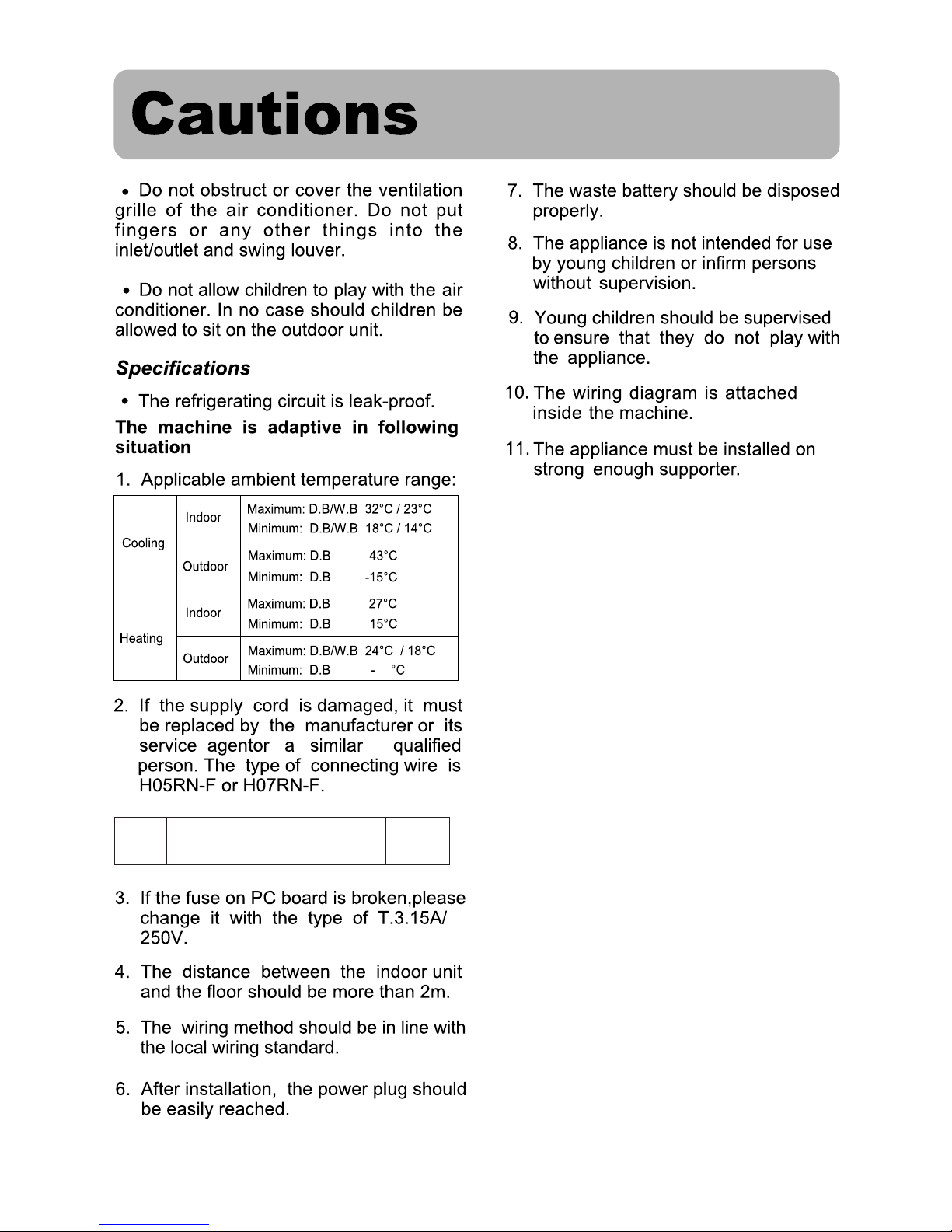

Cautions

The cardboard box may be broken or cut into

Series 07,09,12 16,18 22

3G2.5mm2+3x0.75mm24G1.5mm2

Type 3G1.5mm2+2x0.75mm2

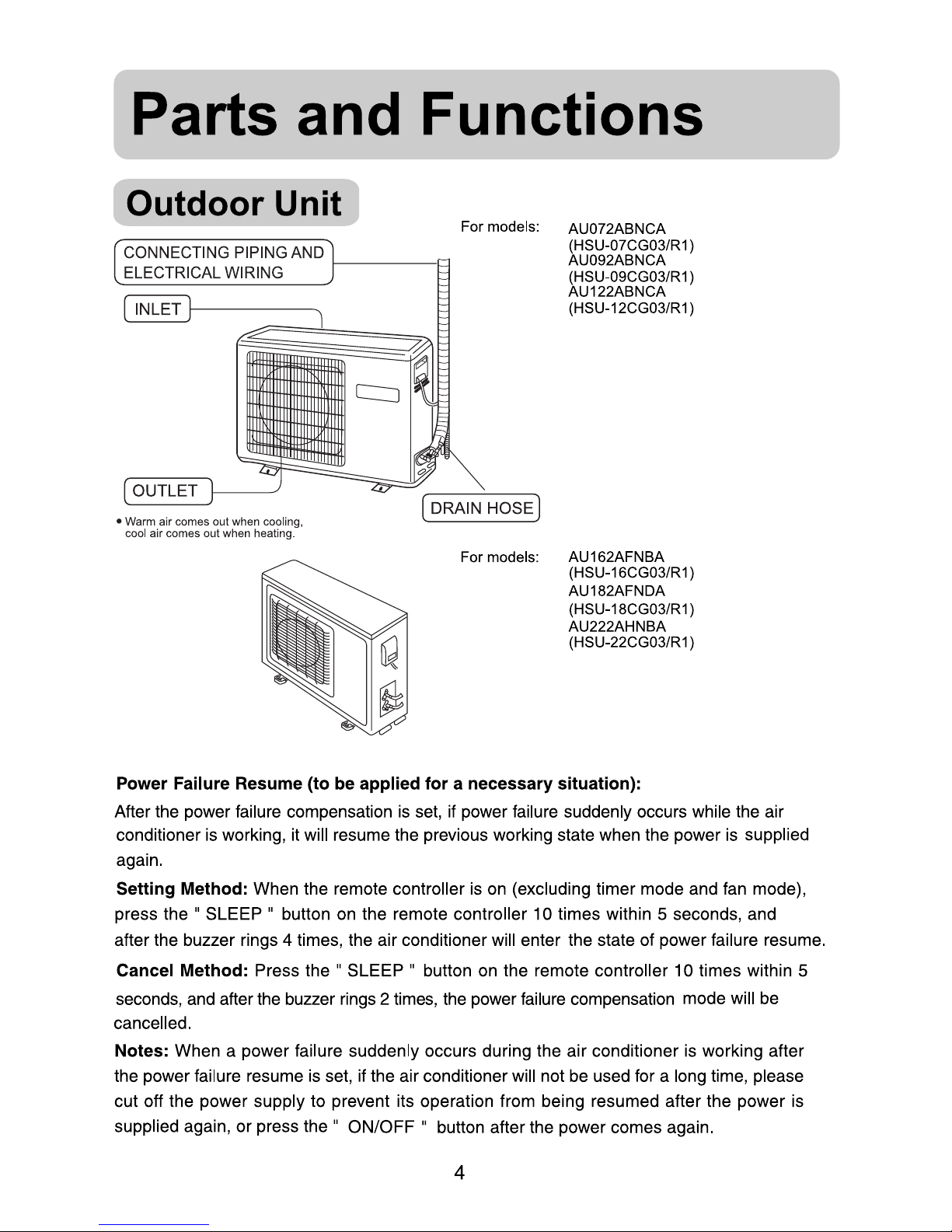

Parts and Functions

Operation mode indicator

Lights up when Timer

operation is selected. Lights up during

compressor running.

Lights up when unit

starts.

Air filter

Vertical flap

Timer mode indicator

Inlet grille

Air filter

Inlet grille

Use remote controller to 

adjust up and down air flow.

(Don't adjust it manually.)

Vertical flap

Use remote controller to 

adjust up and down air flow.

(Don't adjust it manually.)

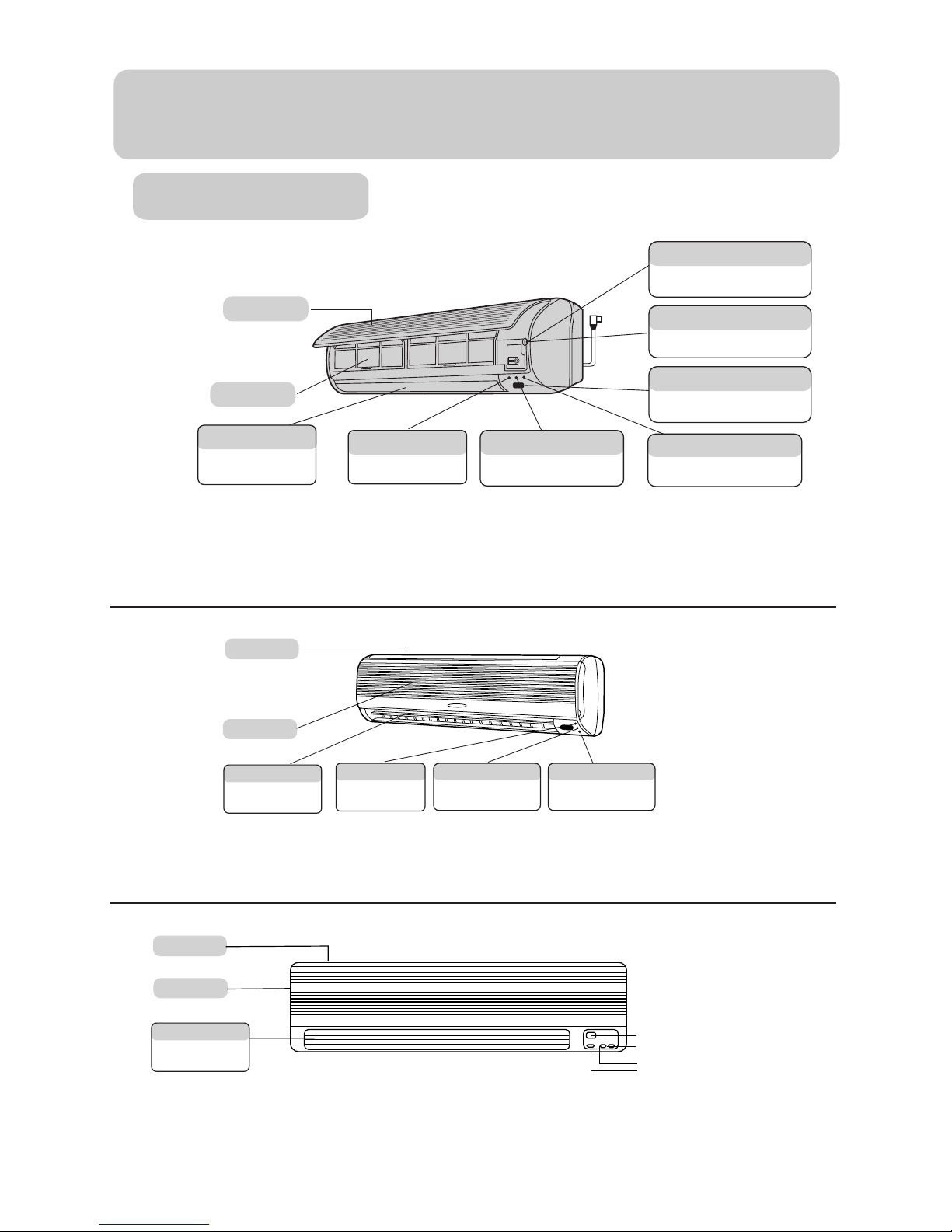

Indoor Unit

AS072AZNBA

(HSU-07CG03/R1) AS092AMNBA

(HSU-09CG03/R1) AS122AYNBA

(HSU-12CG03/R1)

For models:

AS162ATNBA

(HSU-16CG03/R1) AS182ASNBA

(HSU-18CG03/R1)

For models:

AS222AJNBA

(HSU-22CG03/R1)

For models:

Used only for test running in cooling

when room temp. is below 16oC .

Don't use it in normal operation.

Test running switch(manual)

Emergency switch(manual)

Used when remote controller is lost or

defective. Unit will run temporarily.

Operation mode indicator

Lights up during compressor 

running.

Use remote controller to

adjust up and down air flow.

(Don't adjust it manually.)

Power indicator

Lights up when Timer operation

is selected.

Remote signal receiver

A beeping sound is generated when

a signal from remote controller is

received.

Inlet grille

Air filter

Vertical flap

Lights up when unit starts.

Timer mode indicator

Signal Receiving Window

Running Indicator

Timer Mode Indicator

Power Indicator

Power indicator

Parts and Functions

Operation

1. Mode display

AUTO

COOL

DRY

FAN

2. SWING display

3. FAN SPEED display

4. HEALTH display

5. SLEEP display

6. LOCK display

7. TIMER ON display

8. AUXILIARY HEAT display

9. SWING

10. MODE

Used to select AUTO,COOL,DRY ,HEAT

and FAN

11. CLOCK

Used to select your desired temp.

12. TIMER

Used to select TIMER ON,TIMER OFF

13. RESET

Used to reset the controller back to

normal condition

14. CODE

Used to select code A or B with a press,A

or B will be displayed on LCD.please

select A without special explanation

15. CODE display

16. SIGNAL SENDING display

17. POWER/SOFT display

18. TEMP display.

19. CLOCK display

20. TIMER OFF display

21. TEMP

Used to select your desired temperature.

22. FAN

Used to select fan speed

23. POWER ON/OFF

Used for unit start or stop

24. SLEEP

Used to select sleep mode

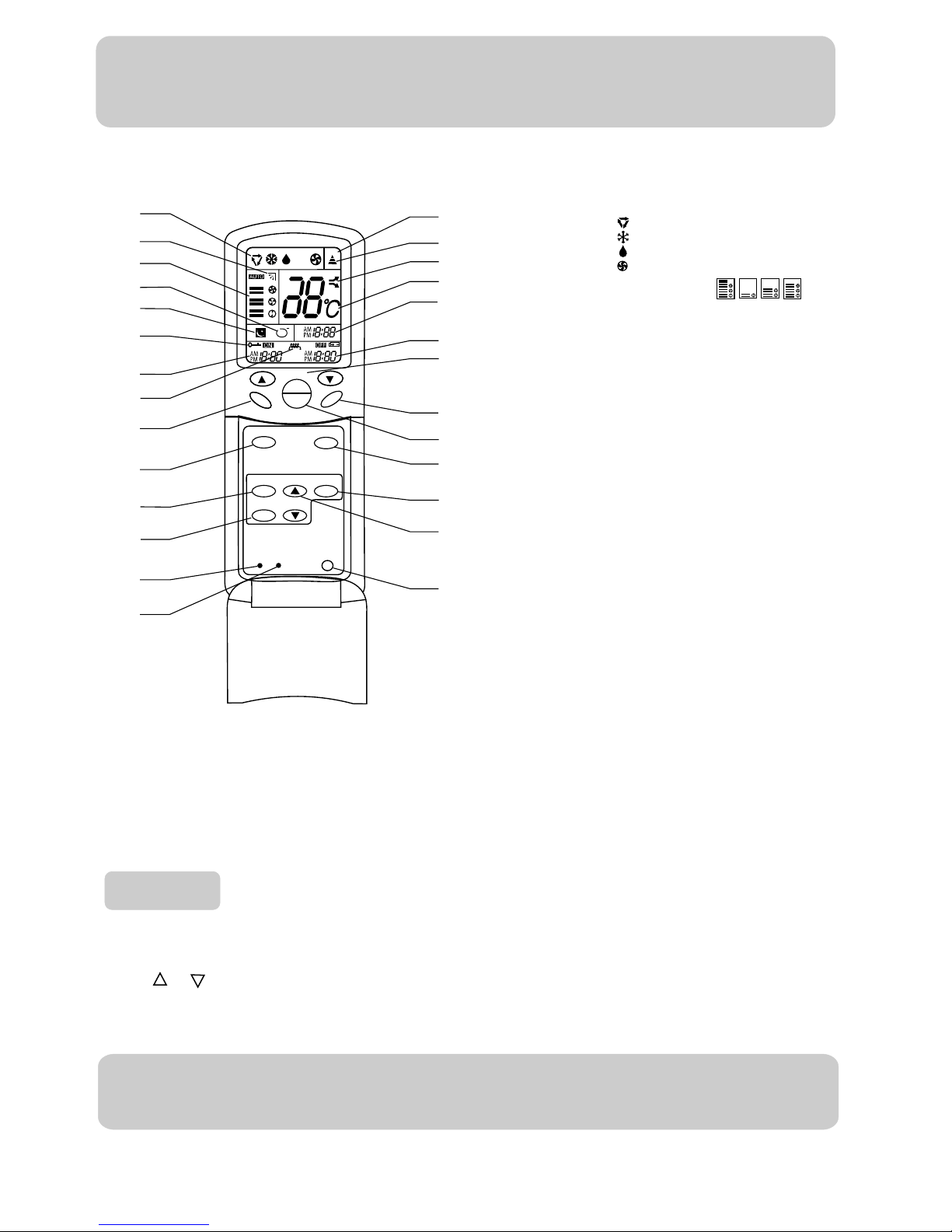

Buttons and display of the remote controller.

Clock set

When unit is started for the first time and after replacing batteries in remote controller,

clock should be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the

button is kept depressed, time will change quickly.

After time setting is confirmed, press SET, "AM " and "PM" stop flashing, while clock

starts working.

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

Hints

MED HI

AUTO

AUTO LO

27. LOCK

Used to lock buttons and LCD display

LOCK

RESET CODE

MODE SLEEP

CLOCK SET

TIMER

SWING FAN

TEMP

OFF

26. HOUR

Used to set clock and timer settings

25. SET

Used to confirm timer and clock settings

NOTE:(1)The following functions and related displays are not available :HEALTH display,AUXILIARY HEAT display,POWER/SOFT display.

(2)If the Air condition don't have the function,press code B can cause it not available.

(3)Cool only unit do not have functions and displays related with heating.

Operation

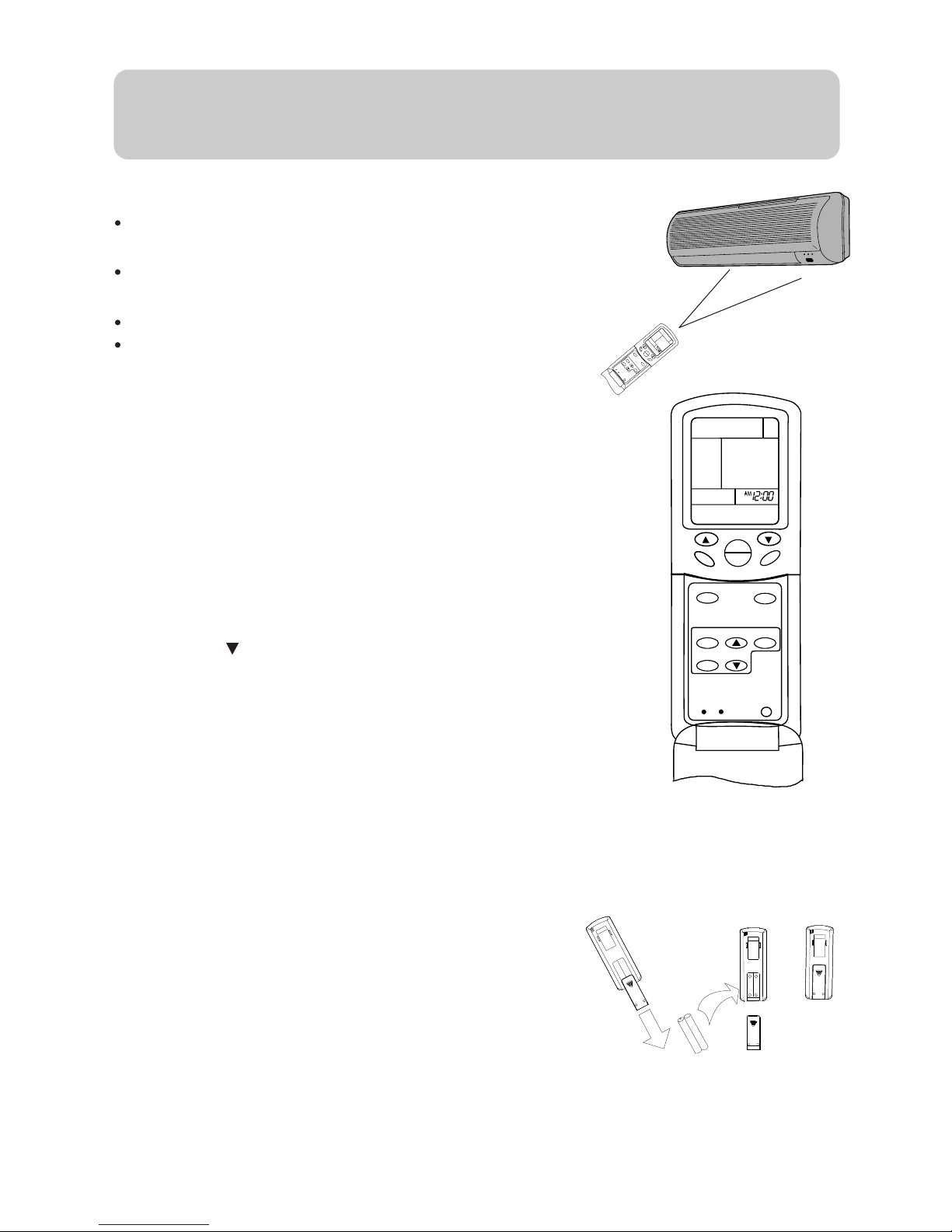

Remote controller's operation

When in use, put the signal transmission head directly to the

receiver hole on the indoor unit.

The distance between the signal transmission head and the

receiver hole should be within 7m without any obstacle as well.

Don't throw the controller, prevent it from being damaged.

When electronic-started type fluorescent lamp or change-over 

type fluorescent lamp or wireless telephone is installed in the 

room, the receiver is apt to be disturbed in receiving the signals 

so the distance to the indoor unit should be shorter.

Loading of the battery

Remove the battery cover :

Slightly press " " and push down the cover.

Load the battery :

Be sure that the loading is in line with the " + " / " - " pole request as

illustrated.

Put on the cover again

Confirmation indicator :

Note :

Hint :

Remove the batteries in case unit won't be in usage for a long period.

If there are any display after taking-out just need to press reset key.

Use two new same-typed batteries when loading.

If the remote controller can't run normally or doesn't work at all,

use a sharp pointed item to press the reset key.

In disorderation, reload the batteries or load the new batteries

after 6 mins.

Load the batteries as illustrated.

2 R-03 batteries, resetting key (cylinder)

LOCK

RESET CODE

MODE SLEEP

CLOCK SET

TIMER

SWING FAN

TEMP

OFF

1.DO NOTMIX OLD WITH

NEW BATTERIESAND

DO NOTUSE BATTERIES

OF DIFFERENTTYPES

TOGETHER

2.INSERTCORRECTLY2

(TWO) R-03 BATTERIES

INTHE+-POLARITY

3.PLEASE REMOVETHE

BATTERIESWHEN THE

REMOTE CONTRLLER

DISORDER,AND RELOAD

NEWÕSAFTER SIX

MINUTES

REMOTE CONTROL UNIT

MODEL:YR-H05

1.DONOTMIXOLD WITH

NEWBATTERIES AND

DONOT USEBATTERIES

OFDIFFERENT TYPES

TOGETHER

2.INSERTCORRECTLY2

(TWO)R-03 BATTERIES

INTHE+-POLARITY

3.PLEASEREMOVE THE

BATTERIESWHEN THE

REMOTECONTRLLER

DISORDER,ANDRELOAD

NEWÕ

SAFTERSIX

MINUTES

REMOTECONTROLUNIT

MODEL:YR-H05

1.DO NOT MIX OLD WITH

NEW BATTERIESAND

DO NOT USE BATTERIES

OF DIFFERENT TYPES

TOGETHER

2.INSER T CORRECTL Y2

(TWO) R-03 BATTERIES

IN THE + - POLARITY

3.PLEASE REMOVE THE

BATTERIESWHEN THE

REMOTE CONTRLLER

DISORDER,AND RELOAD

NEWÕS AFTER SIX

MINUTES

REMOTE CONTROL UNIT

MODEL:YR-H05

LOCK

RESET CODE

MODE SLEEP

CLOCK SET

TIMER

SWING FAN

TEMP

OFF

LOCK

RESET CODE

MODE SLEEP

CLOCK SET

TIMER

FAN

TEMP

OFF

SWING

Operation

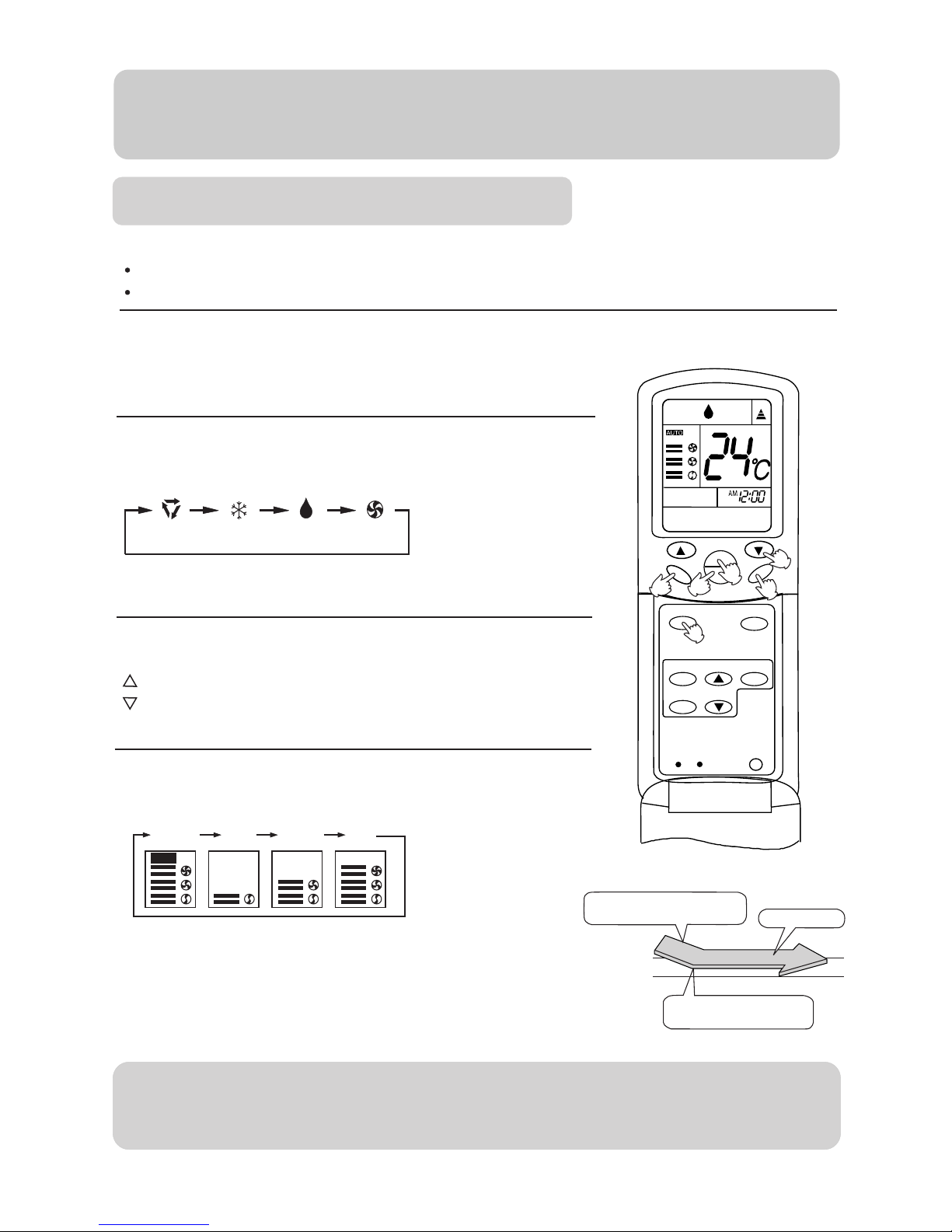

COOL and DRY operation

AUTO DRY FAN

COOL

AUTO

AUTO LO MED HI

(1) Unit start

(2) Select operation mode

(3) Select temp. setting

Press MODE button. For each press, operation

mode changes as follows:

Unit will run in operation mode displayed on LCD.

Stop display at your desired mode.

Press FAN button. For each press, fan speed changes

as follows:

Hints

(4) Fan speed selection

Unit will start running to reach the temp. setting on LCD.

Recommendations:

Use COOL in summer.

Use DRY in spring, autumn and in damp climate.

Press ON/OFF button, unit starts.

Previous operation status appears on display. (Not Timer setting)

Power indicator on indoor unit lights up.

Press TEMP. button.

Every time the button is pressed, temp. setting increases 1oC

Every time the button is pressed, temp. setting decreases 1oC

Unit runs at the speed displayed on LCD.

In DRY mode, when room temp. becomes 2oC higher than

temp. setting, unit will run intermittently at LO speed

regardless of FAN setting.

Remote controller can memorize each operation status. When starting it next time, 

just press ON/OFF button and unit will run in previous status.

COOL operation starts when room

temp. is higher than temp. setting.

Temp. setting

Temp. setting+2oC

Ultra-low air flow

On reaching temp. setting,unit

will run in mild DRY mode.

LOCK

RESET CODE

MODE SLEEP

CLOCK SET

TIMER

SWING FAN

TEMP

OFF

564
