hager Muse Manual de usuario
www.hager.com
Safety instructions
Electrical equipment must only be installed and assembled by a qualified
electrician in accordance with the relevant installation standards, regulations,
directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to
the device, fire or other hazards.
Function
The TV outlets are used for supplying digital or analogue TV signals.
Version Connector Area of application
TV outlet IEC-jack For use as single socket
Correct use
- For the flush-mounted installation in standard wall boxes (wall box depth ≥ 47 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Frequency range: 5 ... 1000 MHz
TV outlets
Hager Muse / Hager Inspire Installation manual
2
Information for electricians
Installation and electrical connection
Preparing the device for installation
Notches
Frame
1A Hager Muse
Cover
plate
Frame
Notches
Hager Inspire1B

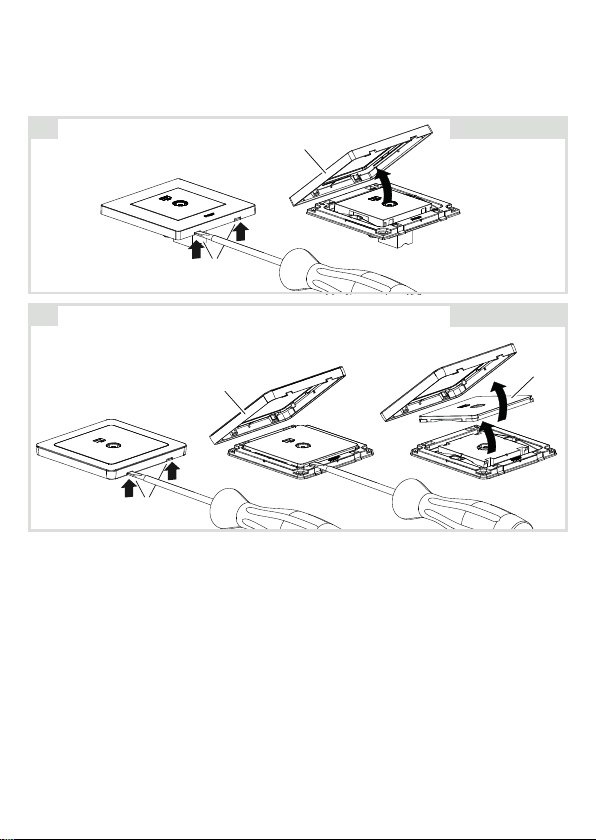

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and
remove the frame (1A/1B).
Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).
3
Connecting the TV outlet
Shorten and route coaxial transmission line in the wall box. When doing so, do not
bend coaxial transmission line too far.
10 mm 8 mm
2A F-plug
Strip coaxial transmission line and attach supplied F-plug (2A).
2B 2C
Connect and screw the assembled line to the F-jack on the rear of the TV outlet
(2B/2C).
Installing the device into the wall box
3
After wiring, fix the device with the two screws attached into the wall box (3).
4
Assembling the covers
Frame
Cover plate
Frame
4A Hager Muse Hager Inspire
4B
Hager Muse: Snap the frame onto the device (4A).
Hager Inspire: Place the cover plate in the correct position and fix with frame (4B).
2-5gang frames are available for multiple combinations.
