Guide Sensmart IPT Series Manual de usuario
Thanks for buying this product. Please read this manual before use and then
carefully collect it for future reference. The pictures are for reference only and
the products are subject to the available products.
The purpose of this Manual is to ensure the users correct usage of the product to avoid
danger or property damage. Please read this Instruction Manual carefully before using this
product and keep it well for future reference. As shown below, the precautions are divided
into “Warnings” and “Cautions”:
Warnings: Ignorance of warnings may result in death or serious injuries.
Cautions: Ignorance of cautions may result in injury or property damages.
• During the installation and use of this product, the electrical safety regulations of the
country and territory of use must be strictly observed.
• Please use the power adapter provided by the qualied manufacturer, and the thermal
imager supply voltage is: 12V.
• Please do not connect multiple thermal imagers to the same power adapter (Overload of
the power adapter may result in excessive heat or res).
• Please disconnect the power supply of the thermal imager during operations such as
wiring, disassembly and assembly, and do not conduct the hot-line work.
• In case of smoking or noise during use of the thermal imager, please turn o the power
immediately and contact the distributer or service center to address issues.
• In case that the device fails to work properly, please contact the store where the
device was purchased or the nearest service center. Do not disassemble or modify the
device in any way. (The company is not responsible for issues caused by unauthorized
modications or maintenances).
• Do not drop objects onto the device or vibrate the device vigorously, and keep the device
away from locations where magnetic-eld interference exists.
• Please avoid the installation of the device in the vibrating surface or the place where is
subject to shock. (Ignorance of this item may result in the device damage)
• Do not use the device in the place with high temperatures (over 60° C) or low temperatures
(below -10° C) or in the high humidity (above 95%) condition.
• Please do not aim the thermal imager to the strong light object, such as the sun or
electric iron, otherwise the device will be damaged.
• Do not keep in the thermal imager in a location exposed to direct sunlight or in a location
that is poorly ventilated, for example, places near the heat sources such as the heater or
heating installation (Ignorance of this item may result in the re hazard).
• Do not switch the power of the machine frequently. The interval between the restart
and the shutdown shall be no less than 30 seconds, otherwise the product life will be
aected.
• Do not touch the surface coating of the thermal imager lens directly with the hand, or
scratch the lens with hard objects, which may result in blurred images and eects on the
image quality.
• In case of the cleaning of the thermal imager, the lens surface shall be wiped with the
soft enough dry cloth or other substitute. Do not use the alkaline cleaner.
The user shall ensure that the Instruction Manual and this Statement of the product have
been carefully read and fully understood before using this product, and the user shall install
and use this product in strict accordance with this Instruction Manual of the product. The
great inconvenience or even property damage and personal injury may arise in case that the
user fails to install and use this product in strict accordance with this Instruction Manual. The
company shall not be liable for any property damage and personal injury caused by improper
installation or improper use of this product by users.
2.1 Product introduction .............................................................................................................. 2
2.2 Product technical specications ........................................................................................... 2

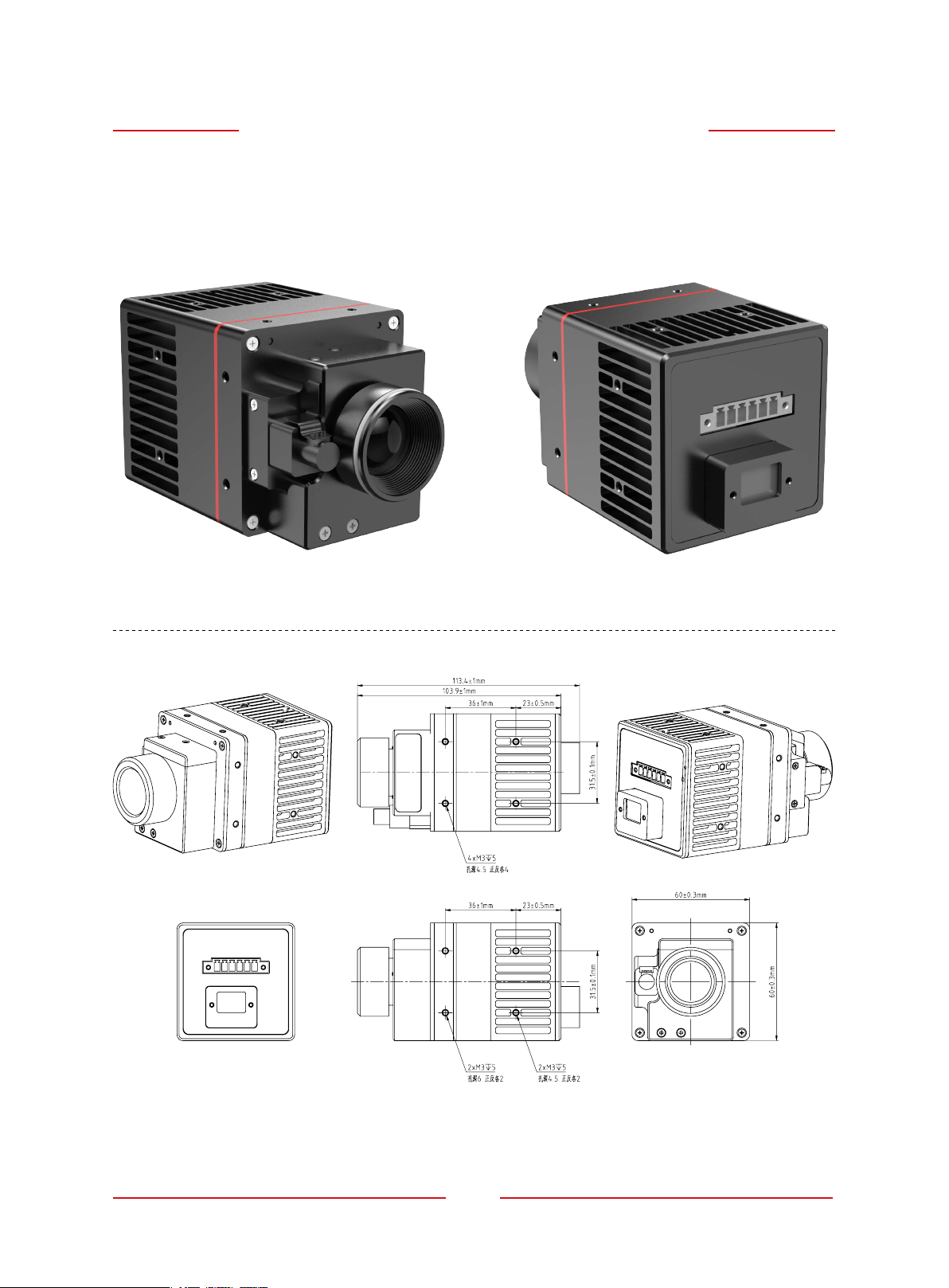

3.1 External view ........................................................................................................................... 5
3.2 Electrical interface .................................................................................................................. 9
4.1 Installation instruction of control software in the PC ......................................................... 11
4.2 Operation instruction of control software in the PC ........................................................... 15
1
Online Thermal Imager for Temperature Measuring (including lens) 1
Power adapter 1
(Partial selection)
Power adapter plug 2
(Partial selection)
Optical disk
(the content of the optical disk including SDK development kit,
instruction manual of the SDK development kit interface, software and
product instruction manual)
1
Reticle(only support IPT384 and IPT640) 1
(Partial selection)
Computer accessories are not included in the delivery list. You can purchase the matching
computer by yourself. It is recommended to purchase the display screen with good display
performance and the chassis with good processing performance.
2
The IPT series product is the online thermal imager for temperature measuring with high
performances and high accuracy. The uncooled focal plane explorer is used for stable
operation and excellent performance. The product is developed based on the common
interface protocol with feature-rich terminal software and the easy-to-use SDK package. It is
small in size and light in weight, which is easy to be integrated.
IR
Infrared output
resolution 640×480 384×288 384×288 384×288
Wavelength 8 ～ 14μm
Pixel size 17μm 25μm 17μm
NETD ≤ 60mk
Lens 30o×23o/20mm 25o×19o/15mm 35o×27o/15mm 50o×39o/7mm
Focus mode Electric /automatic-focusing focus
Temperature
measurement
range
-20℃～ 150℃，-20℃～ 350℃
-20℃～ 150℃，100℃～ 650℃
(one of the above two shall be
chose)
-20℃～ 150℃ -20℃～ 150℃，
100℃～ 650℃
Temperature
measuring
precision
±2° C or ±2%, taking large values
Temperature
data accuracy To one decimal place
3
Ethernet
function Control and image transmission
Ethernet type 100/1,000Mbps
Video stream 1.Pure video stream,2. pure mixed stream, 3.pure temperature stream
Protocol RTSP，UDP，HTTP，TCP/IP，Onvif
IP allocation Static IP, dynamic IP
For details, please refer to the "sdk instruction manual" in each product data download
card.
Typical voltage 12V
Voltage range 9 ～ 15V 9 ～ 24V
Operating
temperature
-10℃～ 50℃；-20℃～ 60℃
(one of the above two shall be
chose)
-10℃～ 50℃
Storage
temperature -40℃～ 70℃
Humidity 5% ～ 95% non-condensation
Anti-vibration 10HZ ～ 150HZ ～ 10HZ 0.15mm （ IEC 60068-2-6 ）
Impact
resistance 30g 11ms （ IEC 60068-2-27 ）
4
Dimensions
98mm×60mm
×60mm
(with lens,
excluding
external
interface)
88mm×60mm
×60mm
(with lens,
excluding
external
interface)
Separate type,
front end
40mm×40mm
×41mm,
rear end
41mm×45mm
×20mm
Separate type, front
end 44.45mm×
43.85mm
×44.53mm,
rear end
45mm×41mm
×16.2mm
weight 410g (approx.) 395g (approx.)
Front end
≤ 85g,
total ≤ 125g
total ≤ 144g
Installation
interface M3 thread interface (four sides) M2 thread interface (four sides)
External
interface
Power supply (lockable), power
supply indicator light, network
port (lockable), RS485 (lockable),
network reset interface and
alarm output IO (lockable)
8PIN connector (including network and
power input)6PIN connector (including
network and power 12V/500mA output)
According to the PC configuration and the on-site network environment, the
number of supported networking devices will be dierent. You can consult a professional.
5
IPT640：
