3 SET-UP AND SAFETY

5 CONNECTION/PREPARATION

5 Connecting the antenna and the mains cable

6 Inserting batteries in the remote control

7 OVERVIEW

7 Connections on the television

8 Controls on the television

9 The remote control

11 SETTINGS

11 Setting television channels automatically

11 Changing stored channels

13 Picture settings

13 Audio settings

15 TELEVISION OPERATION

15 Basic functions

16 Zap function

16 Zoom function

17 Changing the picture format

18 TELETEXT MODE

18 FLOF text and normal text mode

18 Additional functions

20 CONVENIENCE FUNCTIONS

20 Convenience functions with the »Features« menu

22 USING EXTERNAL DEVICES

22 DVD player, DVD recorder, video recorder or set-top box

22 High deﬁnition – HD ready

22 Connecting a DVD player, DVD recorder, video recorder or set-top box

24 Headphones

25 Decoder or satellite receiver

26 Camcorder

26 Hi-ﬁ system/AV receiver

27 PC MONITOR MODE

27 Connecting a PC

28 SPECIAL SETTINGS

28 Setting television channels

31 INFORMATION

31 Technical data

31 Service information for dealers

31 Environmental note

32 Troubleshooting

33 Additional Information for units sold in the UK.

CONTENTS------------------------------------------------------------------------------------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 2

ENGLISH

Please note the following information when setting up your television

set.

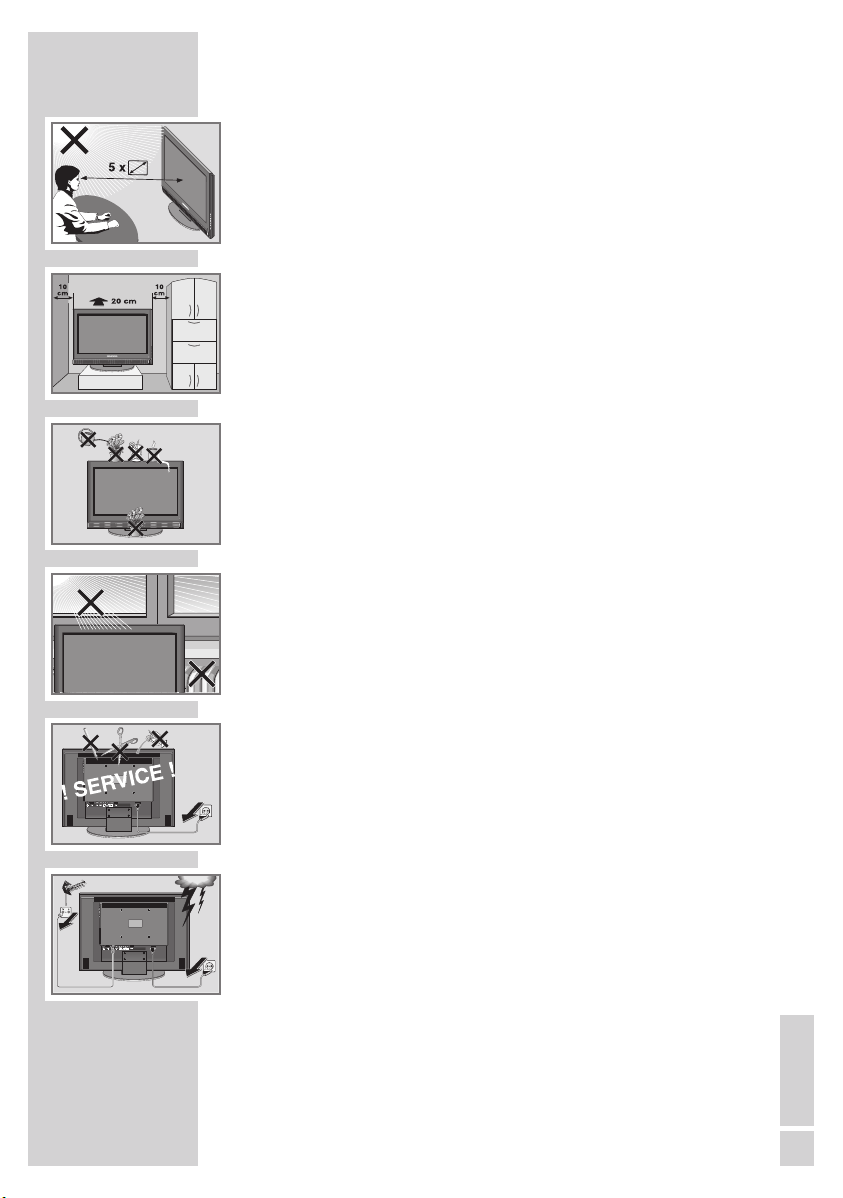

This television set is designed to receive and display video and audio

signals.

Any other use is expressly prohibited.

The ideal viewing distance is 5 times the screen diagonal.

External light falling on the screen impairs picture quality.

To assure suﬃcient ventilation make sure there is enough space

around it in the wall unit.

The television set is designed for use in dry rooms. If you do use it in

the open, please ensure that it is protected from moisture, such as

rain or splashing water. Do not expose the television set to any mois-

ture.

Do not place any vessels such as vases on the television, as they may

spill liquid, thus presenting a safety risk.

Place the television set on a solid, level surface. Do not place any

objects such as newspapers on the television set or cloth or similar

items beneath it.

Do not place the television set close to heating units or in direct sun-

light, as this will impair cooling.

Heat build-up can be dangerous and shortens the operating life of

the television set. For reasons of safety, have a specialist remove any

dirt deposits in the set from time to time.

Do not open the television set under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

Make sure the power cord or the power supply unit (if provided) are

not damaged.

The television set may only be operated with the mains

cable/adapter supplied.

Thunderstorms are a danger to all electrical devices. Even if the

television set is switched oﬀ, it can be damaged by a lightning strike

to the mains or the antenna cable. Always disconnect the mains and

antenna plugs during a storm.

Clean the screen with a soft, damp cloth. Only use plain water.

Notes:

Do not connect any other equipment while the device is switched

on. Switch oﬀ the other equipment as well before connecting it.

Only plug the device into the mains socket after you have con-

nected the external devices and the antenna.

Make sure the power plug is freely accessible.

SET-UP AND SAFETY------------------------------------------------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 3

Please note when deciding where to put the device that furniture

surfaces are covered by various types of lacquer and plastic, most

of which contain chemical additives. These may cause corrosion to

the feet of the device, thus resulting in stains on the surface of the

furniture which can be diﬃcult or impossible to remove.

The screen of your LCD television meets the highest quality

standards and has been checked for pixel faults.

Despite the great care taken in manufacturing, technological

reasons make it impossible to completely discount the possibility that

some pixels may be faulty.

Provided they are within the thresholds speciﬁed by the DIN norm,

pixel faults of this kind cannot be regarded as a defect as deﬁned by

the warranty.

Caution:

If you want to use a wall bracket for your television, make sure

you read the assembly instructions for the wall bracket carefully

or have your specialist dealer mount it for you.

When buying the wall bracket, make sure that all the fastening

points needed on the television are there on the wall bracket and

that they are all used when it is mounted.

SET-UP AND SAFETY------------------------------------------------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 4

ENGLISH

Connecting the antenna and the mains cable

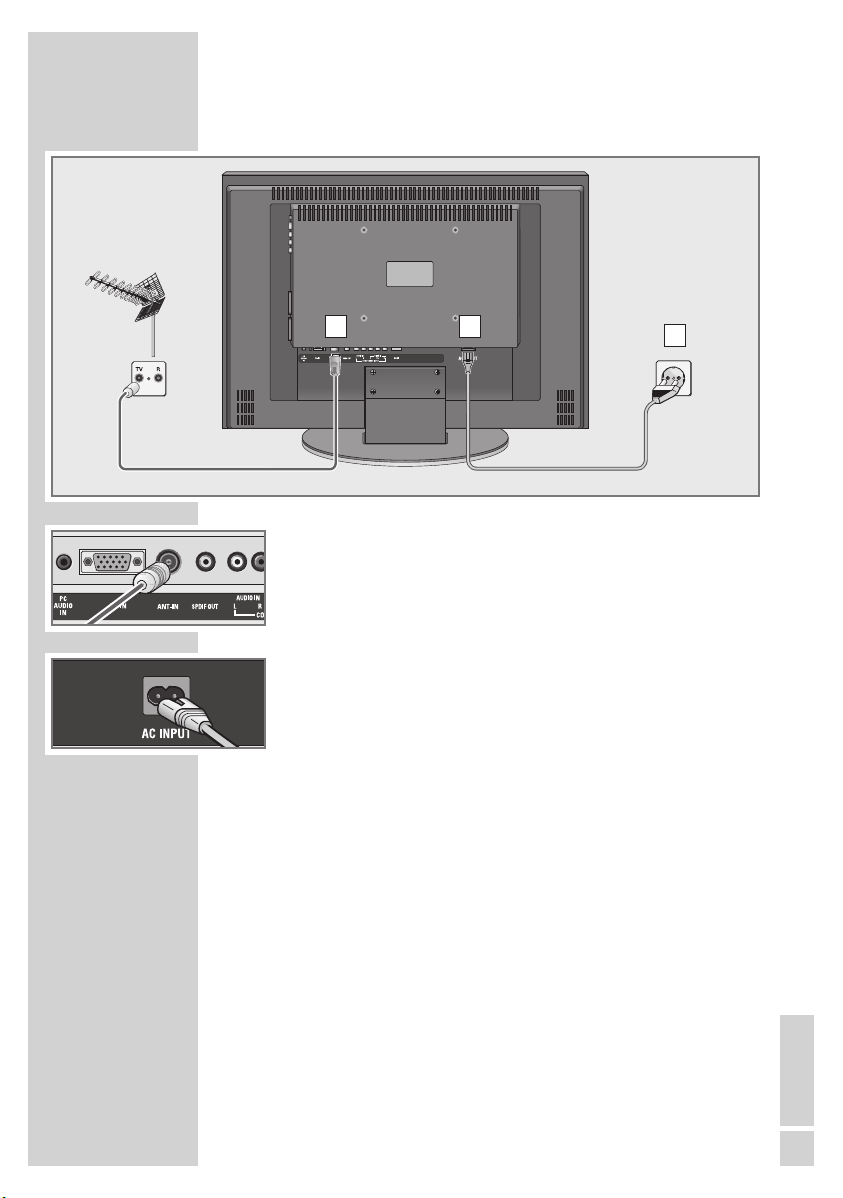

1Plug the antenna cable of the rooftop antenna into the »ANT-

IN« antenna socket on the television.

2Plug the mains cable supplied into the »AC INPUT« mains socket

of the television.

3Plug the mains cable into the wall socket.

Note:

Only plug the device into the mains socket after you have

connected the external devices and the antenna.

Only connect the television using the power cord supplied to a

suitable earthed safety socket.

Do not use an adapter plug or extension lead which does not

meet the applicable safety standards. Do not tamper with the

power cord.

CONNECTION/PREPARATION ----------------------

1 2 3

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 5

Inserting batteries in the remote control

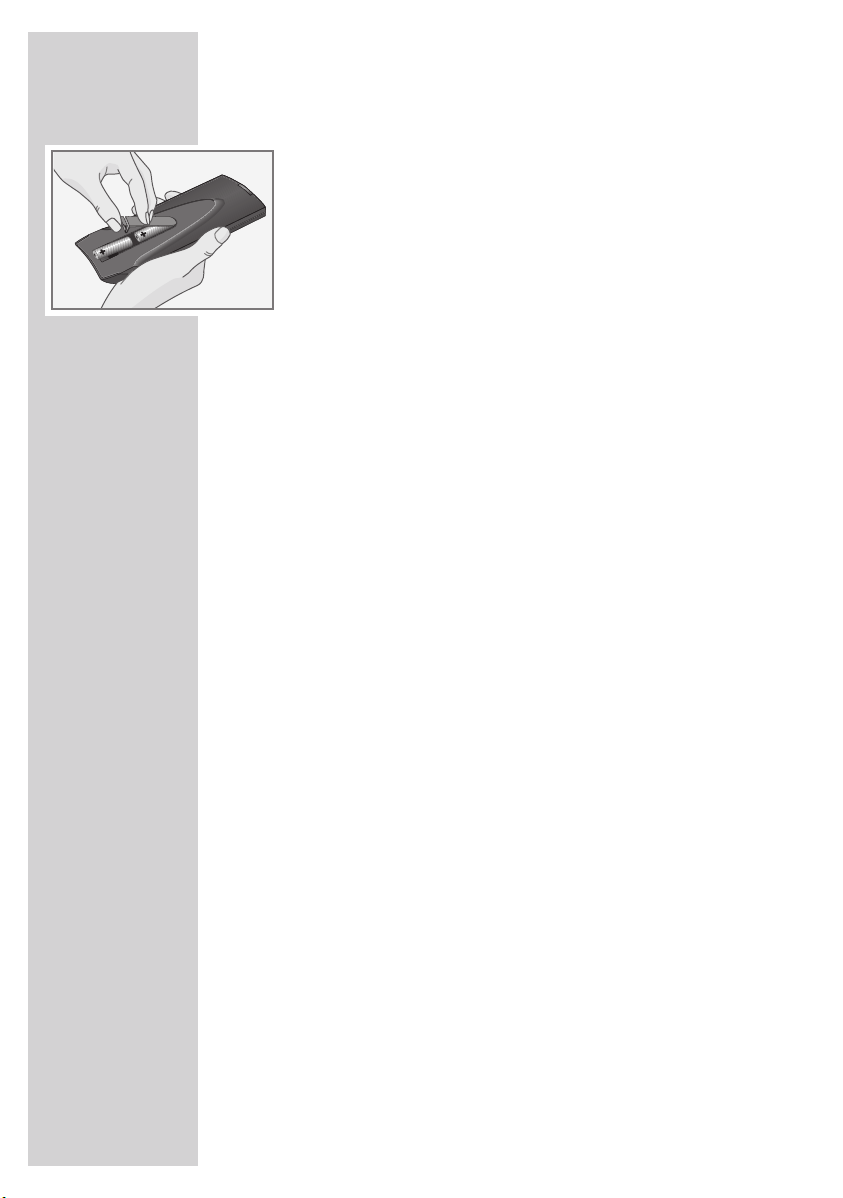

1Open the battery compartment by removing the lid.

2Insert the batteries (Mignon type, for example UM-3 or AA,

2x1,5V). Observe the polarity (marked on the base of the battery

compartment).

3Close the battery compartment.

Note:

If the television no longer reacts properly to remote control

commands, the batteries may be ﬂat. Be sure to remove used

batteries.

The manufacturer accepts no liability for damage resulting from

used batteries.

Environmental note

Batteries, including those which contain no heavy metal, may not

be disposed of with household waste. Please dispose of used

batteries in an environmentally sound manner. Find out about the

legal regulations which apply in your area.

CONNECTION/PREPARATION ----------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 6

ENGLISH

Connections on the television

UHeadphone connection (3.5 mm jack plug).

S-VHS Video signal input for S-Video camcorder.

VIDEO Video signal input for camcorder.

L R Audio signal input for camcorder.

AV1 Euro/AV socket (FBAS signal, RGB signal).

AV2 Euro/AV socket (FBAS signal).

PC AUDIO IN Audio signal input for PC.

PC-IN VGA socket, video signal input for PC.

ANT-IN Antenna socket.

SPDIF OUT Audio output sockets (coaxial) for PCM signals.

For connecting to a digital multi-channel

audio/video ampliﬁer or AV receiver.

COMPONENT

INPUT

AUDIO IN LR Audio signal input (YUV signal).

VIDEO IN Y Pb Pr Video signal input (YUV signal).

HDMI HDMI socket, audio/video signal input (HDMI).

AC INPUT Socket for the mains cable.

OVERVIEW ----------------------------------------------------------------------------------------------

AC INPUT

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 7

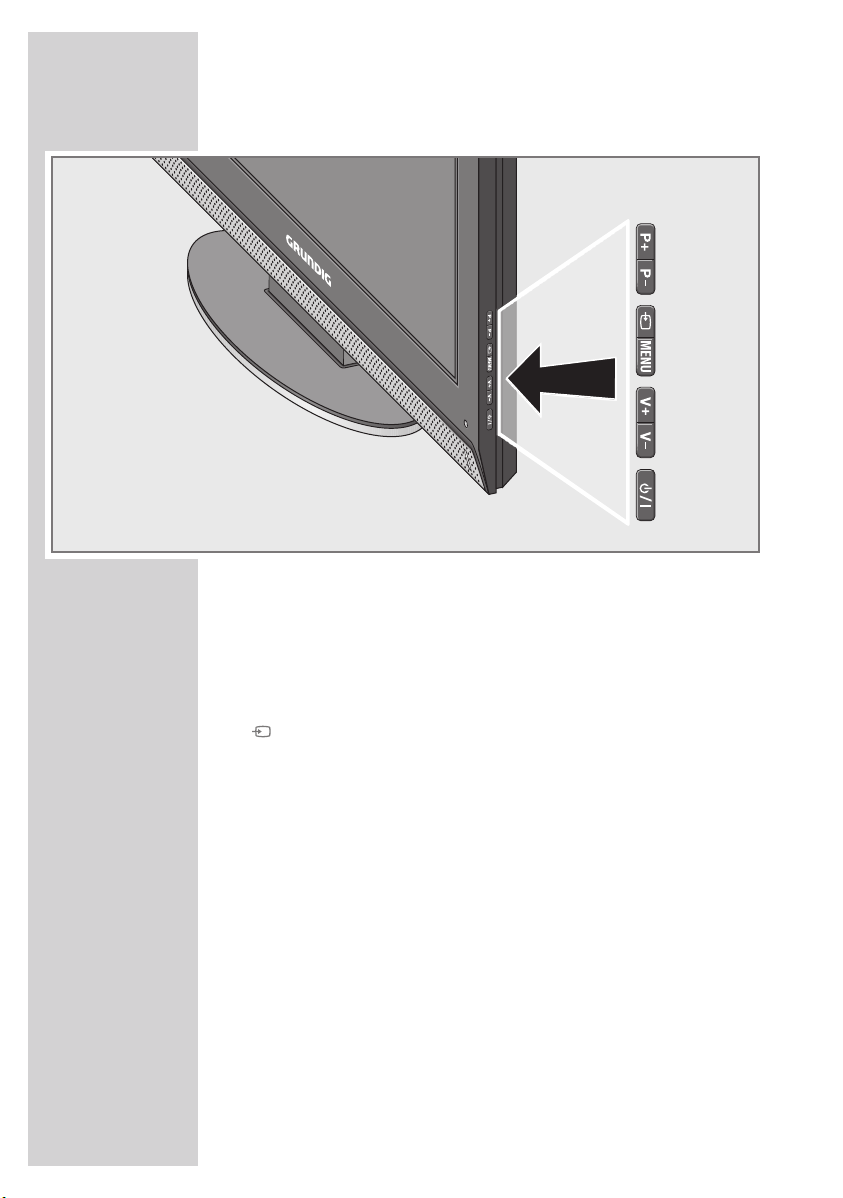

Controls on the television

8/I Switches the television on and back into standby

mode.

The only way to disconnect the television from

the mains supply is to pull the plug.

V+ V – Adjust the volume.

Select menu functions.

Opens the pre-selection for AV channels.

Select within the menu with »+ P« or »P –«,

conﬁrm with »V+« or »V–«.

MENU Opens the »MAIN MENU« menu.;

Press »P+« or »P–« to select an item.

Press »V+« or »V–« to activate a function.

Press »V+« or »V–« to set a function.

Press »MENU« to close the menu.

P+ P – Switch the television on from standby.

Channel selection.

Select a function in the menu.

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 8

ENGLISH

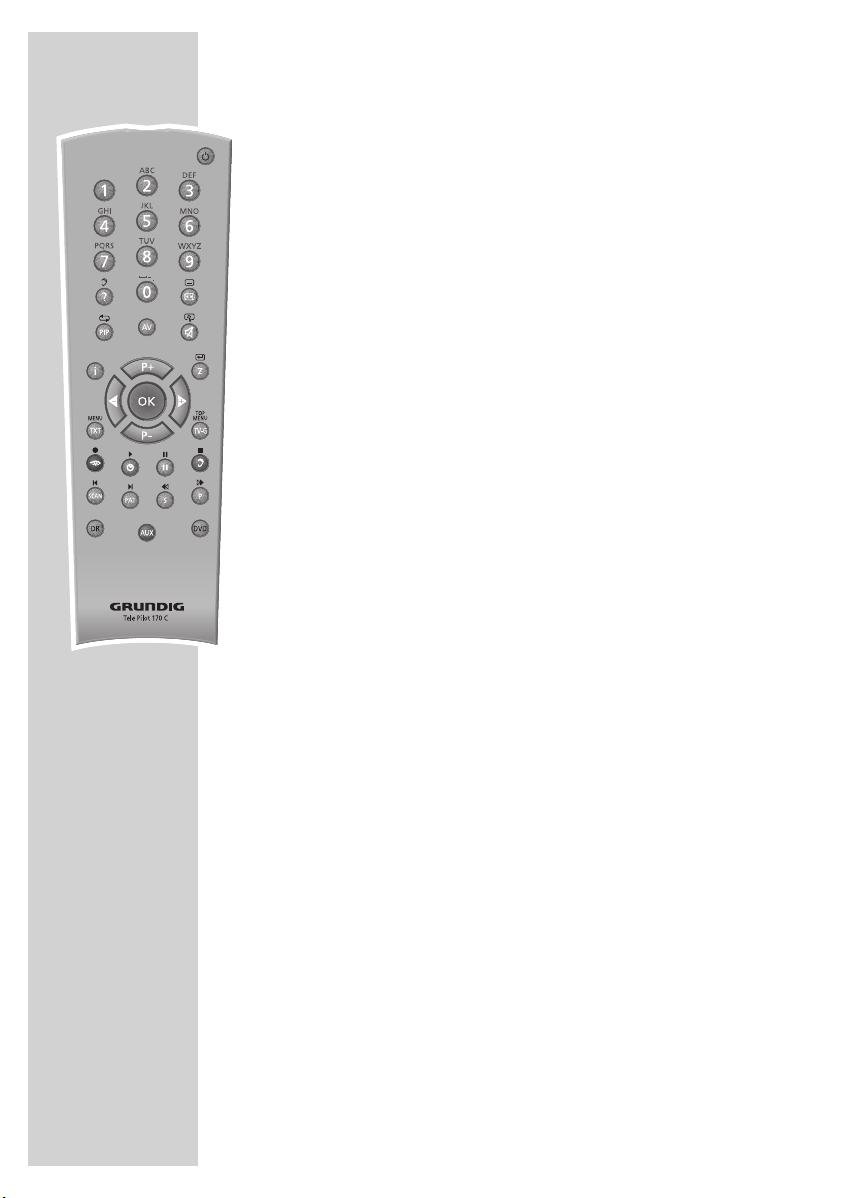

The remote control

8Switches oﬀ the television set (stand-by).

1...0 Switches the television on from standby mode

Selects channels directly.

?Displays the number and name of a station;

reveals answers in teletext mode.

ESwitches between picture formats;

switches to double character size in teletext

mode.

PIP Key has no function.

AV Opens the pre-selection for AV channels.

Then selection with P+ or P-.

dSound on/oﬀ (mute).

iCalls up the »MAIN MENU«.

ZZap function;

page stop in teletext mode.

P+, P- Switches the television on from standby;

selects stations step by step;

moves the cursor in the menus up and down.

4 3 Adjusts the volume;

moves the cursor left/right.

OK Calls up the preset channels;

activates various functions.

TXT Switches between teletext and TV modes

TV-G Key has no function.

zSelects various picture settings;

selects a page in teletext mode.

¥Displays the time;

selects a page in teletext mode.

3Freeze-frame;

selects a page in teletext mode.

FSelects various audio settings;

selects a page in teletext mode.

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 9

SCAN Enlarges the picture.

PAT Selects the Split Screen function.

SSelects the sub-pages in teletext mode.

PUpdates a page in teletext mode.

DR, DVD Switches to operation of a GRUNDIG digital

receiver, GRUNDIG digital receiver with hard

disk (PDR), GRUNDIG DVD player or GRUNDIG

DVD recorder.

Keep the appropriate button (»DR«, »DVD«)

pressed down. Then press the appropriate button.

Note:

The »DR« button has been programmed for

operating a GRUNDIG digital receiver (remote

control level 1).

The »DVD« button has been programmed for

operating a GRUNDIG DVD player.

You can change this programming, see »AUX«

button.

The functions available depend on the model of

the device you are using.

Just try it out.

AUX Programming the remote control for the operation

of external devices.

Press »AUX« and hold it down and press three

numerical buttons to enter the appropriate code:

»1«, »2«, »3« for a GRUNDIG DVD player.

»4«, »5«, »6« for a GRUNDIG DVD recorder.

»1«, »4«, »7« for a GRUNDIG digital receiver

(remote control level 1).

»2«, »5«, »8« for a GRUNDIG digital receiver

(remote control level 2).

»3«, »6«, »9« for a GRUNDIG digital receiver

with hard disk (PDR).

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_32-6820_en:Layout 1 20.09.2007 15:04 Uhr Seite 10

Otros manuales para Vision 6

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Grundig

Grundig

Grundig 40 GFB 6822 Manual de usuario

Grundig

Grundig 32 VLE 5520 BN Manual de usuario

Grundig

Grundig 28 VLE 5700 SN Manual de usuario

Grundig

Grundig CUC 2058 N Manual de usuario

Grundig

Grundig T 55-830 text Manual de usuario

Grundig

Grundig 32 VLE 525 BG Instrucciones de instalación

Grundig

Grundig CUC 6360 Manual de usuario

Grundig

Grundig 40 GBF 5000 Manual de usuario

Grundig

Grundig Meglio series Manual de usuario

Grundig

Grundig 24 GCH 5900B Guía de referencia

Grundig

Grundig Xentia LXW 102-8625 REF Manual de usuario

Grundig

Grundig DAVIO 37 P 37-2201 Manual de usuario

Grundig

Grundig DIGI 100 CUC 1837 Manual de usuario

Grundig

Grundig 55 GUB 8688 A Manual de operación y mantenimiento

Grundig

Grundig 65 GDU 7810B Manual de usuario

Grundig

Grundig 40 VLE 7040 C Manual de usuario

Grundig

Grundig 26 LXW 68-8600 DL Manual de usuario

Grundig

Grundig VISION 2 22-2930 T DVD Manual de usuario

Grundig

Grundig CUC 1929 Manual de usuario

Grundig

Grundig 43 GFT 6820 Manual de usuario

Grundig

Grundig 22 VLE 521 BG Manual de usuario

Grundig

Grundig PlanaVision 42 PW 110-8610 TOP Manual de usuario

Grundig

Grundig AMIRA 17 Manual de usuario

Grundig

Grundig 40 GFB 6650 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
