CONTENTS________________________________________________________________________

3 Set-up and safety

4 Overview

Operating controls of the stereo system

The display on the stereo system

The back of the stereo system

The remote control

12 Connection and preparation

14 Settings

Setting the clock

Tuning and storing radio stations

Deleting settings

19 General functions

21 Tuner mode

RDS station service

26 CD mode

Basic CD mode functions

Special CD mode features

Creating a track memory – playing back tracks in selected order

32 Timer mode

Switch-on timer

Sleep timer

34 Information

Cleaning the CD unit, Technical data

Additional information for units sold in the U.K.

Rectifying minor problems

GRUNDIG Service

ENGLISH

SET-UP AND SAFETY ______________________________________________

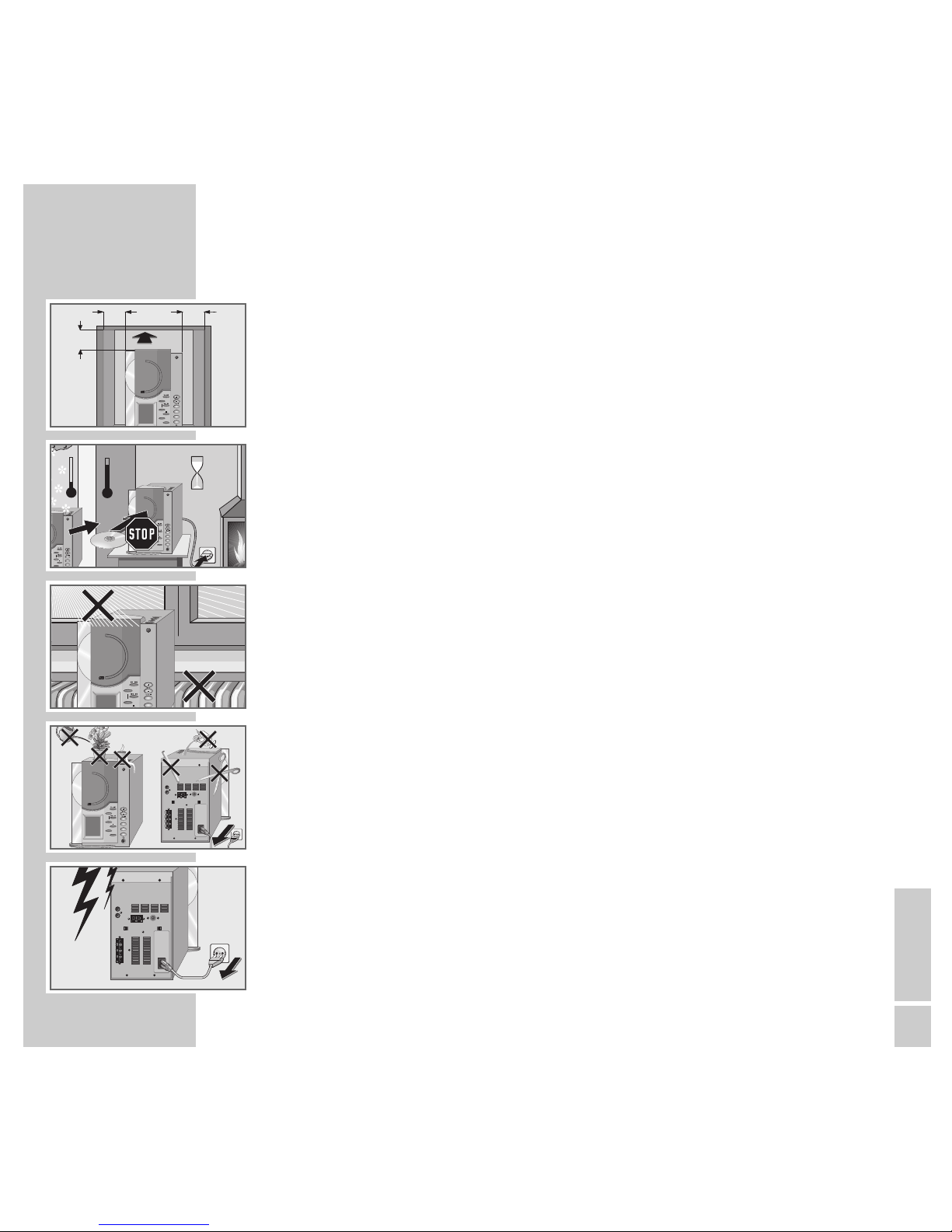

Please note the following information when setting up the system:

This stereo system is designed for the playback of audio signals. Any other use

is expressly prohibited.

If you want to set up the stereo system on wall shelves or in cupboards, please

ensure that the device is adequately ventilated. There must be at least 10 cm of

space at the side, above and at the back of the device.

Please note when setting up the stereo system that furniture surfaces are coated

with various types of paint and plastic, which often contain chemical additives.

These additives may cause corrosion to the feet of the unit. This may leave stains

on the surface of the furniture which can be difficult or impossible to remove.

If the stereo system is exposed to sudden changes in temperature, for example

when taken from the cold into a warm room, wait at least two hours before

using it.

The stereo system is designed for use in dry rooms. If you do use it in the open,

please ensure that it is protected from moisture, such as rain or water splashes.

Do not place the stereo system close to heating units or in direct sunlight, as this

will impair cooling.

Do not place any vessels such as vases on the stereo system. Do not insert any

foreign bodies in the CD compartment.

Do not open the stereo system under any circumstances. The manufacturer

accepts no liability for damage resulting from improper handling.

Thunderstorms are a danger to all electrical devices. Even if the stereo system is

switched off, it can be damaged by a lightning strike to the mains or the anten-

na cable. Always disconnect the mains and antenna plugs during a storm.

UMS 4100 STEREOMICRO HIFI SYSTEM

VOLUME

ON/OFF

AUX

TUNER/BAND

DSC

UBS

DOWN

TUNING

°C2h

°C

UMS4100 STEREOMICRO HIFI SYSTEM

VOLUME

ON/OFF

AUX

TUNER/BAND

DSC

UBS

DOWN

TUNING

VOLUME

AUX

TUNER/BAND

UBS

DOWN

TUNING

UMS 4100 STEREO MICRO HIFI SYSTEM

VOLUME

TUNER/BAND

DOWN

TUNING

UMS 4100 STEREOMICRO HIFI SYSTEM

VOLUME

ON/OFF

AUX

TUNER/BAND

DSC

UBS

DOWN

TUNING

AUX

SPEAKER

FMANTENNA

MWANTENNA

! SERVICE !! SERVICE !! SERVICE !

AUX

SPEAKER

FM ANTENNA

AM ANTENNA

OVERVIEW _______________________________________________________________________

Operating controls of the stereo system

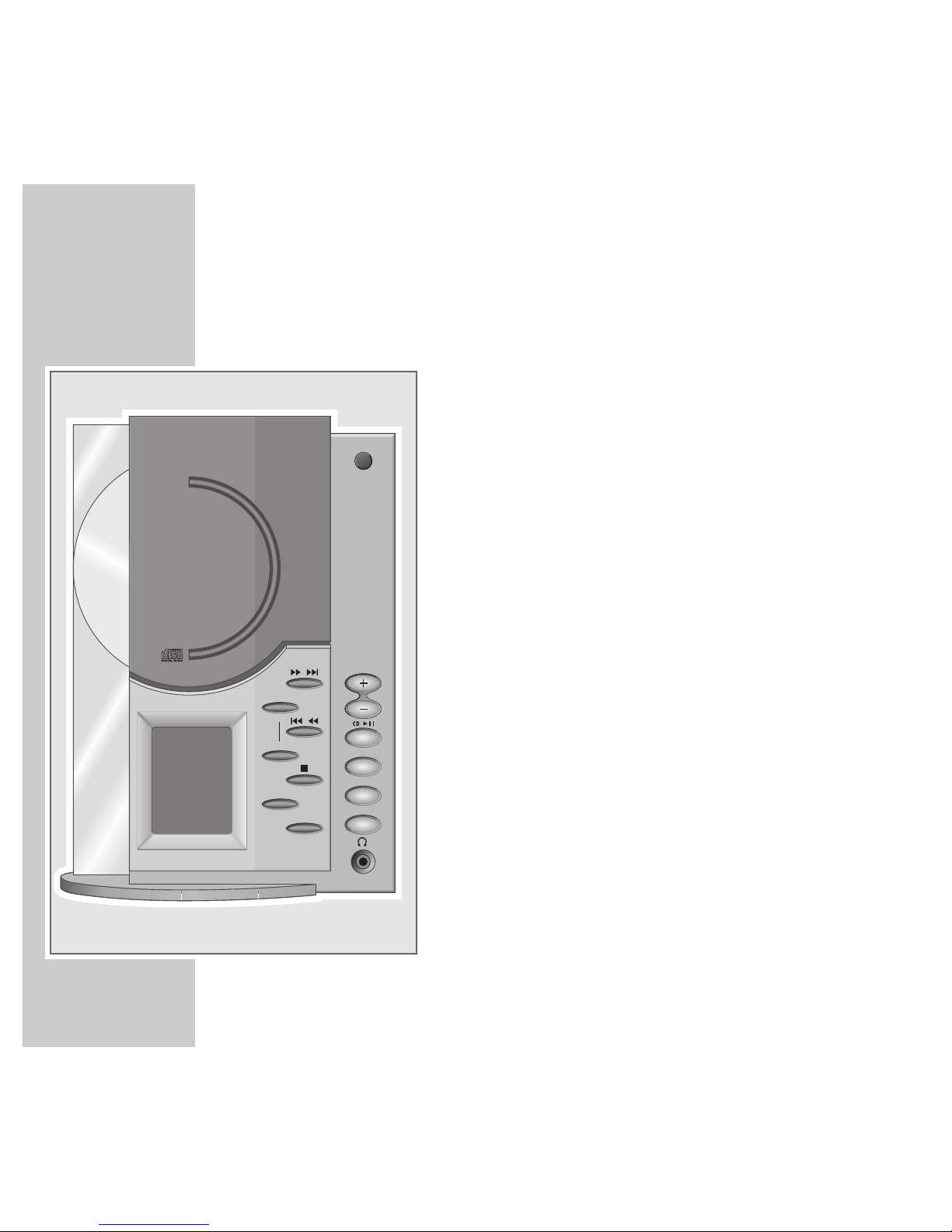

Operating controls on the front

General

ON/OFF Switches the stereo system to and from

stand-by mode.

OInfrared receiver for remote control sig-

nals.

0Headphone jack for connecting a stereo

headphone set with a jack plug

(ø 3.5 mm).

The loudspeakers of the stereo system

are automatically switched off.

+ VOLUME – Adjusts the volume.

UBS

For ”boosting” the bass.

DSC Selects the sound settings.

Tuner mode

TUNER Selects the »TUNER« input source.

BAND Selects the frequency band »FM« or

»MW«.

TUNING Hold down to start the station search.

UP/DOWN Press briefly to change the frequency in

small steps.

UMS 4100 STEREO MICRO HIFI SYSTEM

VOLUME

ON/OFF

AUX

TUNER/BAND

DSC

UBS

DOWN

TUNING

ENGLISH

OVERVIEW__________________________________________________________________________________

sss6Select stored

5a § radio stations.

CD mode

CD ıII Selects the »CD« input source.

Starts and interrupts CD playback.

sss6Press briefly to select the next track.

Hold down to look for a particular pas-

sage.

5a § Press briefly to select the previous track.

Hold down to look for a particular

passage.

■Ends CD playback.

Deletes the track memory for the CD.

AUX operation

AUX Selects the input source »AUX« (external

device).

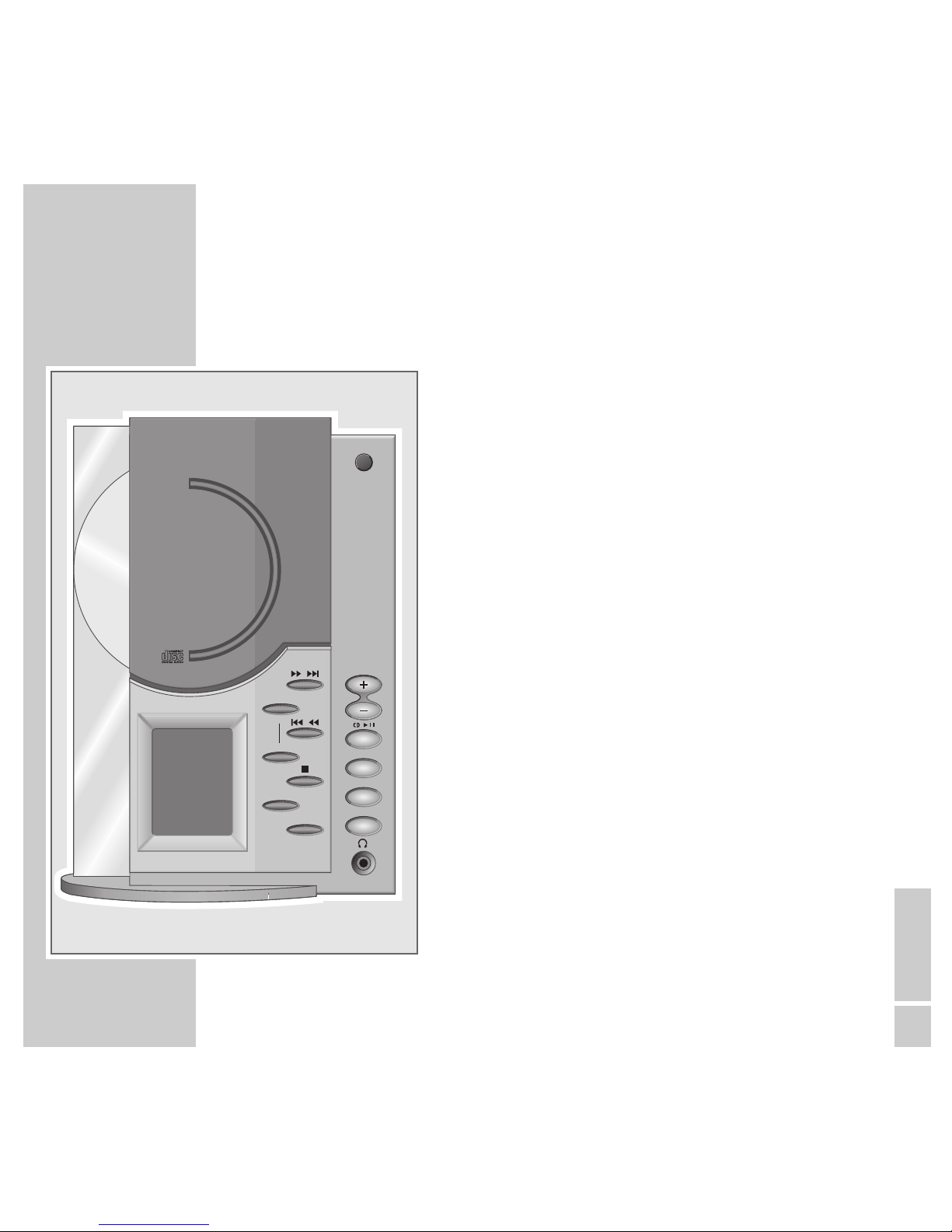

Operating controls on the top of the device

General

SLEEP For setting the sleep timer.

INTRO/REPEAT For setting the switch-on timer.

TIMER

UMS 4100 STEREO MICRO HIFI SYSTEM

VOLUME

ON/OFF

AUX

TUNER/BAND

DSC

UBS

DOWN

TUNING

OVERVIEW__________________________________________________________________________________

PROGR/RANDOM For setting the time manually.

TIME

Tuner mode

PROGR/RANDOM Hold down to start the automatic

TIME station search (ASP). Press briefly to

stop the automatic station search.

Press briefly to store a radio station.

CD mode

CD DOOR Opens and closes the CD

OPEN/CLOSE compartment.

INTRO/REPEAT Plays a brief extract of all tracks on

TIMER the CD (Intro).

For repeating a track or a whole CD.

PROGR/RANDOM For storing a CD track memory.

TIME For playing CD tracks in random

order.

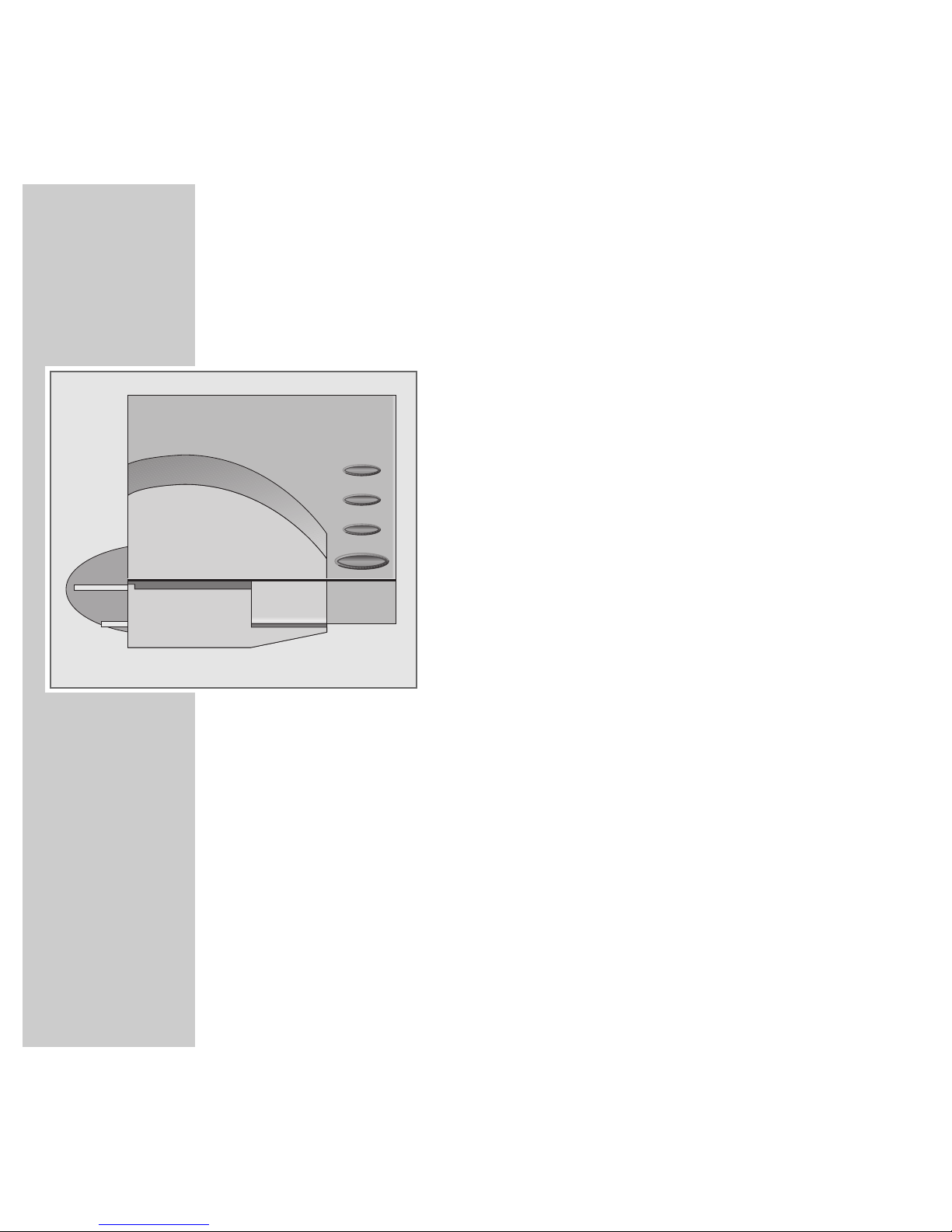

Operating controls on the bottom of the

device

RESET Returns the device to its original set-

ting.

OPEN/CLOSE

CD DOOR

SLEEP

INTRO/REPEAT

TIMER

PROG./RANDOM

TIME

OVERVIEW ________________________________________________________________________________

ENGLISH

The display on the stereo system

8888:888 Displays the time and the RDS time update.

JAZZ VThe »JAZZ« sound setting is activated.

UBS BThe bass boost is activated.

8888.888 In tuner mode it displays the frequency band, fre-

quency, RDS time and radio text.

88 PRESET Displays the memory position for a radio station.

ɳDisplays stereo reception.

MHz Frequency display (FM).

kHz Frequency display (AM).

CT The RDS time synchronization is activated.

fAn RDS station is being received.

qThe Traffic function is activated. An RDS station with

traffic news is being received.

EON The Traffic function is activated. An RDS station with

EON (Enhanced Other Network) is being received.

PTY The PTY function (programme type) is activated.

TEXT The Radiotext function is activated.

fqEON PTY TEXT

88888 888

ɳkHz MHz CT

ALL INTRO RANDOM PROG

FLAT CLASSIC POP JAZZ ROCK UBS

NXCVYB

II 88

PRESET

TRACK

wyxc

vbn

m,.

OVERVIEW__________________________________________________________________________________

8888:888 In CD mode: displays the total playing time and the

current playing time.

ŁDisplays playback of a CD.

II The CD playback is interrupted (Pause).

88 TRACK Displays the number of CD tracks, the number of the

current track and the number of stored tracks.

yxc Number field: the number of the current CD track

flashes during playback, when creating a track

memory the stored tracks are displayed.

<Displays that a CD has more than ten tracks.

M1 The current CD track is played back repeatedly.

MALL All the tracks on the CD are played back repeatedly.

INTRO The device plays short introductions of all tracks on

the CD.

RANDOM The tracks on the CD are played back in random

order.

PROG Flashes when a track memory is created. Displays

the playback of a track memory.

wThe switch-on timer is activated.

The sleep timer is activated.

fqEON PTY TEXT

88888 888

ɳkHz MHz CT

ALL INTRO RANDOM PROG

FLAT CLASSIC POP JAZZ ROCK UBS

NXCVYB

II 88

PRESET

TRACK

wyxc

vbn

m,.

ENGLISH

OVERVIEW__________________________________________________________________________________

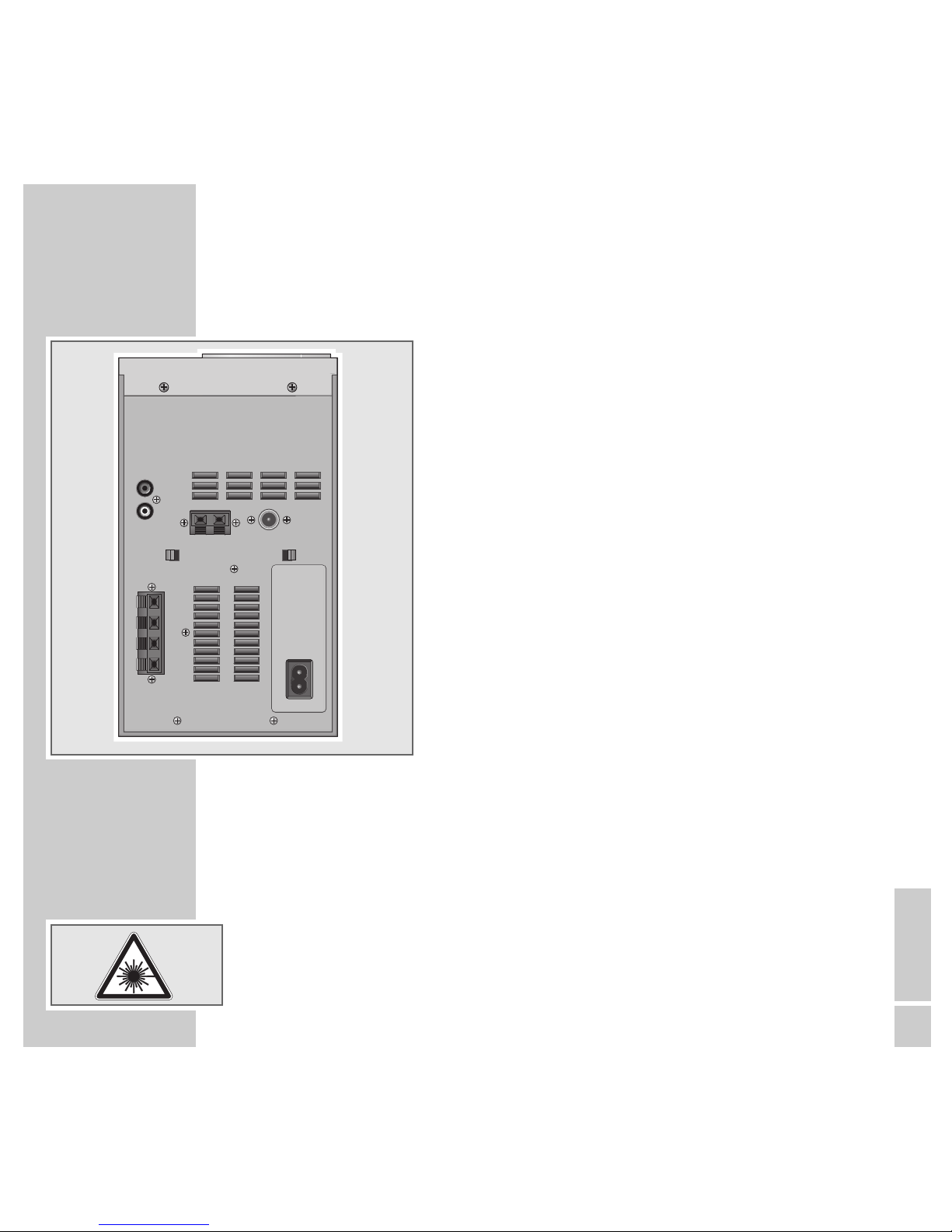

The back of the stereo system

FM ANTENNA Antenna socket for the rooftop antenna

or the wire aerial supplied.

AM ANTENNA Aerial terminals for the wire frame

antenna supplied.

AUX Audio signal input for an external device.

SPEAKER

Connections for the loudspeakers

RL + RL–

supplied.

= right channel,

= left channel.

~ AC Socket for power cord.

The only way to isolate the stereo unit is

to pull out the mains plug.

General instructions for laser devices

The laser installed in the device conforms to LASER CLASS 1 and is designed to

ensure that the maximum permissible emission value cannot be exceeded under

any circumstances.

Caution:

If operating devices or methods other than those specified here are employ-

ed, it may lead to dangerous exposure to emissions. Invisible laser radiation

is emitted if the CD compartment is opened or the safety locking mechanism

is shorted. Do not expose yourself to this radiation.

AUX

SPEAKER

FM ANTENNA

AM ANTENNA

OVERVIEW__________________________________________________________________________________

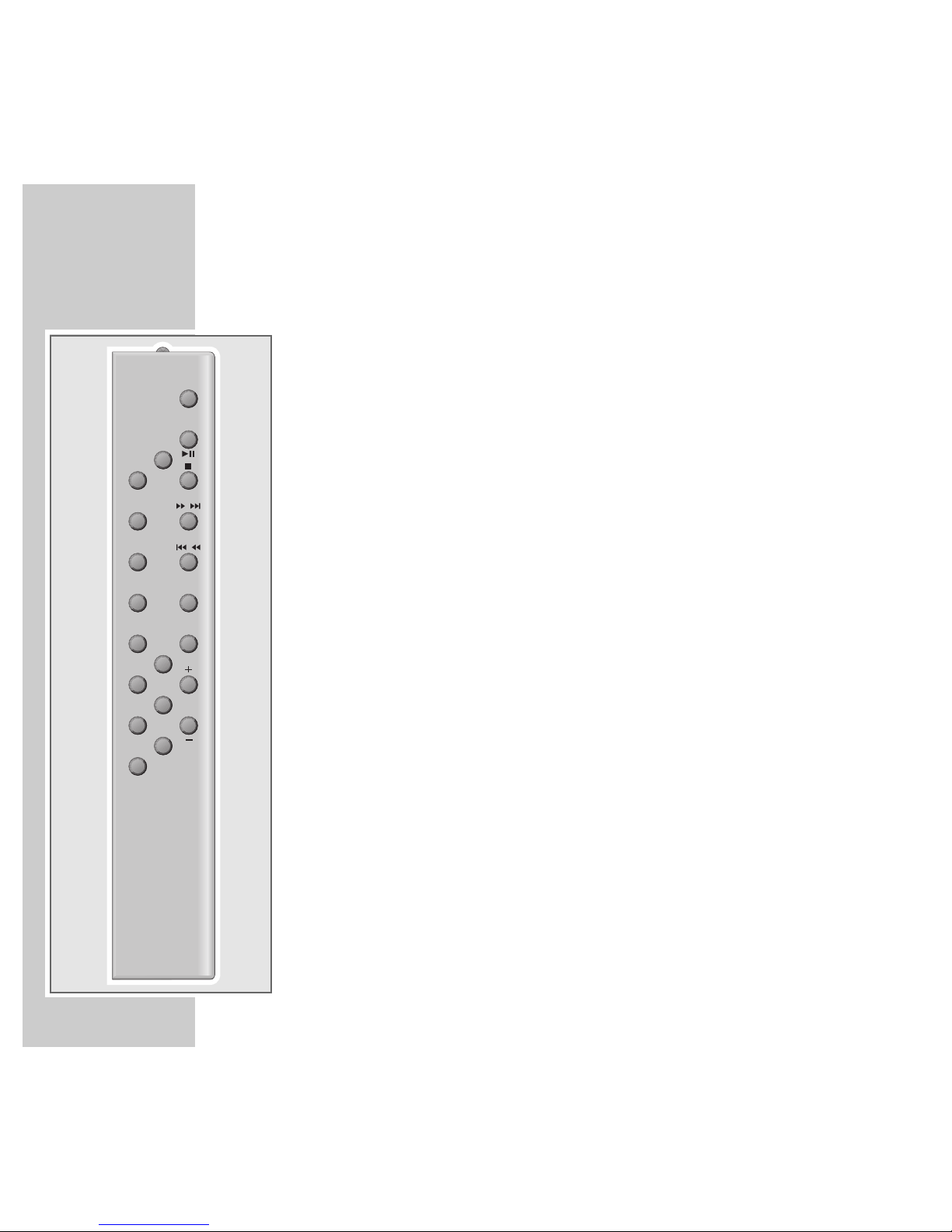

The remote control

ON/OFF Switches the stereo system to and from stand-by mode.

CD ıII Selects the »CD« input source. Starts and interrupts CD play-

back.

■In tuner mode: deletes individual preset stations.

In CD mode: ends playback of the CD.

sss6In tuner mode: selects stored radio stations.

5a § In CD mode: press briefly to select a track.

Hold down to search for a particular passage.

FSM Selects the Favourite Station Memory (preferred station

position 01).

PTY Selects programme types.

TRAFFIC

Switches the Traffic function on and off.

+ VOLUME –

Adjusts the volume.

DISPLAY In tuner mode: for switching the display between station

name, frequency and time.

In CD mode: for switching the display between the playing

time of a track and the time.

MUTE Switches the loudspeaker on and off again.

UBS For ”boosting” the bass.

DSC Selects the sound settings.

TEXT Switches the Radiotext function on and off.

SLEEP For setting the sleep timer.

ON/OFF

AUX

TUNER/

BAND

FM MODE

PROG./RANDOM

TIME

INTRO/REPEAT

TIMER

SLEEP

TEXT

UBS

MUTE

TRAFFIC

DSC

DISPLAY

VOLUME

PTY

FSM

Otros manuales para CIRFLEXX UMS 4100

Tabla de contenidos

Otros manuales de Sistema estéreo de Grundig

Grundig

Grundig MS 4101 Manual de usuario

Grundig

Grundig 01B-GMH1010-4320-03 Manual de usuario

Grundig

Grundig Scenos UMS 4400 DVD Manual de usuario

Grundig

Grundig RR 630 CD Manual de usuario

Grundig

Grundig CDS 3000 DEC Manual de usuario

Grundig

Grundig CDM 800 Manual de usuario

Grundig

Grundig V 23 Manual de usuario

Grundig

Grundig RR 3200 CD Manual de usuario

Grundig

Grundig Ovation 3 CDS 8000 Manual de usuario

Grundig

Grundig CMS 4200 Manual de usuario

Grundig

Grundig UMS 3000 Manual de usuario

Grundig

Grundig FREAXX 30 RRCD 4203 PLL Manual de usuario

Grundig

Grundig VERTIGA UMS 5100 Manual de usuario

Grundig

Grundig UMS 2010 Manual de usuario

Grundig

Grundig Ovation CDS 6380 S Manual de usuario

Grundig

Grundig CDM 700 Manual de usuario

Grundig

Grundig MF 2000 BT Manual de usuario

Grundig

Grundig M 2100 Manual de usuario

Grundig

Grundig MS 510 Manual de usuario

Grundig

Grundig 01M-GLR7640-4320-07 Manual de usuario

Grundig

Grundig CDM 800 Manual de usuario

Grundig

Grundig UMS 200 Manual de usuario

Grundig

Grundig M 2050 BT DAB+ Manual de usuario

Grundig

Grundig Cirflexx UMS 4110 Piano Manual de usuario

Manuales populares de Sistema estéreo de otras marcas

LG CM3330B Manual de usuario

Sony

Sony SS-CEP50 Manual de usuario

Cetacea Sound

Cetacea Sound CVS-II Manual de usuario

Aiwa

Aiwa XR-H66MD Manual de usuario

Denon

Denon UCD-250 Manual de usuario

Sanyo

Sanyo DC-MX41i Manual de usuario

Sharp

Sharp CD-ES600V Manual de usuario

Exibel

Exibel BDX600-UK Manual de usuario

Sanyo

Sanyo DC-F320 Manual de usuario

Philips

Philips FWM583X Manual de usuario

Sharp

Sharp CD-C462 Manual de usuario

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manual de usuario

Aiwa

Aiwa XR-EM70 Manual de usuario

Cyrus

Cyrus Lyric Manual de usuario

Philips

Philips MCM159/98 Manual de usuario

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manual de usuario

RCA

RCA RS3965SB Manual de usuario

Sharp

Sharp XL-UH240 Manual de usuario
