Grundfos HYDRO SOLO-E Manual de funcionamiento

Hydro Solo-E

Safety instructions and other important information

GRUNDFOS INSTRUCTIONS

Table of contents

Hydro Solo-E

English (GB)

Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

 (BG)

   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

eština (CZ)

Bezpenostní pokyny . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Deutsch (DE)

Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Dansk (DK)

Sikkerhedsanvisninger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Eesti (EE)

Ohutusjuhised . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Español (ES)

Instrucciones de seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Suomi (FI)

Turvallisuusohjeet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Français (FR)

Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

 (GR)

  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Hrvatski (HR)

Sigurnosne upute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Magyar (HU)

Biztonsági utasítások . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Italiano (IT)

Istruzioni di sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Lietuviškai (LT)

Saugos nurodymai . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Latviešu (LV)

Drošbas instrukcijas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Nederlands (NL)

Veiligheidsinstructies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Polski (PL)

Zasady bezpieczestwa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Português (PT)

Instruções de segurança. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Table of contents

Hydro Solo-E

Român(RO)

Instruciuni de siguran . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Srpski (RS)

Sigurnosna uputstva . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

 (RU)

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Svenska (SE)

Säkerhetsinstruktioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Slovensko (SI)

Varnostna navodila . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Slovenina (SK)

Bezpenostné pokyny. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Türkçe (TR)

Güvenlik talimatları. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

 (UA)

   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

English (GB)

English (GB) Safety instructions

Original safety instructions

CONTENTS

Page

1. Symbols used in this document

2. System sizing

3. Mechanical installation

1. Symbols used in this document 5

2. System sizing 5

3. Mechanical installation 5

4. Electrical connection 6

5. Startup 6

6. Control panel 6

6.1 Setpoint setting 7

6.2 Start/stop of pump 7

6.3 Resetting of fault indications 7

7. Operating conditions 8

7.1 Ambient temperature 8

7.1.1 Ambient temperature during storage and

transportation 8

7.1.2 Ambient temperature during operation 8

7.2 Installation altitude 8

8. Working on the product 8

8.1 Megging 8

9. Fault finding 9

10. Further product information 9

11. Disposal 9

Warning

Prior to installation, read this document

and the quick guide. Installation and

operation must comply with local

regulations and accepted codes of good

practice.

Warning

The use of this product requires

experience with and knowledge of the

product.

Persons with reduced physical, sensory or

mental capabilities must not use this

product, unless they are under supervision

or have been instructed in the use of the

product by a person responsible for their

safety.

Children must not use or play with this

product.

Warning

If these safety instructions are not

observed, it may result in personal injury.

Warning

If these instructions are not observed, it

may lead to electric shock with consequent

risk of serious personal injury or death.

Caution

If these safety instructions are not

observed, it may result in malfunction or

damage to the equipment.

Note

Notes or instructions that make the job

easier and ensure safe operation.

Warning

The system in which the Hydro Solo-E is

incorporated must be designed for the

maximum pump pressure.

Caution

The default setting will cause the pump not

to stop until it reaches its maximum

pressure.

Warning

Before starting work on the product, switch

off the power supply. Make sure that the

power supply cannot be accidentally

switched on.

English (GB)

4. Electrical connection

Carry out the electrical connection according to local

regulations.

Check that the supply voltage and frequency

correspond to the values stated on the nameplate.

5. Startup

6. Control panel

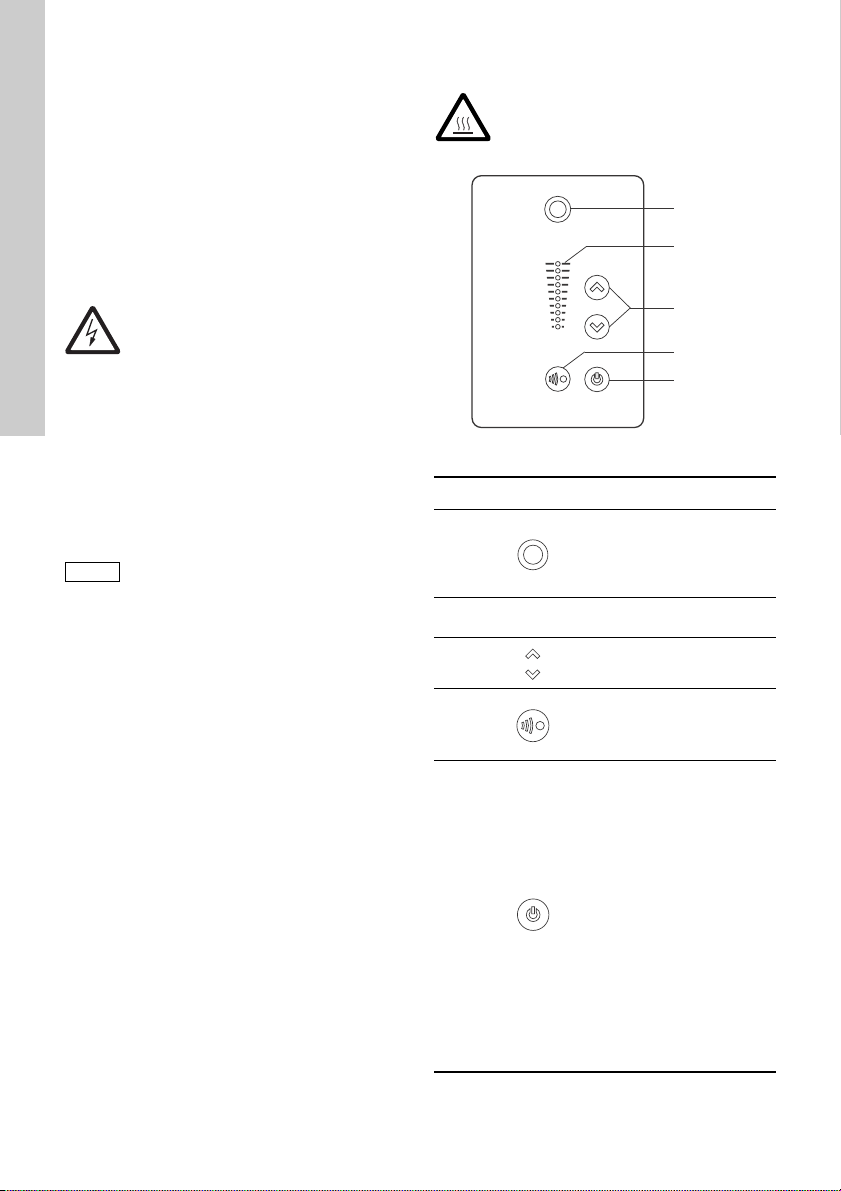

Fig. 1 Standard control panel

Warning

Before making connections in the terminal

box or breaker cabinet, make sure that the

power supply has been switched off for at

least 5 minutes. Make sure that the power

supply cannot be accidentally switched on.

The product must be connected to an

external all-pole mains switch according to

local regulations.

The product must be earthed and

protected against indirect contact in

accordance with local regulations.

We recommend to fit the permanent

installation with an earth leakage circuit

breaker (ELCB) with a tripping current < 30

mA.

If the power supply cable is damaged, it

must be replaced by the manufacturer, the

manufacturer’s service partner or a

similarly qualified person.

Caution

Do not start the pump until it has been

filled with liquid.

Warning

The product may be so hot that only the

buttons should be touched to avoid burns.

TM05 4848 3512

Pos. Symbol Description

Grundfos Eye

Shows the operating status of

the pump.

See section 10. Further

product information.

Light fields for indication of

setpoint.

3 Changes the setpoint.

Enables radio communication

with the Grundfos GO Remote

and other products of the

same type.

Makes the pump ready for

operation/starts and stops the

pump.

Start:

If the button is pressed when

the pump is stopped, the

pump will only start if no other

functions with higher priority

have been enabled.

See section 10. Further

product information.

Stop:

If the button is pressed when

the pump is running, the

pump will always be stopped.

When the pump is stopped via

this button, the "Stop" text

next to the button will

illuminate.

Stop

English (GB)

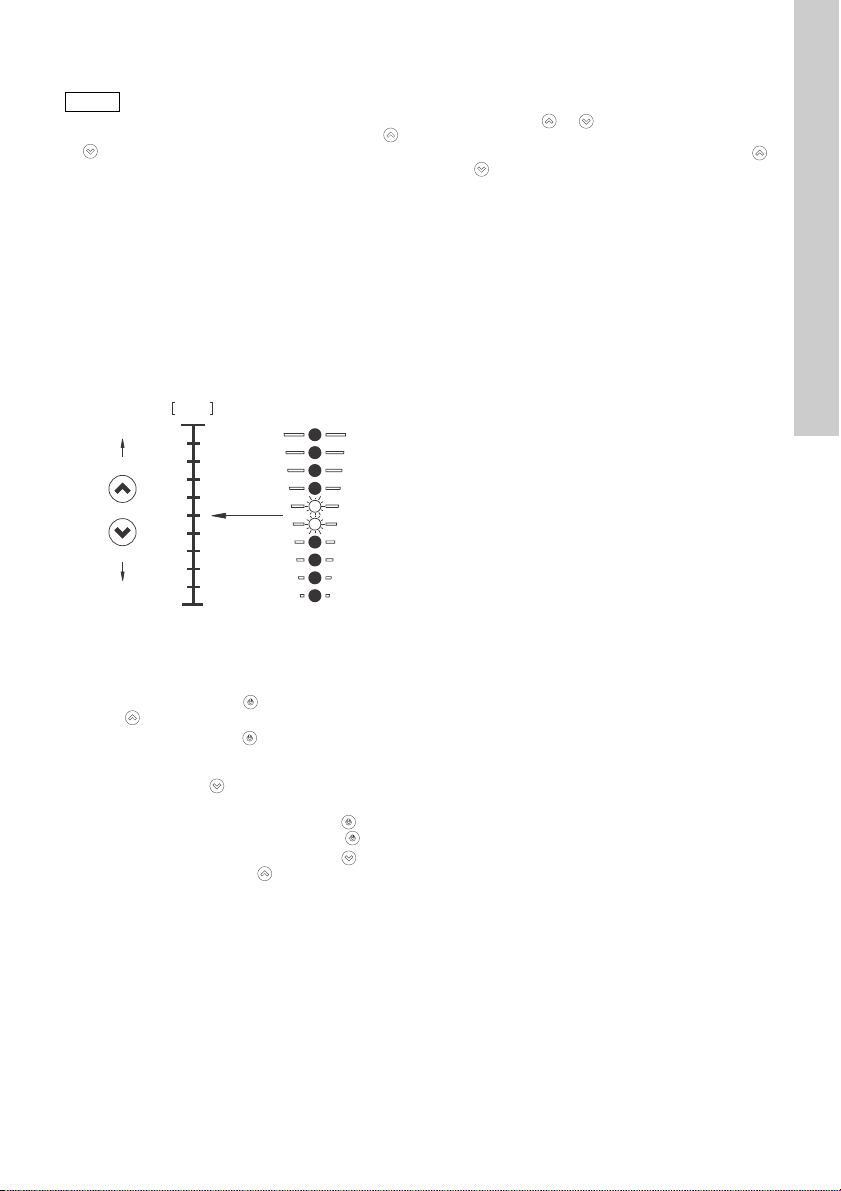

6.1 Setpoint setting

Set the desired setpoint of the pump by pressing

or .

The light fields on the control panel will indicate the

setpoint set.

As shown in fig. 2, the maximum setpoint is 10 bar.

However, not all Hydro Solo-E systems can deliver a

pressure of 10 bar. This means that the setpoint

must not be set higher than the pressure which the

pump can deliver.

The maximum setpoint can be calculated as follows:

SPmax ≤Hmax x 0.1 + pinlet

SPmax = maximum setpoint

Hmax = maximum head (see pump nameplate)

pinlet = inlet pressure.

Fig. 2 Setpoint set to 5 bar, constant-pressure

control mode

6.2 Start/stop of pump

Start the pump by pressing or by continuously

pressing until the desired setpoint is indicated.

Stop the pump by pressing . When the pump is

stopped, the "Stop" text next to the button will

illuminate. The pump can also be stopped by

continuously pressing until none of the light fields

are on.

If the pump has been stopped by pressing , it can

only be given free to operation by pressing again.

If the pump has been stopped by pressing , it can

only be restarted by pressing .

6.3 Resetting of fault indications

A fault indication can be reset in one of the following

ways:

• Briefly press or on the pump. This will not

change the setting of the pump.

A fault indication cannot be reset by pressing

or if the buttons have been locked.

• Switch off the power supply until the indicator

lights are off.

• With the Grundfos GO Remote.

Caution

The setpoint must not be set higher than

the pressure which the pump can deliver.

TM05 7678 1413

max

English (GB)

7. Operating conditions

7.1 Ambient temperature

7.1.1 Ambient temperature during storage and

transportation

-30 to +60 °C.

7.1.2 Ambient temperature during operation

-20 to +50 °C.

The motor can operate with the rated power output

(P2) at 50 °C, but continuous operation at higher

temperatures will reduce the expected product life.

If the motor is to operate at ambient temperatures

between 50 and 60 °C, an oversized motor must be

selected. Contact Grundfos for further information.

7.2 Installation altitude

Installation altitude is the height above sea level of

the installation site.

• Motors installed up to 1000 metres above sea

level can be loaded 100 %.

• Motors installed more than 1000 metres above

sea level must not be fully loaded due to the low

density and consequent low cooling effect of the

air. See fig. 3.

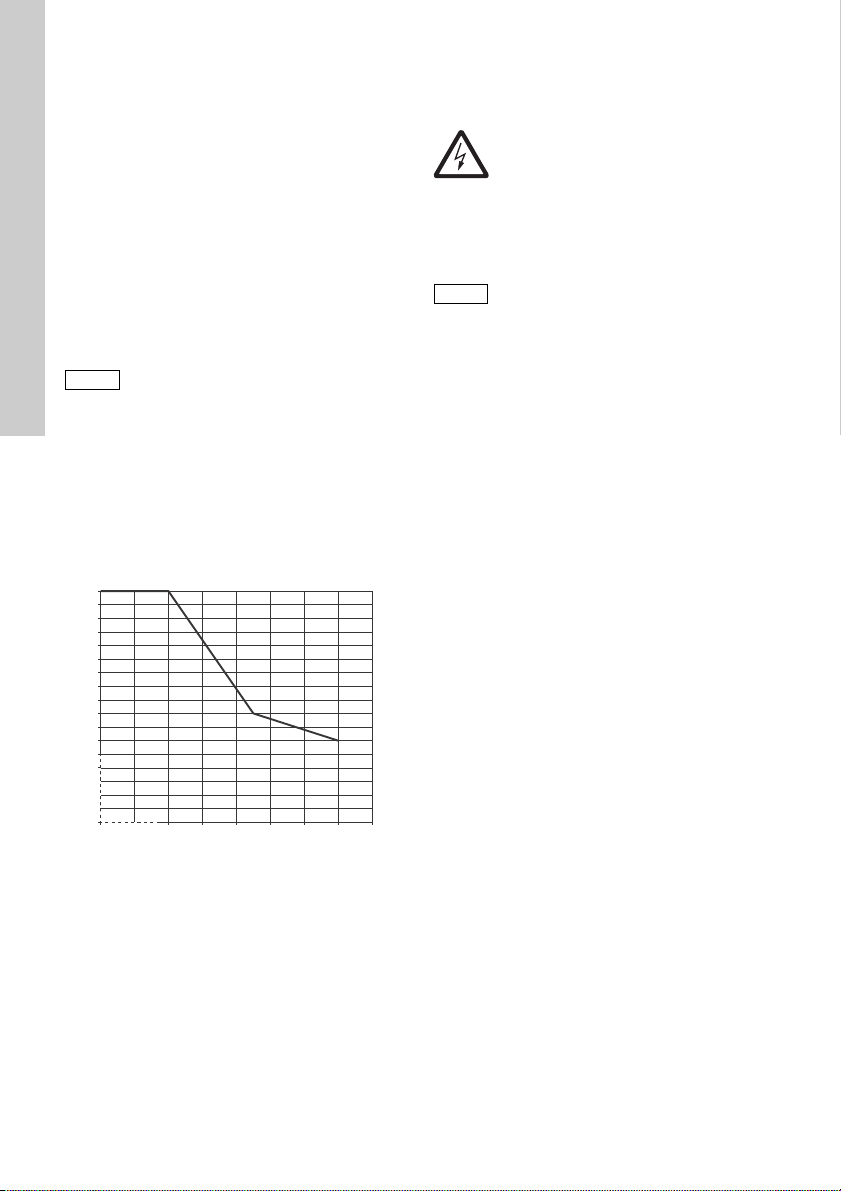

Fig. 3 Derating of motor output (P2) in relation

to altitude above sea level

8. Working on the product

8.1 Megging

Caution

The motor must not be installed more than

2000 metres above sea level.

TM05 6400 4712

0.99

0.98

0.97

0.96

0.95

0.94

0.93

0.92

0.91

0.90

0.89

0.88

1000 1200 1400 1600 1800 2000 2200

[m]

[%]

Altitude [m]

Warning

Before fitting add-on modules, making

connections in the terminal box or breaker

cabinet or starting fault finding, make sure

that the power supply has been switched

off for at least 5 minutes. Make sure that

the power supply cannot be accidentally

switched on.

Caution

Megging of an installation incorporating

MGE motors is not allowed, as the built-in

electronics may be damaged.

English (GB)

9. Fault finding

10. Further product information

Use either the QR code or the web address below to

access the complete installation and operating

instructions for the relevant product.

CRE, CRIE, CRNE, SPKE, MTRE and CME pumps

grundfos.com/E-pump1-manual

11. Disposal

This product or parts of it must be disposed of in an

environmentally sound way:

1. Use the public or private waste collection service.

2. If this is not possible, contact the nearest

Grundfos company or service workshop.

Subject to alterations.

Warning

Before starting work on the product, switch

off the power supply. Make sure that the

power supply cannot be accidentally

switched on.

Fault Grundfos Eye Cause Remedy

1. Pump does

not run.

No lights on.

a) Power supply failure. Switch on power supply.

Check cables and cable

connections for defects and

loose connections.

b) Fuses blown. Check cables and cable

connections for defects, and

replace the fuses.

Alarm.

Motor stopped.

Two opposite red

indicator lights flashing

simultaneously.

c) Sensor is defective.

Replace sensor.

2. Pump

performance

is unstable.

No lights on.

a) Pump inlet pressure too

low.

Check the inlet conditions of

the pump.

b) Suction pipe is partly

blocked by impurities.

Remove and clean suction

pipe.

c) Leakage in suction

pipe.

Remove and repair suction

pipe.

d) Air in suction pipe or

pump.

Vent suction pipe or pump.

Check the inlet conditions of

the pump.

e) The foot or non-return

valve is blocked in

closed position.

Remove and clean, repair or

replace valve.

3. Pump runs

backwards

when

switched off. No lights on.

a) Leakage in suction

pipe.

Remove and repair suction

pipe.

b) Foot or non-return valve

defective.

Remove and clean, repair or

replace valve.

c) Foot valve is blocked in

completely or partly

open position.

Remove and clean, repair or

replace valve.

TM05 6174 4612

 (BG)

 (BG)   

    



.

1.   

2.   

3.  

1.    10

2.    10

3.   10

4.   11

5.  11

6.   11

6.1     12

6.2 /   12

6.3    

 12

7.   13

7.1   13

7.1.1     

  13

7.1.2       13

7.2     13

8.    13

8.1    13

9.    14

10.  

 14

11.    14



   

  .

   

    

   

 .



    

   

.

  , 

     

  ,    

    

    

,   

.

     

    .



     

 ,     

.



    

    ,  

  

  .

Внимание

    

    

   

.

Указание

 ,  

  

.



,    Hydro

Solo-E,   

   

.

Внимание

  ,

   ,  

   .



     ,

 .   

,     

  .

Otros manuales para HYDRO SOLO-E

Tabla de contenidos

Otros manuales de Equipos industriales de Grundfos

Grundfos

Grundfos AFG.15.130.76. Instrucciones de funcionamiento

Grundfos

Grundfos SQ Instrucciones de funcionamiento

Grundfos

Grundfos FireSAFE+ Manual de usuario

Grundfos

Grundfos BoosterpaQ Hydro MPC Manual de usuario

Grundfos

Grundfos IMpress Manual de usuario

Grundfos

Grundfos IO 351 Manual de usuario

Grundfos

Grundfos TPE 2 Series Manual de usuario

Grundfos

Grundfos SM 113 Manual de usuario

Grundfos

Grundfos CR Manual de usuario

Grundfos

Grundfos Control DC Manual de funcionamiento

Grundfos

Grundfos IO 113 Manual de usuario

Grundfos

Grundfos CUE Manual de usuario

Grundfos

Grundfos PowerAdapt Manual de usuario

Grundfos

Grundfos Oxiperm Pro OCD-162-5 Manual de usuario

Grundfos

Grundfos iGRID P-Zone Manual de usuario

Grundfos

Grundfos UPE 2000 FZ Series Manual de usuario

Grundfos

Grundfos CUE Manual de funcionamiento

Grundfos

Grundfos Oxiperm C 166 Series Manual de operación

Grundfos

Grundfos CRK Series Manual de usuario

Grundfos

Grundfos CIU 250 Manual de usuario

Grundfos

Grundfos iSolutions Monitor Manual de usuario

Grundfos

Grundfos SE1 50 Manual de usuario

Grundfos

Grundfos GiM CIU Manual de usuario

Grundfos

Grundfos DP 10 Manual de usuario

Manuales populares de Equipos industriales de otras marcas

ABB

ABB Unifix AD Manual

Mark 7

Mark 7 Evolution Manual de usuario

Husky

Husky HyPET Manual de usuario

bora

bora PM-1800 Manual de usuario

Grizzly

Grizzly T32428 Manual de usuario

Siemens

Siemens 8MF1 Series Manual de usuario

ABB

ABB HT610965 Manual de usuario

ABB

ABB SafeLink Manual de usuario

Phoenix

Phoenix PHX-150 Manual de usuario

ABB

ABB A165-L32 Manual de usuario

ABB

ABB HT842936 Manual de usuario

Rioned

Rioned UrbanJet Manual de usuario

Hermetica

Hermetica 10 Series Manual de usuario

HORNER

HORNER OEE Solution Manual de usuario

Hammerhead

Hammerhead HG375 Manual de usuario

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instrucciones de uso

ABB

ABB HT566657 Manual de usuario

Webasto

Webasto GSE CAN Manual de usuario
