Dear Valued Customer,

Due to improvements we've made to the internal structure of the Model G0501, the parts breakdown and

some features shown your owner's manual are no longer current. However, critical safety, setup, and opera-

tion information in your owner's manual is still valid and MUST be understood and followed before and dur-

ing the operation of this machine.

If you are unsure about any operation or feature of the machine, DO NOT continue operation until you have

resolved your uncertainty. Contact our Technical Support at (570) 546-9663 or email techsupport@grizzly.

com for help.

We are busy revising the owner's manual. Upon completion, we will send you a copy of the new manual.

If you have any further questions about the changes to the machine or the manual, contact our Technical

Support team.

We sincerely hope you enjoy your new Sliding Table Saw!

Best Regards,

The Grizzly Technical Documentation Department

MODEL G0501

SLIDING TABLE SAW

MANUAL UPDATE

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#EW7533 PRINTED IN TAIWAN

The Sliding Table Saw has changed slightly from when the manual was originally written. We have improved

the crosscut fence, extension tables, blade guard assembly, and the blade guard dust port size has been

increased to 3". This manual update includes assembly instructions, parts lists, and parts diagrams that

have changed because of those improvements. We have also included a simplified method for adjusting

the sliding table to be parallel with the saw blade.

Use this update WITH the original manual, not as a replacement for it. Before operating your new sliding

table saw, you MUST read and understand the entire G0501 manual.

If you need additional help with any of these procedures, contact our Tech Support at (570) 546-9663 or by

email at [email protected].

-2- G0501 Manual Update

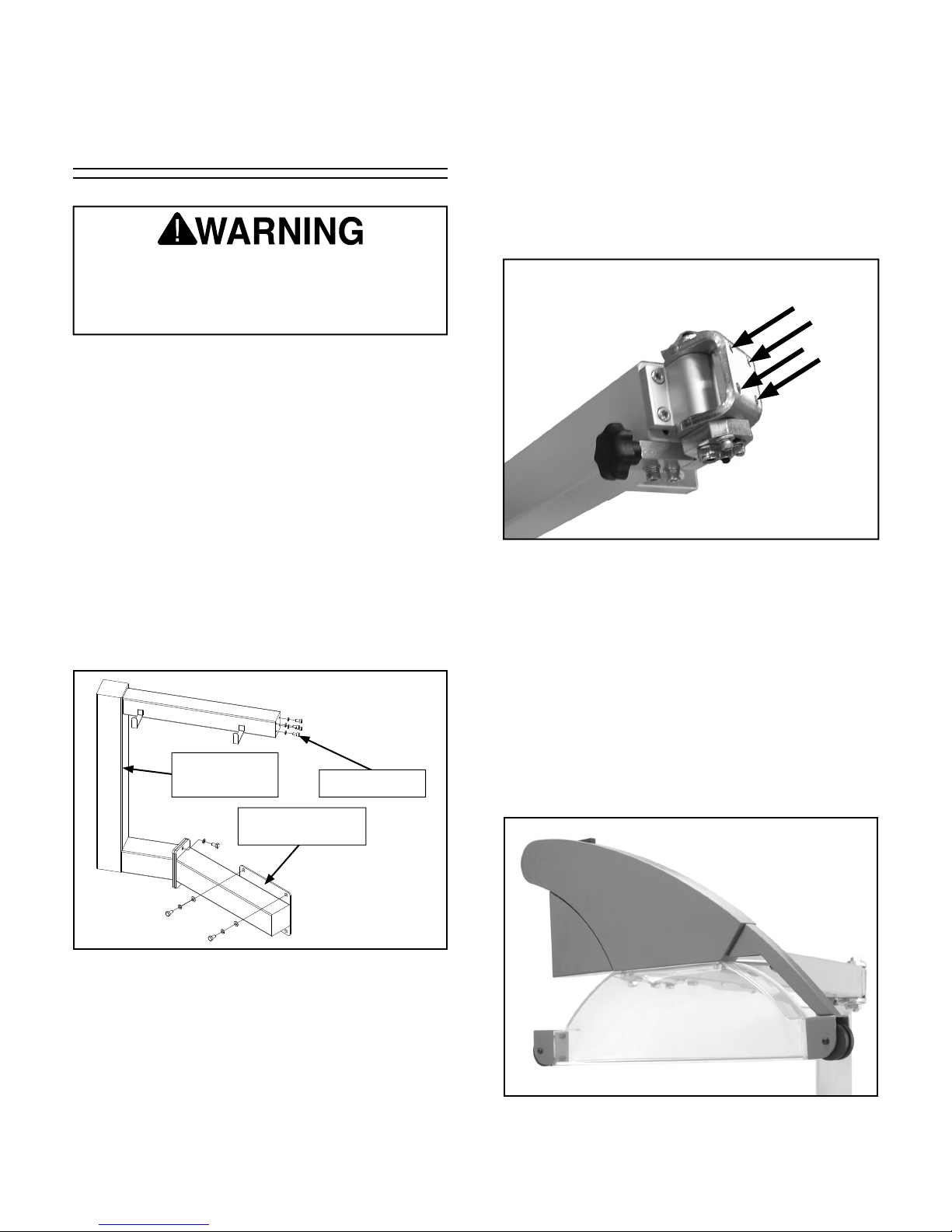

Figure 3. Clear blade shield installed.

6. Remove the cap screws under the blade

guard and a cap screw at the front.

7. Position the clear blade shield guide holes

under the blade guard arm (Figure 3)

and secure the shield with the cap screws

removed in Step 6.

Note: Overtightening cap screws may crack

the blade shield.

Installing Blade

Guard Assembly

The blade guard assembly parts have changed,

but the location is still the same. Refer to the

photographs in the manual for the installation

location.

To install the blade guard:

1. Remove the four bolts and lock washers from

the side of the motor cabinet.

2. Position the lower support arm (Figure 1)

over the holes in the motor cabinet and

secure the arm with the bolts and lock wash-

ers removed in Step 1.

Figure 2. Holes for securing the swing arm.

Figure 1. Support arms.

5. Remove the cap screws in the end of the

upper support arm (Figure 1), thread them

through the holes in the swing arm (Figure

2), and secure the swing arm to the upper

support.

Note: Get assistance holding the swing arm

while securing it to the support.

Upper

Support Arm

Lower Support

Arm

3. Unthread the two bolts and lock washers

from the upper support arm.

4. Position the upper support arm over the holes

in the lower support arm and secure the arm

with the bolts and lock washers removed in

Step 3.

Cap Screws

The blade guard MUST be installed on this

table saw before operating it. Table saws are

dangerous machines that can quickly cause

serious injury if the blade guard is not used.

G0501 Manual Update -3-

Installing Extension

Tables

To install the extension tables:

1. Thread the M6-1 x 70 hex bolts through the

center of the hollow hex bolts and into the

holes in the bottom of the extension table as

shown in Figure 4.

Figure 5. Attaching the braces.

5. Get an assistant to position the small exten-

sion table over the holes on the cast iron

table, then secure it with three M8-1.25 x 20

hex bolts, lock washers, and flat washers.

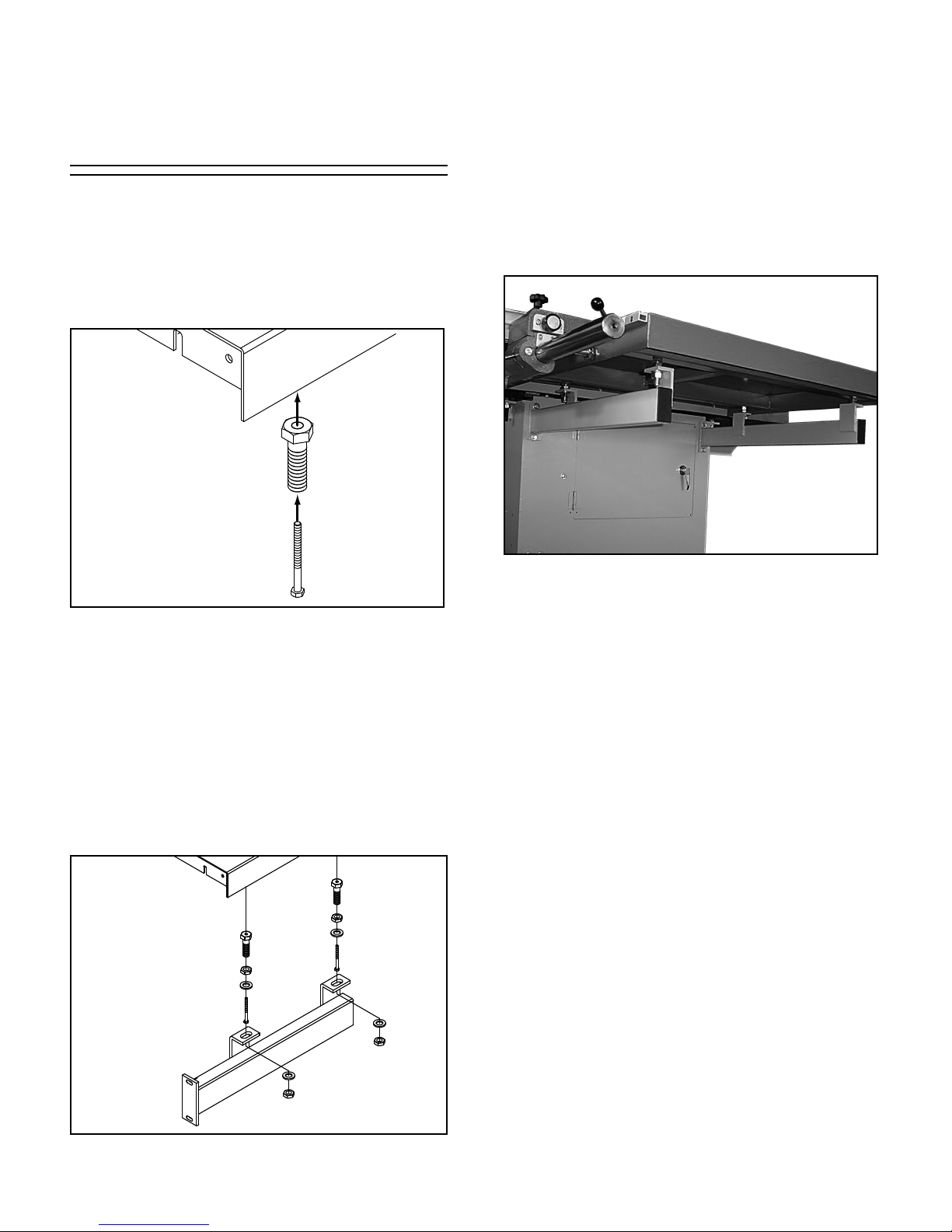

Figure 4. Installing the hollow hex bolts.

2. Thread an M16-2 hex nut and a flat washer

onto each hollow hex bolt.

3. Place the braces over the hollow hex nuts,

followed by another flat washer and hex nut

(see Figure 5).

Note: Do not fully tighten the braces. The

tables will need to be leveled when installed.

4. With the help of two assistants, install the

large extension table with four M8-1.25 x 20

hex bolts, lock washers, and flat washers as

shown in Figure 6.

Note: The table saw may have been shipped

with the bolts and washers needed for table

installation already threaded into the holes in

the cabinet.

Figure 6. Large extension table installed.

-4- G0501 Manual Update

7. Adjust the hex bolts under the small exten-

sion table to align the surface with the main

table surface.

8. Use the hex nuts below the braces to level

the surface of the large extension table.

9. Tighten the hex nuts to secure the adjust-

ments made in Steps 7 & 8.

10. Tighten all extension table mounting bolts.

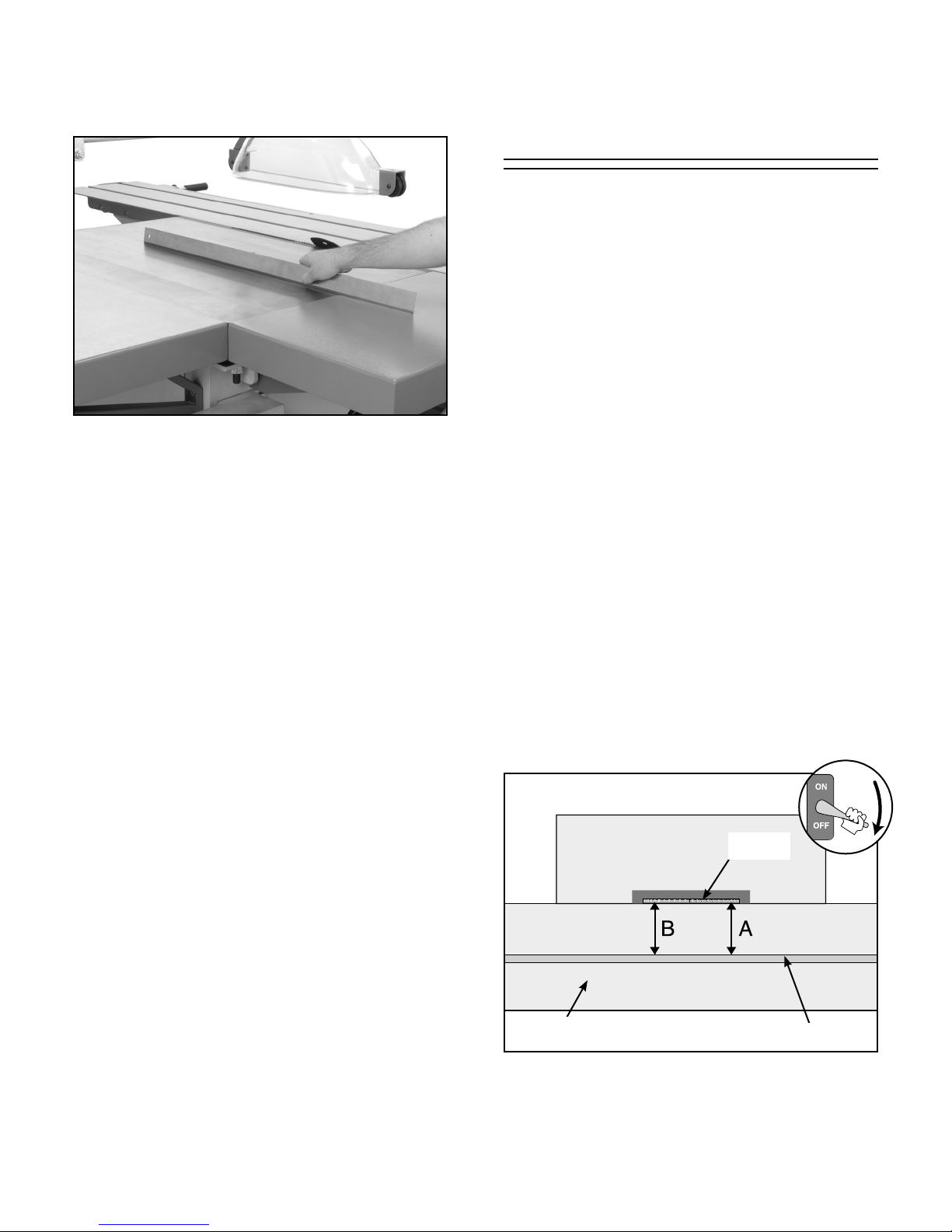

Figure 7. Checking the table surfaces with a

straightedge.

6. Check the table surfaces with a straightedge

as shown in Figure 7.

Figure 8. Measuring gap between the table and

the blade.

T-Slot

Table

Blade

Besides the tools included with the saw, this pro-

cedure requires you to have an adjustable square

and feeler gauges or a dial indicator, a felt tip pen,

and the help of another person.

To adjust the sliding table parallel with the

main blade:

1. Move the blade tilt to 0˚ (blade 90˚ to table),

and raise the main blade all the way up.

2. Loosen the cap screws securing the sliding

table to the base, but leave the screw secur-

ing the center of the sliding table finger-tight.

3. DISCONNECT THE TABLE SAW FROM

THE POWER SOURCE!

4. Make a mark near the edge of the blade at

position A (Figure 8) using a felt tip pen.

This mark will allow you to take your mea-

surements from the exact same place on the

blade.

5. Using an adjustable square or a dial indica-

tor, measure the distance (A) between the

T-slot and the front of the blade as shown in

Figure 8.

Sliding Table

Parallelism

-5- G0501 Manual Update

6. Rotate the blade 180˚ and slide the table with

the measuring device to position B.

7. Measure the difference between the two posi-

tions (use a feeler gauge if using the adjust-

able square). Note the difference between

the two measurements on a piece of paper.

— If the difference was less than 0.004" then

the blade parallelism is correct.

— If the difference was greater than 0.004",

then the sliding table needs to be adjusted.

Continue with the next step.

8. Using the adjustable square or dial indicator,

watch the gap measurement and have your

assistant slowly make the adjustments at the

parallel adjustment bolts (Figure 9) until the

gap size is equal on both sides.

Figure 9. Sliding table parallel adjustment bolt

(other side not shown).

9. Repeat Step 7 until the gap between your

the blade and the edge of the sliding table is

less than 0.004" at both ends.

10. Tighten the jam nuts on the parallel adjust-

ment bolts to secure them in place

11. Tighten the three large cap screws that

secure the sliding table to the base.

Parallel

Adjustment Bolt

Crosscut Fence

The new style crosscut fence has a wooden block

attached to the blade end of the fence. This block

is to prevent damage to the fence by the saw

blade. If this part is damaged while sawing, it can

be ordered using Grizzly part number P0501944

or it can be made using scrap lumber.

-6- G0501 Manual Update

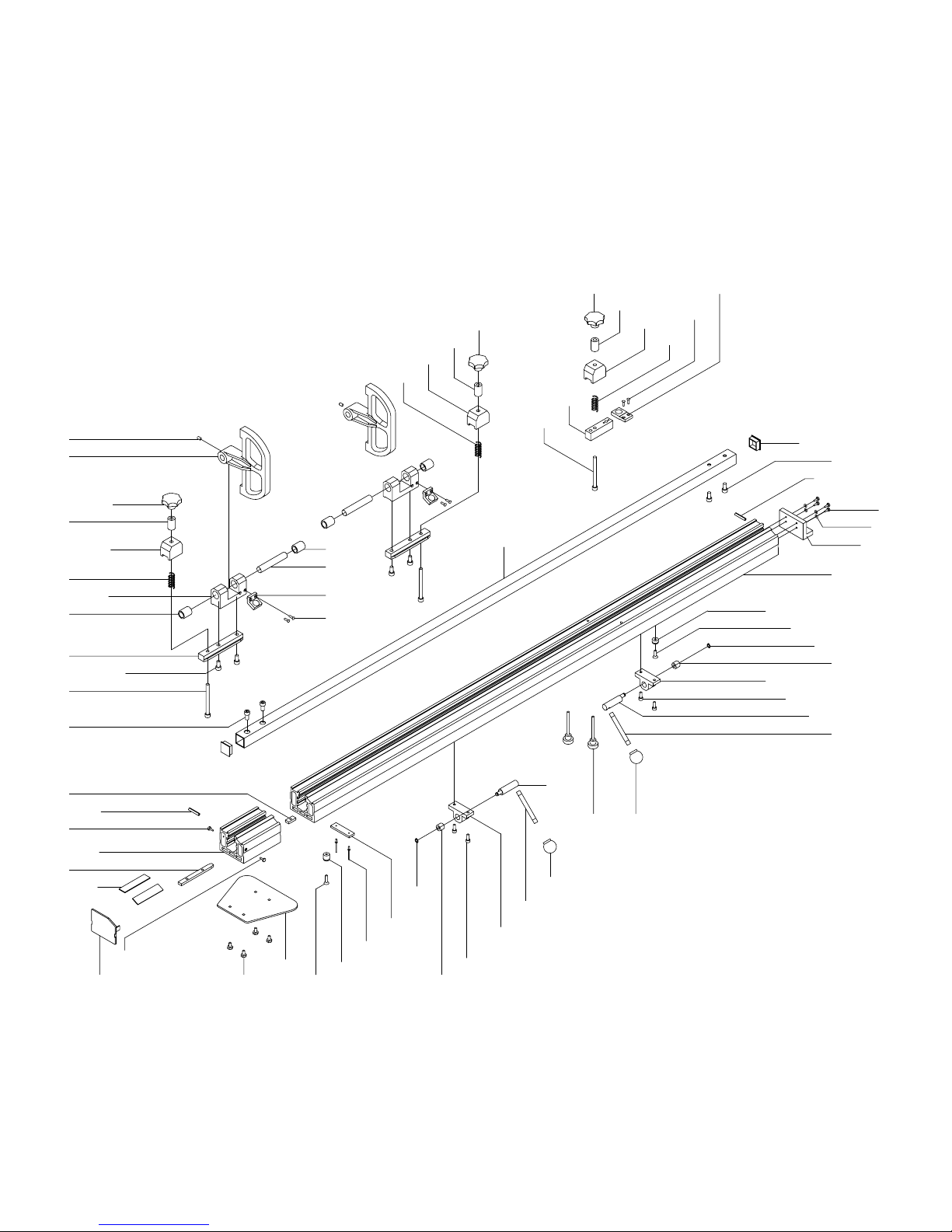

G0501 Crosscut Fence

994

993

992

991

993

994

992

991

907

906

908

909

911

910

905

913

945

943

944

912

914

915

917

916

918

919

920

921

922923

922

921

918

919

917

916

920

924

925

926

927

931

930

929

928

932

933

934

930

912

935

906

911

936

937

904

903

902

901

938

939

908

941

936

940

942

911

-7- G0501 Manual Update

G0501 Crosscut Fence

REF PART # DESCRIPTIONREF PART # DESCRIPTION

924 P05010924 SUPPORT

925 P05010925 PULL NAIL

926 P05010926 FIXED PIN

927 PFH12M FLAT HD SCR M6-1.0 X 25

928 P05010928 PLATE

929 PB02M HEX BOLT M6-1.0 X 12

930 PHTEK24 TAP SCREW 1/8" X 3/8"

931 P05010931 COVER

932 P05010932 SCALE

933 P05010933 GUIDE PIN

934 P05010934 EXTENSION FENCE

935 P05010935 BLOCK

936 P05010936 BUSHING

937 P05010937 FLIP STOP BRACKET

938 P05010938 FLIP STOP

939 PSS01M SET SCREW M6-1.0 X 10

940 P05010940 AXIS

941 P05010941 MAGNIFIER

942 P05010942 T-NUT BLOCK

943 P05010943 FLAT WASHER #6

944 P05010944 FRONT SUPPORT BLOCK

945 P05010945 SCREW #6

901 P05010901 HELICAL PRESSURE SPRING

902 P05010902 CLAMPING PIECE

903 P05010903 SPACER

904 P05010904 STAR KNOB (FEMALE) M8-1.25

905 P05010905 STOP RAIL TUBE

906 PSB106M CAP SCREW M8-1.25 X 90

907 P05010907 SUPPORT

908 PFH25M FLAT HD SCR M4-.7 X 12

909 P05010909 MAGNIFIER

910 P05010910 SQUARE PLUG

911 PSB11M CAP SCREW M8-1.25 X 16

912 PRP62M ROLL PIN 6 x 35

913 P05010913 CROSS FENCE

914 P05010914 FIXED PIN

915 PFH06M FLAT HD SCR M6-1.0 X 20

916 PR39M EXT RETAINING RING 8MM

917 P05010917 ROLLER

918 P05010918 CLAMPING HOLDER

919 PSB01M CAP SCREW M6-1.0 X 16

920 P05010920 CAM

921 P05010921 LEVER STUD

922 P05010922 ROUND KNOB (FEM) 3/8-16

923 P05010923 KNOB BOLT M6-1 X 75

-8- G0501 Manual Update

G0501 Machine Table Assemblies

-9- G0501 Manual Update

G0501 Machine Table Assemblies

REF PART # DESCRIPTIONREF PART # DESCRIPTION

1020 P05011020 TABLE BRACE

1023 PLW04M LOCK WASHER 8MM

1024 PW01M FLAT WASHER 8MM

1025 PB29M HEX BOLT M6-1 X 30

1031A P05011031A WIDTH EXTENSION TABLE

1033 PLW04M LOCK WASHER 8MM

1034 PW01M FLAT WASHER 8MM

1040 PN01M HEX NUT M6-1.0

1052 P05011052 HOLLOW BOLT M16-2 X 55

1053 PN13M HEX NUT M16-2

1054 PW08M FLAT WASHER 16MM

1055 P05011055 HEX BOLT M6-1 X 70

1056 P05011056 SQUARE PLUG

1057 P05011057 LEFT TABLE BRACE

1058 PB09M HEX BOLT M8-1.25 X 20

1059 P05011059 RIGHT TABLE BRACE

1001A P05011001A EXTENSION TABLE

1002 P05011002 MAIN TABLE

1003 P05011003 SCALE

1004 PFH26M FLAT HD SCR M6-1.0 X 30

1004-1 PFH47M FLAT HD SCR M6-1.0 X 35

1005 P05011005 SCALE BRACKET

1006 PSB48M CAP SCREW M6-1.0 X 35

1007 PN01M HEX NUT M6-1.0

1008 P05011008 ROLL PIN 6 x 34

1009 PSB01M CAP SCREW M6-1.0 X 16

1010 P05011010 KNOB BOLT M6-1 X 20

1011 PN13M HEX NUT M16-2.0

1012 PW08M FLAT WASHER 16MM

1013 PSS72M SET SCREW M16-2.0 X 120

1014 P05011014 TABLE STRIP

1016 PW03M FLAT WASHER 6MM

1018 PSB01M CAP SCREW M6-1.0 X 16

Otros manuales para G0501

Tabla de contenidos

Otros manuales de Sierra de Grizzly

Grizzly

Grizzly G1060 Manual de usuario

Grizzly

Grizzly G0674 Manual de usuario

Grizzly

Grizzly G1023Z Manual de usuario

Grizzly

Grizzly G0513P Manual de usuario

Grizzly

Grizzly G0568 Manual de usuario

Grizzly

Grizzly T32005 Manual de usuario

Grizzly

Grizzly G0701 Manual de usuario

Grizzly

Grizzly G0736 Manual de usuario

Grizzly

Grizzly H6246 Guía de inicio rápido

Grizzly

Grizzly G1258 Manual de usuario

Grizzly

Grizzly G0636X Guía de inicio rápido

Grizzly

Grizzly & G1022PROZX Manual de usuario

Grizzly

Grizzly G0817 Manual de usuario

Grizzly

Grizzly G0641 Manual de usuario

Grizzly

Grizzly EXTREME G0513X2BF Manual de usuario

Grizzly

Grizzly G0693 Manual de usuario

Grizzly

Grizzly G0969 Manual de usuario

Grizzly

Grizzly G0493 Manual de usuario

Grizzly

Grizzly G1023Z Manual de usuario

Grizzly

Grizzly G0444Z Guía de inicio rápido

Grizzly

Grizzly EXTREME G0555X Manual de usuario

Grizzly

Grizzly EXTREME G0605X Manual de usuario

Grizzly

Grizzly T30945 Manual de usuario

Grizzly

Grizzly G0580 Guía de inicio rápido

Manuales populares de Sierra de otras marcas

RIDGID

RIDGID BS1400 Manual de usuario

ATIKA

ATIKA BWS 400-2 Manual de usuario

RGC

RGC FS20 Manual de usuario

Makita

Makita M2300 Manual de usuario

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manual de usuario

IMET Spa

IMET Spa SIRIO 370 AF-E Manual de usuario

Optimum

Optimum OPTisaw CS 275 Manual de usuario

Makita

Makita BPB180 Manual de usuario

Stihl

Stihl MS 462 C-M Manual de usuario

AEG

AEG TS 250 K Manual de usuario

Meec tools

Meec tools 004665 Manual de usuario

Makita

Makita LS1018L Manual de usuario

Ryobi

Ryobi RCS1400 Manual de usuario

DeWalt

DeWalt DCS391 Manual de usuario

Sealey

Sealey SA72 Manual de usuario

skilsaw

skilsaw SPT88 Instrucciones de montaje

Urrea

Urrea SI810 Dimensiones y guía de instalación

EINHELL

EINHELL BKG 210/1 Manual de usuario
