-28- Model G0642 15-Bit Line Boring Machine
SECTION 8: PARTS

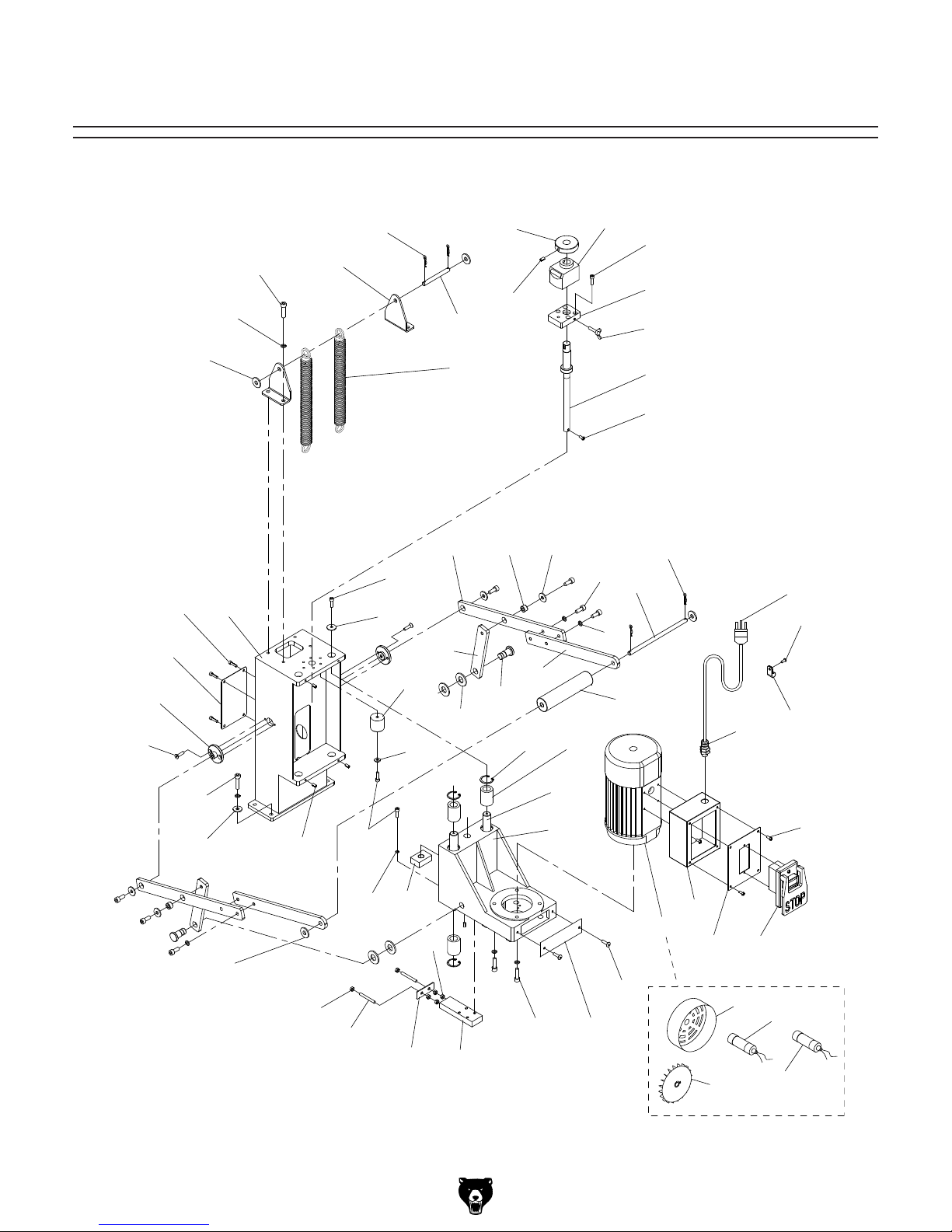

Column & Electrical Breakdown
Model G0642 15-Bit Line Boring Machine -29-
Column & Electrical Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PW04M FLAT WASHER 10MM 30 P0642030 SWITCH BOX
2 PLW04M LOCK WASHER 8MM 31 P0642031 SWITCH PANEL
3 PSB11M CAP SCREW M8-1.25 X 16 32 P0642032 ON/OFF SWITCH
4 P0642004 HEADSTOCK SPRING BRACKET 33 P0642033 STRAIN RELIEF
5 P0642005 HAIR PIN COTTER PIN 34 P0642034 CABLE CLAMP
6 P0642006 DRILLED HEADLESS CLEVIS PIN 35 P0642035 MOTOR 1HP 110/220V 1-PH
7 PSS01M SET SCREW M6-1 X 10 35-1 P0642035-1 S. CAPACITOR 300M 125V 1.38 X 3.38
8 P0642008 KNURLED KNOB 35-2 P0642035-2 R. CAPACITOR 30M 250V 1.38 X 2.38
9 P0642009 HEADSTOCK EXTENSION SPRING 35-3 P0642035-3 MOTOR FAN COVER
10 P0642010 DEPTH CONTROL GAUGE 35-4 P0642035-4 MOTOR FAN
11 PSB02M CAP SCREW M6-1 X 20 36 P0642036 HANDLE
12 P0642012 WING SCREW M6-1 X 25 37 P0642037 HEADSTOCK
13 P0642013 DEPTH CONTROL GAUGE MOUNT 38 P0642038 HEADSTOCK WAY
14 P0642014 DEPTH CONTROL ROD 39 P0642039 BUSHING
15 PS08M PHLP HD SCR M5-.8 X 12 40 PR29M INT RETAINING RING 32MM
16 P0642016 COLUMN 41 PW03M FLAT WASHER 6MM
17 PSB50M CAP SCREW M5-.8 X 10 42 P0642042 PIVOT PIN
18 P0642018 COVER 43 P0642043 PIVOT BAR FRONT
19 P0642019 PIVOT BRACKET 44 PW08M FLAT WASHER 16MM
20 PFH02M FLAT HD SCR M6-1 X 12 45 P0642045 UPPER DEPTH STOP
21 PSB31M CAP SCREW M8-1.25 X 25 46 P0642046 PIVOT BAR SMALL
22 PSB07M CAP SCREW M6-1 X 30 47 PW03M FLAT WASHER 6MM
23 PLW03M LOCK WASHER 6MM 48 PSB26M CAP SCREW M6-1 X 12
24 P0642024 THREADED BLOCK 49 P0642049 PIVOT BAR REAR
25 PN01M HEX NUT M6-1 50 P0642050 BUSHING
26 PSS85M SET SCREW M6-1 X 45 51 PW01M FLAT WASHER 8MM
27 P0642027 SPACER 52 PSB14M CAP SCREW M8-1.25 X 20
28 P0642028 MOUNT 53 P0642053 DRILLED HEADLESS CLEVIS PIN
29 P0642029 COVER 54 P0642054 POWER CORD
-30- Model G0642 15-Bit Line Boring Machine

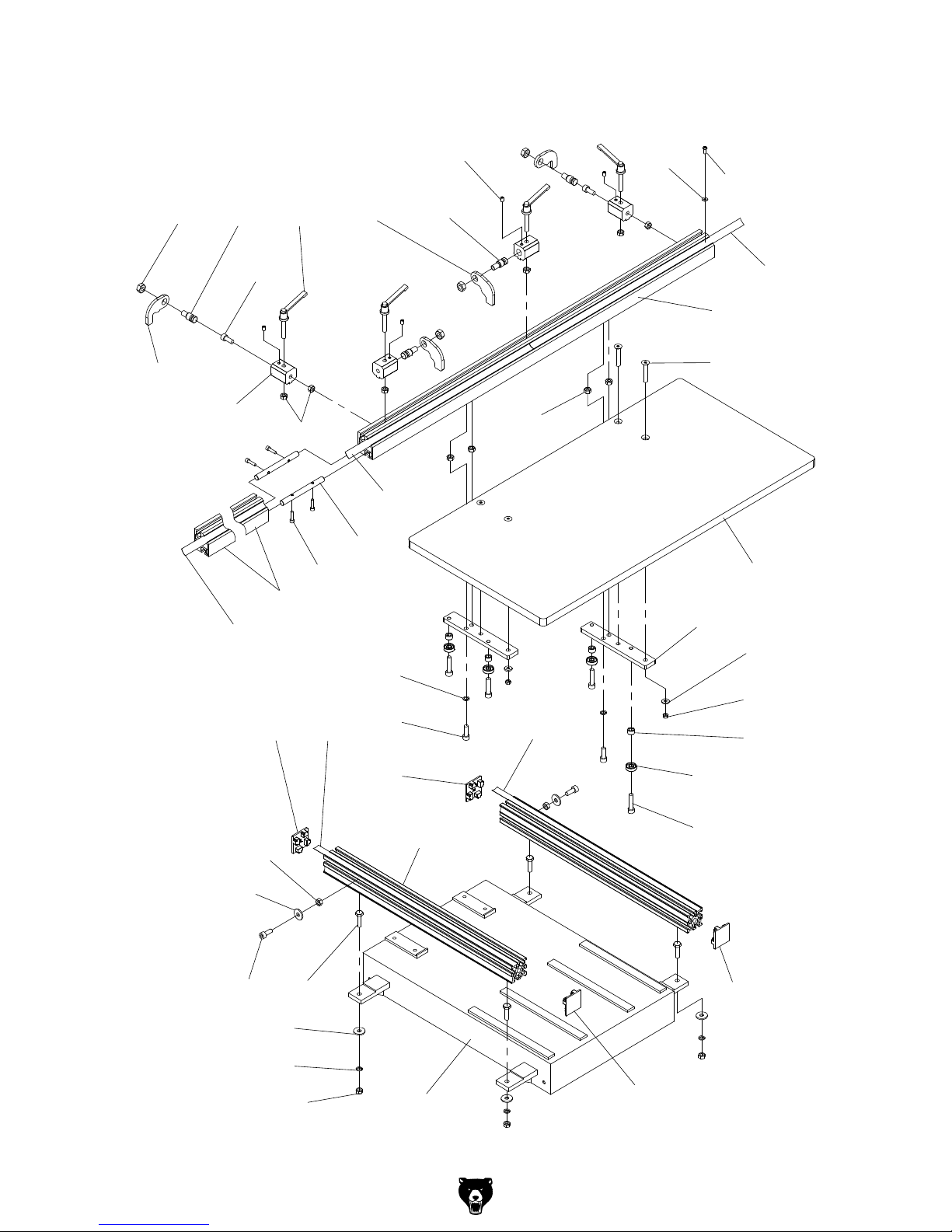

Table Breakdown
Model G0642 15-Bit Line Boring Machine -31-
Table Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P0642101 CROSS STOP PLATE 121 P0642121 CROSS FENCE SCALE LEFT
102 P0642102 MOUNTING BLOCK 122 PLW04M LOCK WASHER 8MM
103 PLN05M LOCK NUT M10-1.5 123 PSB14M CAP SCREW M8-1.25 X 20
104 P0642104 STOP PIN 124 P0642124 CROSS FENCE END PLUG RIGHT
105 PSB11M CAP SCREW M8-1.25 X 16 125 P0642125 CROSS FENCE
106 P0642106 LOCK LEVER 126 P0642126 CROSS FENCE SCALE RIGHT
107 PN03M HEX NUT M8-1.25 127 P0642127 TABLE MOUNT
108 P0642108 LONGITUDINAL STOP PLATE 128 P0642128 TABLE
109 PSS02M SET SCREW M6-1 X 6 129 PW03M FLAT WASHER 6MM
110 PW02M FLAT WASHER 5MM 130 PN01M HEX NUT M6-1
111 PS08M PHLP HD SCR M5-.8 X 12 131 P0642131 BUSHING
114 P0642114 LONGITUDINAL FENCE 132 P608 BALL BEARING 608ZZ
115 PFH03M FLAT HD SCR M6-1 X 40 133 PSB40M CAP SCREW M8-1.25 X 35
116 P0642116 LONGITUDINAL SCALE CENTER LEFT 134 P0642134 CABINET TOP
117 P0642117 FENCE CONNECTING ROD 135 PSB31M CAP SCREW M8-1.25 X 25
118 PSB24M CAP SCREW M5-.8 X 16 136 PSB58M CAP SCREW M8-1.25 X 12
119 P0642119 LONGITUDINGAL SCALE LEFT 137 PW01M FLAT WASHER 8MM
120 P0642120 CROSS FENCE END PLUG LEFT 138 P0642138 LONGITUDINAL SCALE CENTER RIGHT
-32- Model G0642 15-Bit Line Boring Machine
Cabinet & Tools Breakdown & Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 PW01M FLAT WASHER 8MM 213 PAW08M HEX WRENCH 8MM
202 PB03M HEX BOLT M8-1.25 X 16 214 PAW06M HEX WRENCH 6MM
203 P0642203 CABINET 215 PAW05M HEX WRENCH 5MM
204 P0642204 COVER 216 PAW04M HEX WRENCH 4MM
205 P0642205 GRIZZLY LOGO PLATE 217 PAW03M HEX WRENCH 3MM
206 PS02M PHLP HD SCR M4-.7 X 12 218 PAW02.5M HEX WRENCH 2.5MM
207 P0642207 DOOR 219 PAW02M HEX WRENCH 2MM
208 P0642208 DOOR LATCH 220 PAW01.5M HEX WRENCH 1.5MM
209 PS08M PHLP HD SCR M5-.8 X 12 221 PWR1719 COMBO WRENCH 17/19MM
210 PN04M HEX NUT M4-.7 222 PWR1214 COMBO WRENCH 12/14MM
211 PN06M HEX NUT M5-.8 223 PWR810 COMBO WRENCH 8/10MM
212 PAW10M HEX WRENCH 10MM
Model G0642 15-Bit Line Boring Machine -33-
Boring Head Breakdown & Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0642301 INDEXING PIN KNOB 315 P0642315 BUSHING
302 P0642302 INDEXING PIN 316 PSB79M CAP SCREW M5-.8 X 35
303 P0642303 INDEXING COMPRESSION SPRING 317 P0642317 BUSHING
304 P0642304 BORING HEAD ASSY 318 PSB07M CAP SCREW M6-1 X 30
305 P0642305 HOLDDOWN COMPRESSION SPRING 319 PSB118M BUTTON HD CAP SCR M5-.8 X 20
306 P0642306 COLLAR 320 PSB167M CAP SCREW M6-1 X 70
307 P0642307 HOLDDOWN PAD 321 PLW03M LOCK WASHER 6MM
308 PSB02M FLAT WASHER 6MM 322 PN01M HEX NUT M6-1
309 PSB02M CAP SCREW M6-1 X 20 323 PSS99M SET SCREW M6-1 X 5
310 P0642310 BORING HEAD GUARD 324 PR06M EXT RETAINING RING 16MM
311 P0642311 GUARD RETAINER 325 P0642325 LOCK COLLAR
312 PSB109M CAP SCREW M5-.8 X 50 326 P0642326 HOLDDOWN ROD
313 PW02M FLAT WASHER 5MM 327 P0642327 HOLDDOWN BRACKET
314 P0642314 PIVOT BRACKET 328 PSS07M SET SCREW M5-.8 X 5
-34- Model G0642 15-Bit Line Boring Machine

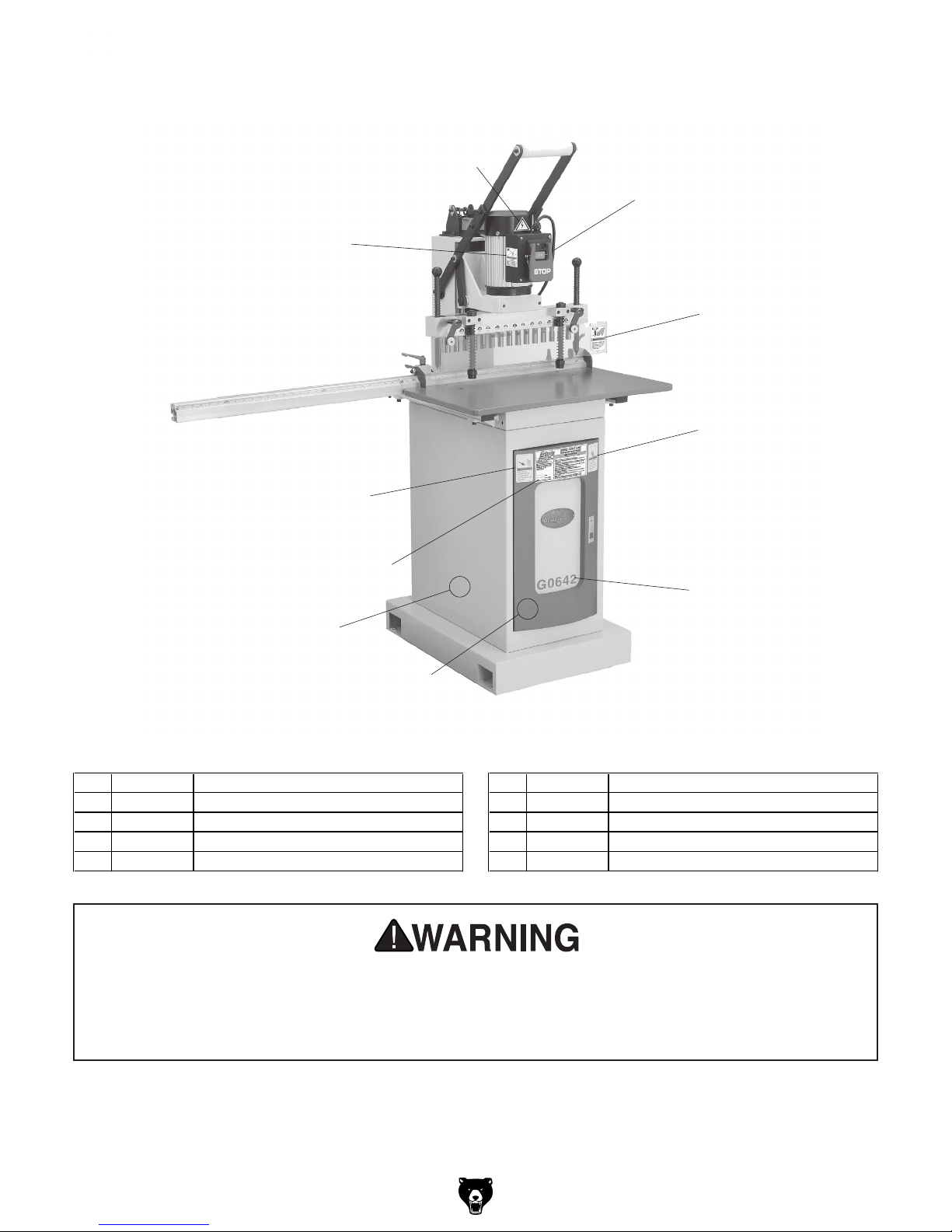

Label Placement & List
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0642401 MACHINE ID LABEL 406 P0642401 HAND INJURY HAZARD LABEL VERT
402 P0642402 DISCONNECT WARNING LABEL VERT 407 PLABEL-12 READ MANUAL LABEL VERT
403 P0642403 ENTANGLEMENT HAZARD LABEL VERT 408 P0642403 MODEL NUMBER LABEL
404 PLABEL-14 ELECTRICITY LABEL 409 PPAINT-1 GRIZZLY GREEN TOUCH UP PAINT
405 PLABEL-11 EYE INJURY HAZARD LABEL VERT 410 PPAINT-11 GRIZZLY PUTTY TOUCH UP PAINT
