Grizzly G1015 Manual de usuario
KNIFE BELT SANDER/BUFFER
MODEL G1015
PARTS LIST
COPYRIGHT © 1999 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
REVISED OCTOBER,1999. PRINTED IN U.S.A.
PARTS LIST DISCLAIMER
This parts list and drawings represent the configuration of the machine as it is currently being shipped. The machine configuration can change as product
improvements are incorporated. If you own an earlier version of the machine, this parts list may not depict your machine exactly. Contact Customer Service
if you have any questions about part differences. Previous parts list versions are not available on-line.
-2- G1015 Knife Belt Sander/Buffer
DIAGRAMS & PARTS LISTS
10
6
11
13
14
16
2
3
20
26
27
7
19
12
14
13
16
9
8
1
4
5
21
28
24
17
18
31
29
22
25 23
G1015 Knife Belt Sander/Buffer -3-

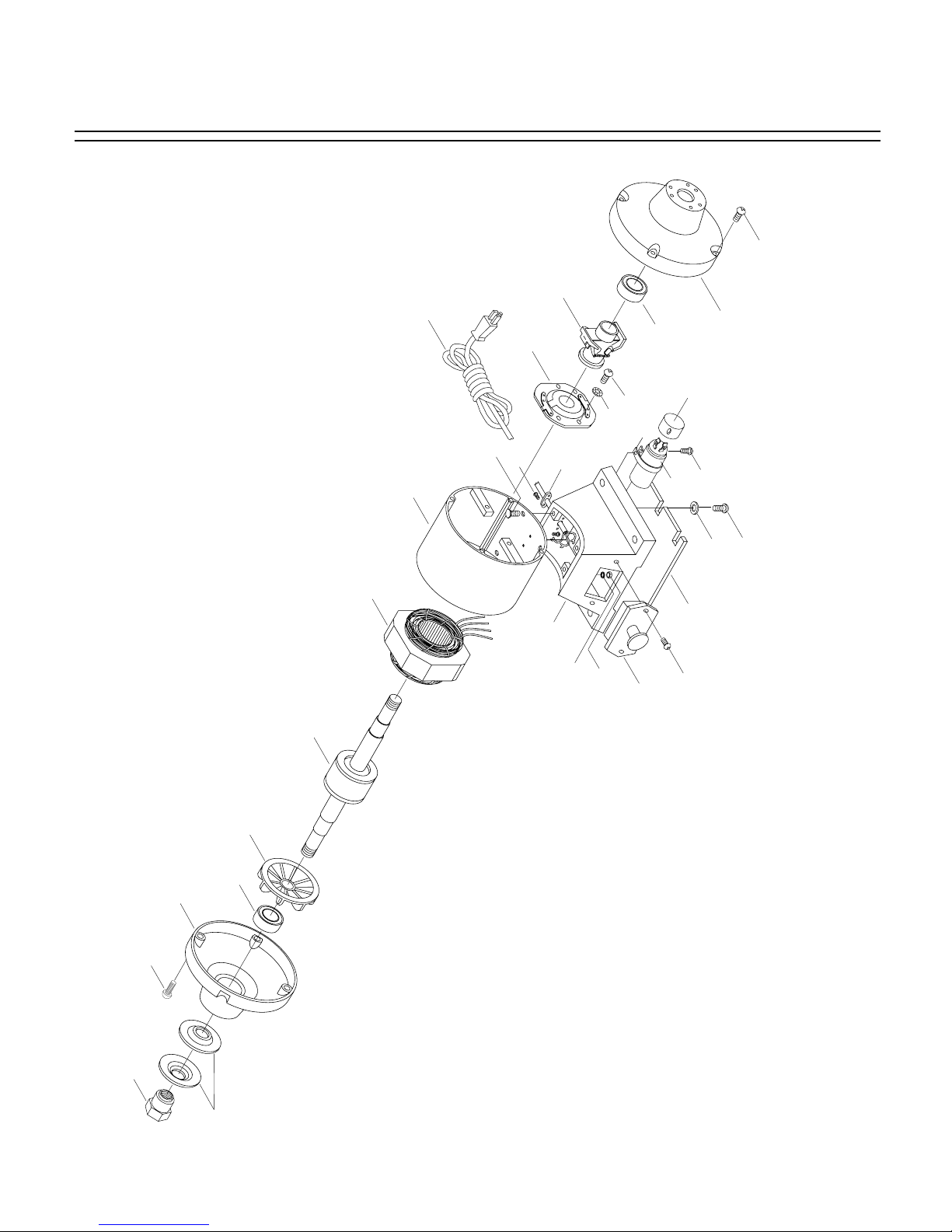

01 P1015001 MOTOR BASE
02 P1015002 MOTOR CASE
03 PS11 PAN HD SCREW 5⁄16" - 18 X 11⁄4"
04 PLW01 LOCK WASHER 5⁄16"
05 PNO2 NUT 5⁄16" - 18
06 P1015006 STATOR WINDING
07 PCP004 CONTACT PLT, LG, INT PT
08 PLW03 LOCK WASHER 3⁄16"
09 PS01 PAN HD SCREW 10 - 24 X 1⁄2"
10 P1015010 ROTOR / SHAFT
11 P1015011 FAN
12 P1015012 CENTRIFUGAL SWITCH
13 P1015013 END BELL
14 P6206 BEARING
16 PS12 PAN HD SCREW 1⁄4" - 20 X 5⁄8"
17 P1015017 CORD CLAMP
18 PS13 PAN HD SCREW 3⁄16" - 24 X 1⁄2"
19 P1015019 POWER CORD
20 P1061018 ON/OFF SWITCH
21 PS01 PHLP HD SCREW 10 - 24 X 1⁄2"
22 PC300B CAPACITOR 300 MDF
23 P1015023 CAPACITOR COVER
24 P1015024 CAPACITOR CLAMP
25 PS06 PAN HD SCREW 3⁄16" - 24 X 3⁄8"
26 P1015026 COVER PLATE
27 PW06 WASHER 1⁄4"
28 PS06 PAN HD SCREW 3⁄16" - 24 X 3⁄8"
29 P1015029 WHEEL FLANGE
31 P1015031 NUT, LEFT-HAND
REF PART DESCRIPTION REF PART DESCRIPTION
MOTOR ASSEMBLY
-4- G1015 Knife Belt Sander/Buffer
81 78
79
81
80
86
83
75A
37
36A
33C
37
81
81
74
76
76
81A
42A
41A
40
39A
82
73
30
84
32A
34
81
81
34
35
35
52A
54 53A 46A 51
47 68 6650 65
57 56A
62A
63 43
44
51
48 55A 59
49
58A 64 67
69
45 77
45
68
72
6970
71
38A
60 61
81 34
89
75
87
88 87
G1015 Knife Belt Sander/Buffer -5-

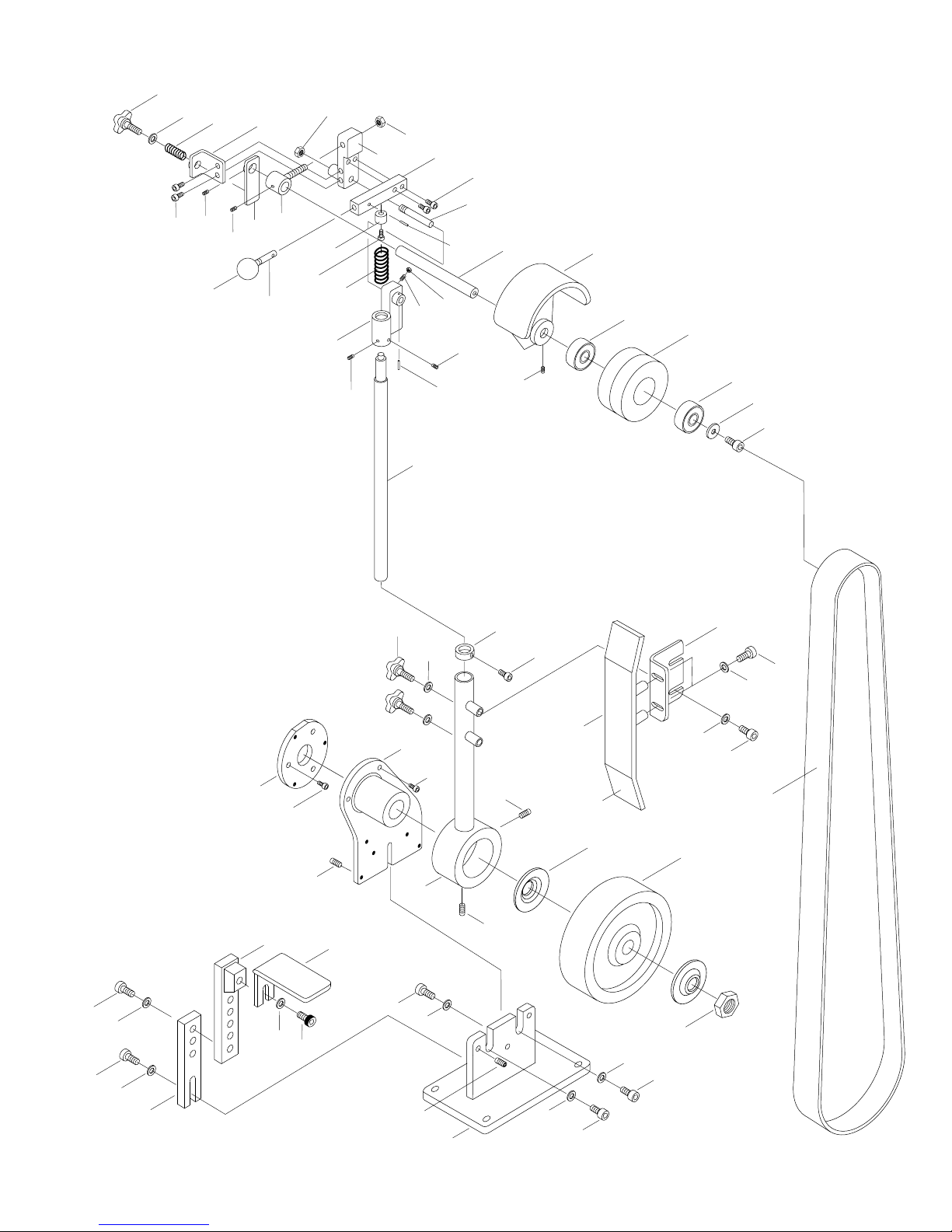

30 P1015030 NUT, RIGHT-HAND
32A P1015032A MOUNTING ARM BRACKET
33C P1015033C PIVOT ARM BRKT/BUSHING
34 PSB03 CAP SCREW 5⁄16" - 18 X 1"
35 PSS08 SETSCREW 5⁄16" - 18 X 1⁄2"
36A P1015036A PIVOT ARM
37 PSS09 SETSCREW 3⁄8" - 16 X 1⁄2"
38A P1015038A SHAFT 1"
39A P1015039A HAND KNOB 3⁄8"-16
40 PW07 WASHER 5⁄16"
41A P1015041A COLLAR FOR 1" SHAFT
42A PSB35 CAP SCREW 1⁄4" - 28 X 5⁄8"
43 P1015043 SPRING
44 P1015044 UPPER SHAFT BRACKET
45 PSS05 SETSCREW 5⁄16" - 18 X 1⁄4"
46A P1015046A TRACKING BRACKET
47 PSB04 CAP SCREW 1⁄4" - 20 X 1⁄2"
48 P1015048 PIVOT BRACKET
49 P1015049 SHAFT
50 P1015050 TRACKING LEVER
51 PNO8 NUT 3⁄8" - 16
52A P1015052A TRACKING KNOB
53A P1015053A SPRING
54 PW01 WASHER 1⁄2"
55A P1015055A TENSION BAR
56A P1015056A TENSION KNOB SHAFT
57 P1015057 TENSION KNOB
58A PRP03M ROLL PIN 5 X 20
59 PSB05 CAP SCREW 1⁄4" - 20 X 3⁄4"
60 PSS10 SETSCREW 1⁄4" - 20 X 5⁄8"
61 PNO5 NUT 1⁄4" - 20
62A P1015062A SPRING BUSHING
63 PSB06 CAP SCREW 1⁄4" - 20 X 1"
64 P1015064 AXLE
65 P1015065 PIVOT BUSHING
66 PSS03 SETSCREW 1⁄4" - 20 X 3⁄8"
67 P1015067 WHEEL GUARD
68 PSS05 SETSCREW 5⁄16" - 18 X 1⁄4"
69 P6204 BEARING
70 PW06 FLAT WASHER 1⁄4"
71 PSB04 CAP SCREW 1⁄4" - 20 X 1⁄2"
72 P1015072 IDLER WHEEL
73 P1015073 DRIVE WHEEL
74 P1015074 SHOE BRACKET
75 P1015075 SHOE
75A P1015075A GRAPHITE PAD 2 X 9
76 PSB07 CAP SCREW 5⁄16" - 18 X 3⁄4"
77 PRP05 ROLL PIN 1⁄8" X 1"
78 P1015078 TOOL REST BRACKET
79 P1015079 TOOL REST BRACKET
80 PSB03 CAP SCREW 5⁄16" - 18 X 1"
81 PW07 WASHER 5⁄16"
81A P1015081A SPACER
82 PSB07 CAP SCREW 5⁄16" - 18 X 3⁄4"
83 P1015083 TOOL REST
84 G2745 SANDING BELT
85 P1015085 COMPLETE MOTOR
86 PSB11 CAP SCREW 5⁄16" - 18 X 11⁄4"
87 PB19 CAP SCREW 1⁄4" - 20 X 1⁄2"
88 P1015088 MOUNTING ADAPTER
89 P1015089 WHEEL FLANGE
REF PART DESCRIPTION REF PART DESCRIPTION
SANDING ARM ASSEMBLY
