G0633/G0634 Jointer/Planer Combo Machine -55-
Stand Assembly Parts Breakdown
-56- G0633/G0634 Jointer/Planer Combo Machine
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0633001 FRAME 18 P0633018 POWER CORD
1-1 P0633001-1 PIVOT SHAFT BRACKET (L) 19 P0633019 DEPTH SCALE
1-2 P0633001-2 PIVOT SHAFT BRACKET (R) 20 P0633020 LIMIT SWITCH CORD
2 P0633002 DRIVE SHAFT COVER 21 PSB14 CAP SCREW 3/8-16 X 1
3 P0633003 COVER FRAME 21-1 PSB26 CAP SCREW 3/8-16 X 1-1/2
3-1 P0633003-1 COVER 22 PB02 HEX BOLT 1/4-20 X 5/8
4 P0633004 DOOR 23 PW06 FLAT WASHER 1/4
5 P0633005 SIDE OPENING COVER 24 P0633024 GROMMET
5-1 PB09 HEX BOLT 5/16-18 X 1/2 25 P0633025 GROMMET
5-2 PW07 FLAT WASHER 5/16 26 P0633026 STRAIN RELIEF
6 PCB22 CARRIAGE BOLT 3/8-16 X 1 27 PW06 FLAT WASHER 1/4
6-1 P0633006-1 SPECIAL SCREW 3/8-16 X 1-1/2 28 PB51 HEX BOLT 1/4-20 X 3/8
7 PW02 FLAT WASHER 3/8 29 P0633029 MAGNETI C SWITCH ASSEMBLY
8 PN08 HEX NUT 3/8-16 29-1 P0633029-1 MAG SWITCH FRONT COVER
9 P0633009 MOTOR BRACKET 29-2 P0633029-2 MAG SWITCH BACK COVER
10 P0633010 PLANER SCALE 29-3 P0633029-3 CONTACTOR
11 P0633011 RIVET 29-4 P0633029-4 THERMAL RELAY
12 P0633012 REINFORCEMENT PLATE 29-5 P0633029-5 ON BUTTON
12-1 PB32 HEX BOLT 5/16-18 X 5/8 29-6 P0633029-6 OFF BUTTON
12-2 PW07 FLAT WASHER 5/16 30 PS22 PHLP HD SCR 10-24 X 5/8
12-3 PN02 HEX NUT 5/16-18 31 P0633031 STRAIN RELIEF
12-4 PB06 HEX BOLT 5/16-18 X 2 32 PS103 PHLP HD SCR 1/4-20 X 5/16
13 P0633013 SQUARE SUPPORT 34 PN05 HEX NUT 1/4-20
13-1 PB09 HEX BOLT 5/16-18 X 1/2 36 P0633036 PROTECTION PLATE (RIGHT)
13-2 PHTEK35 TAP SCREW 1/4 X 1 37 P0633037 PROTECTION PLATE (LEFT)
13-3 PW06 FLAT WASHER 1/4 38 G8588 GRIZZLY NAMEPLATE-SMALL
14 P0633014 EMERGENCY OFF SWITCH 39 PHTEK24 TAP SCREW #5 X 3/8
14-1 P0633014-1 SWITCH KNOB 40 PWR1214 WRENCH 12 X14
15 P0633015 LIMIT SWITCH CORD 41 PWR810 WRENCH 8 X 10
16 P0633016 KNOB BOLT 3/8-16 42 PAW03M HEX WRENCH 3MM
17 P0633017 STRAIN RELIEF 43 P0633043 SPECIAL SCREW 5/16-18 X 1-1/2
Stand Parts List
G0633/G0634 Jointer/Planer Combo Machine -57-
Table Assembly Parts Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P0633101 INFEED TABLE 117 PB07 HEX BOLT 5/16-18 X 3/4
102 P0633102 OUTFEED TABLE 118 P0633118 KNOB SCREW 1/4-20 X 1
103 P0633103 TABLE LIP 120 PW07 FLAT WASHER 5/16
104-1 P0633104-1 JOINTER DUST PORT 121 PSB07 CAP SCREW 5/16-18 X 3/4
104-2 P0633104-2 PLANER DUST PORT 122 PB31 HEX BOLT 1/4-20 X 1
105 P0633105 HINGE SHAFT A 124 PSB26 CAP SCREW 3/8-16 X 1-1/2
106 P0633106 HINGE SHAFT B 125 PN02 HEX NUT 5/16-18
107 P0633107 OUTFEED TABLE ADJ. KNOB 126 PSB04 CAP SCREW 1/4-20 X 1/2
108 P0633108 GUIDE SCREW 127 P0633127 PLASTIC PLUG
109 PN01 HEX NUT 1/2-20 128 PSB45 CAP SCREW 5/16-18 X 3/8
110 P0633110 INFEED HANDGRIP 129 P0633129 HANDLE
111 P0633111 INFEED LOCK LEVER 130 P0633130 SPECIAL SCREW 1/2
112 P0633112 OUTFEED LOCK LEVER 131 P0633131 PLUNGER
113 P0633113 PLASTIC KNOB 132 P0633132 COMPRESSION SPRING
114 PR03M EXT RETAINING RING 12MM 133 P0633133 KNOB
115 P0633115 CUTTERHEAD GUARD BRACKET 134 P0633134 PUSH BLOCK
116 PW06 FLAT WASHER 1/4
-58- G0633/G0634 Jointer/Planer Combo Machine
Cutterhead & Motor Breakdown
G0633/G0634 Jointer/Planer Combo Machine -59-
REF PART # DESCRIPTION REF PART # DESCRIPTION
200 P0633200 CUTTERHEAD BLOCK 223 PFH58M FLAT HD ALLEN SCR M5-.8 X 12 (G0633)
201 P0633201 CUTTERHEAD (G0633) 224 P62052RS BALL BEARING 6205-2RS
201 P0634201 12" SPIRAL CUTTERHEAD (G0634) 225 P0633225 GUARD
201-1 P0634201-1 INDEXABLE CUTTER (G0634) 226 PW06 FLAT WASHER 1/4
201-2 PFH35M FLAT HD TORX T20 M6-1 X 15 (G0634) 227 PB51 HEX BOLT 1/4-20 X 3/8
201-3 P0634201-3 TORX T-HANDLE WRENCH 6MM (G0634) 228 PSS11 SET SCREW 1/4-20 X 1/4
201-4 P0634201-4 TORX BIT T-20 (G0634) 229 PSS07 SET SCREW 1/4-20 X 1/2
202 P0633202 KNIFE (G0633) 230 P0633230 MOTOR 5HP
203 P0633203 GIB (G0633) 230-1 P0633230-1 JUNCTION BOX
204 P0633204 GIB BOLT (G0633) 230-2 P0633230-2 FAN COVER
205 P0633205 COMPRESSION SPRING (G0633) 230-3 P0633230-3 MOTOR FAN
206 P0633206 OUTFEED ROLLER 230-4 P0633230-4 CAPACITOR COVER
207 P0633207 INFEED ROLLER 230-5 P0633230-5 START CAPACITOR 400MFD 125VAC
208 P0633208 COVER 230-6 P0633230-6 RUN CAPACITOR 50MFD 350VAC
209 P0633209 ALIGNMENT PIN 231 P0633231 MOTOR CORD
210 P0633210 PIVOT PIN 232 P0633232 PIVOT PIN
211 P0633211 SQUARE SUPPORT 233 PVM52 V-BELT M-52 3L520
212 P0633212 DOWEL 234 PSB55 CAP SCREW 5/16-18 X 3-1/4
213 P0633213 COMPRESSION SPRING 235 PSS03 SET SCREW 1/4-20 X 3/8
214 P0633214 CUTTERHEAD PULLEY KEY 236 PS06 PHLP HD SCR 10-24 X 3/8
215 P0633215 DUST CHUTE 237 PW03 FLAT WASHER #10
216 P0633216 MOTOR PULLEY 238 P0633238 KNIFE SETTING GAUGE
217 P0633217 PULLEY 238-1 P0633238-1 KNIFE SETTING GAUGE FEET
218 P0633218 SUPPORT 238-2 P0633238-2 KNIFE SETTING GAUGE ROD
219 P0633219 ANTIKICKBACK FINGER 238-3 PEC10M E-CLIP 9MM
220 P0633220 SPACER 241 P0633241 CUTTERHEAD ROTATION LABEL
221 PSS03 SET SCREW 1/4-20 X 3/8 242 PS06 PHLP HD SCR 10-24 X 3/8
222 PR26M INT RETAINING RING 52MM
Cutterhead & Motor Parts List
-60- G0633/G0634 Jointer/Planer Combo Machine

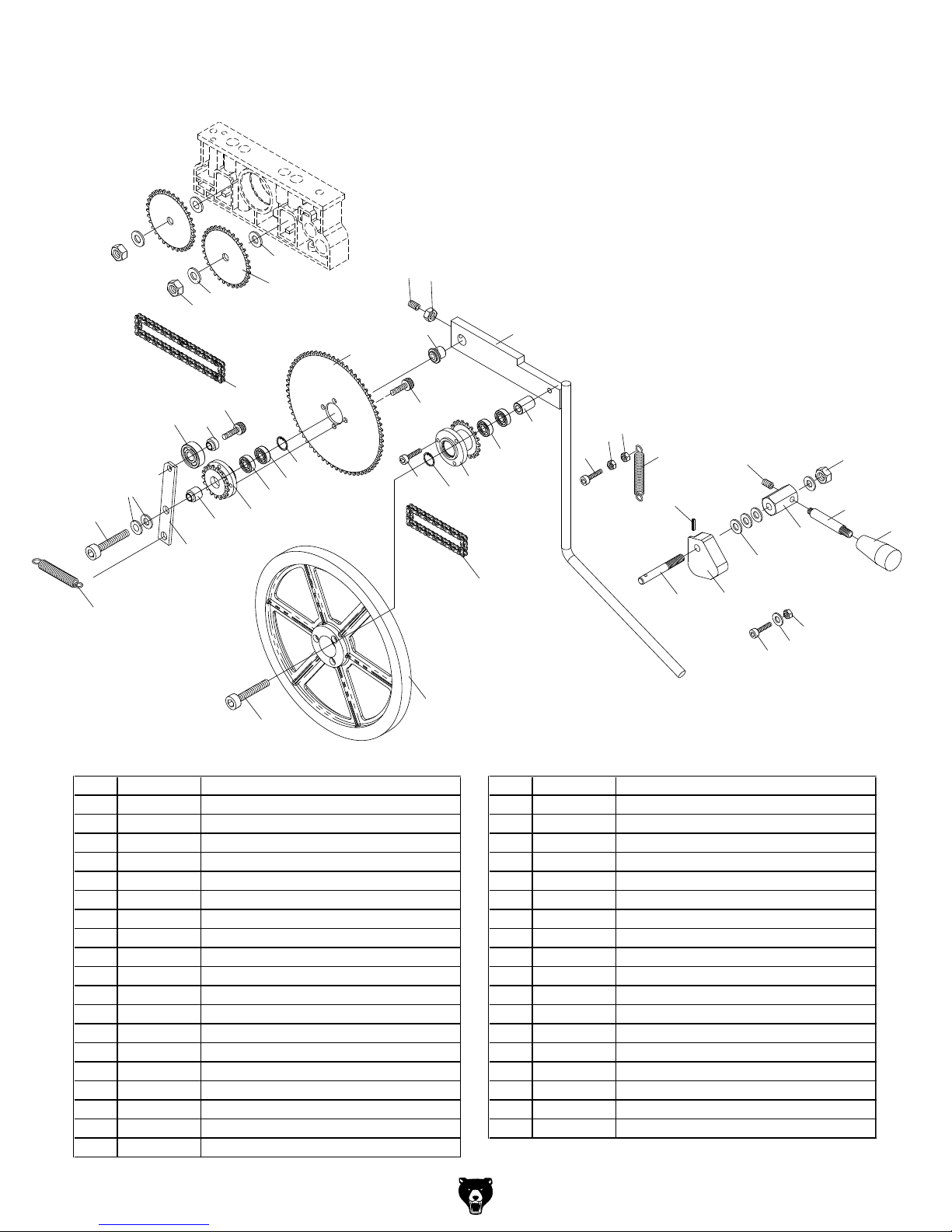

Drive Assembly Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
113 P0633113 PLASTIC KNOB 320 PR57M INT RETAINING RING 22MM
301 P0633301 SPROCKET 66T 321 P0633321 STUD
302 P0633302 SPROCKET 34T 322 PW02 FLAT WASHER 3/8
303 P0633303 BUSHING 323 PSB100 CAP SCREW 3/8-16 X 1/2
304 P0633304 SPROCKET 18T 324 P0633324 LEVER
305 P0633305 SPACER 325 PSS02 SET SCREW 5/16-18 X 3/8
306 P0633306 ARM 326 PSS12 SET SCREW 1/4-20 X 1
307 P62042RS BALL BEARING 6204-2RS 327 PN05 HEX NUT 1/4-20
308 P0633308 TENSION SPRING 328 PSB70 CAP SCREW 5/16-18 X 2
309 P6082RS BALL BEARING 608-2RS 329 P0633329 FLAT WASHER 5/16
310 P0633310 ROLLER CHAIN 330 PN02 HEX NUT 5/16-18
311 P0633311 ROLLER CHAIN 331 PW01 FLAT WASHER 1/2
312 P0633312 CONTACT WHEEL 332 PN01 HEX NUT 1/2-20
313 P0633313 LEVER 333 P0633333 BUSHING
314 P0633314 TENSION SPRING 334 PSB05 CAP SCREW 1/4-20 X 3/4
315 P0633315 CAM 335 PSB17 CAP SCREW 1/4-20 X 3/8
316 P0633316 CAM SHAFT 336 PSB07 CAP SCREW 5/16-18 X 3/4
317 P0633317 ROLL PIN 337 PLN01 LOCK NUT 3/8-16
318 P0633318 SPACER 338 PSB12 CAP SCREW 5/16-18 X 2-1/2
319 P0633319 SPROCKET 19T
G0633/G0634 Jointer/Planer Combo Machine -61-
Planer Table Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0633401 PLANER TABLE 420 P0633420 BUSHING
402 P0633402 COLUMN 421 PW07 FLAT WASHER 5/16
403 P0633403 CYLINDER LINER 422 PLN03 LOCK NUT 5/16-18
404 P0633404 LOCK SCREW 423 PLW02 LOCK WASHER 1/4
405 P0633405 COLLAR 424 PSB56 CAP SCREW 1/4-20 X 2-1/4
406 P0633406 THICKNESS POINTER 425 PR88M INT RETAINING RING 8MM
407 P0633407 GEAR BOX 426 PRP05M ROLL PIN 5 X 30
408 P0633408 BUSHING 427 PSS05 SET SCREW 5/16-18 X 1/4
408-1 P0633408-1 SELF-LUBRICATION BUSHING 428 P0633428 FLAT WASHER
408-2 P0633408-2 SELF-LUBRICATION BUSHING 429 PLW04 LOCK WASHER 3/8
409 P0633409 GEAR 430 PB16 HEX BOLT 3/8-16 X 1-1/2
410 P0633410 WORM SHAFT 431 PSS20 SET SCREW 5/16-18 X 1-1/2
411 P0633411 ELEVATION LEAD SCREW 432 PSB19 CAP SCREW 3/8-16 X 1-1/4
412 P0633412 SHIELD PLATE 433 PB11 HEX BOLT 5/16-18 X 1-1/2
413 P0633413 HANDWHEEL 434 PN08 HEX NUT 3/8-16
414 PN02 HEX NUT 5/16-18 435 PSS36 SET SCREW 3/8-16 X 2
415 P0633415 UNIVERSAL LOCK LEVER 436 PSBS21 BUTTON HD CAP SCR 5/16-18 X 3/4
417 P0633417 ROLL PIN 437 P0633437 HANDLE
418 P0633418 THRUST BEARING NTB1528 +2AS 438 P0633438 SPECIAL SCREW 3/8-16 X 3-3/8
419 PR79M INT RETAINING RING 19MM
-62- G0633/G0634 Jointer/Planer Combo Machine
Limit Switch Breakdown & List
REF PART # DESCRIPTION REF PART # DESCRIPTION
501-1 P0633501-1 SWING LEVER (F) 508 PW07 FLAT WASHER 5/16
501-2 P0633501-2 SWING LEVER (M) 509 PB03 HEX BOLT 5/16-18 X 1
501-3 P0633501-3 LIMIT SWITCH BRACKET 510 PB09 HEX BOLT 5/16-18 X 1/2
502 P0633502 COMPRESSION SPRING 511 PN02 HEX NUT 5/16-18
503 P0633503 EXTENSION SPRING 512 PSB101 CAP SCREW 10-24 X 1-1/4
504 P0633504 SWITCH ACTIVATION ROD 513 PSB06 CAP SCREW 1/4-20 X 1
505 P0633505 SWITCH ACTIVATION ROD 514 P0633514 LIMIT SWITCH
506 P0633506 SWITCH ACTIVATION ROD 515 P0633515 LIMIT SWITCH CONTROL CORD
507 PLN03 LOCK NUT 5/16-18
G0633/G0634 Jointer/Planer Combo Machine -63-
Fence/Guard Breakdown & List
-64- G0633/G0634 Jointer/Planer Combo Machine
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P0633601 FENCE BASE 628 P0633628 POINTER
602 P0633602 ADJUSTMENT TUBE W/RACK 629 PW06 FLAT WASHER 1/4
603 P0633603 TRUNNION BRACKET 630 PS07 PHLP HD SCR 1/4-20 X 3/8
604 P0633604 TRUNNION 631 PSS03 SET SCREW 1/4-20 X 3/8
604-1 P0633604-1 FENCE ANGLE SCALE 632 PS22 PHLP HD SCR 10-24 X 5/8
605 P0633605 PIVOT STUD 633 PB12 HEX BOLT 5/16-18 X 1-1/4
606 P0633606 SPACER 634 PSS01 SET SCREW 5/16-18 X 1
607 P0633607 ADJUSTMENT SCREW 635 PN02 HEX NUT 5/16-18
608 P0633608 ADJUSTMENT ROD 636 P0633636 CONTROL KNOB
609 P0633609 FENCE 636-1 PR01M EXT RETAINING RING 10MM
610 P0633610 SLIDING BOLT 637 PB05 HEX BOLT 1/4-20 X 3/4
611 P0633611 ECCENTRIC SHAFT 638 PN05 HEX NUT 1/4-20
612 PLN01 LOCK KNOB 3/8-16 639 PB97 HEX BOLT 1/4-20 X 3-1/4
613 P0633613 PINION SHAFT 640 PSS11 SET SCREW 1/4-20 X 1/4
614 P0633614 FENCE SUPPORT 641 P0633641 KNOB SCREW 1/4
615 P0633615 PLASTIC PROTECTION SHOE 642 PB19 HEX BOLT 1/4-20 X 1/2
616 P0633616 BUSHING 643 PSB06 CAP SCREW 1/4-20 X 1
617 PB03 HEX BOLT 5/16-18 X 1 644 PW06 FLAT WASHER 1/4
618 P0633618 LOCK SPRING 5/16 645 PW06 FLAT WASHER 1/4
619 PLN03 LOCK NUT 5/16-18 646 PSS29 SET SCREW 10-24 X 1/4
620 PW07 FLAT WASHER 5/16 701 P0633701 CUTTERHEAD GUARD
621 P0633621 CUTTER KNIFE GUARD 702 P0633702 ROLL PIN 5 X 35
622 P0633622 DOVETAIL BRACKET FOR QUICK RELEASE 703 P0633703 STUD
623 PW06 FLAT WASHER 1/4 704 P0633704 ROLL PIN 5 X 35
624 PFH18 FLAT HD ALLEN SCR 1/4-20 X 1/4 705 P0633705 TORSION SPRING
625 P0633625 TUBE LOCKING SHOE 707 PR48M EXT RETAINING RING 11MM
626 P0633626 UNIVERSAL LOCK LEVER 710 P0633710 LOAD WASHER
627 P0633627 UNIVERSAL LOCK LEVER
Fence/Guard List
