13'' PLANER MOULDER

MODEL G1037

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

SEPTEMBER, 1997 PRINTED IN TAIWAN

PARTS LIST DISCLAIMER

THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CON-

FIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS

LIST MAY NOT DEPICT YOUR MACHINE EXACTLY. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES.

PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

-B- G1037 Planer / Moulder

REF PART # DESCRIPTION REF PART # DESCRIPTION

G1037 Planer / Moulder -C-

01 P1037001 GEAR BOX

02 P1037002 BUSHING

03 P1037003 GEAR

04 P1037004 GEAR

05 P1037005 KEY

06 P1037006 POSITIONING PIN

07 P1037007 GEAR BOX

08 P1037008 CAP SCREW

09 P1037009 BEARING

10 P1037010 SNAP RING

11 P1037011 WASHER

12 P1037012 GEAR

13 P1037013 SNAP RING

14 P1037014 BUSHING

15 P1037015 CHAIN SPROCKET SHAFT

16 P1037016 KEY

17 P1037017 CHAIN SPROCKET

18 P1037018 CHAIN SPROCKET

19 P1037019 SPACER

20 P1037020 GEAR

20A P1037020A GEAR

21 P1037021 WASHER

22 P1037022 CAP SCREW

23 P1037023 SNAP RING

24 P1037024 GEAR

25 P1037025 SNAP RING

26 P1037026 OUTPUT SHAFT

27 P1037027 KEY

28 P1037028 KEY

29 P1037029 GEAR

29A P1037029A GEAR

30 P1037030 WASHER

31 P1037031 BRONZE BUSHING

32 P1037032 WASHER

-D- G1037 Planer / Moulder

REF PART # DESCRIPTION REF PART # DESCRIPTION

G1037 Planer / Moulder -E-

01 P1037101 BASE MECHANISM

02 P1037102 BASE

03 P1037103 WASHER

04 P1037104 CAP SCREW

05 P1037105 PLATE

06 P1037106 POST

07 P1037107 CAP SCREW

08 P1037108 WASHER

09 P1037109 ELEVATION SCREW

10 P1037110 ROLL PIN

11 P1037111 MIDDLE FRAME

12 P1037112 CAP SCREW

13 P1037113 FENCE, LEFT

14 P1037114 SCREW

15 P1037115 FENCE, RIGHT

16 P1037116 POINTER

17 P1037117 SCREW

18 P1037118 TRANSMISSION SHAFT

19 P1037119 ROLL PIN

20 P1037120 PLATE

21 P1037121 SPROCKET

22 P1037122 SETSCREW

23 P1037123 IDLE GEAR BRACKET

24 P1037124 SPROCKET

25 P1037125 CAP SCREW

26 P1037126 CHAIN

27 P1037127 COVER, LEFT

28 P1037128 WASHER

29 P1037129 CAP SCREW

30 P1037130 SIDE COVER

31 P1037131 SHAFT

32 P1037132 GEAR BOX COVER

33 P1037133 SPECIAL NUT

34 P1037134 LABEL

35 P1037135 SCALE

36 P1037136 WASHER

G1037 Planer / Moulder-F-

REF PART # DESCRIPTION REF PART # DESCRIPTION

G1037 Planer / Moulder -G-

01 P1037201 UPPER FRAME

02 P1037202 BEARING

03 P1037203 KEY

04 P1037204 CUTTERHEAD

05 P1037205 GIB

06 P1037206 GIB

07 P1037207 SETSCREW

08 P1037208 WASHER

09 P1037209 CAP SCREW

10 P1037210 KNIFE

11 P1037211 SHAFT

12 P1037212 SPACER

13 P1037213 ANTI-KICKBACK FINGER

14 P1037214 PLATE

15 P1037215 WASHER

16 P1037216 CAP SCREW

17 P1037217 MOTOR BRACKET

18 P1037218 CAP SCREW

19 P1037219 PULLEY

20 P1037220 TURNING PLATE

21 P1037221 CAP SCREW

22 P1037222 WASHER

23 P1037223 PULLEY

24 P1037224 WASHER

25 P1037225 CAP SCREW

26 P1037226 V-BELT

27 P1037227 BELT COVER

28 P1037228 SCREW

29 P1037229 VALVE

30 P1037230 SCREW

31 P1037231 MOTOR

32 P1037232 KEY

33 P1037233 SWITCH COVER

34 P1037234 SPECIAL WASHER

35 P1037235 SCREW

36 P1037236 SWITCH

37 P1037237 COVER

38 P1037238 WASHER

39 P1037239 SCREW

40 P1037240 CLAMP

41 P1037241 ROLLER

42 P1037242 SPRING

43 P1037243 ROLLER BRACKET

44 P1037244 CHAIN SPROCKET

45 P1037245 SPACER

46 P1037046 SNAP RING

47 P1037247 CHAIN

48 P1037248 CHAIN

49 P1037249 NUT

50 P1037250 ADJUSTMENT SHAFT

51 P1037251 ADJUSTABLE SHAFT

52 P1037250 ADJUSTMENT NUT

53 P1037251 SPECIAL SCREW

54 P1037254 CHIP GUARD PLATE

55 P1037255 CAP SCREW

56 P1037256 CAP SCREW

57 P1037257 CHIP GUARD

58 P1037258 CHIP GUARD

59 P1037259 WASHER

60 P1037260 SCREW

61 P1037261 WASHER

62 P1037262 WASHER

63 P1037263 WING NUT

64 P1037264 DUST CHUTE

65 P1037265 WASHER

66 P1037266 HANDWHEEL

67 P1037267 HAND KNOB

68 P1037268 SCREW SHAFT

69 P1037269 POWER CORD

71 P1037271 NAME PLATE

72 P1037272 RIVET

73 P1037273 WASHER

74 P1037274 HANDLE GUARD

75 P1037275 WARNING LABEL

76 P1037276 CAP SCREW

77 P1037277 WASHER

REF PART # DESCRIPTION REF PART # DESCRIPTION

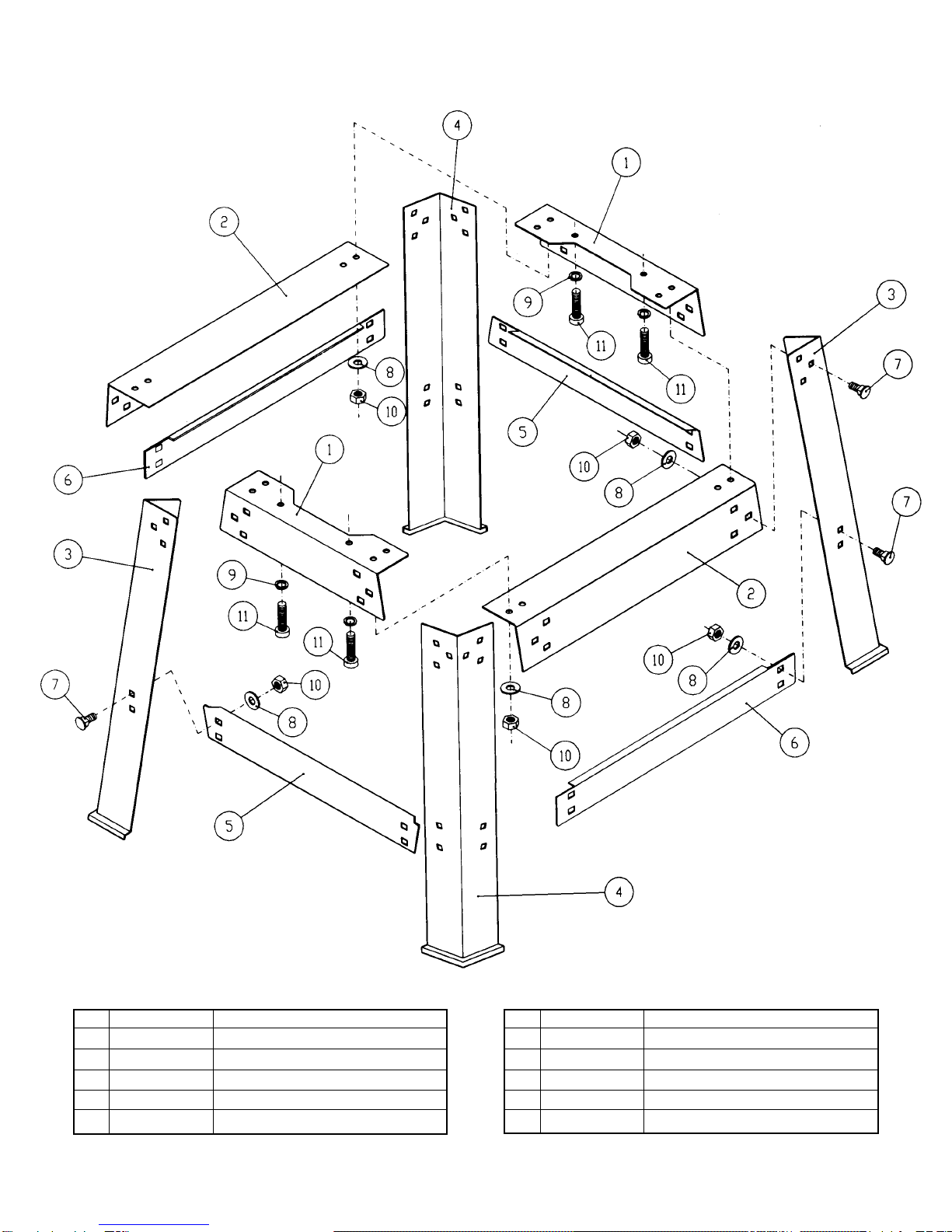

-H- G1037 Planer / Moulder

01 P1037301 UPPER PLATE, R & L

02 P1037302 UPPER PLATE, F & B

03 P1037303 LEG

04 P1037304 LEG

05 P1037305 BRACE, R & L

06 P1037306 BRACE, F & B

07 P1037307 CARRIAGE BOLT

08 P1037308 WASHER

09 P1037309 WASHER

10 P1037310 HEX NUT

11 P1037311 CAP SCREW
