Introduction

The Model H6239 10 Ton Log Splitter (Figure 1)

features 10 tons of pressure for splitting firewood,

a 175⁄8" log capacity, an 81⁄4" ram stroke, and two

built-in mini wheels for easy mobility.

Inventory

A. Log Splitter ................................................ 1

B. Handles ...................................................... 2

Figure 1. Model H6239 handles installed.

This log splitter is only intended to be used

to split logs! Serious injury may occur if this

log splitter is used as a hydraulic press.

The Model H6239 is a

heavy machine (106 lbs.

shipping weight). DO

NOT over-exert yourself

while unpacking or mov-

ing your machine—get

assistance.

Wear ANSI approved safety glasses and

gloves at all times.

Figure 2. Model H6239 identification.

Advance

Pump

Handle

Splitting

Pump

Handle

Wedge

Release

Knob

Cradle

Piston

Rod

Keep hands and other body parts away

from wedge and piston rod when H6239 is

in operation to prevent serious injury. Keep

area around log splitter clear of bystanders

to prevent injury from ejected wood pieces.

Assembly

Insert a handle into each socket (Figure 1).

Operation

1. Cut the logs you want to split to 175⁄8" or less

to fit into the splitter.

2. Turn the release knob (Figure 2) counter-

clockwise to retract the piston rod fully into

the cylinder, then turn the knob clockwise.

10 TON LOG SPLITTER

MODEL H6239

INSTRUCTION SHEET

Sockets

Maintenance

Wipe down the log splitter to remove tree sap or

dirt. Occasionally you may need to add hydraulic

oil to maximize performance.

To add oil:

1. Fully extend the piston rod.

2. Remove the oil seal (Figure 3).

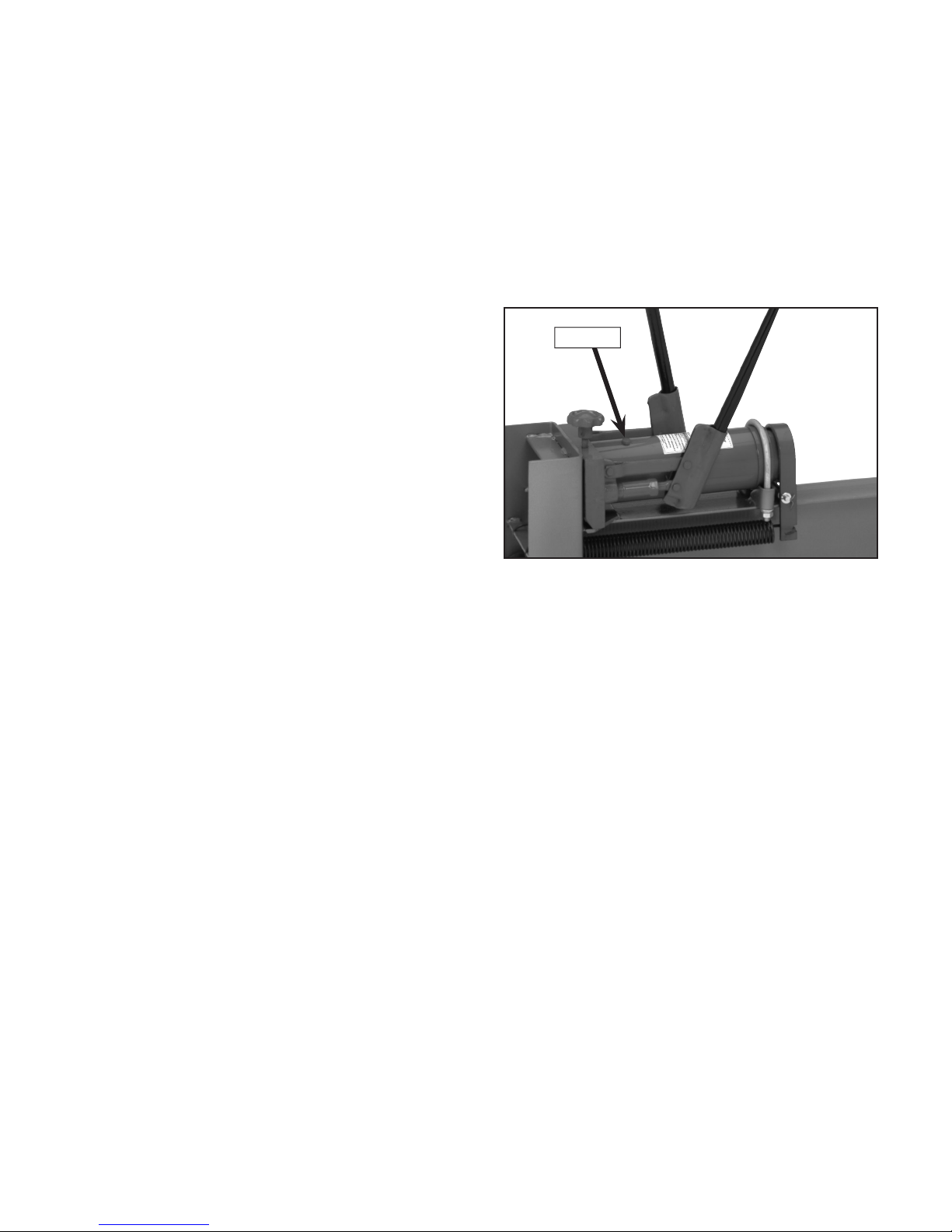

Figure 3. Oil Seal.

3. Turn the release knob counterclockwise to

expel air out of the oil seal hole.

4. Add hydraulic oil until the cylinder is 3⁄4 full.

5. Replace the oil seal.

If you need additional help with this procedure,

call our service department at: (570) 546-9663.

3. Place a log on the cradle between the wedge

and piston rod.

4. Use the advance pump handle (Figure 1) to

quickly move the piston rod until it is close to

the log. Then use the splitting pump handle

(Figure 1) to split the log.

5. Turn the release knob counterclockwise to

return the piston rod to the cylinder, turn the

knob clockwise to start over, then remove the

split pieces.

Note—Cut your logs to the same length to

reduce log splitting time.

Storage

Store the log splitter in a dry location with the

release knob open, to relieve hydraulic pressure.

Oil Seal



















































H6239 Parts Breakdown and List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH6239001 FRAME 9 PH6239009 AXLE SLEEVE

2 PH6239002 RAM BRACKET 10 PH6239010 COTTER PIN

3 PH6239003 PIN SLEEVE 11 PH6239011 WHEEL

4 PH6239004 PIN 12 PB32M HEX BOLT M10-1.5 X 25

5 PH6239005 U-CLAMP 13 PW04M FLAT WASHER 10MM

6 PH6239006 EXTENSION SPRING 14 PLW06M LOCK WASHER 10MM

7 PH6239007 RAM 15 PN02M HEX NUT M10-1.5

8 PH6239008 AXLE 16 PH6239016 ADVANCE�PUMP�HANDLE

17 PH6239017 OIL SEAL

18 PH6239018 SPLITTING�PUMP�HANDLE

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL6998 PRINTED IN CHINA
