Grizzly T32733 Manual de usuario

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 10/21) #CS22113 PRINTED IN TAIWAN

Introduction

The Model T32733 Skew Grinding Attachment

allows you to securely position skew chisels in

two additional V-holders at offset angles for preci-

sion sharpening. The left and right V-holders are

adjustable to allow you to maintain bevels at exact

skew angles.

Inventory

V1.10.21

To reduce your risk of

serious injury, read this

entire manual BEFORE

using machine.

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

MODEL T32733

SKEW GRINDING

ATTACHMENT FOR T32732

INSTRUCTIONS

Description Qty

A. Skew Attachment ....................................... 1

B. Button Head Cap Screws M6-1 x 10 .......... 2

C. Hex Wrench 4mm ....................................... 1

Figure 1. Inventory.

Assembly

The Model T32733 must be attached to the long

arm of the T32732 Bench Grinder Sharpening

System before use.

Wear safety glasses during

the entire setup process!

To assemble:

1. Attach skew attachment to long arm with

(2) M6-1 x 10 button head cap screws (see

Figure 2).

Figure 2. Attaching skew attachment to long

arm.

x 2

Long

Arm

Skew Attachment

-2- Model T32733 (Mfd. Since 10/21)

Eye and face injuries and respiratory prob-

lems can occur while operating this tool.

Wear personal protective equipment to

reduce your risk from these hazards.

Keep hair, clothing, and

jewelry away from mov-

ing parts at all times.

Entanglement can result

in death, amputation, or

severe crushing injuries!

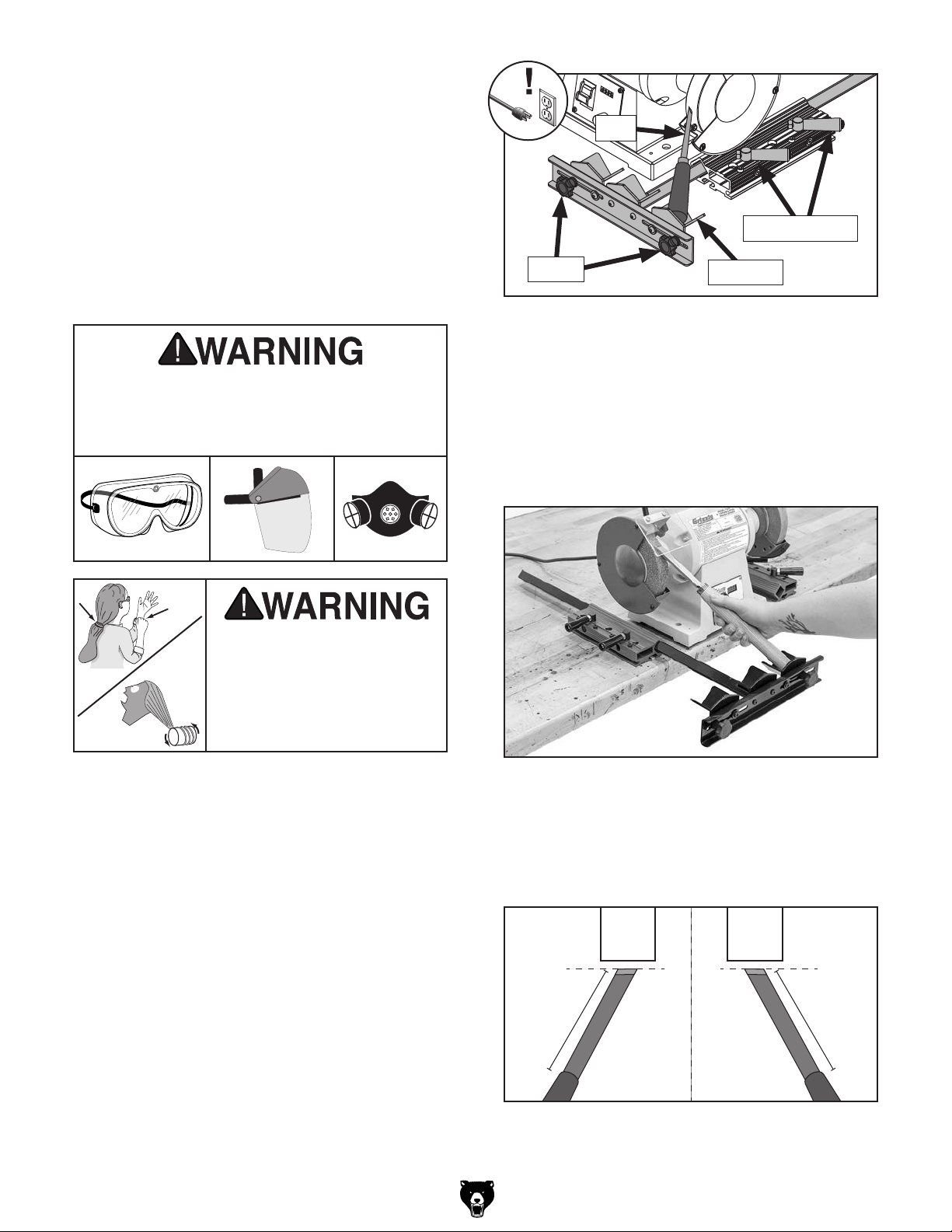

Using Skew Attachment

To use skew attachment:

1. DISCONNECT GRINDER FROM POWER!

2. Place woodturning tool handle in desired

V-holder (see Figure 3).

Note: Loosen knobs shown in Figure 3 to

adjust outside V-holder positions.

3. Adjust long arm until entire bevel of tool con-

tacts grinding wheel, then secure position by

pulling base handles forward (see Figure 3).

The skew attachment supplies two additional

V-holders for supporting a woodturning tool using

the long arm. Since these are offset from the cen-

ter of the grinding wheel, and are adjustable from

side to side, they allow for sharper-angled bevel

grinding.

IMPORTANT: Refer to your grinder manual or

instructions for information on safely operating

your grinder.

Figure 3. Example of tool supported by long

arm.

4. Tilt tool away from grinding wheel, connect

grinder to power, and turn machine ON.

5. Use firm grip to return tool to surface of grind-

ing wheel to perform grinding operation (see

Figure 4).

Figure 4. Example of skew attachment in use.

V-Holder

Tool

Base Handles

Knobs

Grinding

Wheel

Left

V-Holder

Right

V-Holder

Grinding

Wheel

Short

Side

Short

Side

Figure 5. V-holder side determined by short side

of chisel.

Note: Chisel with short left side should be

supported by left V-holder while chisel with

short right side should be supported by right

V-holder (see Figure 5).
