Introduction

This 11,000 RPM Angle Grinder features a large

paddle switch with safety mechanism and side

handle for super control. G5785 has 5⁄8" arbor.

Includes two wrenches. Weighs 5 lbs.

Inventory

A. 4" Air Angle Grinder ................................... 1

B. Handle ........................................................ 1

C. Flat Wrench ................................................ 1

D. Pin Wrench ................................................. 1

Operation

Tool requires 90 PSI and 1⁄4" NPT air fitting to

operate correctly.

Make sure grinding wheel is backed by flange and

tightened securely with the flange nut.

MODEL G5785

4" AIR ANGLE

GRINDER

INSTRUCTION SHEET

Figure 1. Model G5785.

Figure 2. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8034 PRINTED IN TAIWAN

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

RESPIRATORY HAZARD!

Grinding produces fine

dust. Wear the appropriate

protection during use!

Angle Grinder MUST have 3-4 drops of oil directly

dropped into the air fitting before each use as

shown in Figure 2.

EXPLOSION HAZARD!

Never exceed 120 PSI!

Always use accessories

with correct speed rating.

Grinding Wheels

Model G7381 ........................................... 4 x 1⁄8"

Model G7382 ........................................... 4 x 1⁄4"

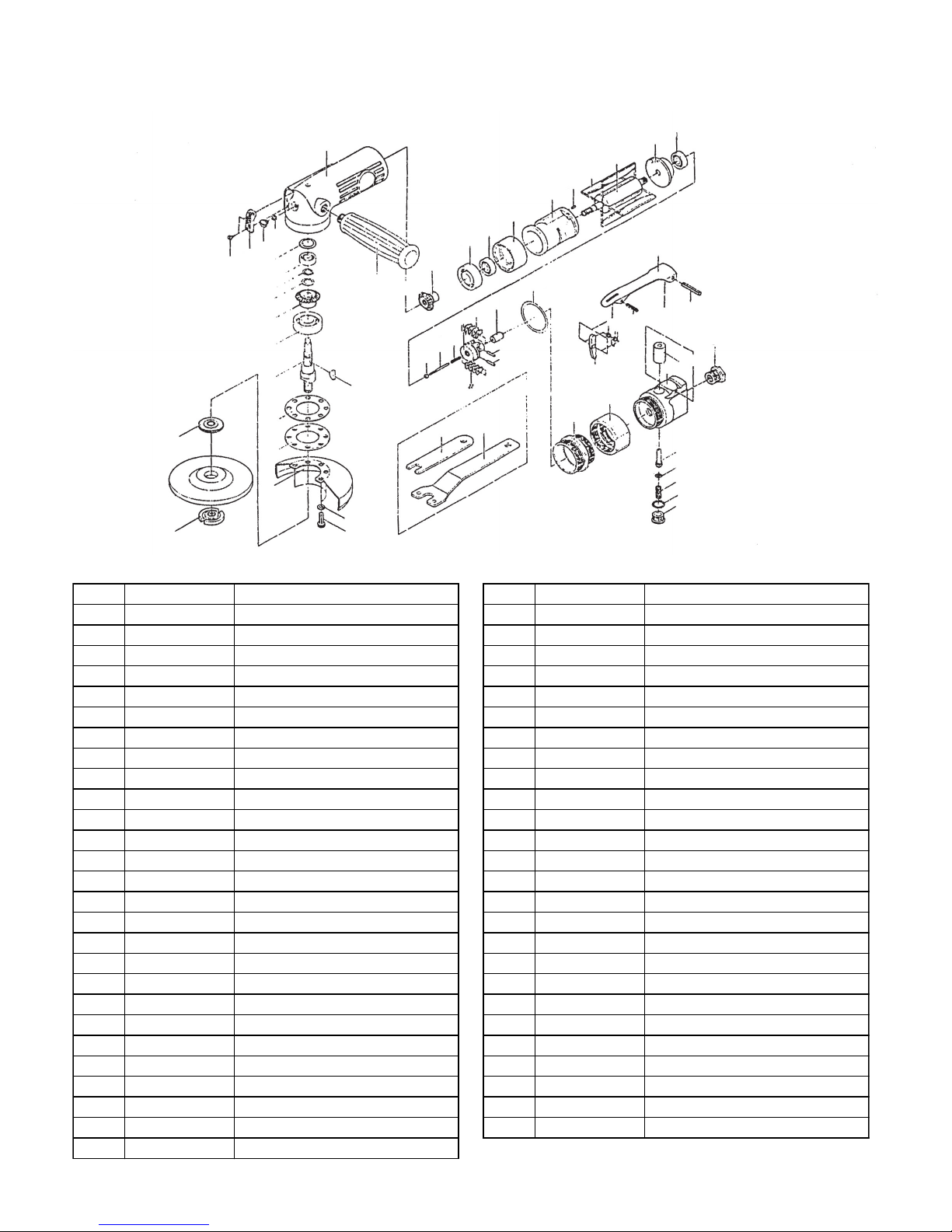

G5785 Parts Breakdown and List

  





























   





  























  

   

 















REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P5785001 MOTOR HOUSING 29 P5785029 BEVEL PINION

2 P5785002 SEAL PLATE 30 P5785030 O-RING

3 P5785003 BALL BEARING 39 P5785039 EXHAUST DEFLECTOR

4 P5785004 ARBOR 40 P5785040 TAPPING SCREW

5 P5785005 BALL BEARING 41 P5785041 PLUG

6 P5785006 WOODRUFF KEY 42 P5785042 O-RING

7 P5785007 BEVEL GEAR 43 P5785043 FLANGE

8 P5785008 WAVE WASHER 46 P5785046 NUT

9 P5785009 EXTERNAL STOP RING 47 P5785047 HANDLE

10 P5785010 GASKET 48 P5785048 FLAT WRENCH

11 P5785011 RETAINER 49 P5785049 PIN WRENCH

12 P5785012 CENTER WHEEL GUARD 50 P5785050 BALL BEARING

13 P5785013 SPRING WASHER 51 P5785051 THROTTLE VALVE HSG

14 P5785014 HEX SOCKET HEAD CAP BOLT 52 P5785052 BUSHING

15 P5785015 ROTOR 53 P5785053 AIR INLET BUSHING

16 P5785016 FRONT END PLATE 54 P5785054 VALVE STEM

17 P5785017 CYLINDER 55 P5785055 VALVE SPRING

18 P5785018 SPRING PIN 56 P5785056 CAP

19 P5785019 ROTOR BLADE 57 P5785057 O-RING

20 P5785020 REAR END PLATE 58 P5785058 O-RING

21 P5785021 GOVERNOR 59 P5785059 THROTTLE LEVER

22 P5785022 PENDULUM 61 P5785061 THROTTLE LEVER LOCK

23 P5785023 SPRING PIN 62 P5785062 TORSION SPRING

24 P5785024 PLUNGER 63 P5785063 SPRING PIN

25 P5785025 ADJUSTMENT SCREW 64 P5785064 SPRING PIN

26 P5785026 SPRING 65 P5785065 LOCK RING

27 P5785027 ADJUSTMENT NUT 66 P5785066 COUPLING NUT

28 P5785028 BALL BEARING
