Grizzly G0794 Manual de usuario

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MANUFACTURED SINCE 05/18) #WK16957 PRINTED IN CHINA

The Model G0794 is the same machine as the Model G7944, except the G0794 has a digital readout for

spindle downfeed, and it is equipped with a laser drilling guide in place of the work light. Aside from the dif-

ferences noted in this insert, all other content in the Model G7944 owner's manual applies to this machine.

: To reduce the risk of serious injury, you MUST read and understand this insert—and

the entire Model G7944 manual—BEFORE assembling, installing, or operating this machine!

If you have any further questions about this manual insert or the differences between the Model G0794

and the Model G7944, contact our Technical Support at (570) 546-9663 or email [email protected].

MODEL G0794

FLOOR DRILL PRESS

WITH LASER AND DRO

MANUAL INSERT

-2- Model G0794 (Mfd. Since 05/18)

The information contained herein is deemed accurate as of 3/26/2019 and represents our most recent product specifications.

Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 2

Model G0794

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0794 FLOOR DRILL PRESS WITH LASER AND DRO

Product Dimensions:

Weight.............................................................................................................................................................. 146 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 14 x 24 x 64 in.

Footprint (Length x Width)............................................................................................................................ 18 x 11 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 156 lbs.

Length x Width x Height....................................................................................................................... 56 x 20 x 11 in.

Must Ship Upright.................................................................................................................................................... No

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Full-Load Current Rating.......................................................................................................................................... 9A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 8-1/2 ft.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps.............................................................................................................................................................. 9A

Speed................................................................................................................................................ 1720 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................... V-Belt Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation Information

Type........................................................................................................................................................... Floor

Swing......................................................................................................................................................... 14 in.

Spindle Taper............................................................................................................................................ MT#2

Spindle Travel........................................................................................................................................ 3-1/4 in.

Max. Distance From Spindle to Column...................................................................................................... 7 in.

Max. Distance From Spindle to Table................................................................................................. 31-1/2 in.

Number of Spindle Speeds............................................................................................................................. 12

Range of Spindle Speeds........................................................................................................ 140 – 3050 RPM

Max. Head Swivel................................................................................................................................. 360 deg.

Drilling Capacity (Mild Steel)..................................................................................................................... 3/4 in.

Drill Chuck Type....................................................................................................................... JT33 Key Chuck

Drill Chuck Size............................................................................................................................. 3/64 – 5/8 in.

Model G0794 (Mfd. Since 05/18) -3-

The information contained herein is deemed accurate as of 3/26/2019 and represents our most recent product specifications.

Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 2

Model G0794

Spindle Information

Distance From Spindle to Base................................................................................................................. 49 in.

Quill Diameter....................................................................................................................................... 2.040 in.

Table Information

Max. Table Tilt (Left/Right)..................................................................................................................... 90 deg.

Table Swing.......................................................................................................................................... 360 deg.

Table Swivel Around Center................................................................................................................. 360 deg.

Table Swivel Around Column............................................................................................................... 360 deg.

Max. Movement of Work Table.................................................................................................................. 26 in.

Table Length........................................................................................................................................ 11-3/8 in.

Table Width......................................................................................................................................... 11-3/8 in.

Table Thickness.................................................................................................................................... 1-1/8 in.

Vertical Table Travel.................................................................................................... Crank Handle Operation

Number of T-Slots............................................................................................................................................ 4

T-Slot Size................................................................................................................................................ 5/8 in.

T-Slot Centers....................................................................................................................................... 3-7/8 in.

Floor-To-Table Height........................................................................................................................ 20 – 46 in.

Construction

Table....................................................................................................................... Precision-Ground Cast Iron

Column....................................................................................................................................................... Steel

Spindle Housing................................................................................................................................... Cast Iron

Head.................................................................................................................................................... Cast Iron

Base..................................................................................................................................................... Cast Iron

Paint Type/Finish.................................................................................................................................... Enamel

Other Related Information

Base Length............................................................................................................................................... 18 in.

Base Width................................................................................................................................................ 11 in.

Mobile Base........................................................................................................................................... D2260A

Column Diameter.................................................................................................................................. 3.150 in.

Depth Stop Type.......................................................................................................................................... Hub

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 45 Minutes

Serial Number Location ................................................................................................................... ID Label on Head

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

Built-in digital readout for spindle depth

Adjustable laser sight

Four 5/8" T-slots

12 speeds

Depth stop ring

Rack-and-pinion vertical table movement

Table features locking levers and a coolant trough

-4- Model G0794 (Mfd. Since 05/18)

The laser should be checked and adjusted before

starting a new project, and any time you raise or

lower the table, or change workpiece thickness.

Laser Guide 7. Adjust laser (Figure 2), positioning it by hand

so crosshairs align with indentation you made

earlier in surface of workpiece, as shown in

Figure 3.

DO NOT look directly into laser. Severe eye

injury will result.

To adjust laser:

1. DISCONNECT DRILL PRESS FROM

POWER!

2. Install drill bit in chuck (see Installing/

Removing Drill Bits on Page 25 of Model

G7944 manual).

3. Clamp workpiece securely to table.

4. Adjust table so workpiece is within range of

drill bit, then lock table in horizontal position.

5. Lower drill bit so it touches workpiece, mak-

ing a slight indentation in the surface, then

raise bit.

6. Connect drill press to power. Turn laser

ON using switch on front of drill press (see

Figure 1).

Figure 1. Location of laser ON/OFF switch.

Laser ON/

OFF Switch

Figure 2. Location of laser.

Figure 3. Crosshairs aligned with indentation on

workpiece.

Indentation

Model G0794 (Mfd. Since 05/18) -5-

Digital Readout 3. Remove (4) M4 x 12 tap screws shown in

Figure 5, and remove DRO unit from hous-

ing.

Figure 5. DRO housing removed from drill press

head.

x 4

4. Lay DRO unit on a flat surface and remove

battery cover, as shown in Figure 6.

Figure 6. DRO battery cover removed.

DRO Unit

Battery Cover

5. Replace battery with new SR44 button cell

battery and re-install battery cover.

6. Re-install DRO unit and DRO housing, mak-

ing sure to re-install shoulder screw from

Step 2.

The model G0794 is equipped with a digital read-

out (DRO) for precision spindle adjustment. The

DRO is independently powered by a SR44 but-

ton cell battery, which may need to be changed

from time to time. Follow the instructions below to

change the battery.

Tools Needed: Qty

Phillips Head Screwdriver #2 ............................ 1

To change DRO battery:

1. DISCONNECT DRILL PRESS FROM

POWER!

2. Remove (1) shoulder screw, then remove (4)

M5-.8 x 14 Phillips head screws shown in

Figure 4 and remove DRO housing.

Figure 4. Location of DRO mounting screws.

x 4

x 1

Battery

-6- Model G0794 (Mfd. Since 05/18)

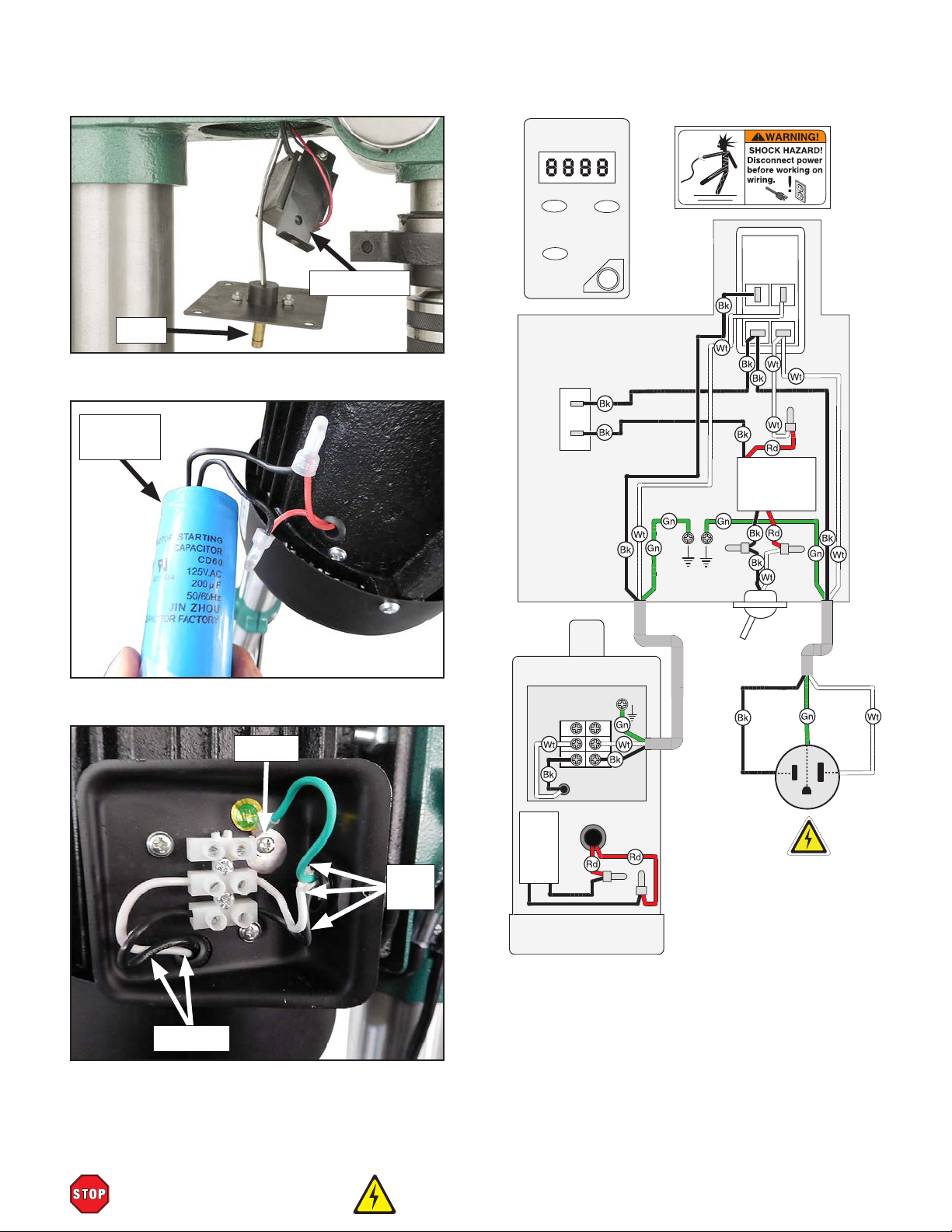

WIRING

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.

Touching electrified parts will result in personal

injury including but not limited to severe burns,

electrocution, or death. Disconnect the power

from the machine before servicing electrical com-

ponents!

MODIFICATIONS. Modifying the wiring beyond

what is shown in the diagram may lead to unpre-

dictable results, including serious injury or fire.

This includes the installation of unapproved after-

market parts.

WIRE CONNECTIONS. All connections must

be tight to prevent wires from loosening during

machine operation. Double-check all wires dis-

connected or connected during any wiring task to

ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow

the requirements at the beginning of this manual

when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires

or components increase the risk of serious per-

sonal injury, fire, or machine damage. If you notice

that any wires or components are damaged while

performing a wiring task, replace those wires or

components.

MOTOR WIRING. The motor wiring shown in

these diagrams is current at the time of printing

but may not match your machine. If you find this

to be the case, use the wiring diagram inside the

motor junction box.

CAPACITORS/INVERTERS. Some capacitors

and power inverters store an electrical charge for

up to 10 minutes after being disconnected from

the power source. To reduce the risk of being

shocked, wait at least this long before working on

capacitors.

EXPERIENCING DIFFICULTIES. If you are expe-

riencing difficulties understanding the information

included in this section, contact our Technical

Support at (570) 546-9663.

Wiring Safety Instructions

The photos and diagrams

included in this section are

best viewed in color. You

can view these pages in

color at www.grizzly.com.

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang-

es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at

(570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated

wiring diagram may be available. Note: Please gather the serial

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

Model G0794 (Mfd. Since 09/14)

READ ELECTRICAL SAFETY

ON PAGE 6! -7-

Common

Ground

mm/in zero

off/on

Digital Height Gauge

Laser

Ground

Motor 110V

ON/OFF

Switch

Motor

Junction

Box

+LR44

Battery

Neutral

Hot

Ground

110 VAC

5-15 Plug

Laser

ON/OFF

Switch

KDC01-101

2/8A 250VDC

S. Capacitor

125VAC

200uF

IN: 120VAC

OUT: 3VDC

TRANSFORMER

GAO YOU

Start

Capacitor

Figure 7. Start capacitor.

G0794 Wiring

Laser

Figure 6. Laser and transformer.

Transformer

Figure 8. Motor junction box and terminal block.

Ground

To Motor

From

Plug

-8- Model G0794 (Mfd. Since 05/18)

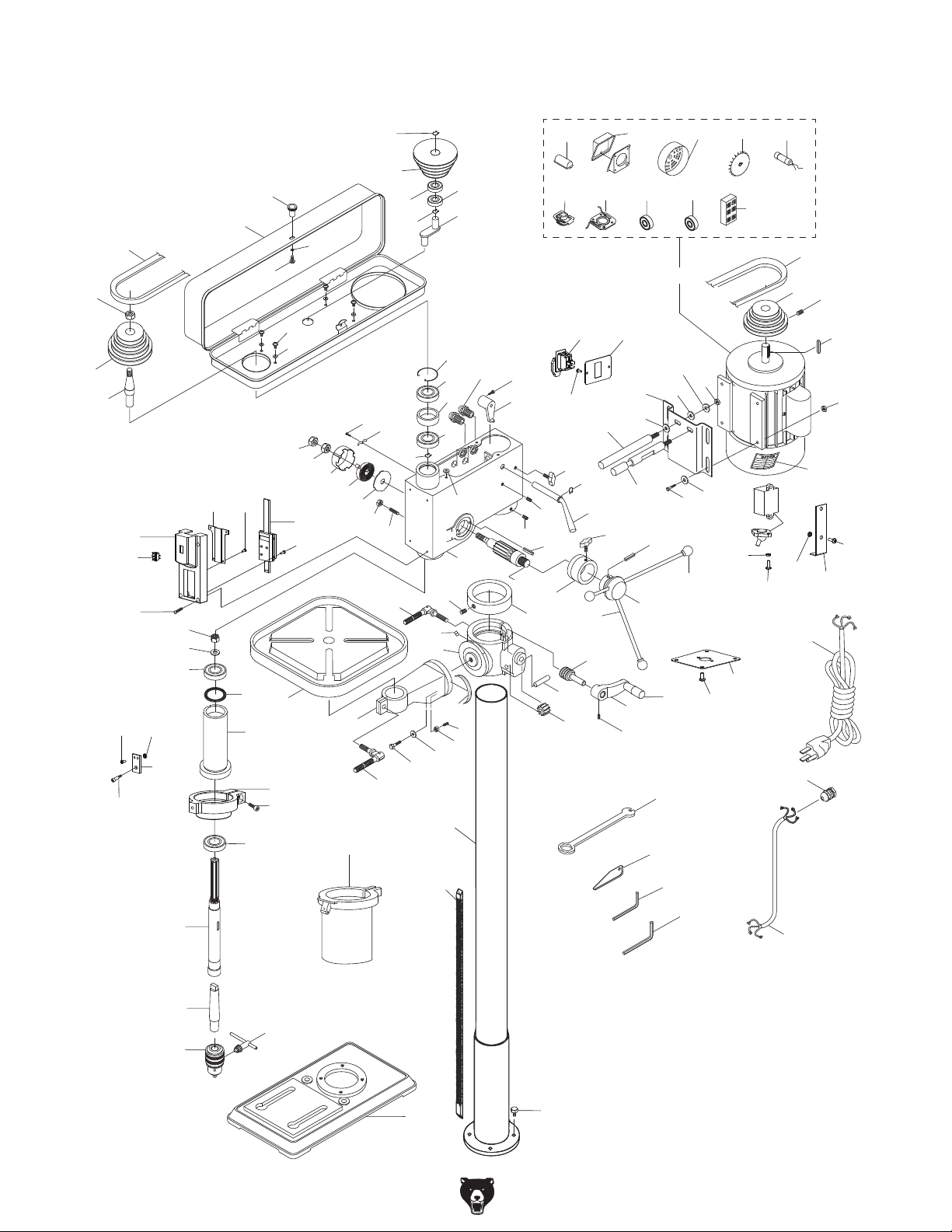

Main Parts

118

21 22 23

35 36

38 39

414243

4849

28 57

58-1 58-2 58-3 58-4 58-6

58-7 58-8 58-9 58-10

144

100

104

105

101

119

102

103

110

113

115

116

120

121

122

123

124 125

126

127

128

129

130

131

132

133

134

135

136

137

138

58-11V2

Model G0794 (Mfd. Since 05/18) -9-

Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0794001 BASE 55 P0794055 MOTOR MOUNTING PLATE

2 P0794002 HEX BOLT M10-1.5 x 35 56 P0794056 FLAT WASHER 12MM

3 P0794003 LONG RACK 57 P0794057 HEX NUT M12-1.75

4 P0794004 COLUMN W/COLUMN HOLDER 58 P0794058 MOTOR 3/4HP 110V 1-PH

5 P0794005 TABLE BRACKET 58-1 P0794058-1 CAPACITOR COVER

6 P0794006 HANDLE 58-2 P0794058-2 MOTOR JUNCTION BOX

7 P0794007 SET SCREW M6-1 X 10 58-3 P0794058-3 MOTOR FAN COVER

8 P0794008 SHAFT 58-4 P0794058-4 MOTOR FAN

9 P0794009 STUD-SE M6-1 X 12, 17 58-6 P0794058-6 S CAPACITOR 200M 125V

10 P0794010 HEX NUT M6-1 58-7 P0794058-7 CENTRIFUGAL SWITCH

11 P0794011 FLAT WASHER 16MM 58-8 P0794058-8 CONTACT PLATE

12 P0794012 HEX BOLT M16-2 X 40 58-9 P0794058-9 BALL BEARING 6203ZZ

13 P0794013 SWIVEL LOCK HANDLE M10-1.5 X 30 58-10 P0794058-10 BALL BEARING 6203ZZ

14 P0794014 TABLE ARM BRACKET 58-11V2 P0794058-11V2 TERMINAL BLOCK 3P V2.05.18

15 P0794015 TABLE 59 P0794059 MOTOR PULLEY

16 P0794016 SWIVEL LOCK HANDLE M12-1.75 X 50 60 P0794060 KEY 5 X 5 X 25

17 P0794017 GEAR 10T 61 P0794061 SET SCREW M6-1 X 10

18 P0794018 WORM GEAR 62 P0794062 V-BELT M24

19 P0794019 RACK RING 63 P0794063 CENTER SHAFT

20 P0794020 STOP PIN 64 P0794064 BALL BEARING 6202ZZ

21 P0794021 SET SCREW M6-1 X 10 65 P0794065 BALL BEARING 6202ZZ

22 P0794022 FEED SHAFT 66 P0794066 EXT RETAINING RING 15MM

23 P0794023 DEPTH RING 67 P0794067 CENTER PULLEY

24 P0794024 ROLL PIN 5 X 40 68 P0794068 FLAT WASHER 6MM

25 P0794025 DOWNFEED HANDWHEEL HUB 69 P0794069 PHLP HD SCR M6-1 X 10

26 P0794026 DOWNFEED HANDLE M12-1.75 MALE 70 P0794070 PHLP HD SCR M5-.8 X 10

27 P0794027 DOWNFEED KNOB M12-1.75 FEMALE 71 P0794071 FLAT WASHER 5MM

28 P0794028 LOCK WASHER 12MM 72 P0794072 PULLEY COVER KNOB M5-.8

29 P0794029 KNOB BOLT M8-1.25 X 22 73 P0794073 PULLEY COVER

30 P0794030 SET SCREW M10-1.5 X 12 74 P0794074 V-BELT M25

32 P0794032 EXT RETAINING RING 16MM 75 P0794075 PULLEY NUT

33 P0794033 BELT TENSION LEVER 76 P0794076 SPINDLE PULLEY

34 P0794034 KNOB BOLT M10-1.5 X 25 77 P0794077 PULLEY SHAFT

35 P0794035 HEX BOLT M8-1.25 X 30 78 P0794078 INT RETAINING RING 52MM

36 P0794036 FLAT WASHER 8MM 79 P0794079 BALL BEARING 6205ZZ

37 P0794037 HEX NUT M8-1.25 80 P0794080 SPACER

38 P0794038 HEX NUT M10-1.5 81 P0794081 BALL BEARING 6205ZZ

39 P0794039 SET SCREW M10-1.5 X 30 82 P0794082 INT RETAINING RING 25MM

40 P0794040 HEX NUT M12-1.5 83 P0794083 ROUND NUT M17-1

41 P0794041 HEX NUT M12-1.5 84 P0794084 TAB WASHER

42 P0794042 RETURN SPRING COVER 85 P0794085 BALL BEARING 6203ZZ

43 P0794043 COILED RETURN SPRING 86 P0794086 RUBBER WASHER 62 X 50 X 2

44 P0794044 RETURN SPRING PLATE 87 P0794087 QUILL

45 P0794045 SWITCH/DRO HOUSING 88 P0794088 BALL BEARING 6205ZZ

46 P0794046 PHLP HD SCR M5-.8 X 14 89 P0794089 SPINDLE

48 P0794048 PHLP HD SCR M5-.8 X 10 90 P0794090 DRILL CHUCK ARBOR MT2/JT33

49 P0794049 CORD CLAMP 91 P0794091 DRILL CHUCK 5/8" X JT33 W/KEY

50 P0794050 HEADSTOCK CASTING 92 P0794092 CHUCK KEY 5/16" TH-SE 11T SD-5/8"

51 P0794051 HEX BOLT M8-1.25 X 16 97 P0794097 LASER SWITCH KCD1-101 2/8A 250VAC

52 P0794052 SHIFTER 98 P0794098 GRIZZLY SAFETY PADDLE SWITCH

53 P0794053 MOTOR MOUNT SLIDE BAR (SOLID) 99 P0794099 INT RETAINING RING 35MM

54 P0794054 MOTOR MOUNT SLIDE BAR (GROOVED) 100 P0794100 POWER CORD 18G 3W 73" 5-15P

-10- Model G0794 (Mfd. Since 05/18)

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P0794101 HEX WRENCH 5MM 125 P0794125 TAP SCREW M3 X 8

102 P0794102 HEX WRENCH 3MM 126 P0794126 DIGITAL READOUT ASSEMBLY

103 P0794103 DRIFT KEY 127 P0794127 TAP SCREW M4 X 12

104 P0794104 STRAIN RELIEF 1/4"-5/16" ST PLASTIC 128 P0794128 QUILL CLAMP

105 P0794105 MOTOR CORD 18G 3W 11" 129 P0794129 SHOULDER SCREW M4-.7 X 15

110 P0794110 TABLE BOLT WRENCH 130 P0794130 CONNECTING PLATE

113 P0794113 ANGLE SCALE 131 P0794131 HEX NUT M3-.5

115 P0794115 CAP SCREW M8-1.25 X 20 132 P0794132 PHLP HD SCR M3-.5 X 10

116 P0794116 STRAIN RELIEF 1/4"-5/16" ST PLASTIC 133 P0794133 LASER LIGHT RETAINING PLATE

118 P0794118 ANGLE INDICATOR 134 P0794134 PHLP HD SCR M5-.8 X 8

119 P0794119 MOTOR LABEL 135 P0794135 LASER TRANSFORMER BRACKET

120 P0794120 CRANK LEVER 136 P0794136 PHLP HD SCR M4-.7 X 12

121 P0794121 CHUCK GUARD ASSEMBLY 137 P0794137 HEX NUT M4-.7

122 P0794122 SWITCH PLATE 138 P0794138 LASER LIGHT ASSEMBLY BY-11-1

123 P0794123 PHLP HD SCR M4-.7 X 10 144 P0794144 WASHER 6MM RUBBER

124 P0794124 SWITCH PLATE

Parts List (Cont.)

Otros manuales para G0794

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Máquina perforadora de otras marcas

Slugger

Slugger 18066 Manual de usuario
