Introduction

For high speed drilling applications, this 3⁄8"

Straight Air Drill delivers a free speed of 18,000

RPM. The in-line design also improves balance

and control. Recommended air pressure is 90 PSI

and average air consumption is 6 CFM. Includes

a 1⁄4" NPT quick connect fitting and chuck key.

Inventory

A. Air Drill ........................................................ 1

B. 1⁄4" NPT Quick Connect Fitting (male) ........ 1

C. Chuck Key .................................................. 1

Lubricating Your New Air Drill

Lubricate your air drill with pneumatic tool oil. If

you do not have a lubricator installed in your air

line, place one drop of pneumatic tool oil into the

air fitting daily, as shown in Figure 2.

3⁄8" STRAIGHT AIR DRILL

18,000 RPM

MODEL H6364

INSTRUCTION SHEET

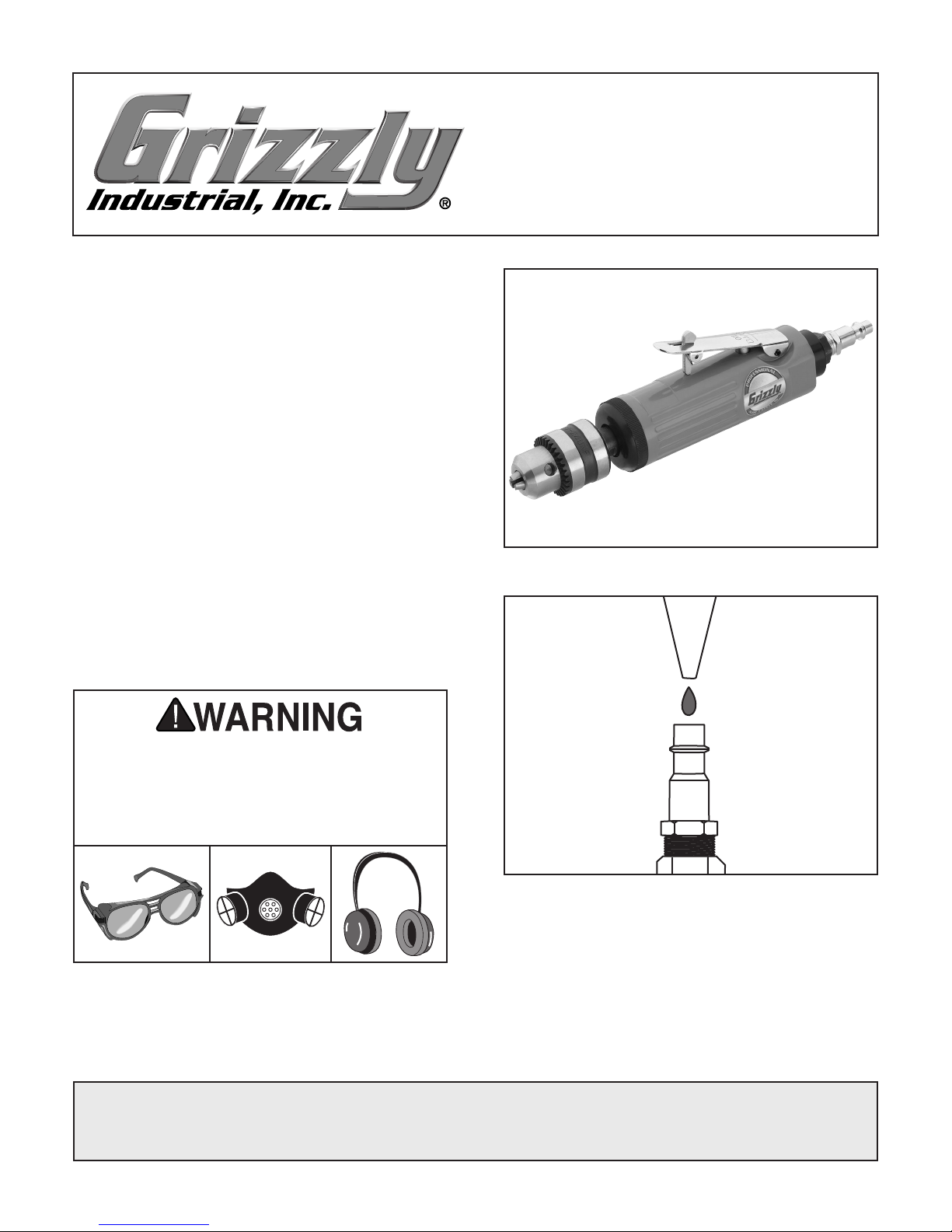

Figure 1. Model H6364.

Damage to your eyes, lungs, and ears could

result from using this drill without proper

protective gear. Always wear safety glasses,

a respirator, and hearing protection while

drilling.

Figure 2. Lubricating the Model H6364.

Need Help?

If you need help with your new air drill, call our

service department at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TR6754 PRINTED IN CHINA

H6364 Parts Breakdown and List



































































Ref # Part # Description

1 H6364001 HOUSING

2 H6364002 VALVE BUSHING

3 H6364003 TRIGGER

4 H6364004 LEVER

5 H6364005 SPRING

6 H6364006 PIN

7 H6364007 PIN

8 H6364008 O-RING

9 H6364009 O-RING

10 H6364010 VALVE STEM

11 H6364011 SPRING

12 H6364012 AIR REGULATOR

13 H6364013 O-RING

14 H6364014 O-RING

15 H6364015 VALVE PLUG

16 H6364016 MUFFLE COVER

17 H6364017 AIR INLET

18 H6364018 BEARING

Ref # Part # Description

19 H6364019 END PLATE

20 H6364020 STEEL

21 H6364021 ROTOR

22 H6364022 ROTOR BLADE

23 H6364023 CYLINDER

24 H6364024 BUSHING

25 H6364025 CYLINDER PLATE

26 H6364026 FRONT PLATE

27 H6364027 PIN

28 H6364028 BEARING

29 H6364029 WORK SPINDLE

30 H6364030 RETAINER

31 H6364031 HOUSING

32 H6364032 CHUCK

33 H6364033 CHUCK SCREW

34 H6362032 1/4” NPT MALE AIR FITTING

35 H6362033 CHUCK KEY
