Introduction

Add this powerful 3⁄8" pneumatic drill to your toolbox

for unbelievable convenience and fully reversible

control. Producing 1,800 RPM, this compact drill

offers perfect power for metalworking, machining

or production woodworking applications. Features

an industrial quality keyed chuck. Weighs 3 lbs.

Inventory

A. Reversable Air Drill .................................... 1

B. Chuck Key .................................................. 1

Operation

Tool requires 90 PSI to operate correctly.

To improve tool lifespan, use a filter/lubricator/

regulator as shown in Figure 2. Otherwise, lubri-

cate daily with a couple drops of pneumatic tool oil

directly into the air fitting as shown in Figure 3.

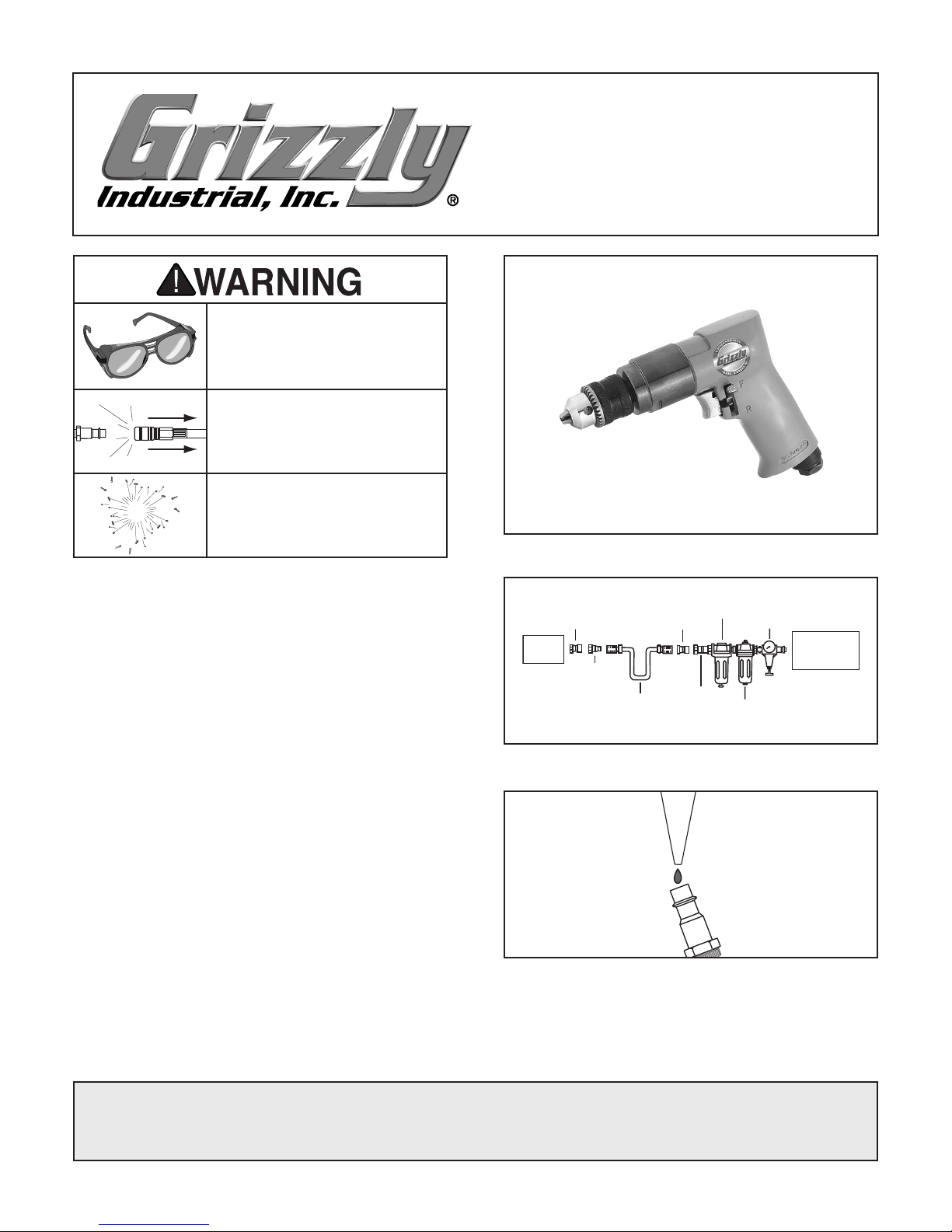

MODEL G5351

3⁄8" REVERSABLE

AIR DRILL

INSTRUCTION SHEET

Figure 1. Model G5351.

Figure 3. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8008 PRINTED IN TAIWAN

EYE INJURY HAZARD!

Always wear safety glasses

during use to prevent

serious personal injury!

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EXPLOSION HAZARD!

Never exceed 120 PSI!

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Installing your tool.

G5351 Parts Breakdown and List

 







 

     



 

























 



REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P5351001 HOUSING 17 P5351017 THREADED COLLAR

2 P5351002 MOTOR GASKET 18 P5351018 CHUCK

3 P5351003 RETAINING RING 19 P5351019 SCREW

4 P626 BALL BEARING 626 21 P5351021 O-RING

5 P5351005 END PLATE 22 P5351022 VALVE STEM

6 P5351006 CYLINDER 23 P5351023 O-RING

7 P5351007 PIN 24 P5351024 REVERSE BUSHING

8 P5351008 ROTOR 25 P5351025 O-RING

9 P5351009 ROTOR BLADE 26 P5351026 REVERSE LEVER

10 P5351010 SPACER 27 P5351027 SPRING

11 P5351011 INTERNAL GEAR 28 P5351028 TRIGGER

12 P5351012 GEAR 29 P5351029 SCREW

13 P5351013 PIN 31 P5351031 MUFFLER

14 P5351014 WORK SPINDLE 32 P5351032 SCREW

15 P6201 BALL BEARING 6201 33 P5351033 AIR FITTING

16 P5351016 CLAMP NUT 34 P5351034 CHUCK KEY
