GrillChef Barrel BBQ Manual de usuario
0630
Version: 0630uk
status: #012-2012
issue: 06/11cd
“Barrel BBQ”
Assembly and operating instructions
Foreword
Read all instructions and operations before operating
this GRILLCHEF barbecue.
Follow the correct lighting and usage procedures.
Handle metal parts with care to avoid injuries. Follow
all steps in order.
This appliance is for outdoor use only and is only
intended for use as a charcoal Barbecue.
Environmental notes
The grill may be used only for the preparation of
barbecue meals.
Please follow the appropriate instructions of this
manual.
Only for private use!
General hints for a successful assembly
➱CAUTION! It is recommended that gloves be worn
to prevent injury as this item is made from Cast Iron
and therefore may have some rough or sharp edges.
Carefully read the assembly instructions and the listed
safety hints. Take time to assemble the barbecue and
allow for a free area of approximately two - three
square metres. Remove the barbecue from the
packaging! Keep all necessary tools and parts at hand.
Note: Firstly assemble all parts loose, upon completion
tighten all nuts and bolts securely.

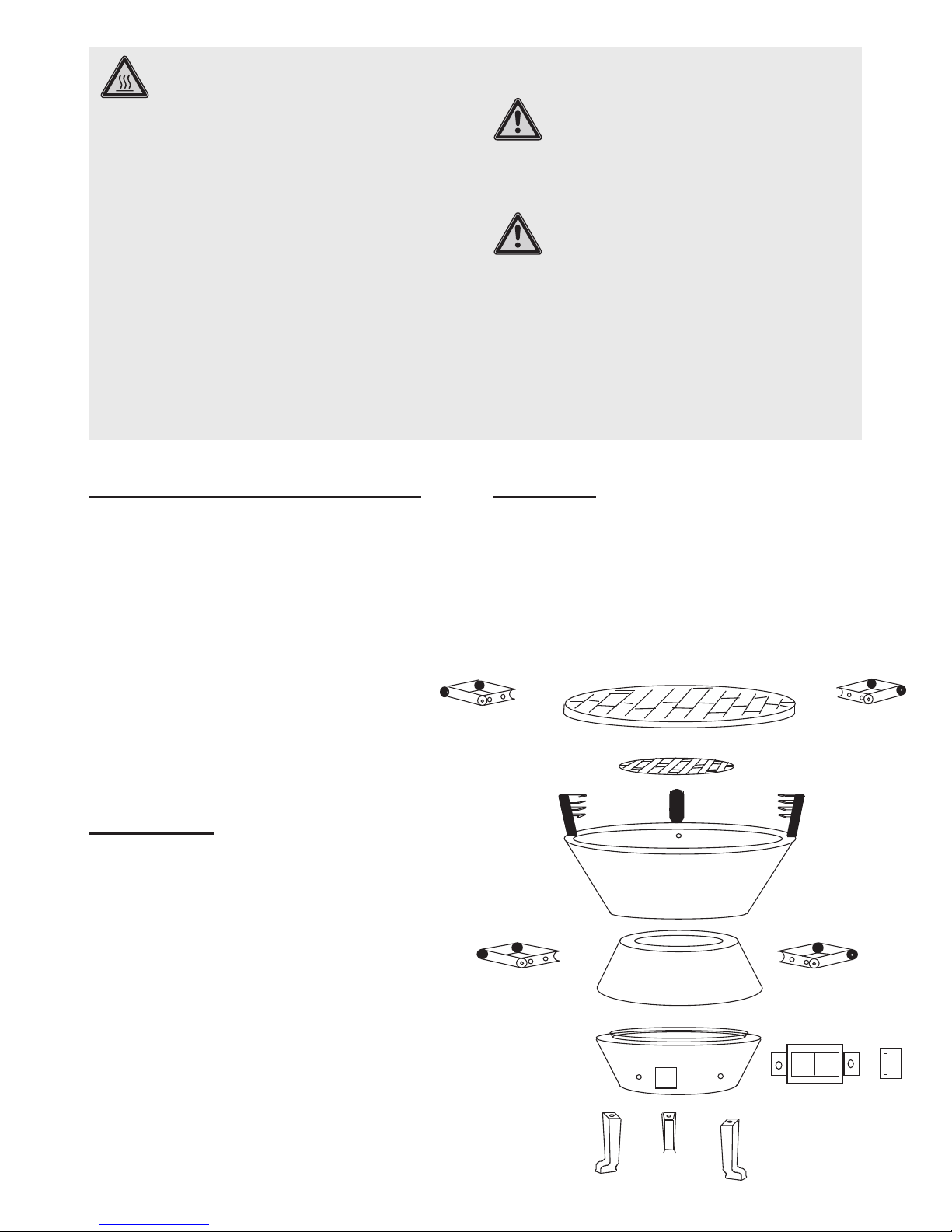

Single part list
A. Cooking grill 1
B. Grill handle 2
C. Charcoal grid 1
D. Grill holder 3
E. Top bowl 1
F. Centre bowl 1
G. Carrying handle 2
H. Bottom bowl 1
I. Leg 3
J. Air vent / frame 1
Preparation
Check that all parts are complete as per the list and
drawing. Have suitable tools ready.
A
B
C
D
E
FG
H
I
J
WARNING - risk of burning!
➱The barbecue must be positioned on a stable and
secure surface when it is in use, otherwise it may
tip over.
➱CAUTION! This barbecue becomes very hot and
should not be moved while it is being used!
➱Wear oven gloves or use grilling tongs when
barbecuing.
➱Allow the barbecue to cool down completely
before cleaning it.
➱CAUTION! Do not use spirit or petrol to light or
re-light the re!
➱CAUTION! Only use relighters that correspond
to the European Standard for relighters (EN
1860-3)!
➱Never use water to extinguish the charcoal.
WARNING - risk of suocation!
➱Do not use indoors!
DANGER to children and pets!
➱Never leave the hot barbecue unattended.
➱CAUTION! Keep children and pets at a safe
distance!
Mounting steps
CAUTION!
For your safety the screw heads should always
point outwards, otherwise there is a risk of
injury.
Only tighten all of the screw connections rmly
when you have nished assembly otherwise it
can result in undesired material stress.
1. Tip the bottom bowl (H) to the side and fasten
the legs (I) with M5x15 bolts, spring washer Ø5
and nuts M5. To avoid risk of injury all screw
ends should be fastened on the inside of the
barbecue.
2. Stand the barbecue upright onto the oor. Place
the air vent into the frame (J) and connect it
with the bottom bowl at the appropriate place
using short M5x15 screws Ø5 spring washer
and M5 nuts.
3. Fasten the carrying handles (G) horizontally to
the centre bowl (F) with M5x15 bolts, spring
washer Ø5 and nuts M5.
4. Set the centre bowl (F) onto the bottom bowl
(H) and fasten with M5x20 bolts, spring washer
Ø5 and nuts M5.
5. Put on the top bowl (E) to the centre bowl and
connect both with M5x20 bolts, spring washer
Ø5 and nuts M5. Please note that the holes
for grill holders (D) need to be placed at the
opposite side of the air vent / frame.
6. Fasten the three grill holders to the appropriate
holes in the top bowl using M5x15 bolts, spring
washer Ø5 and nuts M5.
7. Insert the charcoal grid (C) into the top bowl
(E).
8. Connect the grill handles (B) horizontally with
the cooking grill (A) using M5x15 bolts, spring
washer Ø5 and nuts M5.
WARNING!
The barbecue must be positioned on a stable
and secure surface when it is in use, otherwise
it may tip over.
M5x20
4x
M5x15
16x
M5
20x
20x
Connection elements
(pre-assembled connecting elements are included in
the itemisation!)
The barbecue must be positioned on a stable and
secure surface when it is in use.
Do not use in enclosed areas or on covered
areas.
Only use safe lighting materials (such as quality solid
relighters).
The fuel container has a capacity of approximately
1,1 kg.
Before using the barbecue for the rst time, it
should be heated with fuel (charcoal or briquet) for
approximately 30 minutes.
Information for safe operation of the
barbecue
Lighting instructions
1. Only use Quality Charcoal or Quality Briquets
and Charcoal Lighter.
2. Pile up a part charcoal resp. briquets in the
charcoal hearth.
3. Light one or two Charcoal lighters with a match
and place them onto the existing layer charcoal
/ briquette
4. Leave the charcoal lighter 2 - 4 minutes and ll
up the rest charcoal / briquette.
5. After 15 to 20 minutes white ashes appear on
the charcoal. The glow has reached its optimum
condition now. The charcoal can be spread
evenly in the re bowl.
6. Place in the cooking grill and start barbecuing.
Cleaning / care
For the preservation of the product occasional cleaning
is necessary. Do not use abrasive materials to clean
the grill as this may damage the chrome plating.
1. For normal cleaning use a damp cloth with
washing up liquid.
2. Clean the Cooking grill with detergent.
Environmental notes and disposal
measures
Protect the environment. Do not dispose of this
product as part of general/ domestic household
waste. Take the appliance to a local recycling centre.
Do not dispose of this appliance in any other way.
Warranty
We grant a warranty for the barbecue grill for the
duration of two years, starting with the date of
purchase, please provide proof of purchase. The
warranty includes manufacturing deciencies and
defective parts; it extends to the replacement of these
parts. Expenses for shipping, installation, replacement
of worn parts and other cost are not covered by the
warranty. The warranty lapses in case of mishandling
and if any kind of unauthorized use.
LANDMANN® Ltd.
Unit 6 Blackstone Road,
Stukeley Meadows Industrial Estate,
Huntingdon, Cambs,PE29 6EF,
United Kingdom
Hotline
Monday to Thursday 9am to 5pm,
Friday, 9am to 4pm.
+44 0871-231-1990
