GreenWorks Pro TL60L410 Manual de usuario
CUC401
EN OPERATOR MANUALCULTIVATOR
ES MANUAL DEL OPERADORCULTIVADOR
TL60L00
TL60L410
www.greenworkstools.com
1 Description.........................................4
1.1 Purpose.............................................................. 4
1.2 Overview........................................................... 4
1.3 Packing list........................................................ 4
2 General power tool safety
warnings.............................................4
2.1 Important safety instructions............................. 4
2.2 Specific safety rules...........................................5

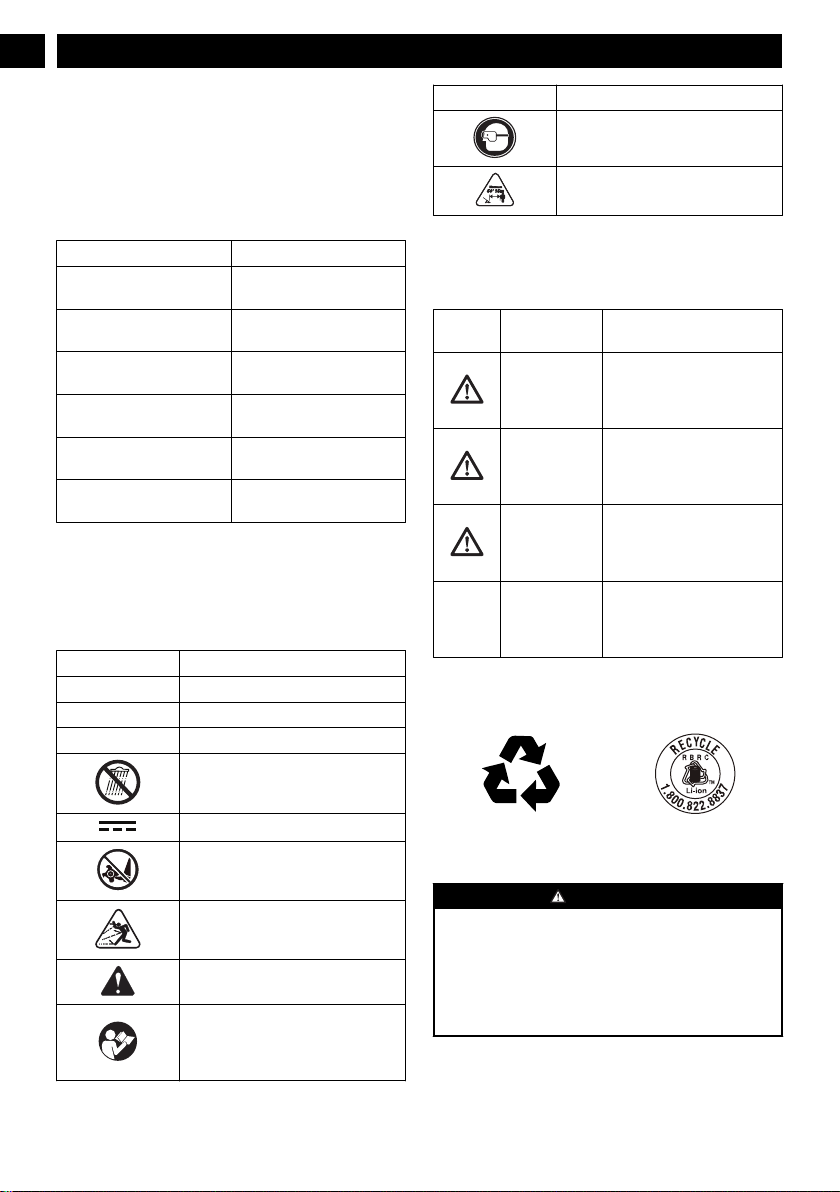

2.3 Symbols on the product..................................... 6
2.4 Risk levels..........................................................6
2.5 Environmentally safe battery disposal...............6
2.6 Proposition 65....................................................7
2.7 Save these instructions.......................................7
3 Installation......................................... 7
3.1 Unpack the machine.......................................... 7
4 Applications....................................... 8
4.1 Start the machine............................................... 9
4.2 Stop the machine............................................... 9
4.3 Narrow cultivating width...................................9
4.4 Operation tips.................................................... 9
5 Maintenance.......................................9
5.1 Clean the machine............................................. 9
6 Store the machine..............................9
7 Troubleshooting...............................10
8 Technical data..................................10
9 Limited warranty............................ 10
10 Exploded view..................................11
3
English EN
1 DESCRIPTION
1.1 PURPOSE
The machine is intended for loosening of soil in an open
garden area. This product is not intended for commercial use.
Do not use for any commercial task.

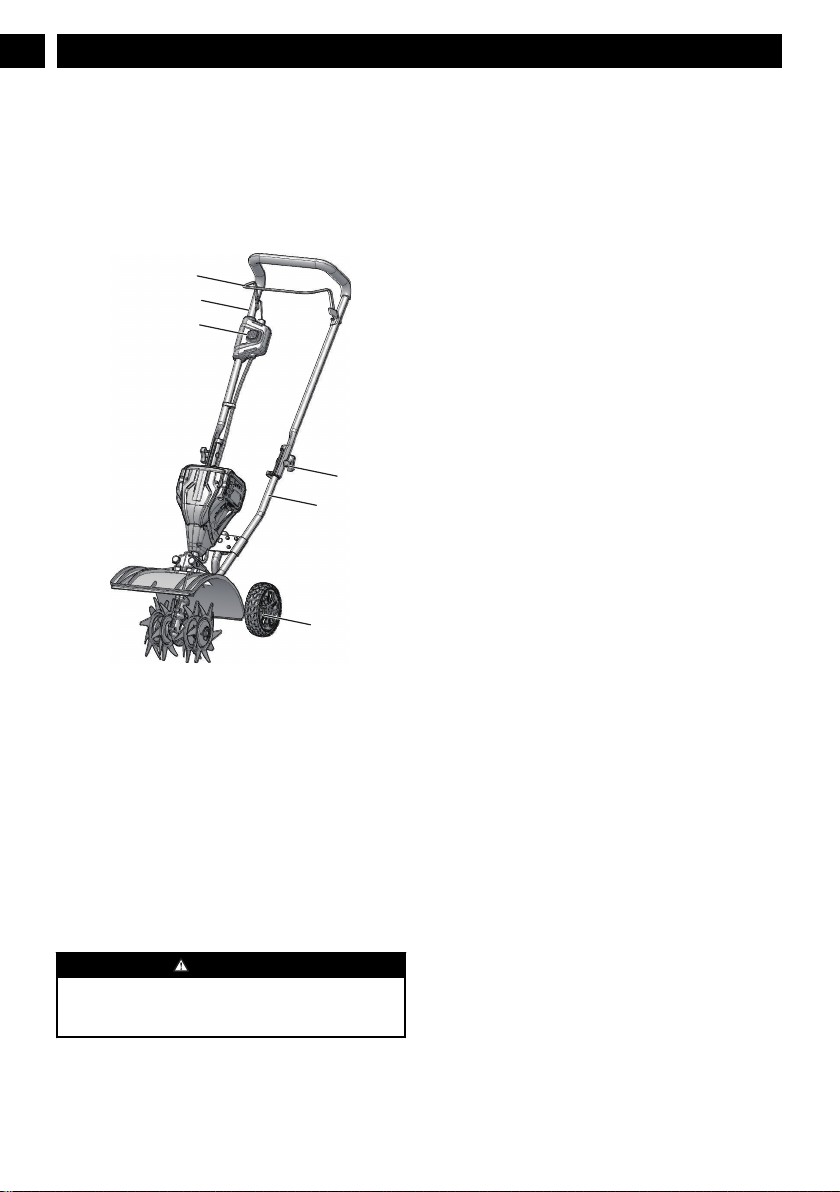

1.2 OVERVIEW
1
5
2
6
3
4
1Upper handle
2Lower handle
3Wing nut
4Bail switch
5Safety lock button
6Wheel assembly
1.3 PACKING LIST
1Cultivator
2Ring pins (2)
3Inner tines (2)
4Outer tines (2)
5Felts (4)
6Bolts (3)
7Fastening knob (3)
8Hitch pins (2)
9Wheel assembly
10 Manual
2 GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “machine” in the warnings refers to your battery-
operated (cordless) cultivator.
2.1 IMPORTANT SAFETY
INSTRUCTIONS
• Use Right Machine – Do not use machine for any job
except that for which it is intended.
• Read the operator’s manual carefully. Be thoroughly
familiar with the controls and the proper use of the
machine. Know how to stop the unit and disengage the
controls quickly.
• Do not operate the machine in explosive atmospheres,
such as in the presence of flammable liquids, gases, or
dust. The machine creates sparks which may ignite the
dust or fumes.
• Avoid body contact with grounded surfaces such as pipes,
radiators, ranges, and refrigerators. There is an increased
risk of electric shock if your body is grounded.
• Avoid Dangerous Environment — Don’t expose to rain or
use machine in damp or wet locations. Water entering the
machine will increase the risk of electric shock.
• Never allow children to operate the machine. Never allow
adults to operate the machine without proper instruction.
• Always wear safety glasses with side shields that comply
with ANSI Z87 .1- Everyday glasses have only impact
resistant lenses. They are NOT safety glasses. Following
this rule will reduce the risk of eye injury. Use a face
mask if operation is dusty.
• Dress Properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber gloves
and substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long
hair.
• Do not force the machine — Use the correct tool for your
machine. The correct tool will do the job better and safer
at the rate for which it is designed.
• Do not operate the machine while barefoot or when
wearing sandals or similar lightweight footwear. Wear
protective footwear that will protect your feet and
improve your footing on slippery surfaces.
• Do not operate the machine while under the influence of
alcohol or drugs.
• Do not overreach — Keep firm footing and balance at all
times. Overreaching can results in loss of balance.
• Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to battery pack, picking up
or carrying the machine. Carrying the machine with your
finger on the switch or energizing machine that have the
switch on invites accidents.
• Avoid Unintentional Starting – Don’t carry cordless
machine with finger on switch. Be sure the switch is off
when inserting the battery.
• Never pick up or carry the machine while the tines are
turning or the motor is running.
• Keep the machine in good working condition. Check all
nuts, bolts, and screws at frequent intervals for proper
4
English
EN
tightness to be sure the machine is in safe working
condition.
• Keep the machine free of grass, leaves or grease to reduce
the chance of a fire hazard.
• Do not use the machine if switch does not turn it on or
off. Any tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the battery pack from the machine before
making any adjustments, changing accessories, or storing
machine. Such preventive safety measures reduce the risk
of starting the machine accidentally.
• Before cleaning, repairing, or inspecting, remove the
battery and make certain all moving parts have stopped.
• Never spray water directly into the motor compartment of
the machine.
• Use only identical replacement parts when servicing the
machine. Use of unauthorized parts may create a risk of
serious injury to the user, or damage to the product.
2.2 SPECIFIC SAFETY RULES
• Cleaning, user-maintenance (such as lubrication
adjustment, and the like), operations recommended by the
manufacturer, and a warning to the user that any other
servicing should be performed by an authorized service
representative.
• Do not use near underground electric cables, telephone,
lines, pipes, or hoses. If in doubt, contact your utility or
telephone company to locate underground services.
• If the machine strikes a foreign object, stop the motor,
remove the battery pack, thoroughly inspect the machine
for any damage, and repair the damage before restarting
and operating the machine.
• Maintain Machine With Care – Keep cutting edge sharp
and clean for best performance and to reduce the risk of
injury.
• Do not overload the machine capacity by cultivating too
deep in a single pass or at too fast a rate.
• Stay alert. Watch what you are doing. Use common sense.
Do not operate the machine when you are tired, ill, or
upset.
• Don’t use in rain.
• Be aware that the machine may unexpectedly bounce
upward or jump forward if the tines should strike buried
obstacles such as large stones, roots, or stumps.
• Wear hearing protection.
• Ensure that people and pets are at least 50’ (15 m) away
from the machine while in use.
• Ensure that work area is free of slippery spots or
excessive quantities of stone.
• Start the machine carefully according to instructions from
a normal operating position and with feet well away from
the tines. It will do the job better and with less likelihood
of a risk of injury at the rate for which it was designed.
• Keep hands away from blades.
• Remove the battery pack from the machine before
unclogging the tines and when making any repairs,
adjustments, or inspections.
• Never operate the machine on a slope.
• Use extreme caution when pulling the machine towards
you.
• When not in use, the machine should be stored indoors in
dry, and high or locked-up place – out of reach of
children.
• When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• Keep Children Away — All visitors and bystanders
should be kept at a distance of at least 50 feet from work
area.
• Do not use a battery pack or machine that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
• Don’t grasp the exposed cutting blades or cutting edges
when picking up or holding the machine.
• Do not expose a battery pack or machine to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion. The temperature of
130°C can be replaced by the temperature of 265°F.
• Follow all charging instructions and do not charge the
battery pack or machine outside of the temperature range
specific in the instructions. Charging improperly or at
temperatures outside of the specific range may damage
the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
• Do not modify or attempt to repair the machine or the
battery pack (as applicable) except as indicated in the
instructions for use and care.
• Check damaged parts. Before further use of this
cultivator, a guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition that
may affect its operation. A guard or other part that is
damaged should be properly repaired or replaced by an
authorized service center unless otherwise indicated
elsewhere in this manual.
• Save these instructions. Refer to them frequently and use
them to instruct others who may use this cultivator. If you
loan someone this unit, loan them these instructions also.
• For use only with LB604/LB6041 or other BAC series
batteries.
• For use only with CAC801 or other CAC series charger.
• Do not dispose of batteries in fire, the cells may explode,
check with local codes for possible special disposal
instructions.
5
English EN
• Do not open, damage or otherwise tamper with the
battery. Released electrolyte is corrosive and may cause
damage to the eyes or skin, it may be toxic if swallowed.
• Exercise care in handling batteries in order not to short
the battery with conducting materials such as rings,
bracelets and keys. The battery or conductor may
overheat and cause burns.
The recommended ambient temperature range:
Item Temperature
Cultivator storage tempera-
ture range
32°F (0°C) - 113°F (45°C)
Cultivator operation temper-
ature range
32°F (0°C) - 113°F (45°C)
Battery charging temperature
range
39°F (4°C) - 104°F (40°C)
Charger operation tempera-
ture range
39°F (4°C) - 104°F (40°C)
Battery storage temperature
range
32°F (0°C) - 113°F (45°C)
Battery discharging tempera-
ture range
32°F (0°C) - 113°F (45°C)
2.3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this product.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
product better and safer.
Symbol Explanation
V Voltage
A Current
Hz Frequency (cycles per second)
Do not expose the product to rain or
moist conditions.
Type or a characteristic of current
Keep feet and hands away from rotat-
ing tines.
Thrown objects can ricochet and result
in personal injury or property damage.
Wear protective clothing and boots.
Precautions that involve your safety.
Read and understand all instructions
before operating the product, and fol-
low all warnings and safety instruc-
tions.
Symbol Explanation
Wear eye and ear protection.
Keep all bystanders at least 15m away.
2.4 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation, which, if not
avoided, will result in death
or serious injury.
WARNING Indicates a potentially hazard-
ous situation, which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
2.5 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
The toxic and corrosive materials below are in the batteries
used in this machine: Lithium-Ion, a toxic material.
WARNING
Discard all toxic materials in a specified manner to prevent
contamination of the environment. Before discarding
damaged or worn out Li-ion battery, contact your local
waste disposal agency, or the local Environmental
Protection Agency for information and specific instructions.
Take the batteries to a local recycling and/or disposal center,
certified for lithium-ion disposal.
6
English
EN
WARNING
If the battery pack cracks or breaks, with or without leaks,
do not recharge it and do not use. Discard it and replace
with a new battery pack. DO NOT TRY TO REPAIR IT! To
prevent injury and risk of fire, explosion, or electric shock,
and to avoid damage to the environment:
• Cover the terminals of the battery with heavy-duty
adhesive tape.
• DO NOT try to remove or destroy any of the battery
pack components.
• DO NOT try to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular household
trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of any
waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal center.
2.6 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
2.7 SAVE THESE
INSTRUCTIONS
3 INSTALLATION
• Replace the battery pack or the charger immediately if the
battery pack or charger cord is damaged.
• Ensure that the unit is switched off before installing or
removing the battery pack.
3.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine before
use.
WARNING
• If parts of the machine are damaged, do not use the
machine.
• If you do not have all the parts, do not operate the
machine.
• If parts are damaged or missing, contact the service
center.
1. Open the package.
2. Read the documentation provided in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and packing material in compliance with
local regulations.

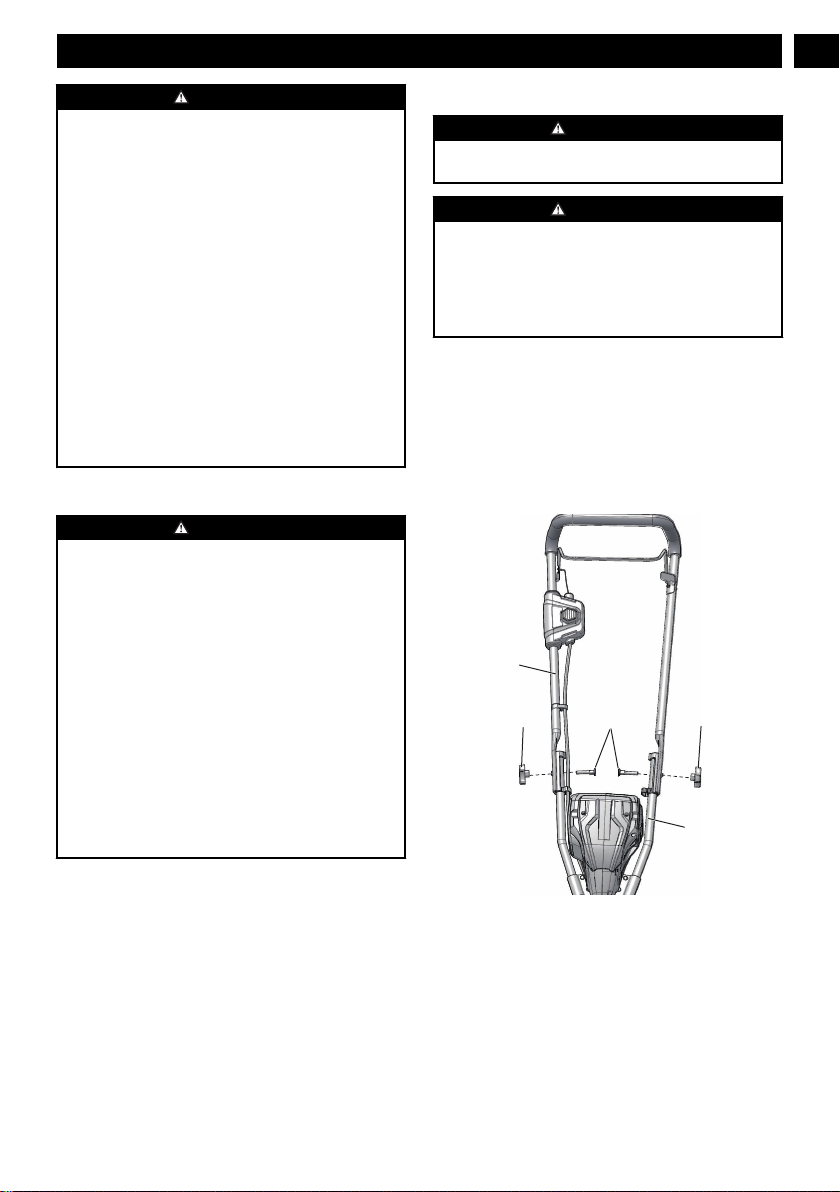

3.1.1 INSTALL THE HANDLE
1
2
373
1. Align the holes on the upper handle (1) with holes on the
lower handle (2).
2. Insert the bolts (7) through the handles.
3. Use the wing nuts (3) to tighten them.
7
English EN

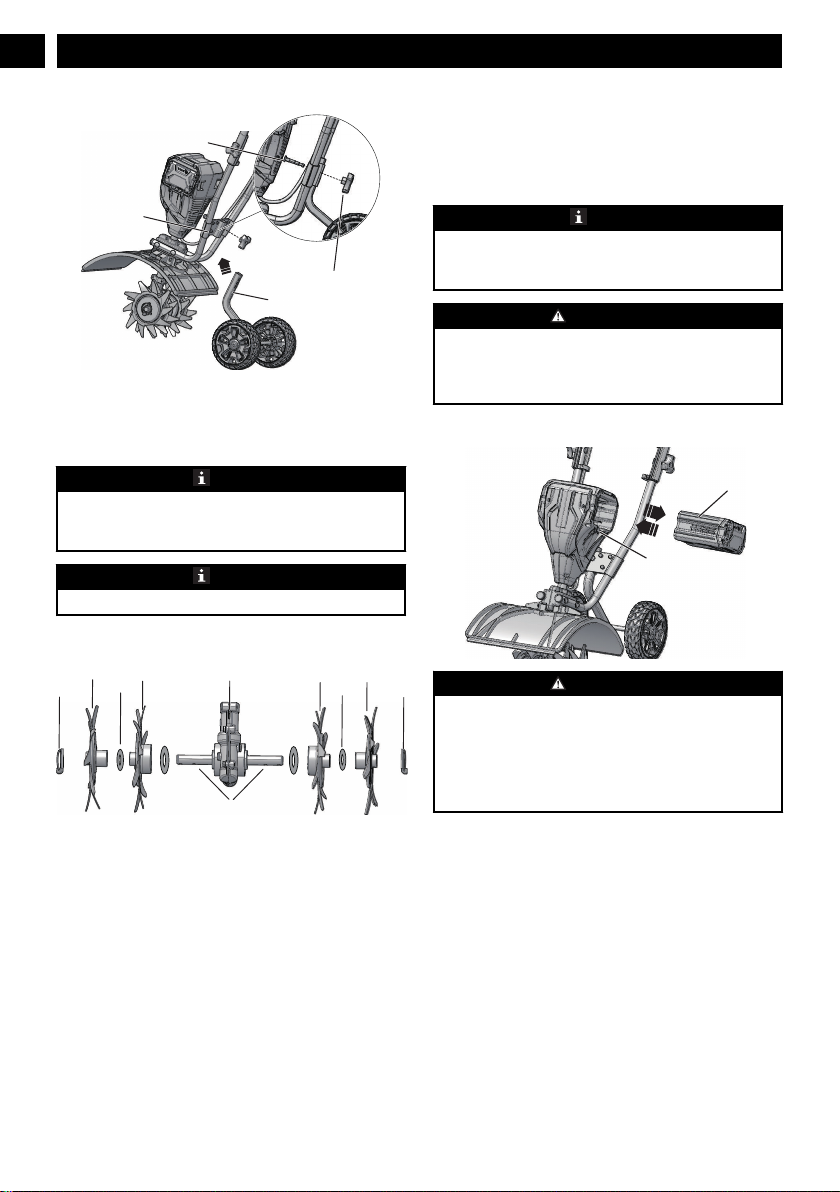

3.1.2 INSTALL THE WHEEL
6
8
10
9
1. Insert the wheel assembly (6) into the support rod (8).
2. Align the wheel assembly hole to desired position.
3. Slide bolt (9) through hole and attach fastening knob (10)
to bolt.
NOTE
The wheel position of the machine is adjustable.You can
control the depth of operation through adjusting the wheel
position.
NOTE
Wheels can be removed for greater tilling depth.
3.1.3 INSTALL THE TINES
13
1415
16 19
20
17
13 18 18
The cultivator has four tines —two inner tines stamped B and
C and two outer tines stamped A and D. For correct operation
of the unit, the tines must be installed in the correct
orientation.
1. Put the machine on a flat and smooth surface.
2. Place tine C (16) on the tine shaft (20) to the left of the
gear box. The stamped side of the tine should face away
from the gear box (19).
3. Place tine B (15) on the tine shaft to the right of the gear
box. The stamped side of the tine should face away from
the gear box.
4. Place a felt washer (18) on each side of the tine shaft, and
slide to rest against the inner tines.
5. Place the outer tine D (17) on the left side of the tine
shaft. The stamped side should face in toward tine C (16).
6. Place the outer tine A (14) on the right side of the tine
shaft. The stamped side should face in toward tine B (15).
7. To secure the tines to the tine shaft, insert the ring pins
(13) into the holes located on either side of the tine shaft.
NOTE
The unit will not operate properly if the tines are installed
incorrectly. If you notice a problem with the cultivating
operation of the unit, check for proper tine positioning.
WARNING
The tines and the machine may damage even if you move
the machine with the motor switched off. To prevent the
tines from touching the ground while moving please tilt the
machine.
3.1.4 INSTALL THE BATTERY PACK
11
12
WARNING
• If the battery pack or charger is damaged, replace the
battery pack or the charger.
• Stop the machine and wait until the engine stops before
you install or remove the battery pack.
• Read, know, and follow the instructions in the battery
and charger manual.
1. Align the lift ribs on the battery pack (11) with the
grooves in the battery compartment.
2. Push the battery pack into the battery compartment until
the battery pack locks into place.
3. When you hear a click, the battery pack is installed.
3.1.5 REMOVE THE BATTERY PACK
1. Push and hold the battery release button (12).
2. Remove the battery pack from the machine.
4 APPLICATIONS
• Breaking up garden soil to prepare seed bed for planting.
• Shallow cultivating to remove weeds.
8
English
EN

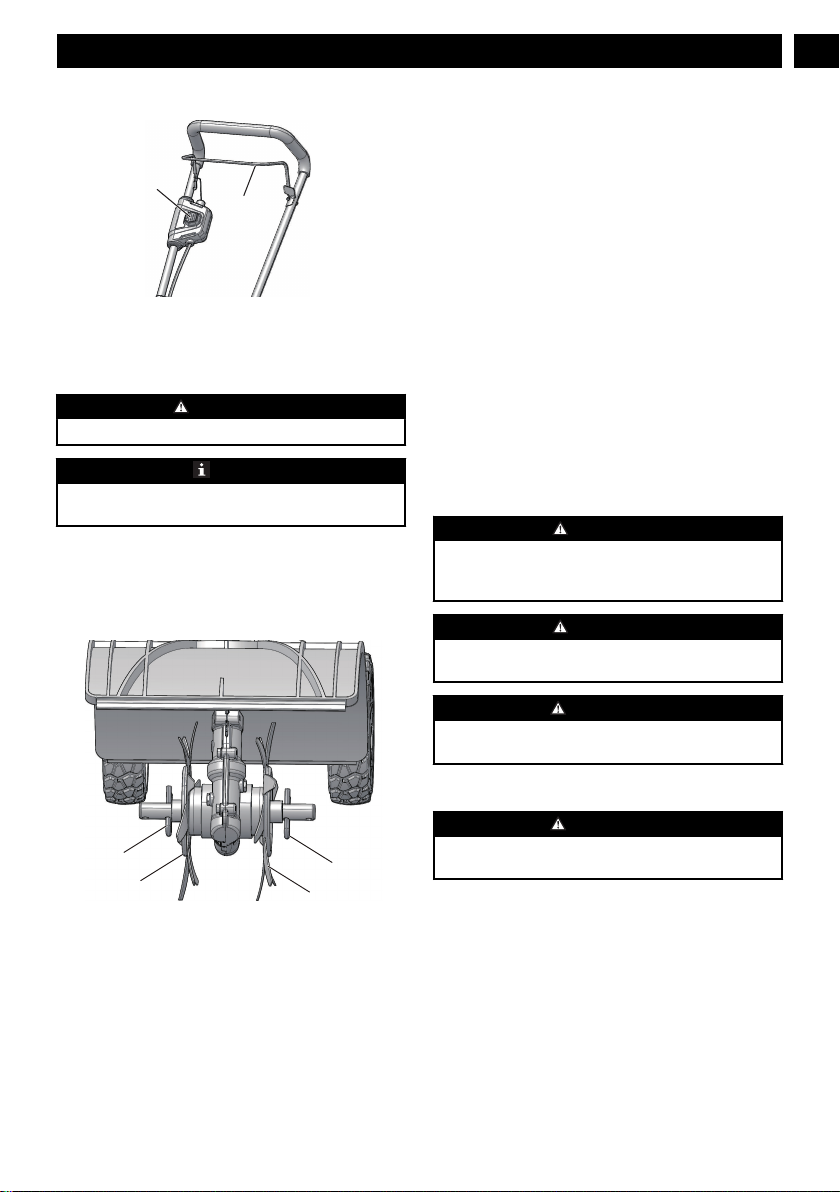

4.1 START THE MACHINE
4
5
1. Press the safety lock button (5).
2. Pull the bail switch (4) toward the handle while you hold
the safety lock button.
3. Release the safety lock button.
WARNING
Hold the machine with two hands during operation.
NOTE
Stand behind the machine with the tines on the ground and
the work area clean and free of obstructions.
4.2 STOP THE MACHINE
1. Release the bail switch to stop the machine.
4.3 NARROW CULTIVATING WIDTH
21
21
15
16
The two outer tine blades can be removed from the unit to
allow a more narrow cultivating width.
1. Remove the ring pins from the holes on the ends of the
tine shaft.
2. Remove the outside tines and felts from the tine shaft.
3. Place hitch pins (21) in the holes.
4.4 OPERATION TIPS
The cultivator can be used to break up garden soil and
prepare a seedbed for planting. Plan ahead to leave enough
room between the seed rows to allow for machine cultivating
after the plants have grown.
1. Several passes over the same path may be required to
reach the desired depth. Do not try to dig too deeply in
the first pass.
2. If the machine jumps or bucks, allow the unit to move
forward at a slightly faster rate or install wheel assembly.
3. If the cultivator stays and digs in at one spot, try rocking
it from side to side in order to start it moving forward
again.
4. If the soil is very hard, water a few days before
cultivating. Avoid working the soil when soggy or wet.
Wait a day or two after heavy rain for the ground to dry.
5. Shallow cultivating less than 5cm. deep can be used to
disrupt weeds and aerate soil, without injuring nearby
plant roots. It should be done often so that weeds do not
grow large and cause tangling in the tines of the unit.
5 MAINTENANCE
CAUTION
Do not let brake fluids, gasoline, petroleum-based materials
touch the plastic parts. Chemicals can cause damage to the
plastic, and make the plastic unserviceable.
CAUTION
Do not use strong solvents or detergents on the plastic
housing or components.
WARNING
Remove the battery pack from the machine before
maintenance.
5.1 CLEAN THE MACHINE
WARNING
Keep the machine and the motor free of leaves, branches or
excessive oil to prevent fire risks.
• Use a moist cloth with a mild detergent to clean the
machine.
• Clean all moisture with a soft dry cloth.
• Use a small brush to clean the air vents.
6 STORE THE MACHINE
• Clean the machine before storage.
• Make sure that the motor is not hot when you store the
machine.
9
English EN
• Make sure that the machine does not have loose or
damaged parts. If it is necessary, do these steps/
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• Speak to a person of an approved service center.
• Store the machine in a dry area.
• Make sure that children cannot come near the machine.
7 TROUBLESHOOTING
Problem Possible cause Solution
The motor shuts
down whilst work-
ing.
The battery pack is
not installed tight-
ly.
Make sure that
you tighlty instal-
led the battery
pack in the ma-
chine.
The battery pack is
out of power.
Charge the battery
pack.
The machine has
damage.
Do not use the ma-
chine and speak to
service center.
The machine
smokes during op-
eration.
The machine has
damage.
1. Immediately
stop the ma-
chine.
2. Remove the
battery.
3. Speak to serv-
ice center.
Motor runs but
tines do not move.
The machine has
damage.
Do not use the ma-
chine and speak to
service center.
The tines are
blocked.
Remove battery
then clear block-
age from the tines.
Gear train failure. Speak to service
center.
8 TECHNICAL DATA
Voltage 60V
No load speed 210 (±10%) RPM
Cultivating path 8'' (20 cm)
Weight (without battery pack) 24.7 lbs. (11.2 kg)
Cultivating depth 5'' (13 cm)
9 LIMITED WARRANTY
Greenworks hereby warranties this product, to the original
purchaser with proof of purchase, for a period of four (4)
years against defects in materials, parts or workmanship.
Greenworks, at its own discretion will repair or replace any
and all parts found to be defective, through normal use, free
of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not
been hired or rented for industrial/commercial use, and that
have been maintained in accordance with the instructions in
the owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse,
commercial use, abuse, neglect, accident, improper
maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade
sharpening;
5. Normal deterioration of the exterior finish due to use or
exposure.
HELPLINE:
Warranty service is available by calling our toll-free helpline,
at 1-855-345-3934.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing
by Greenworks.
USA address:
Greenworks Tools
P.O. Box 1238
Mooresville, NC 28115
10
English
EN
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Caña del timón de GreenWorks Pro
