GreenWorks Pro RZ48 Manual de usuario

7404702

EN ZERO-TURN MOWER ASSEMBLY GUIDE

www.greenworkstools.comRZ48

SYMBOLS

Rules for Safe Assembly...........................................................................................................................2

Symbols......................................................................................................................................................3

Tools Needed.............................................................................................................................................3

Unpacking.......................................................................................................................4

Loose Parts List.........................................................................................................................................5

Assembly.................................................................................................................................................6-7

Final Preparation.......................................................................................................................................8

RULES FOR SAFE ASSEMBLY

SAVE THIS GUIDE FOR FUTURE REFERENCE

WARNING

Strictly adhere to all torque wrench tightening

specifications. Failure to do so could cause

serious personal injury.

All information, illustrations, photographs, and

specifications contained in this manual are based

on the latest product information available at the

time of publication. Due to improvements or

other changes, there may be some discrepancies

in this manual. We reserve the right to make

product changes at any time, without notice

and without incurring any obligation to make

the same or similar changes to any products

previously built or sold.

• Any person attempting to assemble this

product must have proper training and

experience. Read this manual carefully

and follow all assembly procedures as

described.

• All assembly must be completed with the

unit on a level surface.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with

this product.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which, if not avoided, will

result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not avoided, could

result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not avoided, may

result in minor or moderate injury.

CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in

property damage.

WARNING

To avoid serious personal injury, do not attempt to use this product until you have read this Owner’s

Manual thoroughly and understand it completely. If you do not understand the warnings and instruc-

tions in this Owner’s Manual, do not use this product. Call the Toll-free Helpline (1-888-909-6757) or

www.greenworkstools.com for assistance.

The following tools (not included or drawn to scale) are needed for assembly:

WRENCH (1)

10mm*13mm

WRENCH (1)

13mm*16mm

SCISSOR (1) TIRE PRESSURE GAUGE (1)

TOOLS NEEDED

UNPACKING

WARNING

If any parts on the Loose Parts List are already

assembled to your product when you unpack

it, verify the part is assembled correctly, is

properly tightened, and is torqued correctly

(where applicable) before proceeding to the

next assembly step. Use of a product that may

have been improperly assembled could result

in serious personal injury.

• Inspect the product carefully to make sure

no breakage or damage occurred during

shipping.

NOTE: Mower should be assembled while

positioned on the frame bottom. Once assembly

is complete, raise the cutting deck to its highest

position, then position a ramp next to the frame

bottom and slowly and carefully drive mower off

frame.

a. Remove the five bolts from the top side brace and end beam on both sides of the crate,

NOTE: Wrench size: 10mm*13mm and 16mm.

b. Remove the two beams.

c. Remove the side plate assembly.

d. Drive the machine off the metal crate.

WARNING

Use care when driving the mower off of the

frame and press the brake pedal as needed

to control the speed. The mower will freely roll

if it is moved on an inclined surface without

pressing the brake pedal or setting the parking

brake. Failure to follow these instructions can

result in loss of control and result in death,

serious personal injury, or property damage.

WARNING

If no ramp is available, slowly and carefully

drive the mower off the frame in reverse while

looking down and behind. Driving the mower

off the frame in the forward direction without a

ramp can cause damage to the mower’s cutting

deck.

Bolt

Beam

Side plate

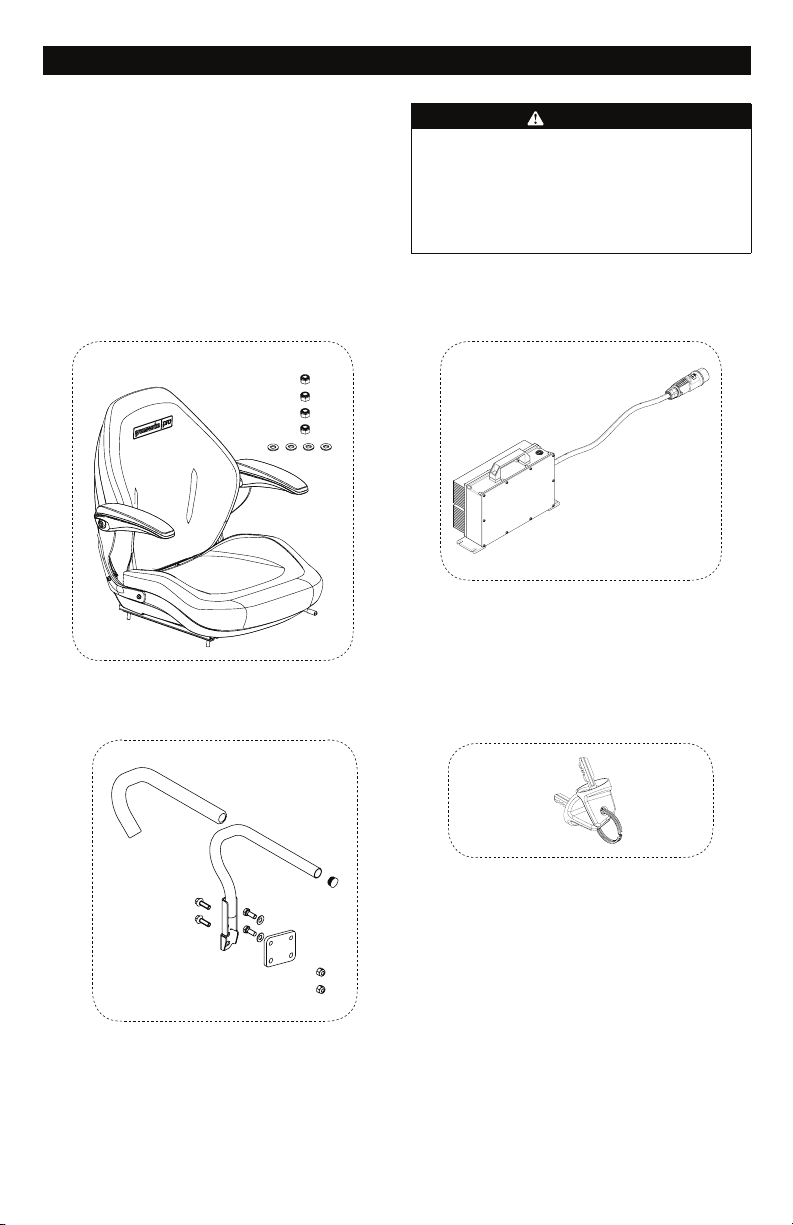

LOOSE PARTS LIST

No. Description Qty.

1 Seat assembly with seat switch 1

2 Charger 1

3 Steer control lever 2

4Key 2

5 Manual (Not Shown) 6

WARNING

If any parts are damaged or missing do not

assemble this product until the parts are

replaced with new original manufacturer’s parts

or their equivalent. Assembly of this product

with damaged, missing, or incorrect parts could

result in serious personal injury.

1 2

ASSEMBLY

WARNING

Strictly adhere to all torque wrench tightening specifications. Failure to do so could cause serious

personal injury.

WARNING

Do not attempt to modify this product or create accessories not recommended for use with this

product. Any such alteration or modification is misuse and could result in a hazardous condition

leading to possible serious personal injury.

WARNING

To prevent accidental starting that could cause serious personal injury, always remove the start key

from the tool when you are assembling parts.

CHARGE THE MOWER

1. Insert charger plug into charging port on mower, making sure it is properly connected.

2. Connect charger to power supply using normal household current of 120V/60HZ AC with at

least a 10A circuit.

3. Do not charge in an area of extreme heat or cold.

4. Remove the charger from the mower once it is fully charged and ready for use.

NOTE

Always connect the mower to the charger when the unit is not in use. If it is not possible to leave the

mower charger connected, make sure to charge the batteries fully at least once a month.

Charging port

ASSEMBLY

INSTALL THE SEAT

1. Place the seat assembly over the seat plate, insert the seat studs through the holes.

2. Install the washer and nut on all four studs and tighten securely.

3. Connect the seat switch to the machine.

4. Make sure it is securely seated.

Seat switch

Seat

Seat stud

Seat plate

Washer

Nut

FINAL PREPARATION

CHECK TIRE PRESSURE

Check the air pressure in all tires before use.

Improper air pressure will affect handling,

steering response, traction, tire life, level cutting,

and operator comfort. Be sure tires are inflated to

the pressure shown below.

NOTE

Tire pressure should only be measured or

adjusted when tires are cold.

Front wheel Rear wheel

Recommended

Pressure 46 psi (±2) 10 psi (±2)

WARNING

Check the tire pressure carefully while inflating.

Too much air in the tire could cause the tire to

burst, causing serious personal injury.

TEST THE SAFETY INTERLOCK SYSTEM

This mower features a Safety Interlock System

to protect the operator by shutting off the blades

if the operator leaves the seat with the blades

running. Test the system to be sure it is working

correctly.

TO TEST:

• Make sure direction control switch is in

PARK position and PTO switch is down.

• Install start key and turn to “ON” position.

• Raise the PTO switch to activate blades.

• Brieﬂy lift o the seat, but do not get o the

mower.

The blades should shut off within 5 seconds. If

they don’t, verify you connected the seat plug

to the machine. If the plug is connected but the

system still doesn’t function, contact customer

service. Do not operate the mower until the

safety interlock system has been repaired.
