GreenTech OVERWATCH Manual de usuario
COMMERCIAL AIR PURIFICATION UNIT
Owner’s Manual
This Manual is for Use with the Suspended Units
2
Welcome
RECORDS
Table Of Contents
Unit Diagram ................................................................3
About Overwatch............................................................4
Specications ...............................................................4
Warnings....................................................................5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Filter Replacement ...........................................................7
Replacing the ARC Cell(s) .....................................................8
Replacement Parts List ........................................................9
ARC Cell Disposal ............................................................9
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warranty...................................................................11
Overwatch is designed to provide years of trouble-free service when used and
maintained according to this Owner’s Manual. The pages of this manual will guide you
through proper operation and maintenance.
Please record the name and phone number of your Dealer
Name: __________________________________________________________________
Phone #:________________________________________________________________
Please record the serial number of your Overwatch unit.
Serial #: _________________________________________________________________
3
Unit Diagram
Front Right Side
BottomTop (Exposed)
GRILLE
BALLAST HOUSING(S) Mounting Holes
Mounting Holes
POWER CORD
SHIELD
Air Intakes
4
Specifications
About Overwatch
WARRANTY:
• 2 Year Manufacturer’s Warranty ( ARC Cells - 2 Years Prorated)
FEATURES:
• Suspension Ready
• Replaceable ARC Cells
ELECTRICAL (120V or 230V Version):
• Input Voltage: 120VAC 60Hz / 230 VAC/50Hz
• Operating Voltage: 120 VAC / 230 VAC
• Operating Wattage: 143W / 274W
• Operating Amperage: 1.43A / 2.78A
MECHANICAL:
• Distribution via blower
SIZE:
• 23.5” H (597mm) x 24.5” W (622mm) x 19” D (483mm) w/o Shield - 28” D (711mm) w/Shield
WEIGHT:
• 39 lb (17.69kg)
COVERAGE:
•Up to 10,000ft2
Overwatch is designed to eliminate mold, bacteria, and viruses in large commercial
spaces. This powerful remediation capability is possible due to the unit’s Active Radiant
Catalysis (ARC™) and UV-Lamp Ozone.
5
Warnings
UV light in operation. Disconnect unit from power supply before servicing.
Failure to follow warnings may result in severe eye damage.
To reduce the risk of electric shock, this equipment has a grounding type
plug that has a third (grounding) pin. The plug will only t into a grounding
type power outlet. If the plug does not t into the outlet, contact qualied
personnel to install the proper outlet. Do not alter the plug in any way.
Never insert hands into the unit’s fan motor while it is plugged in or running.
Follow all installation instructions.
Before servicing or cleaning the unit, unplug it from its power source.
For your safety and the safety of the product, please read through the warnings
below before beginning installation, cleaning, or maintenance.
6

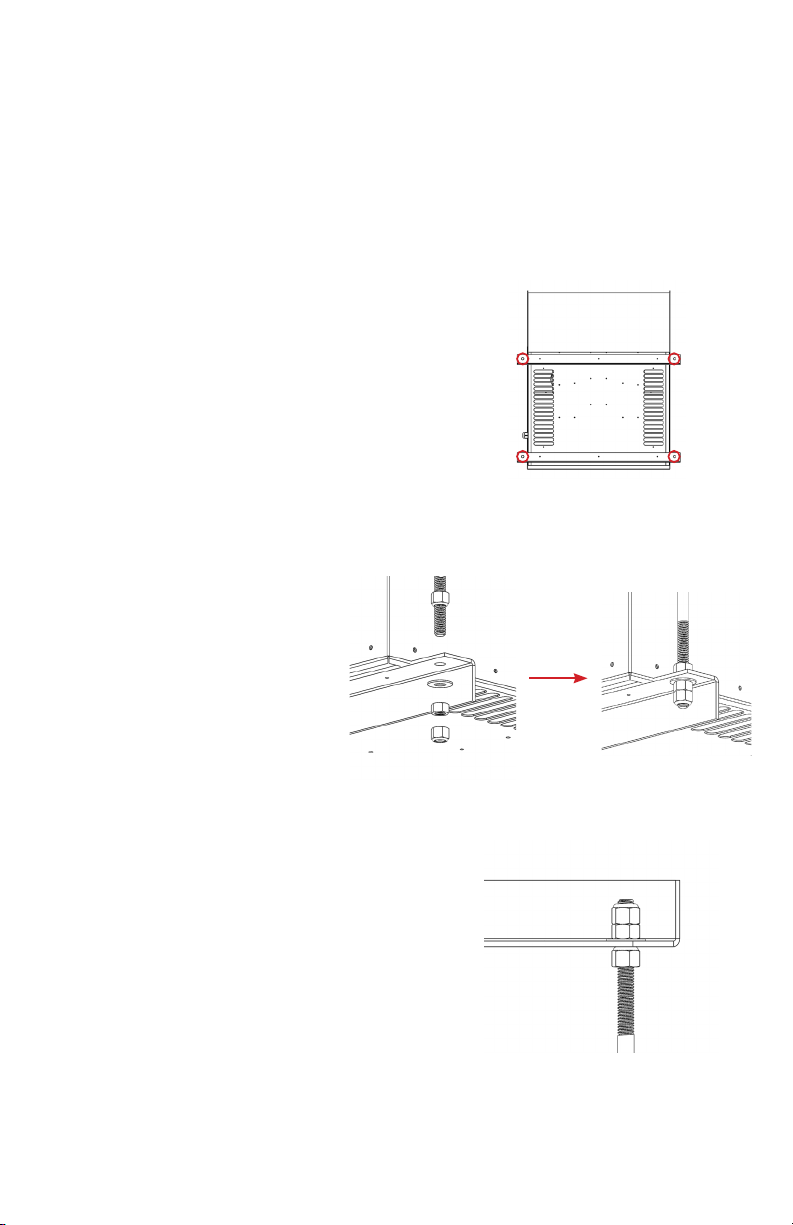

Installing Overwatch
1. Locate the four 3/8” Mounting Holes
on the two angle brackets attached
to the bottom of the unit.
Overwatch is designed to be suspended close to the ceiling to allow puried air to be effectively
distributed throughout the intended area.
Important: The minimum length of allthread that can be used is 36”. This is necessary to allow ample
room above the unit to remove the cover for ARC Cell replacement.
2. Using 3/8” allthread and
3/8” nuts, washers, and lock
nuts, attach the allthread to
the four holes in the angle
brackets as shown.
3. Then, using the same nut, washer,
and lock nut placement, attach to
the four allthread rods to bracket
securely anchored to joists, purlins,
etc. on the ceiling.
7
UV Light in operation. Disconnect unit from power supply before servicing. Failure to follow
warnings may result in severe eye damage.
If your OVERWATCH unit has any maintenance problems or requires replacement of parts
you will need to contact GreenTech Environmental.
1. Unplug the Overwatch Unit’s Power Cable from the Power Outlet.
2. Remove the cover and use an Air Duster to rst clear any debris inside the machine.
3. If any dust remains, wipe it down with a damp cloth.
4. Replace the Cover and Plug in the Power Cable.
Cleaning
8
UV Light in operation. Disconnect unit from power supply before servicing. Failure to
follow warnings may result in severe eye damage.
If your OVERWATCH unit has any maintenance problems or requires replacement of
parts you will need to contact GreenTech Environmental.
The ARC Cells used in this unit should be replaced every 18,000 hours
(2 Years Continuous Operation).
Replacing the ARC Cell(s)
If you need to replace you ARC Cells (that are no longer under warranty) for any
reason, you will need to contact your dealer to purchase a new one.
1. Unplug the Overwatch Unit’s POWER CABLE from the POWER OUTLET.
2. Remove the TOP COVER’s SCREWS along the sides and remove the TOP COVER.
3. Remove the four (4) THUMB SCREWS from the faceplate of the ARC CELL BALLASTS.
4. Pull the ARC BALLAST HOUSING(S) out of the unit.
5. Remove the two (2) screws that connect the ARC CELL and BALLAST HOUSING.
6. Remove the used ARC CELL(S).
7. Replace the used ARC CELL(S) with the new ARC CELL(S).
8. Return the ARC BALLAST HOUSING(S) to their respective positions in the unit, using
the same orientation to ensure air ows through the cell.
9. Replace the THUMB SCREWS to secure the ARC BALLAST HOUSING(S).
10. Replace the TOP COVER.
Replacement Parts
ARC Cell Part #: CELL-HV-14-03-OW
9
ARC Cell Disposal (Hg - Lamp Contains Mercury)
Please do not throw a used ARC Cell in the garbage. The special germicidal UVC bulb
used in the unit contains a very small amount of mercury. Manage in accordance with
disposal laws.
(Visit www.lamprecycle.org for proper instructions.)
Dispose of the spent ARC Cell and UV Lamp at your local recycling center or by
local regulations. You may also send your spent ARC Cell and UV Lamp, in the same
container you received your replacement, to:
GreenTech Environmental Reclamation
6118 Kingsport Hwy 36
Johnson City, TN 37615
10
Notes
