Greenheck DFD-150X series Manual de usuario

DFD-150X series

Dynamic Rated FIRE DAMPERS with Sleeve

11⁄2Hour Fire Resistance Rating

APPLICATION

Model DFD-150X is approved for use in walls, floors and

partitions with fire resistance ratings less than 3 hours.

This model carries a 11⁄2hour UL fire damper label. UL

555 classifies dynamic rated fire dampers for use in HVAC

systems that are operational in the event of fire .

RATINGS

UL555 Fire Resistance Rating

Fire Rating: 1 1/2 hours

Dynamic closure rating

Maximum Velocity: 4000 fpm (20.3 m/s) up to 24 in. x 24 in.

(610mm x 610mm) 2000 fpm (10.2 m/s) above

24 in. x 24 in. (610mm x 610mm)

Maximum Pressure: 4 in. wg (1 kPa)

CONSTRUCTION

Damper is galvanized steel (in gauges required by UL listing

R-13317) sleeve is 20 ga. galvanized steel.

STANDARD FEATURES

• Stainless steel closure springs

• Fusible links (165ºF (74ºC) standard, 212ºF (100ºC) and

286ºF (141ºC) available.

• Horizontal or vertical mount available

OPTIONAL FEATURES

• Security bars

• One piece retaining angles (POC)

• Transitions (B, C, CO, CR, & R)

• Steel stud connection

• Sealed transitions and sleeves

These dimensions are furnished approximately 1⁄4in. (6mm) undersize.

Damper

Location W*

LDamper Fram

Sleeve

LDamper Frame

Damper

Overall Sleeve Length

12 in. (305mm) = DFD-150X12

14 in. (356mm) = DFD-150X14

16 in. (406mm) = DFD-150X16

VERTICAL MOUNT

Fusible Link (replaceable)

HORIZONTAL MOUNT

LDamper

Frame

10 in. (305mm) = DFD-150X10

Damper

Location W*

LDamper Fram e

Sleeve

LDamper Fram e

Damper

Overall Sleeve Length

12 in. (305mm) = FD-150X12

14 in. (356mm) = FD-150X14

16 in. (406mm) = FD-150X16

VERTICAL MOUNT

Fusible Link (replaceable)

(165º F Std., 212º available)

HORIZONTAL MOUNT

LDamper

Frame

Model DFD-150X meets the requirements for fire dampers

established by:

National Fire Protection Association

(NFPA Standards 80, 90A & 101)

BOCA National Building Codes

ICBO Uniform Building Codes (UBC Standard 43-7)

SBCCI Standard Building Codes

New York City (MEA listing #260-91-M)

California State Fire Marshall

(Listing #3225-981:102 for use in walls)

“UL CLASSIFIED (see complete marking on product)”

“UL CLASSIFIED to Canadian safety standards (see

complete marking on product)”

Standard 555 (Listing #R13317)

Blade Stack

Dimensional Data

* These dimensions are furnished

approximately 1/4in. (6mm) undersize.

SIZE LIMITATIONS

Installation of sizes larger than the maximums shown requires approval of

the authority having jurisdiction.

** Consult factory for number of sections.

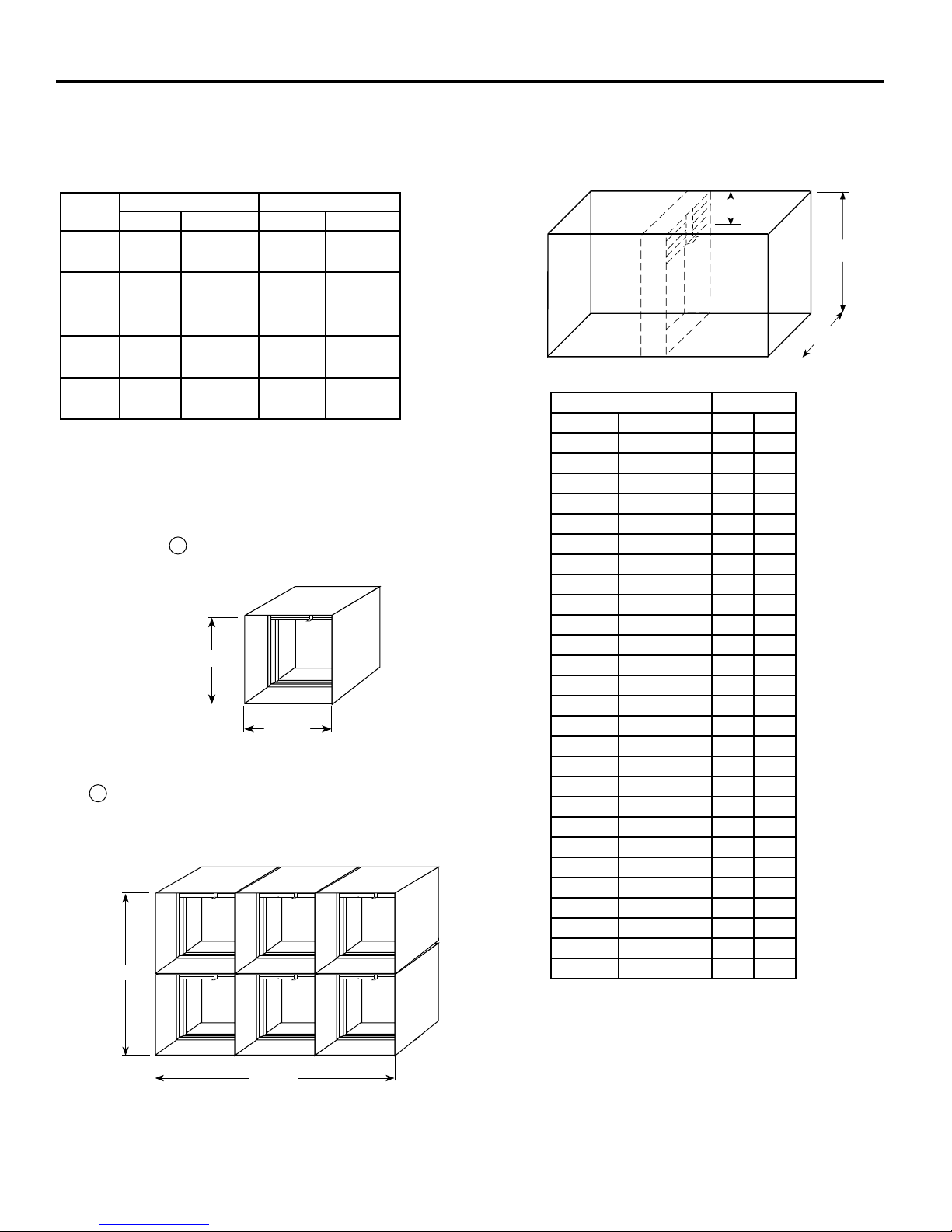

DFD-150X Type A

Dampers larger than maximum single section size are supplied in 2 or more sections of equal size.

The following chart and illustrations show minimum and maximum damper section size and assembly configurations for

multi-section dampers.

1 MAXIMUM SINGLE

SECTION DIMENSIONS

36in. max.

36 in. max.

(914mm)

48 in. (1219mm) max.

72 in. (1829mm) max.

2 MULTI-SECTION LIMITATIONS

Maximum height is 48 in. (1219mm) when width is 72 in.

(1829mm) or less.

Inches

(mm)

Type A Type B

minimum maximum minimum maximum

Single

Section

Vertical

6 x 4

(152 x 102)

36 x 36

(914 x 914)

6 x 6

(152 x 152)

36 x 32

(914 x 813)

Multi

Section**

Vertical

72 x 48

(1829 x 1219)

60 x 60

(1824 x 1524)

72 x 45

(1829 x 1143)

60 x 56

(1524 x 1422)

Single

Section

Horizontal

6 x 4

(152 x 102)

30 x 30

(762 x 762)

6 x 6

(152 x 152)

30 x 26

(762 x 660)

Multi

Section**

Horizontal

NA 48 x 36

(1219 x 914) NA 48 x 32

(1219 x 813) H* P

in. mm in. mm

8 203 1.2 30

9 229 1.3 33

10 254 1.3 33

11 279 1.4 36

12 305 1.6 41

13 330 1.7 43

14 356 1.8 46

15 381 1.8 46

16 406 2.0 51

17 432 2.1 53

18 457 2.2 56

19/37/38 483/940/965 2.3 58

20/39/40 508/991/1016 2.4 61

21/41/42 533/1041/1067 2.6 66

22/43/44 559/1092/1118 2.6 66

23/45/46 584/1143/1168 2.7 69

24/47/48 610/1194/1219 2.9 74

25/49/50 635/1245/1270 3.1 79

26/51/52 660/1295/1321 3.2 81

27/53/54 686/1346/1372 3.2 81

28/55/56 711/1397/1422 3.3 84

29/57/58 737/1448/1473 3.4 86

30/59/60 762/1499/1524 3.6 91

31/32 787/813 3.7 94

33/34 838/864 3.9 99

35 889 4.1 104

36 914 4.2 107

H* O*

Type B Overall

Damper Dimensions

1 Maximum Single Section Dimensions

32 in. (813mm) max.

36 in. (914mm) max.

DFD-150X Type B

Dampers larger than maximum single section size are supplied in 2 or more sections of equal size.

The following chart and illustrations show minimum and maximum damper section size and assembly configurations for

multi-section dampers.

* These dimensions are furnished approximately 1/4 in. (6mm)

undersize. (All ‘H’ dimensions larger than single section height are

two sections high. Refer to chart. The top section is a Type B and

the bottom sections are Type A).

45 in. (1143mm) max.

72 in. (1829mm) max.

2 MULTI-SECTION LIMITATIONS

Maximum height is 45 in. (1143mm) when width is 72 in.

(1829mm) or less.

H* O*

6 (152) 8 (203)

7 (178) 9 (229)

8 (203) 10 (254)

9 (229) 11 (279)

10 (254) 12 (305)

11 (279) 13 (330)

12 (305) 14 (356)

13 (330) 15 (381)

14 (356) 16 (406)

15 (381) 18 (457)

16 (406) 19 (483)

17 (432) 20 (508)

18 (457) 21 (533)

19 (483) 22 (559)

20 (508) 23(584)

21 (533) 24 (610)

22 (559) 26 (660)

23 (584) 27 (686)

24 (610) 28 (711)

25 (635) 29 (737)

26 (660) 30 (762)

27 (686) 31 (787)

28 (711) 32 (813)

29 (737) 33 (838)

30 (762) 34 (864)

31(787) 35 (889)

H* O*

32(813) 36 (914)

33 (838) 36 (914)

34 (864) 37 (940)

35 (889) 38 (965)

36 (914) 39 (991)

37 (940) 40 (1016)

38 (965) 41 (1041)

39 (991) 42 (1067)

40 (1016) 43 (1092)

41 (1041) 44 (1118)

42 (1067) 45 (1143)

43 (1092) 46 (1168)

44 (1118) 47 (1194)

45 (1143) 48 (1219)

46 (1168) 50 (1270)

47 (1194) 51 (1295)

48 (1219) 52 (1321)

49 (1245) 53 (1346)

50 (1270) 54 (1372)

51 (1295) 55 (1397)

52 (1321) 56 (1422)

53 (1346) 57 (1448)

54 (1372) 58 (1473)

55 (1397) 59 (1397)

56 (1422) 60 (1524)

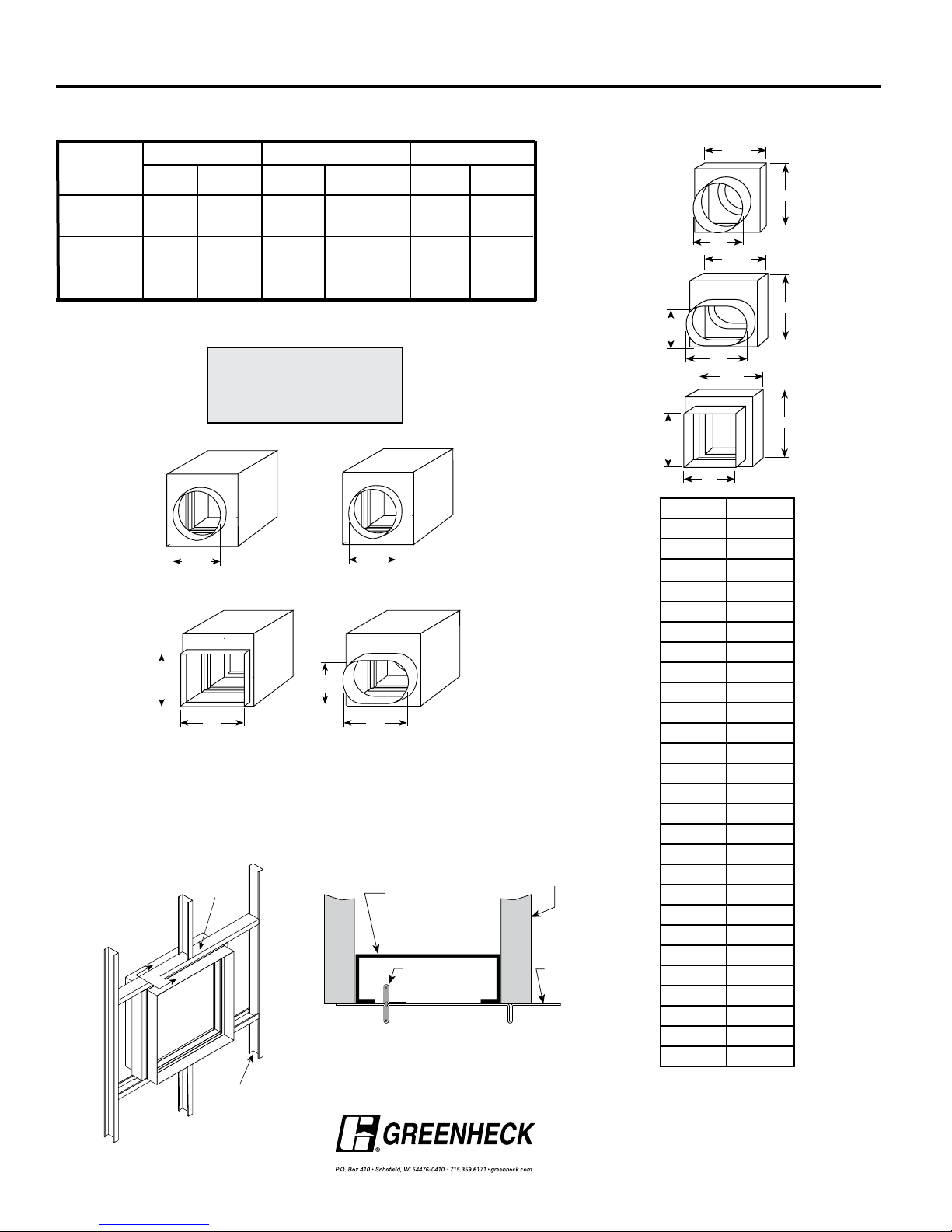

Steel Stud Connection (SSC) Option

The Steel Stud Connection (SSC) Option allows fastening of the damper sleeve (up

to 36 in. W x 36 in. H [914mm x 914m]) directly to the wall's steel stud framing. This

option replaces the angles that were previously required for wall installations.

DFD-150X Types CR, CO & C

DFD-150X dampers with C, CO, CR, and R transitions are available only as single section dampers.

The following chart show minimum and maximum damper size. Dimensions are in inches (mm in parentheses).

C, CO, CR transitions are

positioned 1 in. (25mm)

from bottom of sleeve.

*1 With 2 in. (50mm) offset. Sizes adjust with 1 in.(25mm) offset.

Single Section

Vertical

Single Section

Horizontal

Type CR Type CO & C Type R*1

Minimum Maximum Minimum Maximum Minimum Maximum

6 31 6 x 5 34 x 31 6 34

(152) (787) (152 x 127) (864 x 787) (152) (864)

6 31 6 x 5 34 X 31 6 34

(152) (787) (152 x 127) (864 X 787) (152) (864)

inches (mm)

Type C

W*+2

Type CO

W*+2

Type CR

D*+2

31in. (787mm) max.

31 in. (787mm)

Max

Type CType CO

31 in. (787mm)

Max

34 in. (864mm)

Max 34 in. (864mm)

Max

Type CR

34 in. (787mm) max.

Type R

Retaining Bar

Cross-Section A-A

Wallboard

Steel Stud Frame

Steel Stud Wall

Steel Stud

Frame

A-A

Damper

Sleeve

Retaining Bar

Cross-Section A-A

Wallboard

Steel Stud Frame

Steel Stud Wall

Steel Stud

Frame

A-A

Damper

Sleeve

* Dimension are in inches (mm). These dimensions are

furnished approximately 1/4 in. (6mm) undersize.

H or D* O*

5 (127) 8 (203)

6 (152) 9 (229)

7 (178) 10 (254)

8 (203) 11 (279)

9 (229) 12 (305)

10 (254) 13 (330)

11 (279) 14 (356)

12 (305) 15 (381)

13 (330) 16 (406)

14 (356) 17 (432)

15 (381) 19 (483)

16 (406) 20 (508)

17 (432) 21 (533)

18 (457) 22 (559)

19 (483) 23 (584)

20 (508) 24 (610)

21 (533) 25 (635)

22 (559) 27 (686)

23 (584) 28 (711)

24 (610) 29 (737)

25 (635) 30 (762)

26 (660) 31 (787)

27 (686) 32 (813)

28 (711) 33 (838)

29 (737) 34 (894)

30 (762) 35 (889)

31 (787) 36 (914)

DFD-150X series Rev. 13 July 2008
