GRP2624/GRP2634_WM
GRP2624/GRP2634 IP Phones
Wall Mount Bracket
Quick Installation Guide
Model Compatible GRP2600 phones
GRP2624/GRP2634_WM GRP2624,GRP2634
Content
English.....................................................................................1
~1~ ~2~
EN
PACKAGE CONTENTS
OVERVIEW
This guide provides instructions for mounting your GRP2624/GRP2634
series phone to the wall. Provided instructions apply to GRP2624/
GRP2634 models and the GRP2624/GRP2634_WM bracket model.
Note: The wall mount bracket is sold separetely (not included in the
GRP2624/GRP2634 series phone package).
1x Quick Installation
Guide
GRP2624/GRP2634_WM
Note: Screws and anchors required for wall mount installation are not
included in this package.
Make sure to adjust the hookswitch tab position up to hold the handset
while the phone is mounted on the wall (tab wih extension down is recom-
meded for desktop usage).
1. Pull out the tab from the handset cradle.
2. Rotate the tab to extension up.
3. Plug it back into the slot with the extension up.
Tab with
extension up
Tab with
extension down
Handset Rest
1
2
3
ADJUSTING HOOKSWITCH TAB

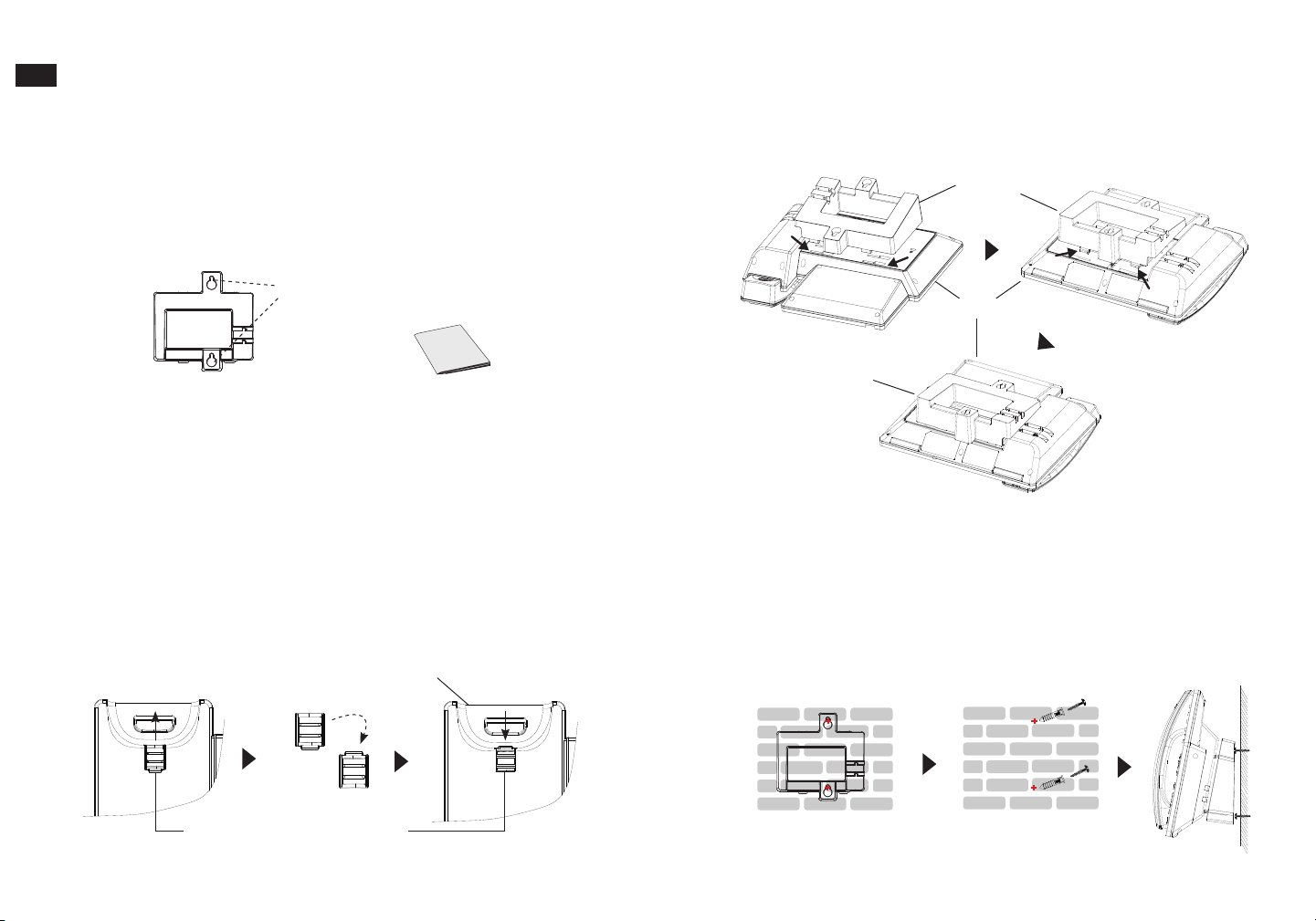

INSTALLING WALL MOUNT BRACKET
1. Put the wall mount’s ribs into the unit’s groove.
2. Press this position and install the wall mount.
3. The wall mount is installed completely.
12
3
GRP2624/GRP2634 phone
Wall mount
bracket
Wall mount
bracket
MOUNTING THE PHONE TO THE WALL
1. Use the wall mount bracket to mark two vertical dots using "wall
mount slots" on the wall where the phone will be installed.
2. Using a drill, make a hole on each marked dot. Put a plastic anchor
and screw (not provided) on each hole. Leave enough space to at-
tach the wall mount bracket to the wall.
3. Mount the GRP2624/GRP2634 phone with wall mount bracket at-
tached to the wall using wall mount slots.
123
Wall mount Slots
