ASSEMBLY

NOTE: Where multiple screws are used in an assembly step, partially install all screws prior to tightening.

Attach bottom shelf support bracket.

Attach trolley panels to bottom shelf.

Phillips-head screw 3/16" x 3/8"

Qty: 8

Black

Attach upper bracket.

Phillips-head screw 3/16" x 3/8"

Qty: 2

Black

Attach trolley front panel to trolley panels.

Phillips-head screw 3/16" x 3/8"

Qty: 2

Black

Phillips-head screw 3/16" x 3/8"

Qty: 2

Black

Ref # 45

Ref # 47

crew

Ref # 52

Ref # 53

Upper bracket

Right trolley panel

Ref # 44

Ref # 47

crewdriver

Ref # 46

Ref # 47

NOTE: The upper bracket

must be inside the trolley

panels.

Page 209/09/13 13:50PM

P80184044A

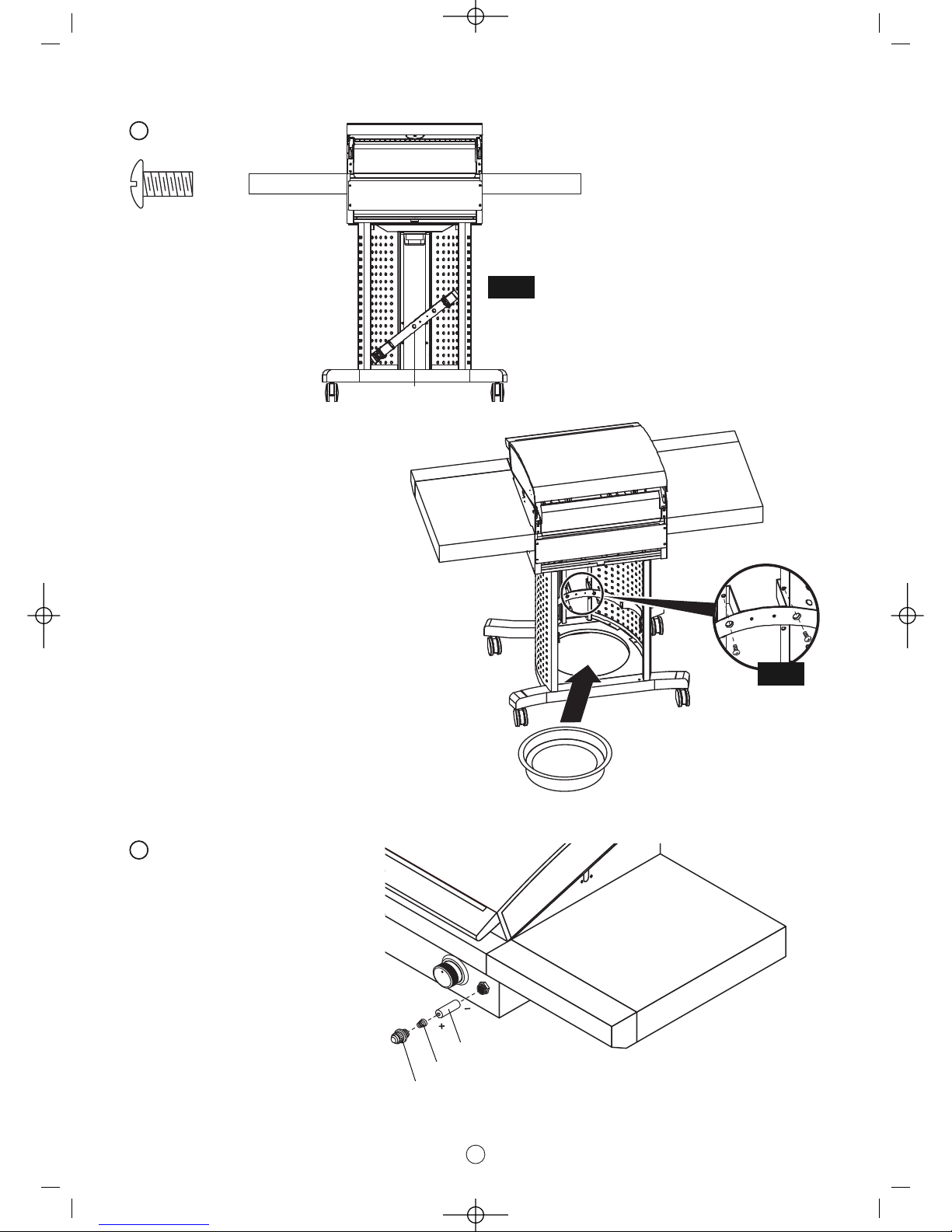

Attach castors.

Install rear trolley frame bracket.

Wrench 14 mm

Qty: 1

Black

Phillips-head screw 1/4" x 23/8"

Qty: 2

Stainless steel colour

Attach front trolley frame bracket.

Phillips-head screw 1/4" x 23/8"

Qty: 2

Stainless steel colour

Rear, Ref # 50

Front, Ref # 51

Ref # 54

Ref # 51

Ref # 50

Page 309/09/13 13:50PM

P80184044A

Attach side shelves.

Phillips-head screw 1/4" x 1/2"

Qty: 8

Black

Ref # 37, 39a, 39b, 41

Ref # 36, 38a, 38b, 40

Ref # 51

Attach grill head to trolley.

Phillips-head screw 1/4" x 3/8"

Qty: 2

Black

Phillips-head screw 3/16" x 3/8"

Qty: 2

Black

Page 409/09/13 13:50PM

P80184044A

Install cylinder holder.

Phillips-head screw 3/16" x 3/8"

Qty: 2

Black

Ref # 48, 49

1ST

2ND

Install ignition battery.

Unscrew the cap from the ignition module.

Insert the AA battery with the ‘+’ terminal

facing outwards. Screw cap on.

AA battery

pring

Cap

Page 509/09/13 13:50PM

P80184044A

NOTE: Locate the pin on

the flame tamer into the

hole in the bowl ledge.

The flame tamer locates

underneath the grill plate.

Grill plate

Ref # 8

Flame tamer

Ref # 9

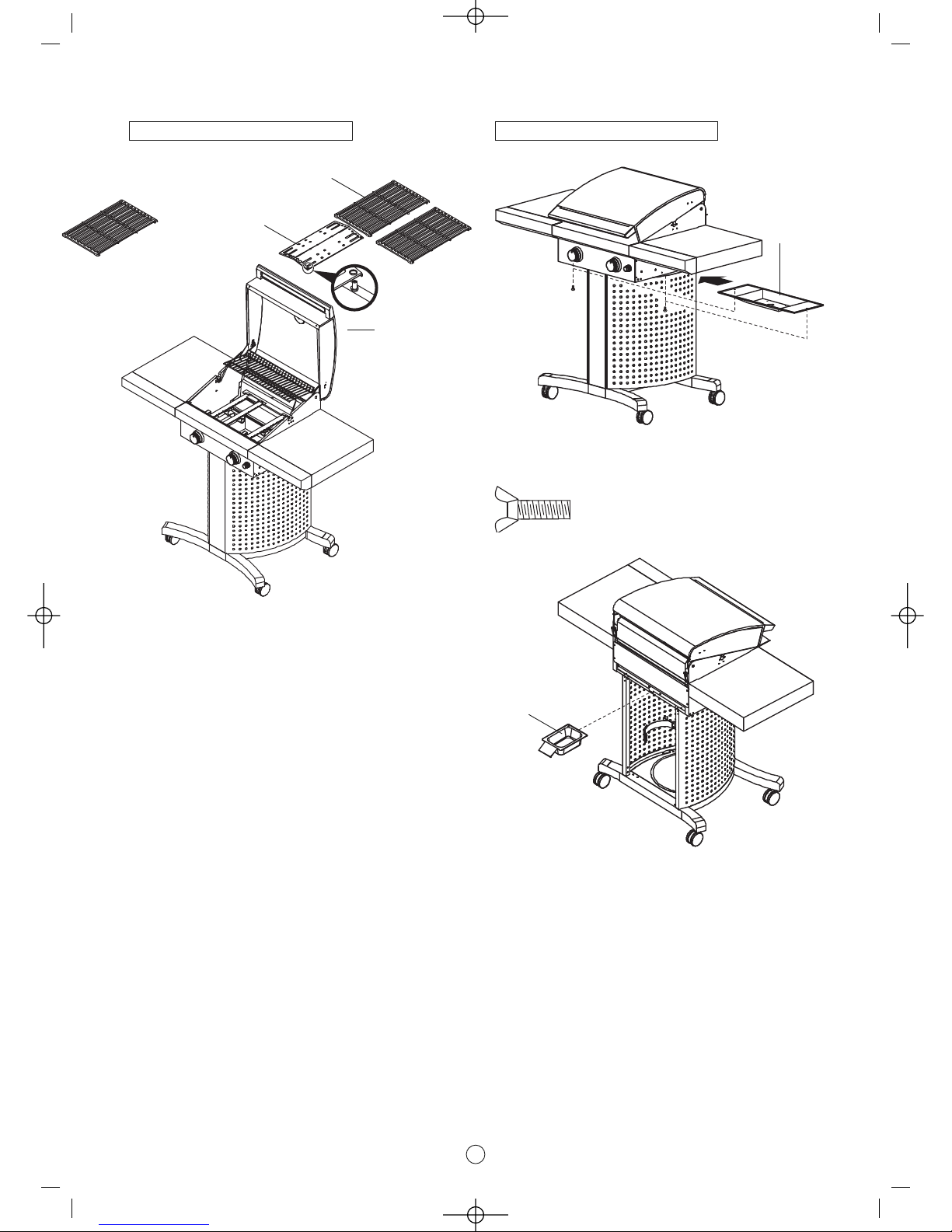

COOKING COMPONENT INSTALLATION INSTALL GREASE TRAY / RECEPTACLE

After installing grease tray, secure with the two wing-head screws

supplied.

Ref # 32

Ref # 34.

Do not line

this tray with

foil

Wing-head screw 3/16" x 5/8"

Qty: 2

Black

Page 609/09/13 13:50PM

P80184044A

INSTALLING GAS CYLINDER AND

CONNECTING TO GAS SO RCE

DO NOT OBSTR CT THE VENTILATION

OPENINGS IN THE TROLLEY.

NE PAS BO CHER LES O VERT RES DE

VENTILATION DANS LE CHARIOT.

NICHT DIE VENTILATIONSÖFFN NGEN IM

WAGEN BLOCKIEREN.

NON OSTR IRE LE APERT RE DI

VENTILAZIONE DEL CARRELLO.

DE VENTILATIEOPENINGEN IN DE TROLLEY

NIET BLOKKEREN.

BLOCKERA EJ VENTILATIONSHÅLEN

I GRILLBAREN.

KÄRRYN T LET SA KKOJA EI SAA

PEITTÄÄ.

NO OBSTR YA LAS ABERT RAS DE

VENTILACIÓN DEL CARRITO.

NÃO OBSTR A AS ABERT RAS DE

VENTILAÇÃO NO TRÓLEI.

VENTILATIONSÅBNINGEN I TROLLEYEN MÅ

IKKE SPÆRRES.

VENTILASJONSÅPNINGENE PÅ TRALLEN MÅ

IKKE TILDEKKES.

NIE BLOKOWAC OTWORÓW

WENTYLACYJNYCH NA WÓZK

WARNINGS INFORMATION

IT PL ´

LEAK CHECK GAS CONNECTIONS

Page 709/09/13 13:50PM

P80184044A

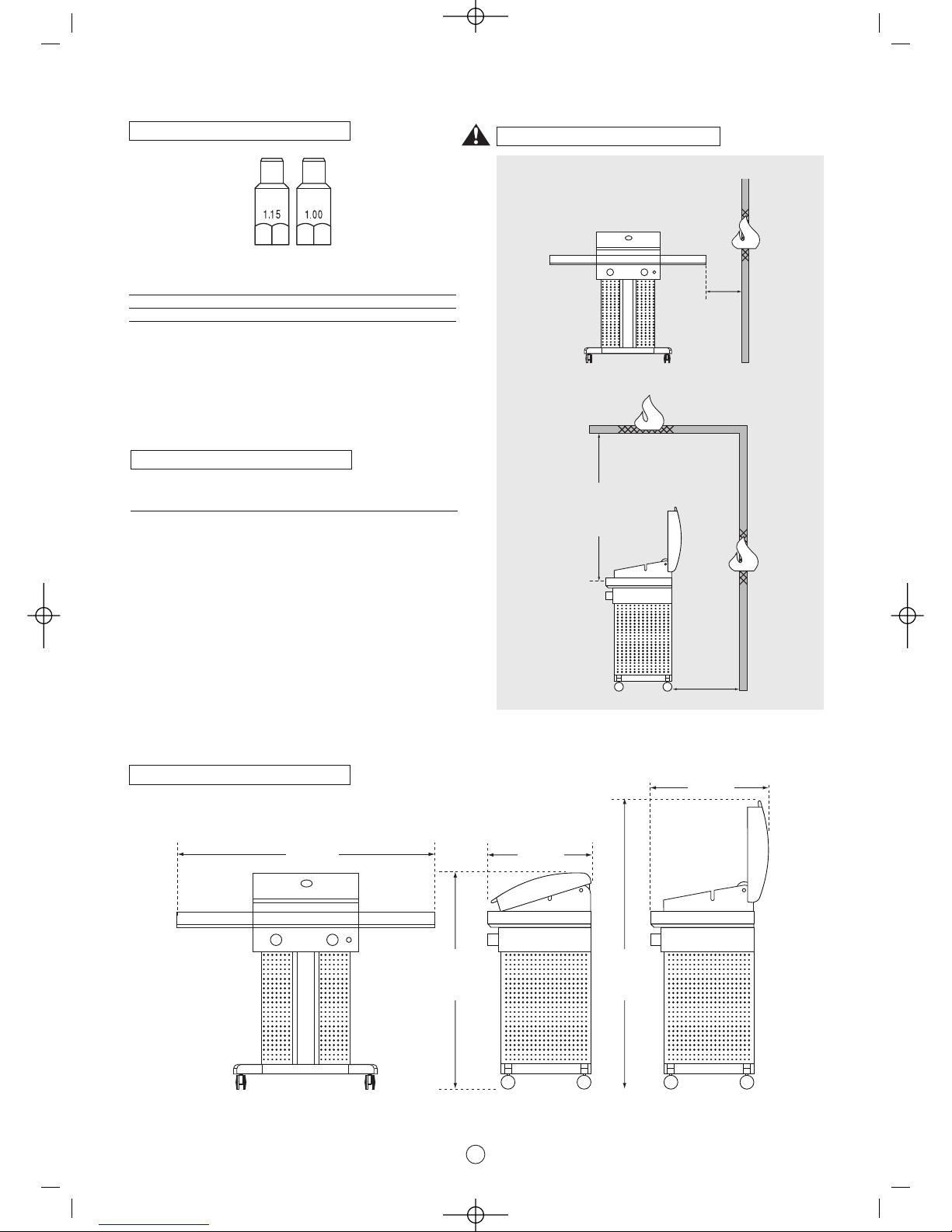

•Main 1.15 mm – I 3+ (28-30/37)

– I 3B/P (30)

1.00 mm – I 3B/P (50)

•Main 11.6 kW – 842 grams / h

• MINIM M CLEARANCES FROM COMB STIBLE MATERIALS M ST BE:

REAR - 450 mm

SIDES - 250 mm

TOP - 1000 mm

WARNINGS INFORMATION

INJECTOR

INP T

DIMENSIONS

1200 mm 600 mm

450 mm

1160 mm

675 mm

1565 mm

1000 mm

250 mm

Page 809/09/13 13:50PM

P80184044A

COOKING WITH HOOD DOWN

COOKING WITH HOOD OPEN

250˚

Page 909/09/13 13:50PM

P80184044A

This diagram is provided to assist you identify parts

if replacement is necessary. Contact your place of

purchase or the manufacturer to enquire about

parts, availability and or service.

Items included in your barbecue may differ from the

Parts List, depending on region or specific dealer

specifications.

PARTS DIAGRAM

35b

42 35a

38a

38b

39a

39b

Page 10

09/09/13 13:50PM

P80184044A
