GRAINPRO®COLLAPSIBLE DRYER CASE II™

INSTRUCTION MANUAL

MA4022JMJ0412-8

2/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

GrainPro®Inc.

5520 Connecticut Avenue. NW Washington, DC 20015

Tel : +1 202-921-6700

Email : [email protected]om

GrainPro®Philippines, Inc.

Lot 46 Efficiency Avenue, Subic Bay Gateway Park I, Subic Bay Freeport Zone 2222 Philippines

Phone: +63 47 252 7884 Fax: +63 47 252 7885 Website: www.grainpro.com

Email: salesasia@grainpro.com

GrainPro®(Inc) Kenya Ltd.

Space Apartments, GF Shop A1 & A2 Maimahui Rd. Nairobi West, Kenya

Tel: +254 796 904 144

Tel.: +254 791 222 169

Email: africa@grainpro.com

GrainPro®Nigeria Ltd

6, Adu Street, Aguda-Ogba, Ikeja, Lagos

Email: [email protected]om

Tel: +234 806 564 3156

GrainPro®Mexico, S de RL de CV

Cto. Garona No. 903, Sección Tres, Col. Amberes, 37237,

León, Gto. Mexico

Mobile: +52 (477) 392 0851

Email: guillermo@grainpro.com

GrainPro®Costa Rica S.R.L.

Residencial Valle del Sol, Calle Lajas, Casa #27 Alto de las Palomas,

Santa Ana, San José, Costa Rica

Tel : +506 2282 9129

Email : infogpcr@grainpro.com

GrainPro®India Post-Harvest Technology Pvt. Ltd.

Office Number 18A109, WeWork Berger Tower 18th Floor,

C-001/A2, Sector 16-B, Noida, INDIA –201301

Landline: +91 120 515 0017

Customer Service: +91 960 292 0202

Email: praveen.gupt[email protected]

GrainPro®Inc., 1401 K Street NW, Suite 502, Washington D.C. 20005 USA

3/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

TABLE OF CONTENTS

1. INTRODUCTION.......................................................................................................................4

2. CHECKLIST..............................................................................................................................5

3. COMPONENTS ........................................................................................................................6

4. SPECIFICATIONS ....................................................................................................................6

5. WARNINGS ..............................................................................................................................6

6. INSTALLATION.........................................................................................................................7

Site selection........................................................................................................................7

Preparation ..........................................................................................................................7

Loading ................................................................................................................................7

Commodity thickness and mixing frequency .......................................................................8

Closing the zipper ................................................................................................................8

Preventing condensation at night ........................................................................................8

Unloading.............................................................................................................................9

Deflating the air tube............................................................................................................9

7. MAINTENANCE AND CARE ....................................................................................................9

Replacement of air tube.......................................................................................................9

Repairing punctures and other damages.............................................................................9

Cleaning.............................................................................................................................10

Safekeeping.......................................................................................................................10

Recycling ...........................................................................................................................10

8. FREQUENTLY ASKED QUESTIONS ....................................................................................10

9. WARRANTY CLAUSE............................................................................................................11

4/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

1. INTRODUCTION

The GrainPro®Collapsible Dryer Case II™ (CDC II™) is a low-cost portable dryer for effective,

safe, and convenient drying of various agricultural commodities. It uses solar energy, which is

the simplest and most economical drying method. With the use of CDC II™, agricultural

commodities are guaranteed to be dried with minimum losses and with minimal operational

expenses.

CDC II™ is specially designed for easier set up and operation. Made from woven coated PE

which is twice as strong as ordinary tarpaulin and two times lighter than reinforced PVC, CDC

II™ is easy to carry around. It has inflatable side walls made of PE tube. During nighttime or in

case of rain, CDC II™ can be easily folded with the use of pulling straps. The heavy-duty zipper

and flap cover will prevent entry of moisture or water, protecting the commodity from moisture

re-adsorption. It is supplied with a foot pump, cloth duct tape and operating manual.

1.1. FEATURES:

1.1.1. Enable drying of grains on almost any flat surface

1.1.2. Fast and easy to installation by inflating the side walls

1.1.3. Does not need fuel or electricity

1.1.4. Reduces losses caused by spillage

1.1.5. Enables rapid closing with the use of pulling straps, heavy duty zipper, and flap cover in case

of rain

1.1.6. Lightweight and easy to transport

1.1.7. Easy to repair and maintain

1.2. PRODUCT GUARANTEE:

1.2.1. In accordance with the terms and conditions herewith, GrainPro, Inc. fully guarantees the quality

of this product provided it is used according to the instructions in this manual.

1.2.2. Please read and understand the manual thoroughly before using the CDC II.

1.3. COMMENTS, COMPLAINTS, AND/OR CLARIFICATIONS:

1.3.1. Please contact customerca[email protected].

1.3.2. All queries will be answered by our team of post-harvest solutions experts.

5/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

2. CHECKLIST

Please inspect your GrainPro® CDC II™ to ensure that the package includes the following items:

PART NAME

DESCRIPTION


2.1. BODY

2.1.1. With pulling straps and

zipper cover.

2.1.2. One (1) piece

2.2. FOOT PUMP

2.2.1. Mechanical pump for

inflating PE air tube.

2.2.2. One (1) unit

2.3. PNEUMATIC

HOSE

2.3.1. Extension/adapter

tube for foot pump.

2.3.2. One (1) piece

(4.88mm dia.)

2.4. AIR TUBE (PE)

2.4.1. Inserted inside the

side wall.

2.4.2. Two (2) pieces

2.5. REPAIR KIT

2.5.1. Duct tape

2.5.2. One (1) roll

6/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

2.6. INSTRUCTION

MANUAL

2.6.1. Installation

instructions.

2.6.2. Maintenance

instructions.

2.6.3. Frequently asked

questions

2.6.4. Warranty clause.

3. COMPONENTS

4. SPECIFICATIONS

PARAMETERS

CDC II™ -25

CDC II™ -44

CDC II™ -75

Drying Area, m2(ft2)

(269)

(474)

(807)

Dimension (LW), cm (inch)

915x300

(360x118)

1,595x300

(628x118)

1,325x595

(522x234)

Capacity, bags

(@50kg/bag)

110.23lbs/bag). Based on

Paddy

Packed Weight, kg (lbs)

(Without Pallet)

(35)

(60)

(79)

Packed Dimension, cm

(inch)

105x85x5

(42x34x2)

105x85x9

(42x 34x4)

105x85x15

(42x34x6)

Main Material

Woven Coated PE

Color

Black

Thickness, mm (inch)

0.50

(0.02)

7/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

Material Weight

, g/m

320

Product Life, years

5. WARNINGS!

5.1. Do not directly install the CDC II™ without clearing away debris and other foreign materials

on the ground.

5.2. Do not wear shoes with spikes as this might cause damage to the CDC II™.

5.3. Do not smoke beside or near the drying case, cigarette butts might burn and damage the

CDC II™.

5.4. Do not use tools/accessories with sharp edges as these may cause tears/cuts to the liner.

5.5. Do not allow loading vehicles (i.e., forklift/trucks) to run over the CDC II™ as this will cause

damage to the liner.

5.6. Do not keep the CDC II™ unclean as this will lead to rodent’s attack. (Refer to 7.3)

6. INSTALLATION

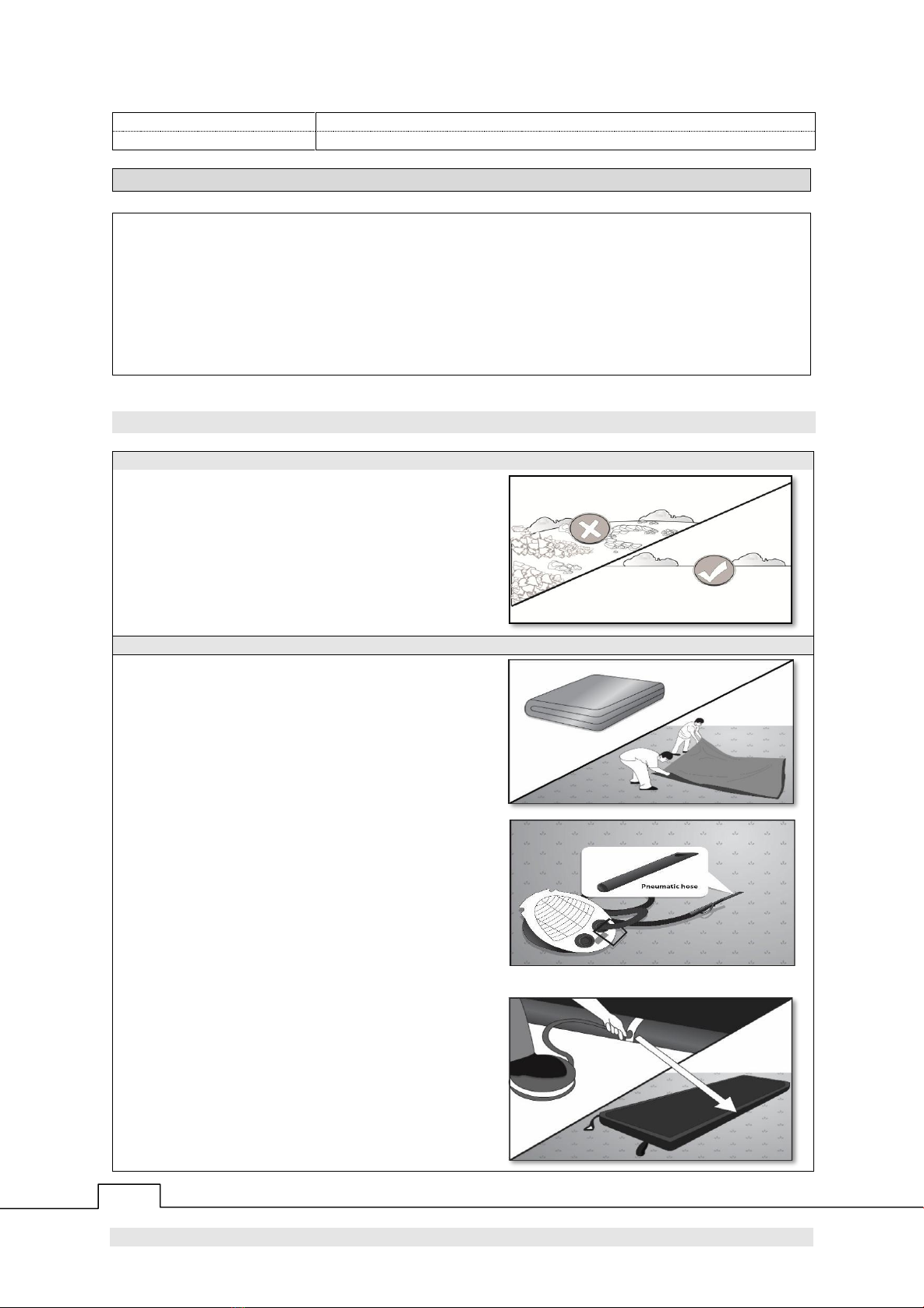

6.1.SITE SELECTION

6.1.1. In selecting a site, look for:

a. A smooth area away from standing or

running water.

b. Open area for maximum absorption of

solar radiation.

6.2. PREPARATION

6.2.1. Unfold the CDC II™ on the leveled ground.

Take note of the folding pattern while the

CDC II™ is being unfolded. This pattern

should be followed when folding back the

CDC II™ for safe keeping.

6.2.2. Inflate the air tubes using the foot pump to

provide a wall-like structure to the CDC

II™.

a. Insert the pneumatic hose by pushing

inside the valve of the foot pump.

b. Connect the valve of the foot pump into

the inlet valve of the air tube and fill it

up with air by pumping.

NOTE:

After filling up the air tube with air,

simply detach the foot pump from the

air tube and close the inlet valve.

8/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

6.3. LOADING

6.3.1. Loading procedure requires at least two

people:

a. One person fills the CDC II™ by

pouring the commodity from bags or

buckets.

b. The second person spreads the

commodities evenly to a recommended

commodity bed thickness.

6.3.2. Ensure that tools/accessories being used

do not have sharp edges as these may

cause tears/cuts in the liner. Wooden

tools/accessories are recommended. Use

plastic or wooden rake to attain even

distribution of commodities.

6.4. COMMODITY THICKNESS AND MIXING FREQUENCY

6.4.1. Commodity bed thickness:

This is a major parameter to be considered

in sun drying especially for seeds and

coffee. Consult experts on recommended

bed thickness for your specific commodity

based on local atmospheric conditions. As

a rule of thumb, a bed thickness of 4 cm

will result in attaining even drying.

6.4.2. Regular mixing:

This is another major parameter to be

considered as atmospheric conditions,

specifically heat and wind, vary from to

location. As a rule of thumb, mix

commodities every 30 minutes to attain

equal drying. Frequent mixing will speed

up the drying process and improve its

quality. Turning of commodities using a

wooden rake to prevent damage to the

CDC II™ is recommended.

9/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

6.5. CLOSING THE ZIPPER

6.5.1. In cases of sudden rain or if when

commodities are needed to be dried on the

following day, move commodities to one

side of the CDC II™ (the side where there

is no zipper cover). Use the other side to

cover the other side using the pulling

straps.

6.5.2. Closing and opening of the heavy-duty

zipper can be easily done.

6.6. PREVENTING CONDENSATION AT NIGHT

6.6.1. Condensation is caused by fluctuations in temperature that usually result from day/night

temperature variations. Condensation may take place at a minimum variance of 5°C.

6.6.2. To prevent condensation in situations where the commodities should be retained in the CDC

II™ overnight, it is recommended (BEFORE CLOSING THE CDC II™) that the commodity

temperature be lowered closer to the average night temperature.

6.7. UNLOADING

6.7.1. Transfer the commodities to the bags

when the commodities have reached their

equilibrium moisture content.

6.7.2. Scoop the dry commodities using plastic

or wooden ladle with no sharp edges back

into bags.

6.7.3. Do not use tools/equipment with sharp

edges as these may cause tears/holes

and damage the liner. Use plastic

spades/shovels, with round corners, to

empty the CDC II™.

10/12

GrainPro®Collapsible Dryer Case II™ Instruction Manual

MA4022JMJ0412-8

6.8. DEFLATING THE AIR TUBE

6.8.1. To remove the air from the air tube, simply

open the two inlet valves.

6.8.2. This will cause the air to freely come out of

the air tube.

7. MAINTENANCE AND CARE

7.1.REPLACEMENT OF AIR TUBE

7.1.1. When the side wall cannot be inflated, the

air tube inside is damaged. It is

recommended to replace the air tube with

a new one. To replace it, attach one end of

the spare air tube to the old air tube. Then,

old, and new PE air tubes are connected

for pulling.

7.1.2. Carefully pull the other end of the old tube.

The old PE tube releases while the new

PE tube is re-inserted inside the sidewall.

NOTE:

▪Air tubes are especially designed and

are only available at GrainPro®.

7.2. REPAIRING PUNCTURES AND OTHER DAMAGES

7.2.1. Use the patching material and adhesive

found in the repair kit:

a. Clean the area to be patched with a

damp cloth or organic solvent.

b. Apply glue (150-200g) on both

surfaces with a brush or equivalent.

c. Let it dry for 5-10 minutes and stick

and apply sufficient pressure.

7.2.2. Protective maintenance:

a. Check the patched WPE occasionally and replace or re-patch if necessary.

7.3. CLEANING

7.3.1. Clean the CDC II™ with soap and water.

7.3.2. Dry under the sun.

Otros manuales para COLLAPSIBLE DRYER CASE II

Tabla de contenidos

Otros manuales de Maquinaria agrícola de GrainPro

GrainPro

GrainPro TRANSAFELINER Manual de usuario

GrainPro

GrainPro TRANSAFELINER BULK Manual de usuario

GrainPro

GrainPro GRAINSAFE BAG-1.0 Manual de usuario

GrainPro

GrainPro TRANSAFELINER MA4081RAD1219-01 Manual de usuario

GrainPro

GrainPro TRANSAFELINER MA3001RR0208-21 Manual de usuario

GrainPro

GrainPro TRANSAFELINER Manual de usuario

GrainPro

GrainPro GRAINSAFE 1.0/GHF Manual de usuario

Manuales populares de Maquinaria agrícola de otras marcas

GSi

GSi PNEG-2314 Manual de usuario

Checchi & Magli

Checchi & Magli TEXDRIVE Manual de usuario

Amazone

Amazone Cenius 4003-2TX Manual de usuario

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manual de usuario

Cima

Cima BLITZ Instrucciones de funcionamiento y mantenimiento

Amazone

Amazone CombiDisc 3000 Instrucciones de instalación

HE-VA

HE-VA Disc-Roller XL Contour Manual de usuario

AGT

AGT AGT-SSFM Manual de usuario

Milestone

Milestone 72-84 Manual de usuario

KUHN

KUHN Hector 3000 Manual de usuario

Krone

Krone X-Disc 6200 Manual de usuario

Eliet

Eliet DZC450 Manual de usuario

Taarup

Taarup BIO+ B4000 Manual de usuario

Garland

Garland SHAKER 310 DPG Manual de usuario

stable comfort

stable comfort StableWall System Manual de usuario

Raven

Raven AccuBoom Manual de usuario

International

International 710 Manual de usuario

Ashland

Ashland HDW-3217-14 Manual de usuario
