Graco TexSpray GTX 2000 Operation Manual de usuario

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

309915D

Operation

TexSpray GTX™ 2000

US Patents D502,532; 7,114,664

- For Water-Based Materials Only-

Model: 248082

Sprayer with Graco Trigger Gun

120 psi (8.27 bar) Maximum Working Air Pressure

120 psi (8.27 bar) Maximum Working Fluid Pressure

Model: 248083

Sprayer with Graco Flex Gun

120 psi (8.27 bar) Maximum Working Pressure

120 psi (8.27 bar) Maximum Working Fluid Pressure

Model: 248084

Sprayer with Graco Pole Gun

120 psi (8.27 bar) Maximum Working Pressure

120 psi (8.27 bar) Maximum Working Fluid Pressure

Read all warnings and instructions.

308479

310616 model 248082

308603 model 248083 and 248084

309916

WLE

Warnings

2309915D

The following Warnings are for the safe setup, use, grounding, maintenance and repair of this equipment.

The exclamation point symbol alerts you to a general warning and the hazard symbols refer to

procedure-specific risks. Refer back to these Warnings.

Warning

Caution

WARNING

This symbol alerts you to the possibility of seri-

ous injury or death if you do not follow the

instructions.

CAUTION

Alerts you to the possibility of damage or destruction

of equipment if you do not follow the instructions.

Warnings

Fire and Explosion Hazard

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent

fire and explosion:

• Use equipment in well ventilated areas only.

• Do not fill fuel tank while motor is running or hot; shut off motor and let it cool. Fuel is flammable and

can ignite or explode if spilled on hot surface.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electrical lamps, and plastic

drop cloths (potential static arc).

• Keep work area free of debris, including solvent, rags, and gasoline.

• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.

Carbon Monoxide Hazard

Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon mon-

oxide can cause death. Do not operate in an enclosed area.

Equipment Misuse Hazard

Equipment misuse can cause death or serious injury.

• Do not exceed maximum working pressure or temperature rating of lowest rated system compo-

nent. See Technical Data, in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings.

• Check equipment daily. Repair or replace worn or damaged parts immediately.

• Do not alter or modify this equipment.

• Use the equipment only for its intended purpose. Call your Graco distributor for information.

• For professional use only.

• Route hoses away from traffic areas, sharp edges, moving parts and hot surfaces.

• Do not use hoses to pull equipment.‘

• Comply with all applicable safety regulations.

Warnings

309915D 3

WARNINGS

Burn Hazard

Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe

burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.

Pressurized Equipment Hazard

Compressed air can inject in skin. Air tubing rupture can cause injury if disconnected while under

pressure. To reduce risk of injury:

• Never exceed maximum working pressure of any attachment.

• Do not direct airstream at body.

• Follow Pressure Relief Procedure, page 6 whenever you are instructed to relieve pressure, stop

spraying, service equipment, install or clean spray nozzle or disconnect or connect hose.

Cleaning Solvent Hazard with Plastic Parts

Use only compatible water-based solvents to clean plastic structural or pressure-containing parts. Many

solvents can degrade plastic parts to the point where they could fail. Such failure could cause serious

injury or property damage. See Technical Data on page 21 of this instruction manual and in all other

equipment manuals. Read fluid and solvent manufacturer’s warnings.

Personal Protective Equipment

Wear appropriate protective equipment when operating, servicing or when in the operating area of this

equipment to help protect yourself from serious injury, including eye injury, inhalation of toxic fumes,

burns and hearing loss. This equipment includes, but is not limited to:

• protective eye wear

• clothing and respirator as recommended by fluid and solvent manufacturer

• hearing protection

•gloves

CAUTION

Water or material remaining in unit when temperatures are below freezing can damage pump and/or delay startup.

To insure water and material are completely drained out of unit:

1. Remove material line from sprayer.

2. Tip sprayer to allow material (water) to flow out of pump inlet.

Before adding material or starting unit in cold weather, run warm water through pump.

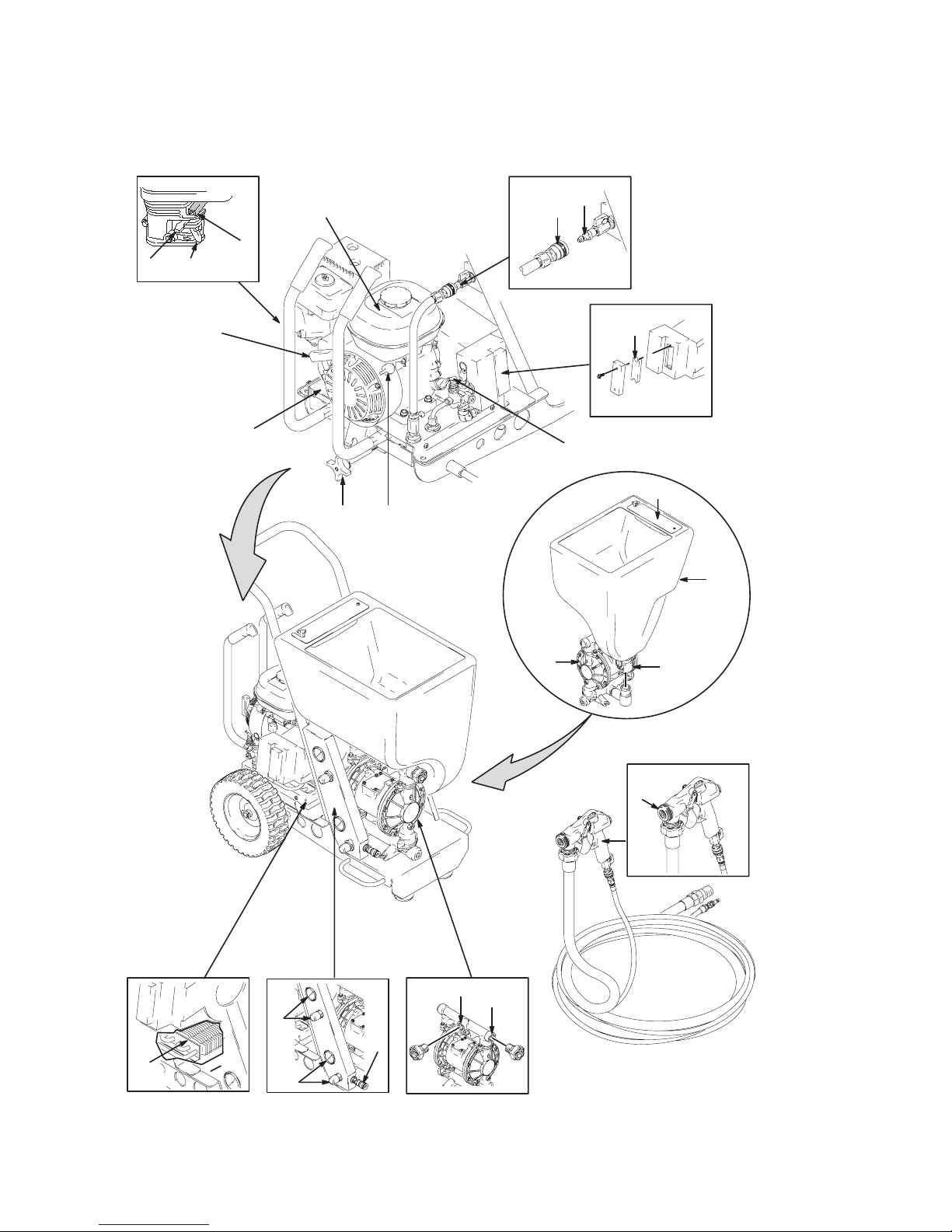

Component Identification

4309915D

Component Identification

WLE

)

Component Identification

309915D 5

Component Identification

* Reference numbers used in gun illustrations coincide with reference numbers shown in gun manual 308878

AGas Tank

BFuel Valve

CChoke

DThrottle Lever

EEngine ON/OFF Switch

FNozzle Storage

GHopper

HHopper Quick Connect

JDiaphragm Pump

KMaterial Outlet Option 1

LMaterial Outlet Option 2

MAir Cooler

NGun Air Outlet Quick Connect

PAir Filter (both sides)

QAir Line Quick Connect

REngine Starter Cord

SMotor Lock Knob

TMaterial (Pump) Air Pressure Gage and Control Knob

UGun Air Pressure Gage and Control Knob

VSprayer Quick Connect Air In and Air ON/OFF Valve

WPressure Unloader

YGun (see manual 308878)*

ZCompressor Power Pack

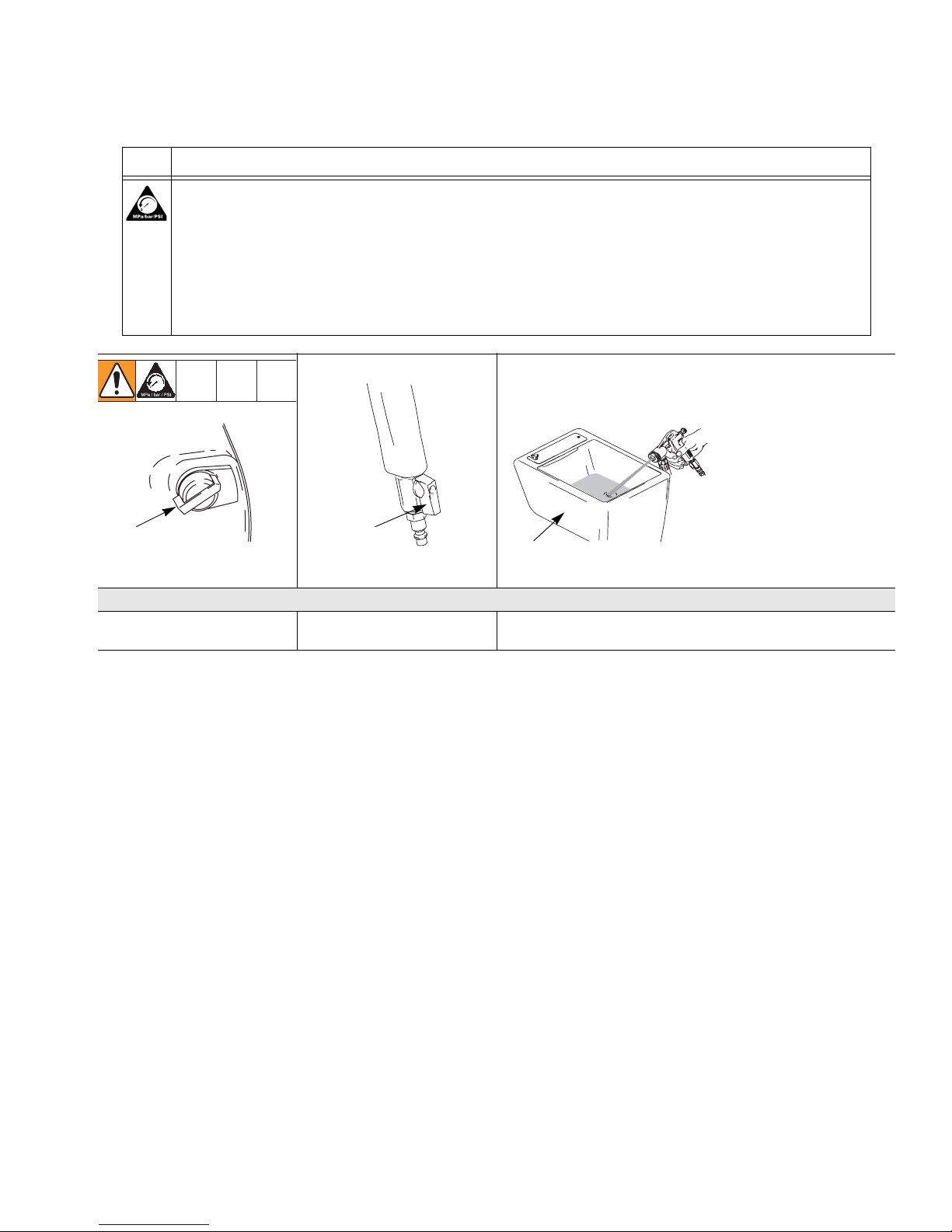

Pressure Relief Procedure

6309915D

Pressure Relief Procedure

IMPORTANT

To reduce the risk of injury, follow this Pressure Relief Procedure whenever you:

• Are instructed to relieve pressure

• Stop spraying

• Service equipment

• Install or clean spray nozzle

• Disconnect or connect hose.

1 Turn Engine ON/OFF (E)

switch OFF.

2 Open gun air valve (23). 3 Trigger gun. Spray material back into hopper (G).

TI3037A

OFF

TI

ti3903a

Setup

309915D 7

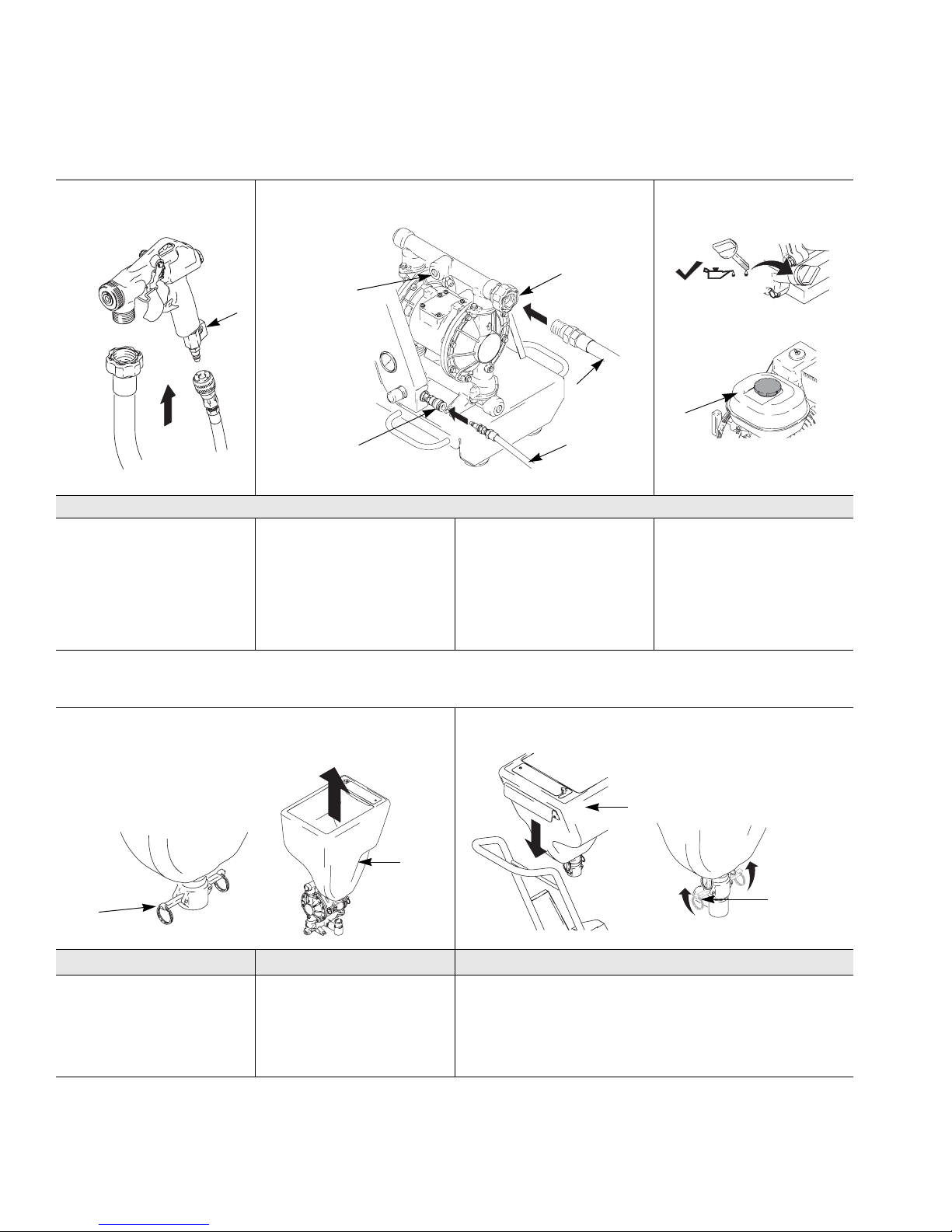

Setup

Preparation

4 Connect air and material

hoses to gun. Tighten

securely).

5 Connect one end of material

hose (cc) to material outlet (K

or L) and the other end to gun

material inlet (bb).

NOTE: Material plug must be

installed in material outlet (K or

L) you are not using.

6 Open gun air valve (23). 7 Check engine oil level. Add

SAE 10W-30 (summer) or

5W-20 (winter) oil, if neces-

sary.

8 Fill fuel tank (A) (Fueling, page

13).

Removing & Installing Hopper

Removing Hopper (G) Installing Hopper (G)

The hopper (G) can be removed

from cart for cleaning and when

using the Siphon Kit 248112,

available from your Graco

distributor.

1 Push down 2 latches on each

side of hopper coupler (H).

Lift hopper (G) straight up, off

of unit.

2 Position coupler (H) over material outlet and slide hopper (G)

straight down, over the fitting as far as it will go, making sure hopper

bracket is positioned over cart handle rod.

Secure latches on each side by pushing them, firmly up, into locked

position.

ti4003a

WLE

Ndd

ti3908a

TI3056A

ti3900a

ti3899a

ti3902a

ti3925a

Setup

8309915D

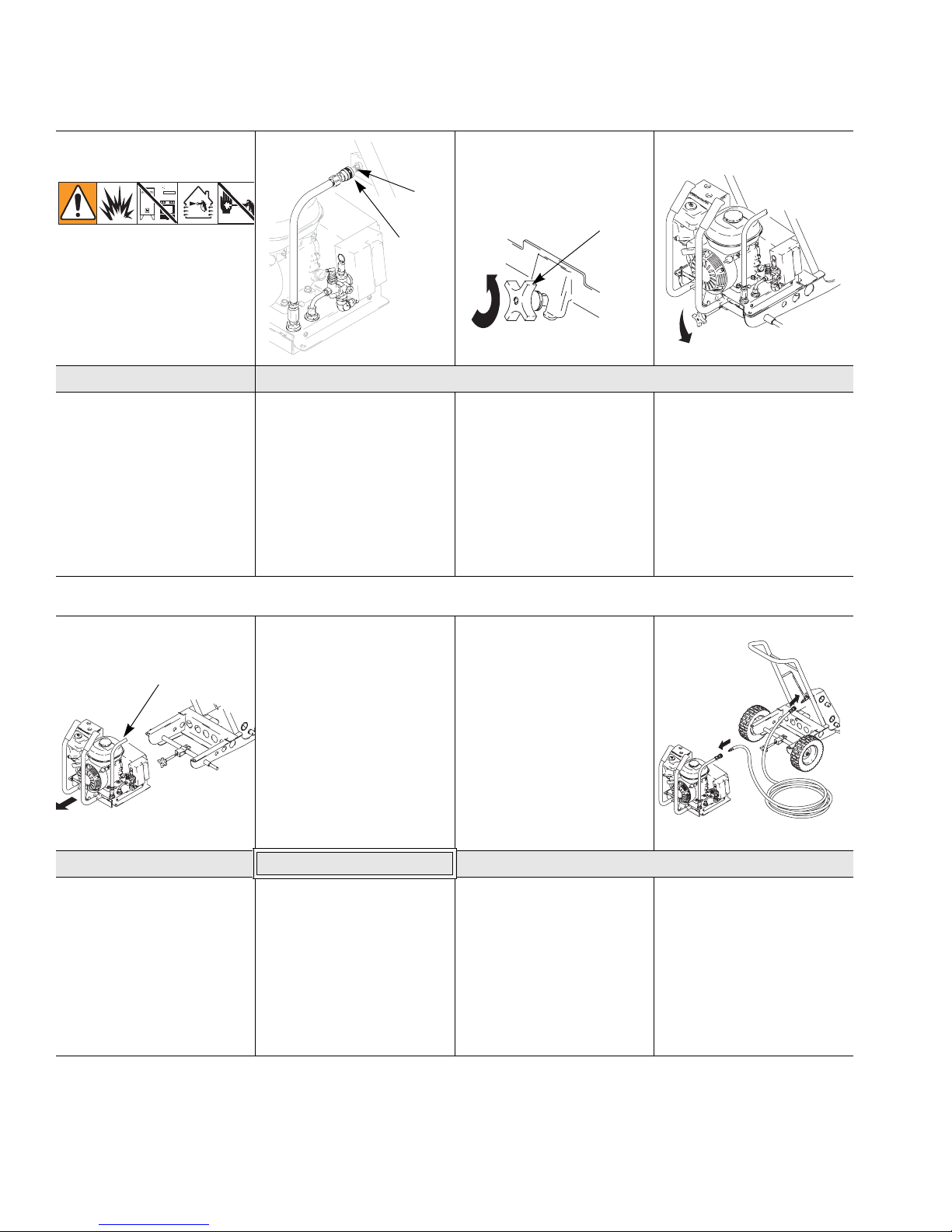

Compressor Power

Pack

Removing Compressor Power Pack (Z)

For outdoor use, the compressor

power pack (Z) can be left on the

cart.

For indoor use, the compressor

power pack (Z) must be separated

from the sprayer and placed

outdoors, A longer air hose (not

provided) must be used to connect

the sprayer to the compressor

power pack (Z). See Running

Compressor Remotely, page 8.

1 Disconnect air line quick

connect fitting (Q) from

compressor air quick connect

inlet fitting (V).

2 Loosen motor lock knob (S) by

turning it counter-clockwise,

relieving tension on bracket.

3 Push knob down.

CAUTION Running Compressor Remotely

4 The compressor power pack

(Z) slides off the back of the

cart.

Place compressor power pack

on a hard, level surface where

cooling air can circulate freely

through cooler and a minimal

amount of dirt and dust is drawn

into it. Placing compressor

power pack on a soft, uneven

surface such as dirt, grass or

sand, can plug air cooler (M),

resulting in overheating and

damage to motor.

1 A longer air hose (not

provided) must be used to

connect the sprayer to the

compressor power pack (Z)

when the two components are

separated. (Hose Kit 248117,

containing a 50 ft hose is

available from your Graco

distributor.)

2 Attach the longer air hose to

the air line quick connect fitting

(Q) and to the compressor air

quick connect inlet fitting (V).

ti3784a

ti3891a

ti3959a

Setup

309915D 9

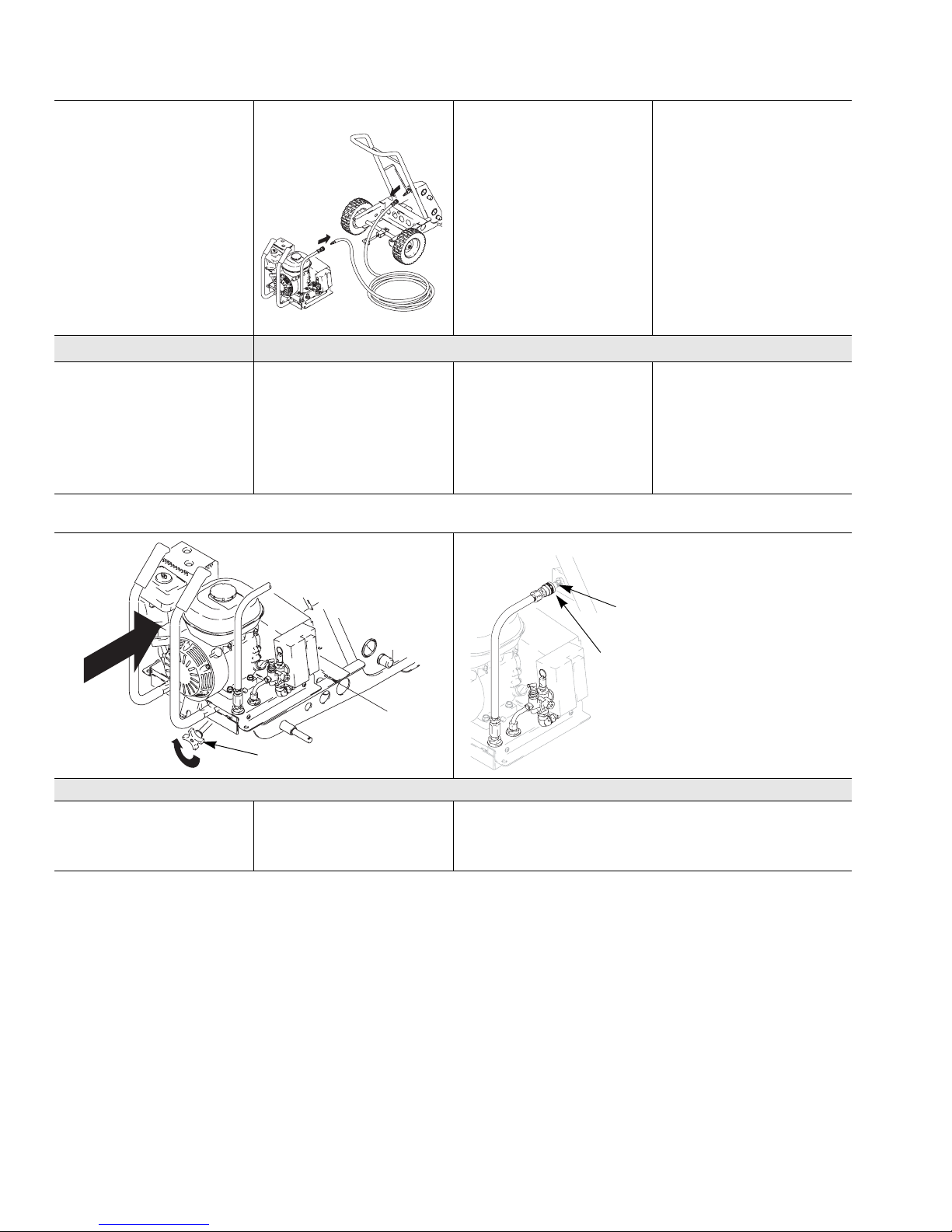

Reinstalling Compressor Power Pack (Z)

Note: For maximum performance

use a 3/8 in. or 1/2 in. inside

diameter hose.

Hose must be rated for:

• 200°F (93°C) maximum

temperature

• 125 psi or greater

1 Disconnect air hose from the

compressor power pack quick

disconnect fitting (dd) and from

the cart air quick disconnect

fitting (V).

2 Inspect cart and compressor

power pack (Z). Remove any

debris or dirt on side rails of

cart and/or compressor power

pack.

3 Using handles, lift compressor

power pack (Z) onto cart

frame.

4 Push compressor power pack

(Z) forward, until front edge

meets tabs on cart base.

5 Lift and turn motor lock knob

(S) until compressor power

pack (Z) is securely attached

to cart.

6 Attach air line quick connect fitting (Q) to compressor air quick con-

nect inlet fitting (V).

ti3959a

ti3782a

tabs

Setup

10 309915D

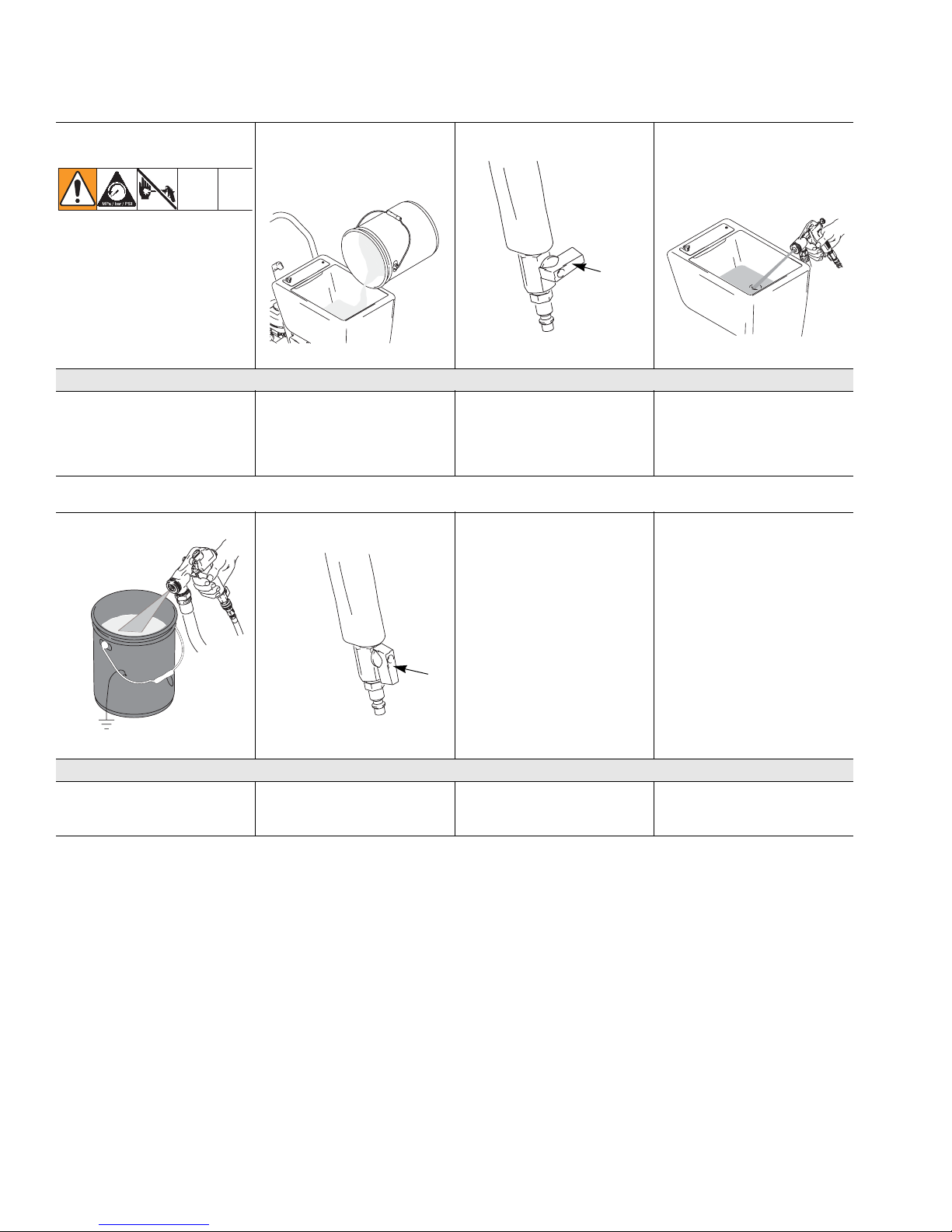

Wetting Hose

Wet inside of hose before each use

to flush out sediment and prevent

texture material from packing out

hose.

1 Pour one (1) gallon (3.8 liters)

of clean water into hopper.

2 Close gun air valve (23). 3 Start engine, page 15. Aim gun

into hopper (G) and trigger gun

to circulate water for a few min-

utes to wet inside of material

hose.

4 Trigger gun into waste pail until

hopper no longer contains

water.

5 Open gun air valve (23) to

relieve compressor air.

water

ti3898a

closed

ti4005a

ti3903a

WASTE

ti4290a

TI

Otros manuales para TexSpray GTX 2000 Operation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Pistola pulverizadora de pintura de Graco

Graco

Graco GM3000 Manual de operación

Graco

Graco PRO AA4000 Manual de usuario

Graco

Graco Magnum X5 Manual de uso y cuidado

Graco

Graco 235-463 Manual de operación

Graco

Graco GMax 308870 Instrucciones de funcionamiento

Graco

Graco 259079 Manual de instalación

Graco

Graco 190ES 232909 Manual de instrucciones

Graco

Graco MAGNUM PRO fineX H5 Manual de instrucciones

Graco

Graco Ultra 395 Manual de usuario

Graco

Graco MAGNUM PROJECT PAINTER PLUS Manual de usuario

Graco

Graco 3A4803A Guía

Graco

Graco 26C624 Manual de usuario

Graco

Graco 390 Electric Airless Sprayer Manual de usuario

Graco

Graco Ultra Guía

Graco

Graco XP70 Manual de lista de piezas

Graco

Graco UNICARB Pro AA4500 Manual de operación

Graco

Graco Pro Xp H60T10 Manual de usuario

Graco

Graco C Series Manual de operación

Graco

Graco Fusion 2004230905 Manual de usuario

Graco

Graco 210ES 261830 Instrucciones de funcionamiento

Graco

Graco 390 390 Manual de usuario

Graco

Graco 232160 Manual de usuario

Graco

Graco magnum pro plus a20 Instrucciones de funcionamiento

Graco

Graco NOVA Plus l 824-002 Manual de usuario

Manuales populares de Pistola pulverizadora de pintura de otras marcas

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manual de usuario

Binks

Binks SV100 Manual de usuario

Fimco

Fimco LG-4-3-1 Manual de usuario

AG SPRAY

AG SPRAY FS-ATV-25BL Manual de usuario

Nordson

Nordson MicroMax 2 Manual de usuario

Bonide

Bonide 051 Manual de operación

zogics

zogics Z-DAS Manual de usuario

KISANKRAFT

KISANKRAFT KK-KBS-165 Manual de usuario

Matrix

Matrix SG 650 Manual de usuario

Anest Iwata

Anest Iwata SGA-3 Guía de inicio rápido

paasche

paasche VV Hoja de datos

Carlisle

Carlisle DeVilbiss JGA-510 Manual de usuario

Gardena

Gardena 11120 Manual de usuario

Conrad

Conrad Hobby Airbrush K3 Manual de usuario

wiwa

wiwa 14025 R/F Manual de usuario

DeVilbiss

DeVilbiss LUNA2i Manual de usuario

WAGNER

WAGNER W 125 Manual de usuario

My Clean Buddy

My Clean Buddy PW018 Manual de usuario
