Graco STX 17Y910 Guía

3A6746B

Operation, Parts

STX™Air Spray Trigger Gun

For portable spraying of water-based materials. Can be used for application of

solvent-based materials only when solvent compatible seals are installed and solvent

compatible, conductive hoses are used. For professional use only.

Not approved for use in European explosive atmosphere locations.

Model 17Y910

Requires up to 30 SCFM (0.83 m3/min) air

1000 psi (7.0 MPa, 70 bar) Maximum Working Pressure

125 psi (0.9 MPa, 9 bar) Maximum Air Working Pressure

Important Safety Instructions

Read all warnings and instructions in this manual and in

the T-Max operation manual before using the equipment.

Save these instructions.

Related Manuals:

3A6748 T-Max Operation, Repair, Parts

Warnings

23A6746B

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The

exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When

these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.

Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual

where applicable.

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or solvent

flowing through the equipment can cause static sparking. To help prevent fire and explosion:

• Use equipment only in well-ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop

cloths (potential static sparking).

• Ground all equipment in the work area.

• Never spray or flush solvent at high pressure.

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are

present.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they are

anti-static or conductive.

•Stop operation immediately if static sparking occurs or you feel a shock.Do not use equipment until you

identify and correct the problem.

• Keep a working fire extinguisher in the work area.

SKIN INJECTION HAZARD

High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a

cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or

servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses and couplings daily. Replace worn or damaged parts immediately.

Warnings

3A6746B 3

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Specifications in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Specifications

in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about

your material, request Safety Data Sheets (SDSs) from distributor or retailer.

• Do not leave the work area while equipment is energized or under pressure.

• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine

manufacturer’s replacement parts only.

• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create

safety hazards.

• Make sure all equipment is rated and approved for the environment in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical

reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property

damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids

containing such solvents.

• Do not use chlorine bleach.

• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for

compatibility.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye

injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

Pressure Relief Procedure

43A6746B

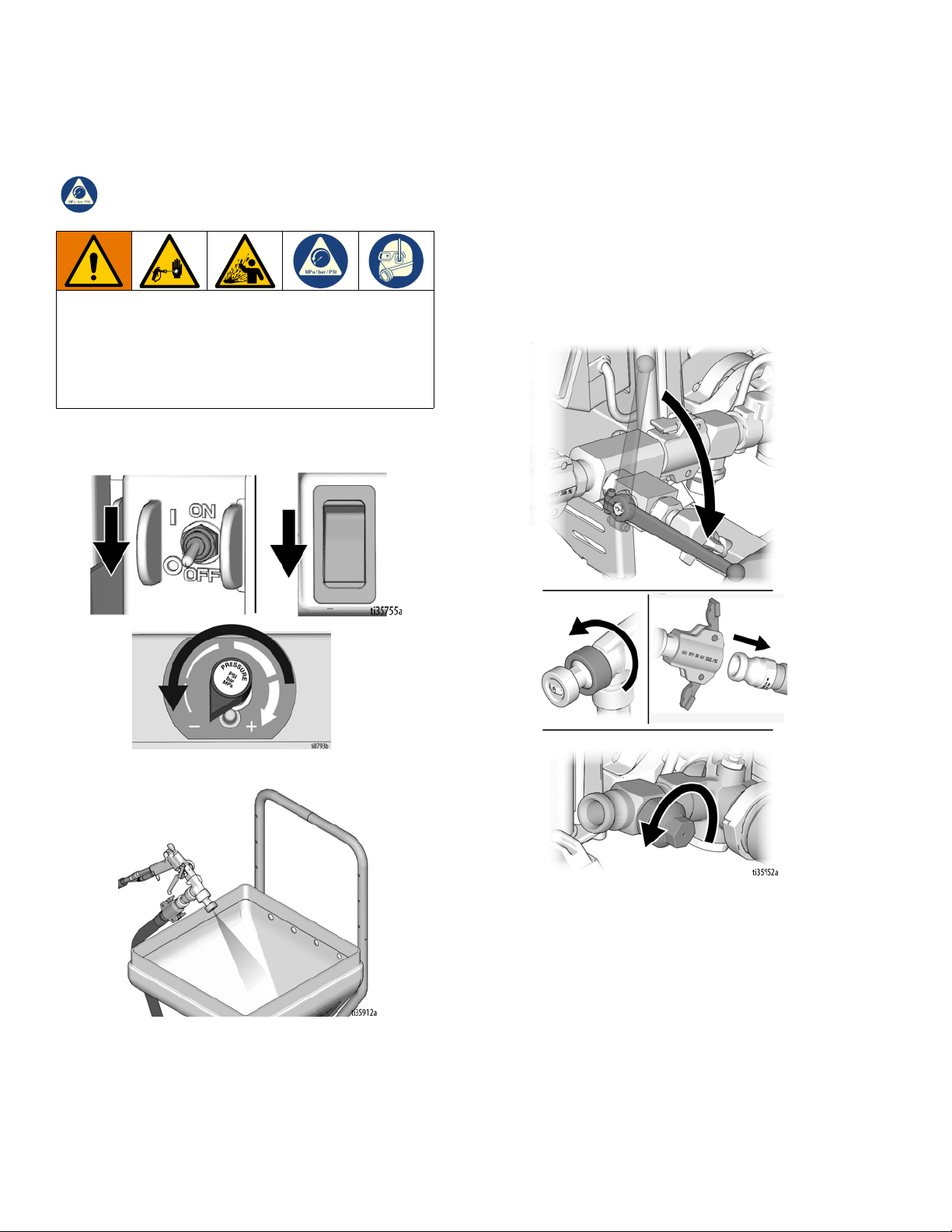

Pressure Relief Procedure

Follow the Pressure Relief Procedure whenever

you see this symbol.

1. Turn ON/OFF switch OFF and turn pressure control

knob fully counterclockwise to OFF position.

2. Point applicator into hopper. Turn applicator ON.

3. If you suspect the spray tip or hose is clogged or

that pressure has not been fully relieved:

a. If installed, turn prime valve down to prime

position.

b. VERY SLOWLY loosen the retaining ring (3),

hose end coupling (41), or pressure relief valve

on the sprayer to relieve pressure gradually.

c. Loosen the nut or coupling completely.

d. Clear the obstruction in the hose or tip.

NOTE: If pressure relief valve was used to relieve

pressure, be sure to disassemble and clean thoroughly.

This equipment stays pressurized until pressure is

manually relieved. To help prevent serious injury from

pressurized fluid, such as skin injection, splashing

fluid and moving parts, follow the Pressure Relief

Procedure when you stop spraying and before

cleaning, checking, or servicing the equipment.

Pressure Relief Procedure

3A6746B 5

Flush the Equipment

(Solvent-Based Materials)

• Flush before changing materials, before fluid can

dry or cure in the equipment, at the end of the day,

before storing, and before repairing equipment.

• Flush with a fluid that is compatible with the fluid

being dispensed and the equipment wetted parts.

• Flush at the lowest pressure possible. Check con-

nectors for leaks and tighten as necessary.

• Do not leave the gun or any parts in water or clean-

ing solvents.

1. Follow Pressure Relief Procedure, page 4.

2. Remove nozzle or disk by loosening retaining ring

(3).

3. Remove air control valve (12) and clean all residue

from air passages.

4. Hold a metal part of the gun firmly to a grounded

metal pail. Trigger the gun until clean solvent

dispenses.

5. Store in a dry location.

To avoid fire and explosion, always ground equipment

and waste container. To avoid static sparking and

injury from splashing, always flush at the lowest

possible pressure.

Setup

63A6746B

Setup

Connect Gun to Sprayer

1. Attach material hose to sprayer fluid outlet. Attach

air hose to air compressor.

2. Connect signal wire, then air hose and material

hose, tightening securely.

NOTE: When disconnecting signal wire, press and slide

down the red tab on the connector.

Install Nozzle

1. If equipment has recently been operated, Pressure

Relief Procedure, page 4.

2. For a round pattern, install round nozzle (5) and

tighten threaded retaining ring (3) as shown in Fig 1.

3. For a flat pattern, remove retaining ring (3). Place

adapter housing (4) over round nozzle (5) and

secure with threaded retaining ring (3). Install disk

(2) and secure with retaining nut (1). See Fig 2.

NOTE: See sprayer Operation manual for

instructions on how to start and prime sprayer.

Operation

3A6746B 7

Operation

Adjust Spray Pattern

NOTE: See T-Max Operation Manual for more details.

1. Remove spray disk and adaptor and rings so only

the nozzle is left on the front of the gun.

2. Turn applicator ON and adjust sprayer to determine

fluid flow and pressure. A good starting point is to

adjust fluid flow until you have an 9 in. (20 cm)

stream.

3. Clean off any material that oozed out of the air holes

in the round nozzle.

4. Attach spray disk, adapter, and hand-tighten rings.

Hold gun 18 to 30 in. (0.5 to 0.8 m) from a test

surface and turn on air needle valve to allow air to

atomize fluid. Test spray pattern.

5. Adjust air needle valve to achieve desired spray

pattern. NOTE: More fluid flow = more air; Less fluid

flow = less air.

6. If the desired spray pattern cannot be achieved, try

adjusting air pressure or try another spray disk and

nozzle combination.

7. When done spraying, release trigger. The fluid

passage will stay open, relieving pressure. Pressure

is relieved when fluid stops flowing.

8. When pressure is relieved, press trigger stop button

to close fluid passage.

Cleanup

Thoroughly flush STX spray trigger gun after each work

session before fluid begins to cure in gun. Store in a dry

location. Do not leave the applicator or any parts in water or

cleaning solvents.

Operation

83A6746B

Fluid Nozzle and Spray Disc Selection

Six spray disks and five nozzles are supplied with the sprayer. These parts can be interchanged to produce a pattern

suitable for each job. Use the chart below to help determine the right combination for your application.

Helpful Hints

• A spraying distance of 18 to 30 in. (0.5 to 0.8 m) is

recommended for most applications.

• Keep the gun triggered and moving as much as

possible.

• Set gun trigger latch to hold trigger open and reduce

operator fatigue on large surface areas.

• Simulated acoustic material with polystyrene texture

compresses easily so system pressure builds up

more slowly.

• When spraying elastomerics, maintain a wet edge.

Spray vertical passes followed by horizontal passes.

Then hold the gun further away and “dust” the area

to blend the pattern.

• To spray ceilings as high as 9 to 12 ft (3 to 4 m)

without using stilts or scaffolding, use more

pressure and open gun Air Needle Valve more to

project material onto ceiling.

• Check material consistency periodically. The

material may thicken as it sits and slow down

production. Check and thin material as needed to

maintain proper consistency.

• Relieve pressure fully before closing fluid passage

when spraying aggegrate material. Aggregate

material under pressure has a high risk of causing

packout in the gun.

• When not spraying for extended periods of time,

perform Pressure Relief Procedure, page 4.

Application WideTex™ Disc Nozzle (mm) Air Volume

Hardened

Simulated Acoustic - Fine W6H 4 high

- Medium W8H 6 high

- Course W10H 8- 10 high

Fog W4H 4 high

Orange peel W4H or W6H 4 - 8 medium to high

Splatter coat W6H or W8H 6 - 10 low to medium

Knockdown W6H or W8H 6 - 8 low

Maintenance

3A6746B 9

Maintenance

1. Perform Pressure Relief Procedure, page 4.

2. Remove disk and nozzle assembly.

3. Remove trigger (25).

4. Unscrew air control valve (12) and clean.

5. Use a 3/8 in. hex key wrench to unscrew

head bolt (11).

6. Unscrew spring and valve guide (16). Remove

o-ring (18) and gasket (17).

7. Using a 3/8 socket, remove trigger stop bushing

(27), ball bearing (29), and trigger stop spring (30).

Inspect bore and remove any material build up.

8. Clean and inspect all parts. Replace worn or

damaged parts.

9. Lubricate all packings, o-rings and moving parts.

Reassemble the gun.

30 29

Parts 17Y910

10 3A6746B

Parts 17Y910

Ref. Part Description Qty.

1 17Y924 NUT, retaining 1

2 SPRAY TIP DISKS

24S114 TIP, disk, spray, W4, hardened 1

24S115 TIP, disk, spray, W6, hardened 1

24S116 TIP, disk, spray, W8, hardened 1

24S117 TIP, disk, spray, W10, hardened 1

24S118 TIP, disk, spray, W12, hardened 1

24S119 TIP, disk, spray, WXL, hardened 1

3 17Y931 RING, retaining 1

4 17Y923 HOUSING, adapter 1

5 GUN ROUND NOZZLE (all sizes included)

17Z563 NOZZLE, gun, 4mm 1

17Z564 NOZZLE, gun, 6mm 1

17Z565 NOZZLE, gun, 8mm 1

17Z566 NOZZLE, gun, 10mm 1

17Z567 NOZZLE, gun, 12mm 1

6 17Y925 VALVE, stem 1

7 119343 RING, retaining, threaded 1

8 17Z163 SEAL, u-cup 1

9 17Y914 BODY, spray gun, front 1

10 160217 PIN, pivot 1

11 160233 BOLT 1

12 17Z413 KIT, air control valve 1

13 160231 SCREW, fluid valve regulating 1

14 111966 SPRING, fluid valve 1

15 160227 ROD, push, fluid valve 1

16 160232 GUIDE, spring and valve 1

17 156082 O-RING 2

18 150925 GASKET, copper 1

19 203953 LOCKSCREW, trigger 1

20 17Y911 BODY, gun 1

21 160215 LATCH, trigger 1

22 17Y938 ADAPTER, air inlet 1

23 156454 O-RING 1

24 17Y915 SWITCH, reed, cartridge 1

25 17Z346 TRIGGER 1

26 17Y927 BUTTON, trigger stop 1

27 17Y926 BUSHING, trigger stop 1

28 29029 RING, retaining 1

29 101956 BALL, bearing 1

30 17Y929 SPRING, trigger stop 1

31 161319 SPRING, air valve 1

32 177139 POPPET, valve 1

33 17Y939 STEM, air valve 1

34 160910 GASKET, non-metalic 1

35 160229 SEAT, air valve 1

36 160240 PACKING, air valve stem 1

37 160228 NUT, packing, air valve stem 1

38 17Y919 ADAPTER, swivel 1

39 124796 O-RING 1

40 17Y920 SWIVEL, assembly 1

41 289874 COUPLER, female 1

Ref. Part Description Qty.

Tabla de contenidos

Otros manuales de Pistola pulverizadora de pintura de Graco

Graco

Graco GH 130 Convertible Manual de usuario

Graco

Graco TexSpray GTX 2000 Operation Manual

Graco

Graco 237-418 Manual de operación

Graco

Graco Ultra Max II 695 Manual de operación

Graco

Graco LineLazer IV 200HS Manual de uso y cuidado

Graco

Graco T-MAX 506 Manual

Graco

Graco 309092F Manual de usuario

Graco

Graco RTX 1500 Manual de uso y cuidado

Graco

Graco ProMix PD2K Manual de uso y cuidado

Graco

Graco Pro Xp L40T10 Manual de lista de piezas

Graco

Graco 17P481 Manual de uso y cuidado

Graco

Graco MAGNUM PROJECT PAINTER PLUS Manual de instrucciones

Graco

Graco CX-7 Manual de usuario

Graco

Graco Hydra-Spray B Series Manual de usuario

Graco

Graco MAGNUM 261800 Manual de usuario

Graco

Graco dutymax gh 300 Instrucciones de funcionamiento

Graco

Graco 231-351 Manual de operación

Graco

Graco 231-315 Series Manual de operación

Graco

Graco LINE LAZER GM 5000 Series Hoja de datos

Graco

Graco IronMax V Manual técnico

Graco

Graco 495st Manual de instrucciones

Graco

Graco LINE LAZER A Series Hoja de datos

Graco

Graco 965022 Manual de usuario

Graco

Graco 309410 Guía de inicio rápido

Manuales populares de Pistola pulverizadora de pintura de otras marcas

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manual de usuario

Binks

Binks SV100 Manual de usuario

Fimco

Fimco LG-4-3-1 Manual de usuario

AG SPRAY

AG SPRAY FS-ATV-25BL Manual de usuario

Nordson

Nordson MicroMax 2 Manual de usuario

Bonide

Bonide 051 Manual de operación

zogics

zogics Z-DAS Manual de usuario

KISANKRAFT

KISANKRAFT KK-KBS-165 Manual de usuario

Matrix

Matrix SG 650 Manual de usuario

Anest Iwata

Anest Iwata SGA-3 Guía de inicio rápido

paasche

paasche VV Hoja de datos

Carlisle

Carlisle DeVilbiss JGA-510 Manual de usuario

Gardena

Gardena 11120 Manual de usuario

Conrad

Conrad Hobby Airbrush K3 Manual de usuario

wiwa

wiwa 14025 R/F Manual de usuario

DeVilbiss

DeVilbiss LUNA2i Manual de usuario

WAGNER

WAGNER W 125 Manual de usuario

My Clean Buddy

My Clean Buddy PW018 Manual de usuario
