Graco 17B587 Manual de usuario

Instruction

Glass Bead Dispense Kits

For adding a second or wider bead box to the ThermoLazer 200 or 200TC.

To be used on 200/200TC models only.

Models

17B587 Kit: Adds a second 8” (20cm) bead box

17B361 Kit: Adds a second 12” (30cm) bead box

26D188 Kit: Replaces 8” (20cm) or 12” (30cm) bead box with 18” (45cm) bead box

Follow these instructions when adding the second bead box to an existing 8-inch (20cm) or 12-inch (30cm) bead

box or 18-inch (45cm) wide bead box on the ThermoLazer 200 or 200TC. Refer to the ThermoLazer Repair and

Operation manuals as need for additional information.

Related Manuals

IMPORTANT SAFETY INSTRUCTIONS

Read all warnings and instructions in ThermoLazer Operation manual.

Be familiar with the controls and the proper usage of the equipment.

Save these instructions.

Manual in

English Description

3A1319 ThermoLazer Operation

3A1320 ThermoLazer Repair

334146C

ti24490a

Preparation

2 334146C

Preparation

1. Close manual gas shut-off valve on propane tank.

2. Disconnect hose from tank.

3. Remove propane tank from unit.

4. Cut tie wrap that secures propane line to bead

hose.

5. Loosen screws on hose clamps and remove bead

hose from dispenser and bead hopper. Save for

reuse.

ti24109a

ti24489a

ti24499a

ti24502a

Preparation

334146C 3

6. Remove screws from bead hopper. Save for reuse.

Screws are accessible from the propane tank side

of the box.

7. Remove bead hopper. Dispose of bead hopper.

8. 17B587 & 17B361 only: Loosen screw and remove

bead dispenser engagement wheel. Dispose of

wheel and screw.

9. Install two angular inserts (A) on bead dispenser

with screws provided and tighten screws.

ti24504a

ti24506a

ti24514a

Installation

4 334146C

Installation

17B587 & 17B361 only

1. Slide rear bead box down through slots on angular

brackets to lock into place.

2. Slide single pulley over long axle.

3. Slide bead dispenser engagement wheel pulley

onto long axle.

4. Secure pulley and wheel into place with retaining

ring (engagement wheel with pulley will rotate

freely).

5. Slide pulley onto short axle.

ti24519a

ti24524a

ti24523a

ti24522a

ti24521a

Installation

334146C 5

6. Install belts onto pulleys.

7. Align pulleys as shown below and tighten screws.

8. Attach pulley guard and tighten two screws.

9. All Kits (17B587, 17B361 & 26D188): Install new

dual compartment bead box using screws saved in

Preparation Step 6.

10. Attach bead hose (Saved in Preparation Step 5.)

from rear bead box to rear dispenser and tighten

hose clamps.

11. Bead box 18” (26D107) and 18” bracket (18F306)

installed.

ti24520a

ti24525a

ti24528a

ti24527a

Installation

6 334146C

12. Attach bead hose from front bead box to front

dispenser and tighten hose clamps.

NOTE: The rear bead dispenser has a higher drop rate

than the front bead dispenser.

ti24529a

Notes

334146C 7

Notes

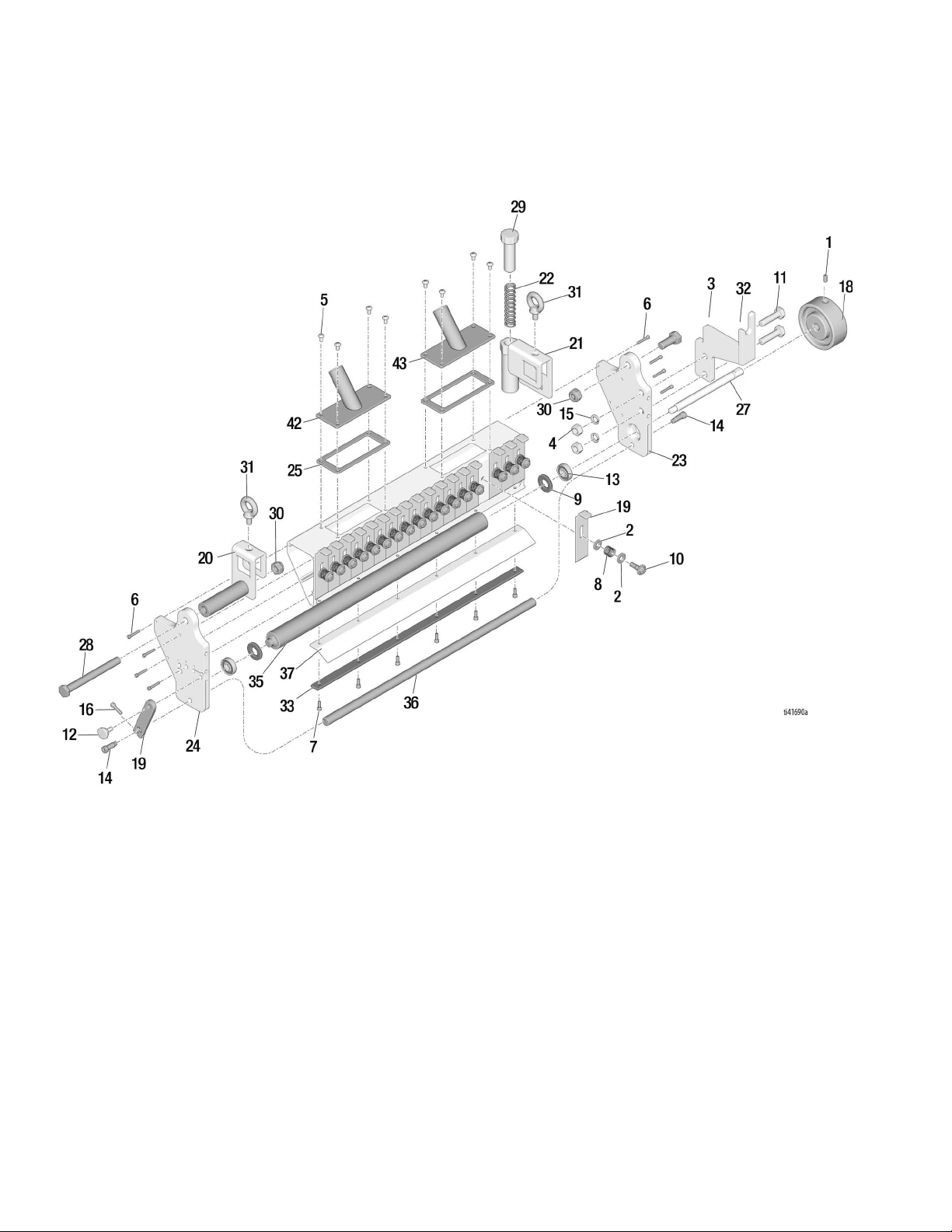

Parts 17B361, 17B587

8 334146C

Parts 17B361, 17B587

334146C 9

Parts List 17B361, 17B587

Ref. Part Description Qty.

1 123261 SCREW, thumb 1

2 123481 SCREW, shoulder, screw, 1/4-20 2

3 295709 SCREW, cap, socket head 1

4 15X282 HANDLE, adjuster 1

5 110631 SCREW, socket head 8

6 16Y163 BRACKET, left, bead dispenser 1

7 123304 BEARING, double sealed 2

8 114797 GASKET 2

9 GATE, poly 1

15X274 Kit 17B361

16Y164 Kit 17B587

10 GATE, bar 1

15X275 Kit 17B361

16Y164 Kit 17B587

11 112310 SCREW, cap, shoulder

Kit 17B587 3

Kit 17B361 4

12 SHAFT, adjuster 1

16Y166 Kit 17B587

15X281 Kit 17B361

13 16U612 PLATE, slide, 1"

Kit 17B587 8

Kit 17B361 12

14 114708 SPRING, compression

Kit 17B587 8

Kit 17B361 12

15 104034 WASHER, plain

Kit 17B587 16

Kit 17B361 24

16 119872 SCREW, shoulder

Kit 17B587 8

Kit 17B361 12

17 SHAFT, knurled 1

16Y161 Kit 17B587

16A333 Kit 17B361

18 16Y162 BRACKET, right, bead dispenser 1

19 16A805 SHAFT, short 1

20 HOUSING, dispenser 1

16Y160 Kit 17B587, 8” (20cm)

16Y172 Kit 17B361, 12” (30cm)

21 16Y168 GASKET, cover 1

22 16Y169 MANIFOLD, cover 1

23 106084 SCREW, machine, pan head 6

29 104705 SCREW, cap, shoulder 2

30 100050 SCREW, set, shoulder 4

31 113983 RING, retaining, ext. 1

32 16Y230 CLAMP, hose 2

33 17B456 BOX, double bead box 1

34 17B463 WHEEL, drive bead, assembly 1

35 17C509 HOSE, bead hose 20.5" 1

36 17B555 COVER, belt 1

37 514930 SCREW, cap, socket head 2

38 123526 BELT, outer 1

39 123527 BELT, inner 1

40 16A802 PULLEY, double 1

41 16A803 PULLEY, large 1

42 16A804 INSERT, bead box 2

44▲16A276 LABEL, ISO symbols warn &

instru

45 16E335 LABEL, brand, GRACO 2

46 16X975 LABEL, brand,

THERMOLAZER200TC, FR

47 16Y468 GASKET, beads box 1

▲ Replacement safety labels, tags, and cards are

available at no cost.

Ref. Part Description Qty.

Parts 26D188

10 334146C

Parts 26D188
