GORMAN-RUPP PUMPS 02K31-X2 1P Guía de aplicación

OM‐01171‐02

October 23, 2018

Rev. A 12‐10‐18

GORMAN‐RUPP PUMPS

www.grpumps.com

2018 Gorman‐Rupp Pumps Printed in U.S.A.

INSTALLATION, OPERATION,

AND MAINTENANCE MANUAL

WITH PARTS LIST

0 SERIES PUMP

MODEL

02K31-X2 1P

Gorman‐Rupp pump online at

www.grpumps.com/register.

Valid serial number and e‐mail address required.

RECORD YOUR PUMP MODEL AND SERIAL NUMBER

Please record your pump model and serial number in the

spaces provided below. Your Gorman‐Rupp distributor

needs this information when you require parts or service.

Pump Model:

Serial Number:

TABLE OF CONTENTS

INTRODUCTION PAGE I - 1.................................................

SAFETY - SECTION A PAGE A - 1...........................................

INSTALLATION - SECTION B PAGE B - 1....................................

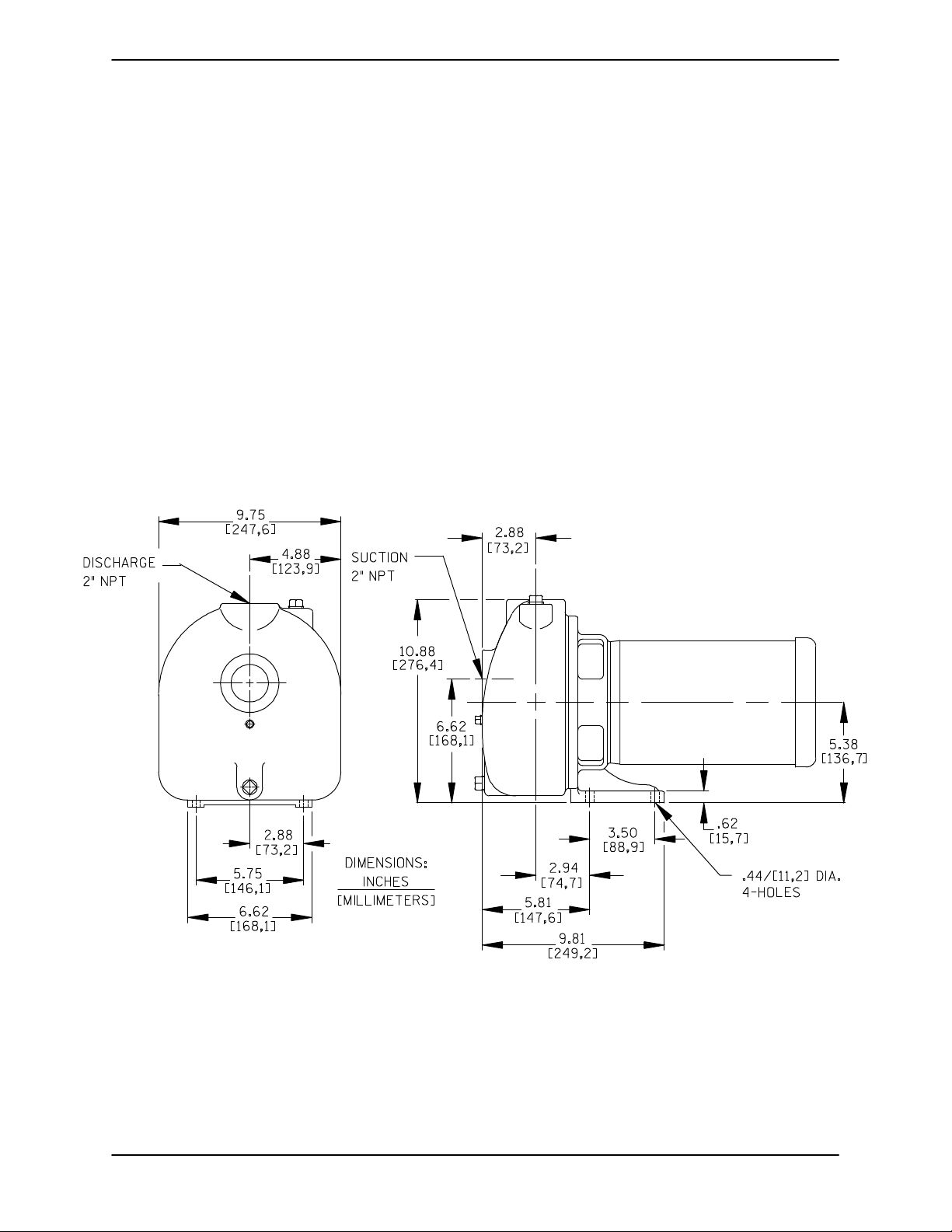

Pump Dimensions PAGE B - 1.....................................................

PREINSTALLATION INSPECTION PAGE B - 2............................................

POSITIONING PUMP PAGE B - 2.......................................................

Lifting PAGE B - 2.................................................................

Mounting PAGE B - 2.............................................................

SUCTION AND DISCHARGE PIPING PAGE B - 2.........................................

Materials PAGE B - 3..............................................................

Line Configuration PAGE B - 3......................................................

Connections to Pump PAGE B - 3..................................................

Gauges PAGE B - 3...............................................................

SUCTION LINES PAGE B - 3...........................................................

Fittings PAGE B - 3...............................................................

Strainers PAGE B - 3..............................................................

Sealing PAGE B - 3...............................................................

Suction Lines In Sumps PAGE B - 3.................................................

Suction Line Positioning PAGE B - 4................................................

DISCHARGE LINES PAGE B - 4........................................................

Siphoning PAGE B - 4.............................................................

Valves PAGE B - 4................................................................

Bypass Lines PAGE B - 5..........................................................

ELECTRICAL CONNECTIONS PAGE B - 5...............................................

OPERATION - SECTION C PAGE C - 1......................................

PRIMING PAGE C - 1.................................................................

STARTING PAGE C - 1................................................................

OPERATION PAGE C - 1..............................................................

Lines With a Bypass PAGE C - 1....................................................

Lines Without a Bypass PAGE C - 2.................................................

Leakage PAGE C - 2..............................................................

Liquid Temperature And Overheating PAGE C - 2.....................................

Strainer Check PAGE C - 2.........................................................

Pump Vacuum Check PAGE C - 2..................................................

STOPPING PAGE C - 3................................................................

Cold Weather Preservation PAGE C - 3..............................................

TROUBLESHOOTING - SECTION D PAGE D - 1..............................

PREVENTIVE MAINTENANCE PAGE D - 3...........................................

PUMP MAINTENANCE AND REPAIR - SECTION E PAGE E - 1................

PERFORMANCE CURVE PAGE E - 1...................................................

PARTS LIST:

TABLE OF CONTENTS

(continued)

Pump Model PAGE E - 3..........................................................

PUMP AND SEAL DISASSEMBLY AND REASSEMBLY PAGE E - 4.........................

Pump Disassembly PAGE E - 4.....................................................

Impeller Removal PAGE E - 5......................................................

Seal Removal and Disassembly PAGE E - 5..........................................

Seal Reassembly and Installation PAGE E - 5........................................

Impeller Installation PAGE E - 6.....................................................

Pump Reassembly PAGE E - 7.....................................................

Final Pump Assembly PAGE E - 7..................................................

LUBRICATION PAGE E - 7.............................................................

Seal Assembly PAGE E - 7.........................................................

0 SERIES OM-01171

PAGE I - 1INTRODUCTION

INTRODUCTION

Thank You for purchasing a Gorman‐Rupp pump.

Read this manual carefully to learn how to safely

install and operate your pump. Failure to do so

could result in personal injury or damage to the

pump.

This Installation, Operation, and Maintenance

manual is designed to help you achieve the best

performance and longest life from your Gorman‐

Rupp pump.

This pump is an 0 Series, enclosed impeller, self‐

priming centrifugal model with straight‐in suction,

without a suction check valve and close‐coupled to

an explosion‐proof electric motor. The pump is de

signed for handling clean liquids that do not con

tain large entrained solids. The basic material of

construction is ductile iron, with bronze impeller

and stainless steel impeller shaft.

If there are any questions regarding the pump or

its application which are not covered in this man

ual or in other literature accompanying this unit,

please contact your Gorman‐Rupp distributor, or:

The Gorman‐Rupp Company

P.O. Box 1217

Mansfield, Ohio 44901-1217

Phone: (419) 755-1011

or:

Gorman‐Rupp of Canada Limited

70 Burwell Road

St. Thomas, Ontario N5P 3R7

Phone: (519) 631-2870

For information or technical assistance on the mo

tor, contact the motor manufacturer's local dealer

or representative.

This manual will alert personnel to known proce

dures which require special attention, to those

which could damage equipment, and to those

which could be dangerous to personnel. However,

this manual cannot possibly anticipate and provide

detailed precautions for every situation that might

occur during maintenance of the unit. Therefore, it

is the responsibility of the owner/maintenance per

sonnel to ensure that only safe, established main

tenance procedures are used, and that any proce

dures not addressed in this manual are performed

only after establishing that neither personal safety

nor pump integrity are compromised by such prac

tices.

The following are used to alert maintenance per

sonnel to procedures which require special atten

tion, to those which could damage equipment, and

to those which could be dangerous to personnel:

Immediate hazards which WILL result in

severe personal injury or death. These

instructions describe the procedure re

quired and the injury which will result

from failure to follow the procedure.

Hazards or unsafe practices which

COULD result in severe personal injury

or death. These instructions describe

the procedure required and the injury

which could result from failure to follow

the procedure.

Hazards or unsafe practices which COULD

result in minor personal injury or product

or property damage. These instructions

describe the requirements and the possi

ble damage which could result from failure

to follow the procedure.

NOTE

Instructions to aid in installation, operation, and

maintenance or which clarify a procedure.

0 SERIES OM-01171

PAGE A - 1SAFETY

SAFETY - SECTION A

This information applies to 0 Series

electric motor driven pumps. Refer to

the manual accompanying the motor

before attempting to begin operation.

This manual will alert personnel to

known procedures which require spe

cial attention, to those which could

damage equipment, and to those which

could be dangerous to personnel. How

ever, this manual cannot possibly pro

vide detailed instructions and precau

tions for each specific application or for

every situation that might occur during

maintenance of the unit. Therefore, it is

the responsibility of the owner, installer

and/or maintenance personnel to en

sure that applications and/or mainte

nance procedures not addressed in this

manual are performed only after estab

lishing that neither personal safety nor

pump integrity are compromised by

such applications or procedures.

Before attempting to open or service the

pump:

1. Familiarize yourself with this man

ual.

2. Disconnect the incoming power to

the motor and lock it out to ensure

that the pump will remain inopera

tive.

3. Allow the pump to completely cool

if overheated.

4. Check the temperature before

opening any covers, plates, or

plugs.

5. Close the suction and discharge

valves.

6. Vent the pump slowly and cau

tiously.

7. Drain the pump.

This pump is designed to handle petro

leum products or other industrial liq

uids that do not contain large entrained

solids. Do not attempt to pump volatile,

corrosive, or flammable materials which

may damage the pump or endanger per

sonnel as a result of pump failure.

This pump is designed to handle petro

leum products or other industrial liq

uids that do not contain large entrained

solids. All controls must meet industry

standards and codes for use in an ex

plosive atmosphere. Do not attempt to

pump liquids for which the pump and/or

controls have not been approved, or

which may damage the pump or endan

ger personnel as a result of pump fail

ure.

Be certain proper safety practices are

followed before operating or servicing

the pump. Provide adequate ventilation,

prohibit smoking, wear static‐resistant

clothing and shoes. Clean up all fuel

spills immediately after occurrence.

Do not install and operate a non‐explo

sion proof motor in an explosive atmo

sphere. Install, connect, and operate

the motor in accordance with the Na

tional Electric Code and all local codes.

If there is a conflict between the instruc

tions in the manual accompanying the

unit and the National Electric Code or

0 SERIESOM-01171

PAGE A - 2 SAFETY

the applicable local code, the National

or local code shall take precedence.

Because this pump is designed to han

dle volatile and/or flammable liquids,

overheating may produce dangerous

fumes. Take precautions to ensure the

area surrounding the pump is ade

quately ventilated. Allow the pump to

cool and use extreme caution when

venting the pump, or when removing

covers, plates, plugs, or fittings.

After the pump has been positioned,

make certain that the pump and all pip

ing connections are tight, properly sup

ported and secure before operation.

Do not remove plates, covers, gauges,

pipe plugs, or fittings from an over

heated pump. Vapor pressure within the

pump can cause parts being disen

gaged to be ejected with great force. Al

low the pump to cool before servicing.

Do not operate the pump against a

closed discharge valve for long periods

of time. If operated against a closed dis

charge valve, pump components will

deteriorate, and the liquid could come

to a boil, build pressure, and cause the

pump casing to rupture or explode.

Overheated pumps can cause severe

burns and injuries. If overheating of the

pump occurs:

1. Stop the pump immediately.

2. Ventilate the area.

3. Allow the pump to completely cool.

4. Check the temperature before

opening any covers, plates,

gauges, or plugs.

5. Vent the pump slowly and cau

tiously.

6. Refer to instructions in this manual

before restarting the pump.

The electrical power used to operate

this pump is high enough to cause inju

ry or death. Obtain the services of a qu

alified electrician to troubleshoot, test

and/or service the electrical compo

nents of this pump.

Death or serious personal injury and

damage to the pump or components

can occur if proper lifting procedures

are not observed. Make certain that

hoists, chains, slings or cables are in

good working condition and of suffi

cient capacity and that they are posi

tioned so that loads will be balanced

and the pump or components will not be

damaged when lifting. Suction and dis

charge hoses and piping must be re

moved from the pump before lifting. Lift

the pump or component only as high as

necessary and keep personnel away

from suspended objects.

Pumps and related equipment must be in

stalled and operated according to all na

tional, local and industry standards.

OM-011710 SERIES

PAGE B - 1INSTALLATION

INSTALLATION - SECTION B

Review all SAFETY information in Section A.

Since pump installations are seldom identical, this

section offers only general recommendations and

practices required to inspect, position, and ar

range the pump and piping.

Most of the information pertains to a standard

static lift application where the pump is posi

tioned above the free level of liquid to be pumped.

If installed in a flooded suction application where

the liquid is supplied to the pump under pressure,

some of the information such as mounting, line

configuration, and priming must be tailored to the

specific application. Since the pressure supplied

to the pump is critical to performance and safety,

be sure to limit the incoming pressure to 50% of

the maximum permissible operating pressure as

shown on the pump performance curve.

For further assistance, contact your Gorman‐Rupp

distributor or the Gorman‐Rupp Company.

Pump Dimensions

See Figure 1 for the approximate physical dimen

sions of this pump.

OUTLINE DRAWING

Figure 1. Pump Models 02K31-X2 1P

OM-01171 0 SERIES

PAGE B - 2 INSTALLATION

PREINSTALLATION INSPECTION

The pump assembly was inspected and tested be

fore shipment from the factory. Before installation,

inspect the pump for damage which may have oc

curred during shipment. Check as follows:

a. Inspect the pump and motor for cracks,

dents, damaged threads, and other obvious

damage.

b. Check for and tighten loose attaching hard

ware. Since gaskets tend to shrink after dry

ing, check for loose hardware at mating sur

faces.

c. Carefully read all warnings and cautions con

tained in this manual or affixed to the pump,

and perform all duties indicated. Note the di

rection of rotation indicated on the pump.

Check that the pump shaft rotates counter

clockwise when facing the impeller.

d. Check levels and lubricate as necessary. Re

fer to LUBRICATION in the MAINTENANCE

AND REPAIR section of this manual and per

form duties as instructed.

e. If the pump and motor have been stored for

more than 12 months, some of the compo

nents or lubricants may have exceeded their

maximum shelf life. These must be inspected

or replaced to ensure maximum pump serv

ice.

If the maximum shelf life has been exceeded, or if

anything appears to be abnormal, contact your

Gorman‐Rupp distributor or the factory to deter

mine the repair or updating policy. Do not put the

pump into service until appropriate action has

been taken.

The electrical power used to operate

this pump is high enough to cause inju

ry or death. Obtain the services of a qu

alified electrician to troubleshoot, test

and/or service the electrical compo

nents of this pump.

POSITIONING PUMP

Lifting

Pump unit weights will vary depending on the

mounting and drive provided. Check the shipping

tag on the unit packaging for the actual weight, and

use lifting equipment with appropriate capacity.

Drain the pump and remove all customer‐installed

equipment such as suction and discharge hoses

or piping before attempting to lift existing, installed

units.

Death or serious personal injury and

damage to the pump or components

can occur if proper lifting procedures

are not observed. Make certain that

hoists, chains, slings or cables are in

good working condition and of suffi

cient capacity and that they are posi

tioned so that loads will be balanced

and the pump or components will not be

damaged when lifting. Suction and dis

charge hoses and piping must be re

moved from the pump before lifting. Lift

the pump or component only as high as

necessary and keep personnel away

from suspended objects.

Mounting

Locate the pump in an accessible place as close as

practical to the liquid being pumped. Level mount

ing is essential for proper operation.

The intermediate is equipped with mounting foot

holes for mounting the pump to a base.

SUCTION AND DISCHARGE PIPING

Pump performance is adversely effected by in

creased suction lift, discharge elevation, and fric

tion losses. See the performance curve and oper

ating range shown on Page E‐1 to be sure your

overall application allows pump to operate within

the safe operation range.

OM-011710 SERIES

PAGE B - 3INSTALLATION

Materials

Either pipe or hose maybe used for suction and

discharge lines; however, the materials must be

compatible with the liquid being pumped. If hose is

used in suction lines, it must be the rigid‐wall, rein

forced type to prevent collapse under suction. Us

ing piping couplings in suction lines is not recom

mended.

Line Configuration

Keep suction and discharge lines as straight as

possible to minimize friction losses. Make mini

mum use of elbows and fittings, which substan

tially increase friction loss. If elbows are necessary,

use the long‐radius type to minimize friction loss.

Connections to Pump

Before tightening a connecting flange, align it ex

actly with the pump port. Never pull a pipe line into

place by tightening the flange bolts and/or cou

plings.

Lines near the pump must be independently sup

ported to avoid strain on the pump which could

cause excessive vibration, decreased bearing life,

and increased shaft and seal wear. If hose‐type

lines are used, they should have adequate support

to secure them when filled with liquid and under

pressure.

Gauges

Most pumps are drilled and tapped for installing

discharge pressure and vacuum suction gauges.

If these gauges are desired for pumps that are not

tapped, drill and tap the suction and discharge

lines not less than 18 inches (457,2 mm) from the

suction and discharge ports and install the lines.

Installation closer to the pump may result in erratic

readings.

SUCTION LINES

To avoid air pockets which could affect pump prim

ing, the suction line must be as short and direct as

possible. When operation involves a suction lift, the

line must always slope upward to the pump from

the source of the liquid being pumped; if the line

slopes down to the pump at any point along the

suction run, air pockets will be created.

Fittings

Suction lines should be the same size as the pump

inlet. If reducers are used in suction lines, they

should be the eccentric type, and should be in

stalled with the flat part of the reducers uppermost

to avoid creating air pockets. Valves are not nor

mally used in suction lines, but if a valve is used,

install it with the stem horizontal to avoid air pock

ets.

Strainers

If a strainer is furnished with the pump, be certain

to use it; any spherical solids which pass through a

strainer furnished with the pump will also pass

through the pump itself.

If a strainer is not furnished with the pump, but is

installed by the pump user, make certain that the

total area of the openings in the strainer is at least

three or four times the cross section of the suction

line, and that the openings will not permit passage

of solids larger than the solids handling capability

of the pump.

This pump is designed to handle up to 3/8‐inch

(9,5 mm) diameter spherical solids.

Sealing

Since even a slight leak will affect priming, head,

and capacity, especially when operating with a

high suction lift, all connections in the suction line

should be sealed with pipe dope to ensure an air

tight seal. Follow the sealant manufacturer's rec

ommendations when selecting and applying the

pipe dope. The pipe dope should be compatible

with the liquid being pumped.

Suction Lines In Sumps

If a single suction line is installed in a sump, it

should be positioned away from the wall of the

sump at a distance equal to 1 1/2 times the diame

ter of the suction line.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de agua de GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 83B52-B Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS U4B60S-B Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 0 Series Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02D3-X1 3P Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS Super T T8A65S-B Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS AMT 337 Series Instrucciones de montaje

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T3A3S-B Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02K11-X2 1P Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 62 1/2A1-CH13 Series Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T3A61S-B Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 04A13-(4/10) /S1 Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 11 1/2A9-B Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS VG Series Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS EchoStorm VA2 Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS U Series Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS S Series Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PRIME-AIRE PA6D Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA Series Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS S8B1-E100 460/3 Manual de usuario

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS D Series Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02K31-X2 3P Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 81 1/2E52-B Guía de aplicación

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 80 Series Manual de usuario

Manuales populares de Bomba de agua de otras marcas

Neptun

Neptun NPHW 5500 Manual de usuario

Sensidyne

Sensidyne Gilian BDX-II Instrucciones de instalación y funcionamiento

Draper

Draper 47808 Manual de usuario

Trolla

Trolla 12820 Manual de usuario

Sunfab

Sunfab SVH Series Manual de usuario

WilTec

WilTec 50740 Manual de usuario

Fieldmann

Fieldmann FVC 5015 EK Manual de usuario

Everbilt

Everbilt EFSUB5-122HD Manual de usuario

Graco

Graco Husky 3300e Manual de usuario

esotec

esotec 101018 Manual de usuario

moyno

moyno 2000 CC Manual de usuario

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manual de usuario

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guía de solución de problemas

DUROMAX

DUROMAX XP WX Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manual de usuario

Franklin Electric

Franklin Electric IPS Manual de usuario

Xylem

Xylem e-1532 Series Manual de usuario

Milton Roy

Milton Roy PRIMEROYAL Manual de usuario
