INSTRUCTION

MANUAL

Model GCE 7205USB2

In Car Radio

Compact Disc Player

MULTIPATH DISTORTION / MUTING

Please note: An integrally mounted screen aerial may give rise to increased multipath

distortion or spurious muting of the audio output. This is normal and to be expected.

The use of an externally mounted rod aerial may reduce or possibly eliminate such

problems.

Most screen aerials require a 12 volt supply to operate correctly. Please check that this

has been connected the +12 volt antenna wire of your radio. If you are in any doubt of

this connection please contact the vehicle dealer or Goodmans installation helpline.

CONTENTS

Accessories...................................................................................................Page 3

Important Notes ............................................................................................Page 4

Precautions and Maintenance ......................................................................Page 5

Installation/Precautions.................................................................................Page 6

Removing and Attaching the Trim Ring ........................................................Page 7

Using the Detachable Front Panel ................................................................Pages 8 - 9

Wiring Identification ......................................................................................Page 10

ISO Plug Connections...................................................................................Pages 11 - 12

Identification of Controls and Functions.......................................................Pages 13 - 27

Aerials and Aerial Fitting ...............................................................................Page 28

Radio Reception ...........................................................................................Page 28

Radio Interference.........................................................................................Page 29

Trouble Checks and Trouble Shooting..........................................................Pages 30 - 31

Specifications................................................................................................Page 32

P. 2

IMPORTANT: Do not forget to remove the transit screws on top of the unit.

Before removing the fixing cage and installing the unit.

Failure to do so will result in the CD not playing.

ACCESSORIES

Please retain the carton and packing materials, as this is the best protection for the unit

should it be necessary to return it for servicing.

(1) 1 x 1 Amp fuse (spare fuse for + 12 volt supply wire of the unit).

1 x 15 Amp fuse (spare for memory).

(2) 2 x ISO Plug Connector

For use when ISO plugs are not

used on your vehicle

(3) 2 x Release key

15A Fuse 1A Fuse

Main Unit

ISO Socket

P. 3

PLEASE READ THIS BEFORE CONNECTING THE

PLAYER TO THE VEHICLE

IMPORTANT NOTES

Prior to final installation carry out a sound check. If high distortion or intermittent sound

is experienced it is possible that the wiring to the car’s electric is poor, or that the battery

needs recharging.

If the battery and its charging circuit are OK, then rewire the red fused wire of the player

directly to the positive terminal (+) of the car battery. Car accessory shops stock the

connector blocks and the 15 Amp cable which may be necessary for extending the fuse

wire connection.

EARTHING: Make sure that the black wire on the wiring harness is connected to a good

earthing point on the car. If the chassis of the car is used as an earthing point, make sure

that the paint is scraped clean from the metal work before attaching the wire to it. It is

preferable to connect the black earthing wire directly to the negative terminal (–) of the

car battery.

WARNING: POLARITY.....

This model is only suitable for use in vehicles which have a negative earth system.

e.g.: The negative terminal of the car battery is connected to the chassis.

Connecting The Speakers And Power Cables

Before you wire your system, disconnect your vehicle battery’s positive (+) cable.

This helps prevent damage in case of a short. When you complete the wiring, reconnect

the battery cable and test your car stereo.

Note: Check with your vehicles handbook or dealer before disconnecting the vehicle

battery in case the alarm or other electronics in your vehicle requires special attention.

When connecting your car stereo’s black ground wire, be sure to connect the wire to a

metal part of your vehicle or preferably to the negative (–) terminal of the car battery.

12V

BATTERY POSITIVE

CHASSIS

12V

BATTERY NEGATIVE

CHASSIS

P. 4

PRECAUTIONS AND MAINTENANCE

•This unit is designed for negative ground 12V DC operation only. The equipment can

be used safely, if the negative terminal of the battery is connected to the vehicle metal

work.

•Do not use speakers of impedance less than 4 ohms; and do not allow the speaker

wires to be shorted together when the unit is switched on.

Otherwise it may overload or burn out the power amplifier stage.

•If the car interior is extremely hot, as after being parked in the sun, do not use the

player until the car has been driven for a while to cool off the interior.

IMPORTANT

After installing the unit, switch on the power to the unit and press the RESET button using

a pen or thin match stick.

P. 5

Caution Vauxhall owners:

Vauxhall do not follow normal ISO wiring convention which may cause Goodmans radios’

to lose the radio preset memories each time the ignition switch is turned off. To prevent

such occurrences swap over the Red ignition and Orange Memory wires in the bullet

connectors attached to the wiring harness of the car radio.

RESET

INSTALLATION/PRECAUTIONS

•Choose the mounting location carefully so that the unit will not interfere with the normal

driving functions of the vehicle.

•Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or

excessive vibration.

•Use only the supplied mounting hardware for a safe and secure installation.

•Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 20˚.

MOUNTING EXAMPLE

Installation in the dashboard

Note:

Keep the release keys in a safe place as you may need them in future to remove the unit

from the car.

Tab

Bend these claws, if necessary

182m

53m

* Remove trim ring

* Insert release keys

* Pull unit away from cage

Insert cage into car slot

Fix cage to car

slot 4Connect the: ISO connecting cables

Car aerial

5Insert radio into car slot

ISO

connecting

plugs

Car aerial

P. 6

REMOVING AND ATTACHING THE TRIM RING

This model can be fitted to DIN E or ISO style dashboard slots. The clip on

trim ring is prefitted to the front of the unit for this purpose.

•It will be necessary to remove the trim ring:

a. To allow the radio to be fitted to an ISO style dashboard slot.

b. To gain access to the keyhole slots for removal of the unit from the car

slot/fixing cage.

•To remove the trim ring first remove the front panel from the radio (press the

open button and remove the front panel).

•Using your fingers lift the trim ring at its top centre and pull the ring towards

you/away from the main unit.

•The trim ring can only be fitted to the main unit one way only. A removable

label with TOP printed on it is placed on the top of the ring to indicate the

correct placement of the ring. Simply position the trim ring over the front

of the main unit and push fit the trim ring on to the unit.

REMOVING THE PLAYER FROM THE DASHBOARD/FIXING BRACKET

•Remove the front panel from the main unit.

•Lift off the trim ring and remove from the main unit.

•Insert the supplied release keys into the key slots located on the left and

right sides of the unit. Ensure that the keys are fully pressed into the slots.

•Pull on both of the release keys to remove the unit from the fixing bracket/car

slot.

Lift up and then pull

away from unit.

Trim Ring

TOP

Insert keys into key holes

and pull to remove unit.

P. 7

P. 8

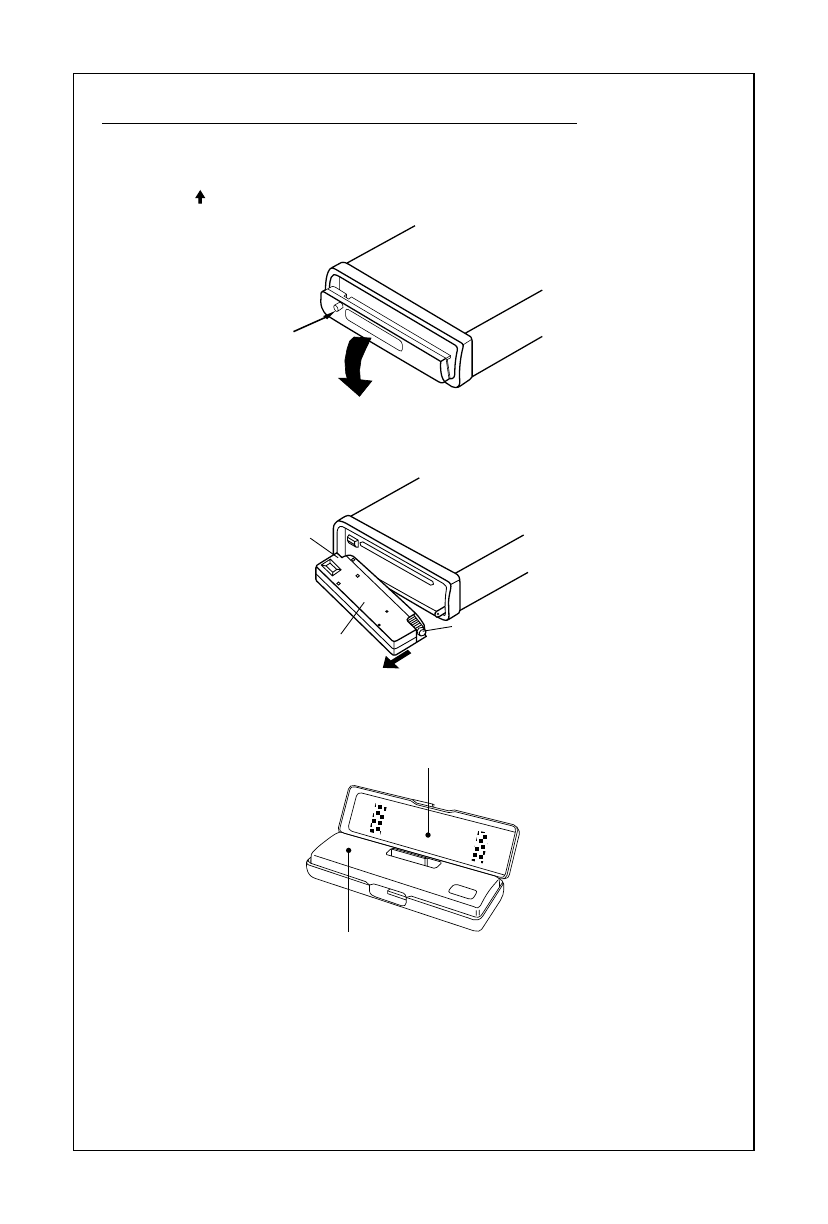

USING THE DETACHABLE FRONT PANEL

To Detach the Front Panel

1. Press the (OPEN) button, then the front panel will fold down.

2. To remove the front panel, lift it up at a little angle from horizontal position, then first

pull out the right side and then pull out the left side.

3. For safekeeping, store the front panel in the supplied protective case immediately

after being removed.

Open

Front Panel

The left side

The right side

Protective Case

Front Panel

P. 9

To Reinstall the Front Panel

1. To install the front panel, first insert the left side into proper position then insert the

right side into place.

2. When the two sides fixed into place, push the frount panel back up into main unit.

3. Note: If the front panel fails to lock in position properly, the control buttons may not

function and the display may be missing some segments. Press the button and

then reinstall the front panel again.

Precautions when Handling

1. Do not drop the front panel.

2. Do not put pressure on the display or control buttons when detaching or reinstalling

the front panel.

3. Do not touch the contacts on the front panel or on the main unit body. It may result

in poor electrical contact.

4. If any dirt or foreign substances are adhered on the contacts, remove them with a

clean and dry cloth.

5. Do not expose the front panel to high temperatures or direct sunlight.

6. Keep any volatile agents (e.g. benzene, thinner, or insecticides) away from the surface

of the front panel.

7. Do not attempt to disassemble the front panel.

Front Panel

The left side

The right side

P. 10

WIRING IDENTIFICATION

REAR VIEW OF PLAYER

1) AERIAL INPUT SOCKET 8) FRONT RIGHT POSITIVE: WHITE

2) BATTERY: RED +12 VOLT IGNITION 9) FRONT RIGHT NEGATIVE: WHITE

3) GROUND: BLACK –WITH BLACK STRIPE

4) MEMORY: ORANGE 10) REAR LEFT POSITIVE: BROWN

PERMANENT +12 VOLT 11) REAR LEFT NEGATIVE: BROWN

5) AUTO AERIAL: ORANGE/WHITE WITH BLACK STRIPE

6) FRONT LEFT POSITIVE: GREY 12) REAR RIGHT POSITIVE: YELLOW

7) FRONT LEFT NEGATIVE: GREY 13) REAR RIGHT NEGATIVE: YELLOW

WITH BLACK STRIPE WITH BLACK STRIPE

RECOMMENDED MINIMUM LOUDSPEAKER POWER RATINGS

Front loudspeakers minimum power ratings 2 x 30 Watts RMS (2 x 60 Watts Music)

Rear loudspeakers minimum power ratings 2 x 30 Watts RMS (2 x 60 Watts Music)

TWO SPEAKER WIRING

If you intend to use only two speakers with this radio select either front or rear wiring

INSTALLATION NOTES

(APPLICABLE TO BOTH 2 AND 4 SPEAKER CONNECTION)

This radio contains two separate power amplifiers, to prevent possible damage to these

amplifiers please ensure:

1) The vehicle chassis is not used as a loudspeaker earth (–ve return).

2) Front and Rear loudspeaker connecting wires are not joined together.

3) Any wires not used when completing a two speaker installation are fully insulated.

4) The memory wire (Orange) is connected to a permanent +12V supply.

5) The power wire (Red) is connected via the ignition switch of the vehicle.

UNIT

1210 1311

Note: Before turning the unit ON for the first time after installation please ensure the

RESET button is pressed to reset the microprocessor. For location see page 13.

IMPORTANT NOTE

If after directly connecting the unit via the vehicles ISO connector plugs it does not appear

to work (fails) to power up disconnect the orange lead bullet connector and reconnect to

the twin bullet connector socket on the red wire. Try the unit again it should power up and

can be used normally. Note this phenomenon is most frequent in Volkswagen/Audi vehicles.

Tabla de contenidos

Otros manuales de Reproductor de CD de Goodmans

Goodmans

Goodmans GCE7357MP3 Manual de usuario

Goodmans

Goodmans GPS158RR Manual de usuario

Goodmans

Goodmans GCD611KH Series Manual de usuario

Goodmans

Goodmans GDVD200CDG Manual de usuario

Goodmans

Goodmans GPS285DAB Manual de usuario

Goodmans

Goodmans CDMP3 520 Manual de usuario

Goodmans

Goodmans gps213pllr Manual de usuario

Goodmans

Goodmans GPS185DAB Manual de usuario

Goodmans

Goodmans CDMP3722K Manual de usuario

Goodmans

Goodmans GSP06BLK Manual de usuario

Goodmans

Goodmans GCD903KH Manual de usuario

Goodmans

Goodmans DM0596-540MP32 Manual de usuario

Goodmans

Goodmans GPS160MPT Manual de usuario

Goodmans

Goodmans GDVD303R Manual de usuario

Goodmans

Goodmans GPS166 Manual de usuario

Goodmans

Goodmans GPS04BLK Manual de usuario

Goodmans

Goodmans GHC304DVDR Manual de usuario

Goodmans

Goodmans GDVD300R Manual de usuario

Goodmans

Goodmans GCD521RR Manual de usuario

Goodmans

Goodmans GCD7128MP3R Manual de usuario

Goodmans

Goodmans CDMP3719PL Manual de usuario

Goodmans

Goodmans GCD518PLL Manual de usuario

Goodmans

Goodmans GCD820PLLH Series Manual de usuario

Goodmans

Goodmans GCDR1895G Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario
