Goodman Aurora Series Manual de usuario

SPLIT-TYPE ROOM AIR CONDITIONER

CS78421-548-754

IMPORTANT NOTE:

Read this manual carefully before installing

or operating your new air conditioning

unit. Make sure to save this manual for

future reference.

Owner’s Manual

Aurora Series

All Model Numbers

MSH093E21AXAA

MSH123E21AXAA

MSH183E21AXAA

MSH243E21AXAA

Safety Precautions.......................................................04

Unit Speciﬁcations and Features

..............................06

Table of Contents

Owner’s Manual

SAFETY

FIRST

Manual Operation

(Without Remote)................11

Care and Maintenance.....................................................12

Troubleshooting...................................................................14

European Disposal Guidelines....................................18

Page 4 

Safety Precautions

Read Safety Precautions Before Installation

The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION.

WARNING

This symbol indicates that ignoring instructions may cause death or serious

Incorrect installation due to ignoring instructions can cause serious damage or injury.

injury.

This symbol indicates that ignoring instructions may cause moderate injury

to your person, or damage to your appliance or other property.

CAUTION

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

INSTALLATION WARNINGS

•

Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water

leakage, electric shock, or fire.

•

All repairs, maintenance and relocation of this unit must be performed by an authorized service

technician. Inappropriate repairs can lead to serious injury or product failure.

WARNINGS FOR PRODUCT USE

•

If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the

power plug. Call your dealer for instructions to avoid electric shock, fire or injury.

•

Do not

insert ﬁngers, rods or other objects into the air inlet or outlet. This may cause injury, since

the fan may be rotating at high speeds.

•

Do not

use ﬂammable sprays such as hair spray, lacquer or paint near the unit. This may cause

ﬁre or combustion.

•

Do not

operate the air conditioner in places near or around combustible gases. Emitted gas may

collect around the unit and cause explosion.

•

Do not

operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can

cause electrical shock and cause the product to deteriorate.

•

Do not

expose your body directly to cool air for a prolonged period of time.

Safety

Precautions

Safety

Precautions

Page 5 

ELECTRICAL WARNINGS

•

Only use the speciﬁed power cord. If the power cord is damaged, it must be replaced by the

manufacturer or certiﬁed service agent.

•

Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty

plugs can cause fire or electric shock.

• Do not

pull power cord to unplug unit. Hold the plug ﬁrmly and pull it from the outlet. Pulling

directly on the cord can damage it, which can lead to ﬁre or electric shock.

• Do not

use an extension cord, manually extend the power cord, or connect other appliances to

the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufﬁcient

voltage can cause fire.

CLEANING AND MAINTENANCE WARNINGS

•

Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.

• Do not

clean the air conditioner with excessive amounts of water.

• Do not

clean the air conditioner with combustible cleaning agents. Combustible cleaning agents

can cause fire or deformation.

CAUTION

•

If the air conditioner is used together with burners or other heating devices, thoroughly ventilate

the room to avoid oxygen deﬁciency.

•

Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.

•

Turn off and unplug the unit during storms.

•

Make sure that water condensation can drain unhindered from the unit.

• Do not

operate the air conditioner with wet hands. This may cause electric shock.

• Do not

use device for any other purpose than its intended use.

• Do not

climb onto or place objects on top of the outdoor unit.

• Do not

allow the air conditioner to operate for long periods of time with doors or windows open,

or if the humidity is very high.

Page 6 

Unit Speciﬁcations and Features 1

Unit

Speciﬁcations

and Features

NOTE:

A guide on using the infrared remote is not included in this literature package.

Unit Parts

“ ” for 3 seconds when:

• TIMER ON is set

• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned on

“ ” for 3 seconds when:

• TIMER OFF is set

• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned off

“ ” when defrosting

“ ” when anti-cold air feature is turned on

“ ” when unit is self-cleaning

“ ” when freeze protection is turned on

Display Code

Meanings

In Fan mode, the unit will display the room temperature.

In other modes, the unit will display your temperature setting.

“ ”

When ECO function(optional) is activated, the

illuminates gradually one by one as --

-- --set temperature-- ...... in one second interval.

Power Cable (Some Units )

Remote Control

Remote control Holder

(Some Units)

Functional Filter

(On Front of Main Filter - Some Units)

Louver

Front Panel

Display window Display window

(1) (2)

“ ” when wireless Control feature is activated(some units)

Unit

Speciﬁcations

and Features

Page 7 

Achieving Optimal Performance

Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following

temperature ranges. When your air conditioner is used outside of these ranges, certain safety

protection features will activate and cause the unit to perform less than optimally.

Room

Temperature 17°-32°C (63°-90°F) 0°-30°C (32°-86°F) 10°-32°C (50°-90°F)

Outdoor

Temperature

18°-43°C (64°-109°F)

-7°-24°C (19°-75°F)

11°-43°C (52°-109°F)

-7°-43°C (19°-109°F)

(For models with low-temp cooling systems) 18°-43°C (64°-109°F)

18°-54°C (64°-129°F)

(For special tropical models) 18°-54°C (64°-129°F)

(For special tropical models)

COOL mode HEAT mode DRY mode

Room Temperature 17°C - 32°C

(63°F - 90°F)

0°C - 30°C

(32°F - 86°F)

10°C - 32°C

(50°F - 90°F)

Outdoor

Temperature

0°C - 50°C

(32°F - 122°F)

-15°C - 30°C

(5°F - 86°F)

0°C - 50°C

(32°F - 122°F)

0°C - 60°C

(32°F - 140°F)

(For special

tropical models)

0°C - 60°C

(32°F - 140°F)

(For special

tropical models)

-15°C - 50°C

(5°F - 122°F)

(For models with

low temp. cooling

systems.)

To further optimize the performance of your unit, do the following:

• Keep doors and windows closed.

• Limit energy usage by using TIMER ON and TIMER OFF functions.

• Do not block air inlets or outlets.

• Regularly inspect and clean air filters.

FOR OUTDOOR UNITS

WITH AUXILIARY

ELECTRIC HEATER

Inverter Split Type

Fixed-speed Type

When outside

temperature is below 0°C

(32°F ), we strongly

recommend keeping the

unit plugged in at all

time to ensure smooth

ongoing performance.

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be

slightly different. The actual shape shall prevail.

For a detailed explanation of each function,

refer to the Remote Control Manual.

Other Features

• Auto-Restart

If the unit loses power, it will automatically

restart with the prior settings once power has

been restored.

• Anti-mildew (some units)

When turning off the unit from COOL, AUTO

(COOL), or DRY modes, the air conditioner will

continue operate at very low power to dry up

condensed water and prevent mildew growth.

Unit

Speciﬁcations

and Features

• Wireless Control (some units)

Wireless control allows you to control your air

conditioner using your mobile phone and a

Wireless connection.

• Louver Angle Memory(some units)

When turning on your unit, the louver will

automatically resume its former angle.

• Refrigerant Leakage Detection (some

units)

The indoor unit will automatically display “EC”

when it detects refrigerant leakage.

For a detailed explanation of your unit’s

advanced functionality (such as TURBO mode

and its self-cleaning functions), refer to the

Remote Control Manual.

Page 8 

For the USB device access, replacement,

maintenance operations must be carried

out by professional staff.

Page 9 

Setting vertical angle of air ﬂow

While the unit is on, use the SWING/DIRECT

button to set the direction (vertical angle) of

airﬂow.

Press the SWING/DIRECT button once to

activate the louver. Each time you press

the button, it will adjust the louver by 6°.

Press the button until the direction you

prefer is reached.

To make the louver swing up and down

continuously, press and hold the SWING/

DIRECT button for 3 seconds. Press it

again to stop the automatic function.

The horizontal angle of the airflow must be set

manually. Grip the deflector rod (See Fig.B)

and manually adjust it to your preferred direction.

For some units, the horizontal angle of the airflow

can be set by remote control. please refer to the

Remote Control Manual.

NOTE ON LOUVER ANGLES

When using COOL or DRY mode, do not set

louver at too vertical an angle for long periods

of time. This can cause water to condense on

the louver blade, which will drop on your ﬂoor

or furnishings. (See Fig.A)

When using COOL or HEAT mode, setting the

louver at too vertical an angle can reduce the

performance of the unit due to restricted air

ﬂow.

Do not move louver by hand. This will cause the

louver to become out of sync. If this occurs, turn

off the unit and unplug it for a few seconds,

then restart the unit. This will reset the louver.

Fig. A

CAUTION

Do not put your fingers in or near the blower

and suction side of the unit. The high-speed

fan inside the unit may cause injury.

Fig. B

Setting Angle of Air Flow

Setting horizontal angle of air ﬂow

•

Unit

Speciﬁcations

and Features

Page 10 

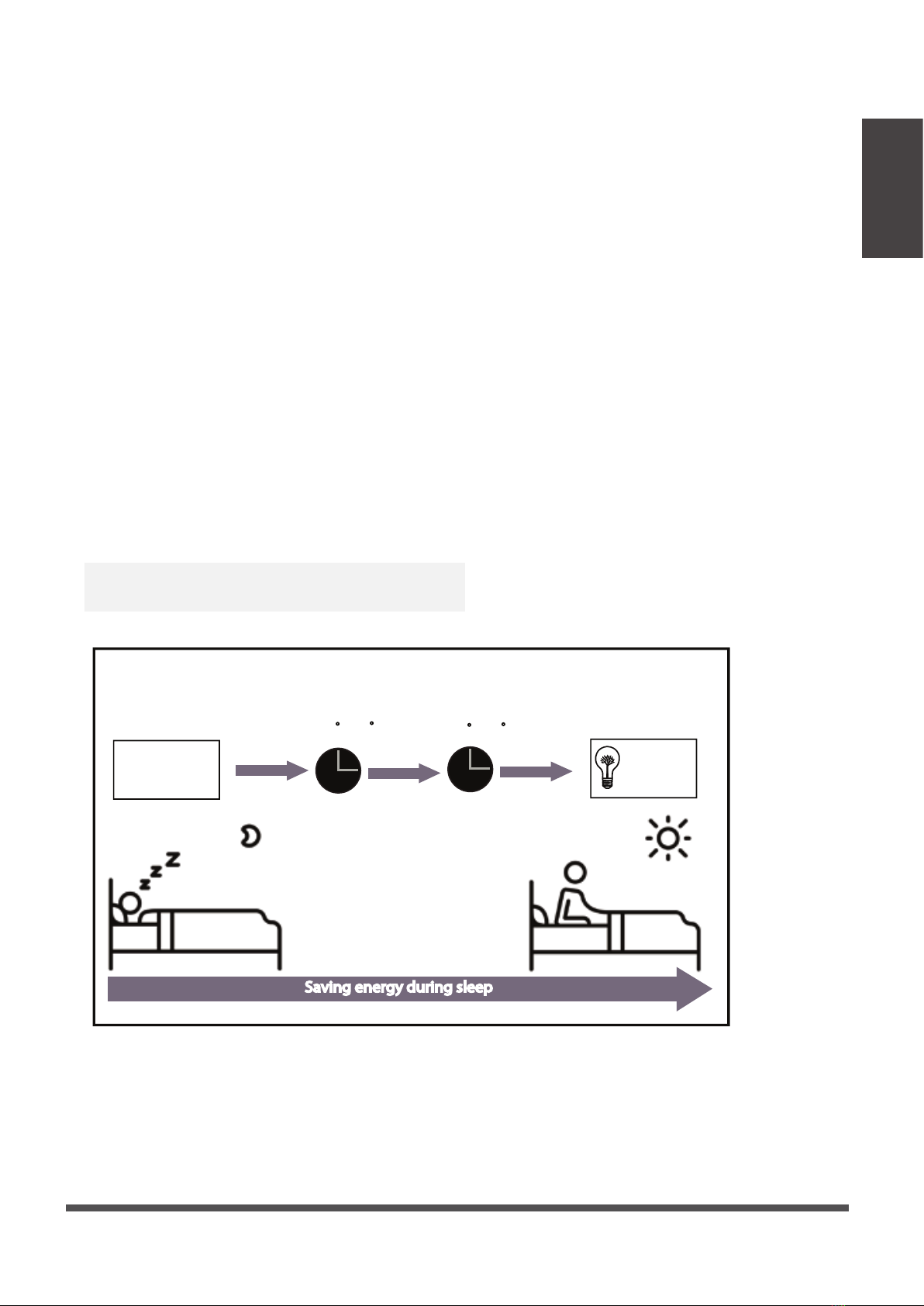

The SLEEP function is used to decrease energy

use while you sleep (and don’t need the same

temperature settings to stay comfortable). This

function can only be activated via remote control.

Press the SLEEP button when you are ready to

go to sleep. When in COOL mode, the unit will

increase the temperature by 1°C (2°F) after 1

hour, and will increase an additional 1°C (2°F)

after another hour. When in HEAT mode, the unit

will decrease the temperature by 1°C (2°F) after

1 hour, and will decrease an additional 1°C (2°F)

after another hour.

It will hold the new temperature for 5 hours, then

the unit will turn off automatically.

Note:The SLEEP function is not available in

FAN or DRY mode.

Sleep Operation

Set

temperature

Saving energy during sleep

1hr 1hr

7 hours

timer o

+/- 1 C/2 F

SLEEP Operation

+/- 1 C/2 F

•

Unit

Speciﬁcations

and Features

Este manual sirve para los siguientes modelos

Otros manuales de Acondicionador de aire de Goodman

Goodman

Goodman MSG-12CRN1 Manual de usuario

Goodman

Goodman AIR CONDITIONING CONDENSING UNIT 1 THRU 5 TON and GAS FIRED... Guía de referencia rápida

Goodman

Goodman DSXC160241AA/B Manual de usuario

Goodman

Goodman MSH 9,000 Manual de usuario

Goodman

Goodman GPG 16 M Series Manual de usuario

Goodman

Goodman GPC SERIES Manual

Goodman

Goodman GPC1424H41AB Manual de uso y cuidado

Goodman

Goodman RT6100004R13 Instrucciones de funcionamiento

Goodman

Goodman GSC13018 Manual de usuario

Goodman

Goodman CONDENSING UNITAIR CONDITIONING Manual de usuario

Goodman

Goodman GPG13M Manual de usuario

Goodman

Goodman MSC 15 Series Manual de usuario

Goodman

Goodman CONDENSING UNIT Manual de usuario

Goodman

Goodman GPC13H Manual de usuario

Goodman

Goodman PC 13 SEER R-410A Manual de usuario

Goodman

Goodman SS-CPC36-72 Manual de usuario

Goodman

Goodman APG152407041A Series Manual de usuario

Goodman

Goodman GSH Series Instrucciones de funcionamiento

Goodman

Goodman SS-CPG180-240 Manual de usuario

Goodman

Goodman APG 13 Instrucciones de funcionamiento

Goodman

Goodman GPC13 M Series Manual de usuario

Goodman

Goodman GPC 13 SEER H Series Manual de usuario

Goodman

Goodman GSX Series Manual de usuario

Goodman

Goodman GPG16 M Series Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
