GoMax Electronics CV-910S Manual de usuario

VGA to Component & CVBS Scaler

Converter

User Manual

rev: 161111

Made in Taiwan

V-

-9

Safety and Notice

The CV-910S VGA to Component & CVBS Scaler Converter has been tested for conformance to

safety regulations and requirements, and has been certified for international use. However, like all

electronic equipments, the CV-910Sshould be used with care. Please read and follow the safety

instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

●Follow all instructions and warnings marked on this unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a

stable surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

TABLE OF CONTENTS

INTRODUCTION................................................................................................................1

FEATURES........................................................................................................................1

PACKAGE CONTENTS...................................................................................................... 1

SPECIFICATIONS..............................................................................................................2

PANEL DESCRIPTION ......................................................................................................3

CONNECTION DIAGRAM..................................................................................................4

OSD MENU........................................................................................................................5

OPERATION APPROACH ................................................................................................. 6

LIMITED WARRANTY......................................................................................................10

INTRODUCTION

The CV-910S VGA to Component & CVBS Scaler Converter offers an easy and instant approach for

converting analog PC video (VGA) to analog Component video (YPbPr) / CVBS in real time. With this

module, YPbPr/CVBS based receivers such as TV can be readily connected to VGA based devices such

as PC. This cost effective solution lets you keep using your non-HDMI/DVI display to access VGAsource.

FEATURES

IR remote control

OSD control interface

Input video maximum pixel rate : 165MHz

Output video maximum pixel rate: 74.25MHz

Supports nosie reduction and video enhancement features

Video enhancement support

Over / Under scanning adjustable

Video H/V mirror supported

Active video area adjustment supported

USB firmware upgradable for expanding compatibility

Wall-mount housing design for easy installation

PACKAGE CONTENTS

1x CV-910S

1x 5V/4A power supply unit

1x IR Remote control

1x User Manual

1x Installation software CD

SPECIFICATIONS

Model Name

CV-910S

Technical

Role of usage

VGAto Component & CVBS Scaler Converter

Input Video Frequency

bandwidth

165 MHz

Output Video

Frequency bandwidth

74.25MHz

ESD protection

Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

PCB stack-up

4-layer board [impedance control — differential 100Ω; single 50Ω]

Firmware update

Feasible via USB Port

Input

1x VGA

Output

1x 3 RCA (YPbPr) + 1xRCA (CVBS)

VGA connector

HD-15 [15-pin D-sub female]

USB connector

Mini B

Mechanical

CV-910S

Housing

Metal enclosure

Dimensions

[L x D x H]

Model

156 x 82 x 27mm [6.1” x 3.2” x 1”]

Package

198 x 137 x 74mm [7.8” x 5.4” x 2.9”]

Carton

420 x 400 x 300mm [1'4” x 1'3” x 11.8”]

Weight

Model

280g [9.8oz]

Package

640g [1.4 lbs]

Fixedness

Wall-mounting case with screws

Power supply

5V 4A DC

Power consumption

5 Watts [max]

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

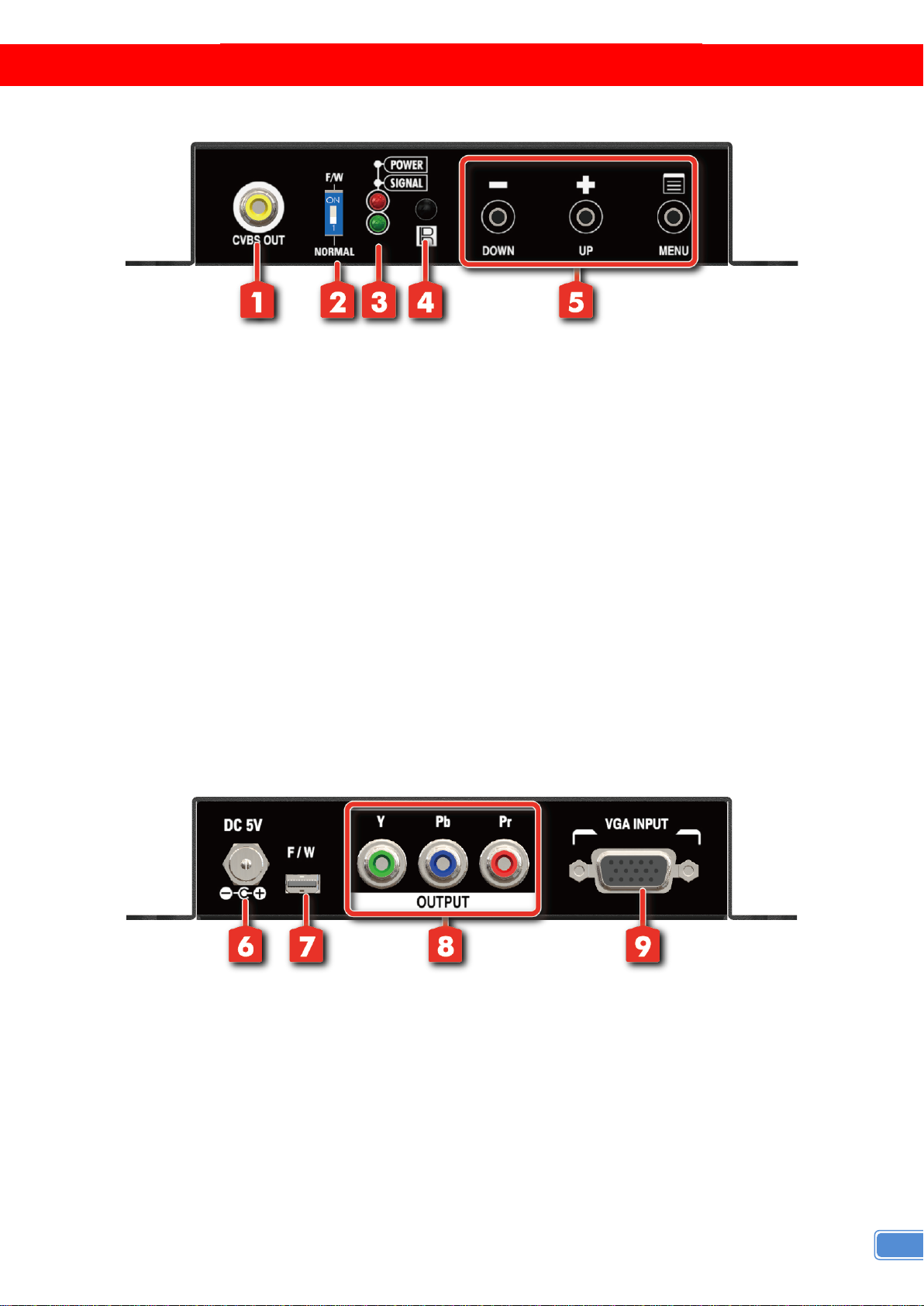

PANEL DESCRIPTION

Front Panel

1. CVBS OUT: Connect to a CVBS display with a CVBS male-male cable here

2. DIP Switch: For firmware update

ON []: firmware update mode

OFF []: normal mode

3. LED INDICATOR:

[RED]: power indicator LED

[GREEN]: signal indicator LED

4. IR SENSOR: IR sensor for receiving the IR commands from IR remote

5. PUSH BUTTON

[LEFT]: Down Button

[MID]: Up Button

[RIGHT]: Menu/Enter Button

Rear Panel

6. +5V DC: Interlocking power jack for 5V DC power supply unit

7. Mini USB: F/W update

8. COMPONENT – YPbPr OUTPUT

9. VGA IN: connect to a VGA source

CONNECTION DIAGRAM

OSD MENU

Items

01.Output Setup

Output Resolution

HD(720p)60

HD(720p)59

HD(720p)50

HD(720p)30

HD(720p)25

HD(1080i)60

HD(1080i)59

HD(1080i)50

HD(1080p)60

HD(1080p)59

HD(1080p)50

HD(1080p)30

HD(1080p)25

HD(1080p)24

Bypass

SD(480i)60

SD(576i)50

SD(480p)60

SD(576p)50

Output Mode

YCbCr422

Default Pattern

Disable

White

Cross

Hatch

Color

Gray

Window

H-Ramp

W-HRamp

W-VRamp

Diagonal

02.Image

Contrast

0~255 of Contrast Level

Brightness

0~255 of Contrast Level

Saturation

0~255 of Saturation Level

Hue

0~255 of Hue Level

B/W Extension

Off

Color Tone

Off

Skin

Green

Edge Enhance

Typ

Mid

Max

Off

Sharpness

0~127 of Sharpness Level

Menu Items

03.Adjustment

Under/Over Scan

-50%~50% of Scan Level

Aspect Ratio

16:9

4:3

H-Mirror

Off

V-Mirror

Off

H-Shift

-100~100 of H-shift Level

V-Shift

-50~50 of V-Shift Level

04.System

Input Res. Infor

F/W Version

Factory Reset

OPERATION APPROACH

Method A: Push-in Button

Method B: IR Remote Control

Button

Function

FREEZE

Freeze video

ASPECT RATIO

Aspect ratio change

BLANK

Blank video

EXIT

Exit OSD

ENTER

Enter key

Up key

LEFT

Left key

RIGHT

Right key

DOWN

Down key

Menu on

INPUT INFO

Source resolution information

1080p60

Select 1080p60 output resolution

1080i60

Select 1080i60 output resolution

720p60

Select 720p60 output resolution

480p60

Select 480p60 output resolution

Method C: IR Remote Control through Mini-USB port

COM Port Selection

COM Port Detection Button

Output Setup Button

Image Button

Adjustment Button

System Button

Input / Output Resolution Info

Refresh Input / Output Resolution Info Button

Output Quick Selection Button

1. COM Port Selection

Please select the application COM Port

2. COM Port Detection Button

Click this button to detect the COM Port

3. Output Setup Button

4. Image Button

5. Adjustment Button
