2x8 HDMI Splitter over Cat.X

User Manual

To avoid EMI issue, complete STP Cat6 cable is strongly recommended!

rev: 131028

Made in Taiwan

P-

-5

The SP-5018M 2x8 HDMI Splitter over Cat.X has been tested for conformance to safety regulations

and requirements, and has been certified for international use. However, like all electronic

equipments, the SP-5018M should be used with care. Please read and follow the safety instructions

to protect yourself from possible injury and to minimize the risk of damage to the unit.

●Follow all instructions and warnings marked on this unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a

stable surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

TABLE OF CONTENTS

INTRODUCTION.....................................................................................................................1

FEATURES..............................................................................................................................1

PACKAGE CONTENTS ..........................................................................................................1

SPECIFICATIONS...................................................................................................................2

PANEL DESCRIPTIONS.........................................................................................................3

HARDWARE INSTALLATION.................................................................................................3

CONNECTION DIAGRAM ......................................................................................................4

IR CONTROL...........................................................................................................................5

EDID LEARNING.....................................................................................................................5

DIP SWITCH SETTING...........................................................................................................6

PIN DEFINITION .....................................................................................................................7

NOTICE ...................................................................................................................................8

WARRANTY............................................................................................................................9

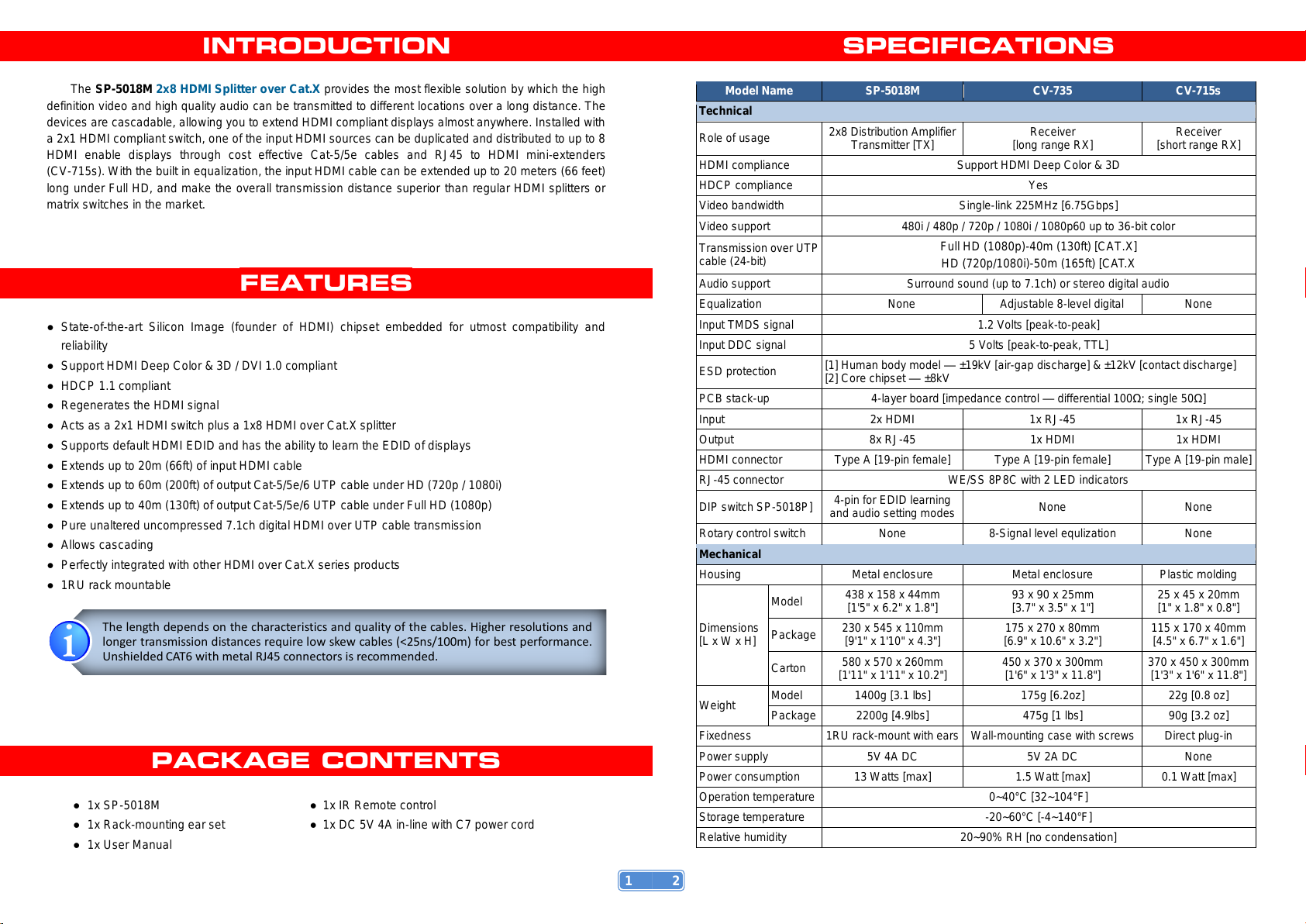

INTRODUCTION

The SP-5018M 2x8 HDMI Splitter over Cat.X provides the most flexible solution by which the high

definition video and high quality audio can be transmitted to different locations over a long distance. The

devices are cascadable, allowing you to extend HDMI compliant displays almost anywhere. Installed with

a 2x1 HDMI compliant switch, one of the input HDMI sources can be duplicated and distributed to up to 8

HDMI enable displays through cost effective Cat-5/5e cables and RJ45 to HDMI mini-extenders

(CV-715s). With the built in equalization, the input HDMI cable can be extended up to 20 meters (66 feet)

long under Full HD, and make the overall transmission distance superior than regular HDMI splitters or

matrix switches in the market.

FEATURES

●State-of-the-art Silicon Image (founder of HDMI) chipset embedded for utmost compatibility and

reliability

●Support HDMI Deep Color & 3D / DVI 1.0 compliant

●HDCP 1.1 compliant

●Regenerates the HDMI signal

●Acts as a 2x1 HDMI switch plus a 1x8 HDMI over Cat.X splitter

●Supports default HDMI EDID and has the ability to learn the EDID of displays

●Extends up to 20m (66ft) of input HDMI cable

●Extends up to 60m (200ft) of output Cat-5/5e/6 UTP cable under HD (720p / 1080i)

●Extends up to 40m (130ft) of output Cat-5/5e/6 UTP cable under Full HD (1080p)

●Pure unaltered uncompressed 7.1ch digital HDMI over UTP cable transmission

●Allows cascading

●Perfectly integrated with other HDMI over Cat.X series products

●1RU rack mountable

PACKAGE CONTENTS

●1x SP-5018M ●1x IR Remote control

●1x Rack-mounting ear set ●1x DC 5V 4A in-line with C7 power cord

●1x User Manual

The length depends on the characteristics and quality of the cables. Higher resolutions and

longer transmission distances require low skew cables (<25ns/100m) for best performance.

Unshielded CAT6 with metal RJ45 connectors is recommended.

SPECIFICATIONS

Model Name

SP-5018M

CV-735

CV-715s

Technical

Role of usage

2x8 Distribution Amplifier

Transmitter [TX]

Receiver

[long range RX]

Receiver

[short range RX]

HDMI compliance

Support HDMI Deep Color & 3D

HDCP compliance

Yes

Video bandwidth

Single-link 225MHz [6.75Gbps]

Video support

480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color

Transmission over UTP

cable (24-bit)

Full HD (1080p)-40m (130ft) [CAT.X]

HD (720p/1080i)-50m (165ft) [CAT.X

Audio support

Surround sound (up to 7.1ch) or stereo digital audio

Equalization

None

Adjustable 8-level digital

None

Input TMDS signal

1.2 Volts [peak-to-peak]

Input DDC signal

5 Volts [peak-to-peak, TTL]

ESD protection

[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact discharge]

[2] Core chipset —±8kV

PCB stack-up

4-layer board [impedance control —differential 100Ω; single 50Ω]

Input

2x HDMI

1x RJ-45

Output

8x RJ-45

1x HDMI

HDMI connector

Type A [19-pin female]

Type A [19-pin male]

RJ-45 connector

WE/SS 8P8C with 2 LED indicators

DIP switch SP-5018P]

4-pin for EDID learning

and audio setting modes

None

Rotary control switch

None

8-Signal level equlization

None

Mechanical

Housing

Metal enclosure

Plastic molding

Dimensions

[L x W x H]

Model

438 x 158 x 44mm

[1'5" x 6.2" x 1.8"]

93 x 90 x 25mm

[3.7" x 3.5" x 1"]

25 x 45 x 20mm

[1" x 1.8" x 0.8"]

Package

230 x 545 x 110mm

[9'1" x 1'10" x 4.3"]

175 x 270 x 80mm

[6.9" x 10.6" x 3.2"]

115 x 170 x 40mm

[4.5" x 6.7" x 1.6"]

Carton

580 x 570 x 260mm

[1'11" x 1'11" x 10.2"]

450 x 370 x 300mm

[1'6" x 1'3" x 11.8"]

370 x 450 x 300mm

[1'3" x 1'6" x 11.8"]

Weight

Model

1400g [3.1 lbs]

175g [6.2oz]

22g [0.8 oz]

Package

2200g [4.9lbs]

475g [1 lbs]

90g [3.2 oz]

Fixedness

1RU rack-mount with ears

Wall-mounting case with screws

Direct plug-in

Power supply

5V 4A DC

5V 2A DC

None

Power consumption

13 Watts [max]

1.5 Watt [max]

0.1 Watt [max]

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

PANEL DESCRIPTIONS

Rear Panel

1. Power: Power on/off switch

2. +5V DC: Power jack for 5V DC

3. HDMI INPUT 1~2: Connect to one HDMI source here

4. EDID & Audio: DIP Switch (see more detail in the DIP SWITCH SETTING section)

5. INPUT Selection: Push-in button for switching between HDMI INPUT 1 and HDMI INPUT 2

6. Cat.X OUTPUT 1~8: Link to each HDMI display via a Cat-5/5e/6 cable with a HDMI over CAT5

receiver CV-735 or CV-715s

HARDWARE INSTALLATION

Broadcasts HDMI signals to eight remote displays from either of two HDMI sources

1. Turn off all devices, including sources and displays.

2. Connect HDMI sources (such as a Blu-ray Disc player) to the HDMI INPUT 1 port and/or HDMI INPUT

2port.

3. Connect the receivers (CV-735 or CV-715s) via Cat-5/5e/6 cables to each HDMI Signal OUTPUT

port.

4. Plug in 5V 4A DC power supply.

5. Power on the HDMI displays.

6. Power on the HDMI source devices.

CONNECTION DIAGRAM

IR CONTROL

Function Key

Function Description

POWER

Turn on/off HDMI over CAT5e/6/7

transmission on all eight output ports

Switch to the other channel from either HDMI

INPUT 1 or HDMI INPUT 2 that is in play

Switch to the other channel from either HDMI

INPUT 1 or HDMI INPUT 2 that is in play

SOURCE SELECT 1

Select HDMI INPUT 1 to be the input source

SOURCE SELECT 2

Select HDMI INPUT 2 to be the input source

Mute on/off (audio off, video on) on all eight

output ports

EDID LEARNING

1. The EDID learning function is only available for HDMI source device connected at HDMI INPUT 1 port.

2. To make the SP-5018M learn the EDID of the desired display, please connect the display to the HDMI

INPUT 1 port via a HDMI cable.

3. Set the DIP switch position pin-1 at ON [].

4. Reboot the SP-5018M and you should see the red LED of the INPUT 1 on the front panel will keep

blinking to indicate the EDID learning sequence is underway. The EDID learning sequence is

complete when the INPUT 1 LED stops blinking.

5. Resume the installation. Connect the sources back to HDMI inputs and let the displays connect to

the receiver units via Cat-5e/6/7 cable.

6. Set the DIP switch pin-1 at OFF [] will erase the EDID profile learned from the display and restore

the default EDID profile. So please do not dial the pin-1 back to OFF [] unless you want to use

default EDID profile or learn new EDID from different HDMI display.

DIP SWITCH SETTING

DIP Switch osition 1

Video

Audio

Description

Pin#1

Pin#2

Pin#3

Pin#4

OFF []

Up to 1080p

Surround 2

Default Mode 3—

Up to 1080p video & surround sound audio output up

to 7.1ch (DTS-HD Master Audio & Dolby TrueHD)

OFF []

ON []

Up to 1080p

Stereo

Safe Mode 4—

Enforce the system output at 1080p video and stereo

audio for basic compatibility among HDTV

ON []

OFF []

Bypass 5

EDID Learning 6Mode —

for learning EDID from the display while playing any

received HDMI audio format

ON []

Bypass

Stereo

EDID Learning 6& Stereo Mode —

for learning EDID from the display while enforcing

stereo output if any HDTV cannot play surround

sound normally

Note

1Pin-1 and pin-2 are for HDMI INPUT 1; while pin-3 and pin-4 are for HDMI INPUT 2

2If the HDTV shows video but without audio, please try to set audio mode to stereo.

3Factory default setting is pin-1 at OFF []& pin-2 at OFF []for 1080p video and surround sound

audio.

4If you encounter any unsolved audio/video output problem during system installation, please turn

to pin-1 at OFF []& pin-2 at ON []for safe mode to enforce the system output up to 1080p

video and stereo audio for system check. However, the safe mode cannot be initiated if your HDMI

source is set to enforce 1080p output. In this case, please reconfigure your HDMI source to all

resolution output for troubleshooting.

5Bypass means the matrix will maintain playing the original format of HDMI signals in video and

perhaps audio. By setting at this mode, the users may encounter compatibility issue among

different kinds of HDMI sources and displays. If you cannot get the audio and/or video output

normally at the system installation, please change the DIP switch setting to default mode or even

safe mode to verify the functionality of the device.

6To learn the EDID of HDMI display for respective HDMI source devices, please see the [EDID

Learning] section in the next page for more detail information.

PIN DEFINITION

HDMI

Type A (Receptacle) HDMI

Pin 1

TMDS Data2+

Pin 11

TMDS Clock Shield

Pin 2

TMDS Data2 Shield

Pin 12

TMDS Clock–

Pin 3

TMDS Data2–

Pin 13

Pin 4

TMDS Data1+

Pin 14

Reserved (N.C. on device)

Pin 5

TMDS Data1 Shield

Pin 15

SCL

Pin 6

TMDS Data1–

Pin 16

SDA

Pin 7

TMDS Data0+

Pin 17

DDC/CEC Ground

Pin 8

TMDS Data0 Shield

Pin 18

+5V Power

Pin 9

TMDS Data0–

Pin 19

Hot Plug Detect

Pin 10

TMDS Clock+

RJ45 / Cat.X

NOTICE

1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve

and provide DVI or HDMI display EDID information.

2. All HDMI over Cat.X transmission distances are measured using Belden 1583A CAT5e 125MHz UTP

cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.

3. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,

and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 330m

bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of fixed

length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A solid UTP

Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long extension

applications, solid UTP/STP cables are the only viable choice.

4. EIA/TIA-568-B termination (T568B) for category cables is recommended.

5. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can

use double shielded STP cables to improve EMI problems, which is worsen in long transmission.

6. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit can

achieve and how good is the received picture quality, the actual transmission range is subject to one's

choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is

recommended.

7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1]

generally can produce better transmission performance among all HDMI inputs.

WARRANTY

The SELLER warrants the SP-5018M 2x8 HDMI Splitter over Cat.X free from defects in the material

and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should

this product fail to be in good working order within 1 year warranty period, The SELLER, at its option,

repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any

unauthorized modifications including static discharge and power surge. This warranty is offered by the

SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal

housing is broken.

Unit that fails under conditions other than those covered will be repaired at the current price of parts

and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment

to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss

or damage in transit. Under no circumstances will a unit be accepted without a return authorization

number.

The warranty is in lieu of all other warranties expressed or implied, including without limitations, any

other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly

disclaimed.

Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible

for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day

warranty and must be free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate. However, The

SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The

SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting

from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the

technical information contained herein regarding the SP-5018M features and specifications is subject to

change without further notice.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cables y conectores de GoMax Electronics

GoMax Electronics

GoMax Electronics SP-5002Q Manual de usuario

GoMax Electronics

GoMax Electronics SP-9008 Manual de usuario

GoMax Electronics

GoMax Electronics SP-4052Z-PT Manual de usuario

GoMax Electronics

GoMax Electronics SP-5018KP Manual de usuario

GoMax Electronics

GoMax Electronics SP-5004PZQ Manual de usuario

GoMax Electronics

GoMax Electronics SP-5002P3 Manual de usuario

GoMax Electronics

GoMax Electronics SP-5004IZM Manual de usuario

GoMax Electronics

GoMax Electronics SP-4003Z-PT Manual de usuario

GoMax Electronics

GoMax Electronics SP-5004V Manual de usuario

GoMax Electronics

GoMax Electronics SP-5008IZ Manual de usuario

GoMax Electronics

GoMax Electronics SP-4152Z-PT Manual de usuario

GoMax Electronics

GoMax Electronics SP-5564 Manual de usuario

GoMax Electronics

GoMax Electronics SP-1014 Manual de usuario

GoMax Electronics

GoMax Electronics SP-4004Z-PT Manual de usuario

GoMax Electronics

GoMax Electronics SP-5012 Manual de usuario

GoMax Electronics

GoMax Electronics SP-5022V Manual de usuario

GoMax Electronics

GoMax Electronics SP-5004IZM-DA Manual de usuario

GoMax Electronics

GoMax Electronics SP-5128 Manual de usuario

GoMax Electronics

GoMax Electronics SP-5028E Manual de usuario

GoMax Electronics

GoMax Electronics SP-4053Z-PT Manual de usuario

Manuales populares de Cables y conectores de otras marcas

Philips

Philips SWA6310 Manual de usuario

StarTech.com

StarTech.com CRJ4550PK Manual de usuario

Nohau

Nohau EMUL-IP2K-PC Manual de usuario

Foxun

Foxun SX-SP144E-HD4K2K Manual de usuario

Philips

Philips SWA3305W Manual de usuario

opticis

opticis Stretch DVIM1-1P0x Manual de usuario

Volkswagen

Volkswagen VAS 6558A Manual de usuario

NEXIBO

NEXIBO N-13 Manual de usuario

CYP

CYP PU-1H3HBTL Manual de usuario

Allen-Bradley

Allen-Bradley 1784-u2dhp Manual de usuario

Global Caché

Global Caché Flex Link Blaster Manual de usuario

Hauppauge

Hauppauge USB-Live2 Manual de usuario

Fenix

Fenix MPSV 15 Manual de usuario

BEGA

BEGA 71 085 Manual de usuario

Tesla

Tesla HPWC Manual de usuario

GAMERON

GAMERON LUXURY TV CABLE Manual de usuario

molex

molex Milli-Grid Dual row 87568 Series Manual de usuario

Burndy

Burndy Continental Industries thermOweld CRE-7 Manual de usuario
