Godrej SeeThru Pro Nova Manual de usuario
USER MANUAL
Table of Content
Features and Functions......................................................................
Specifications.....................................................................................
Packing Contents................................................................................
Know your Product..............................................................................
4.1 Front and Rear Details for Indoor Unit.........................................
4.2 Front and Rear Details for Outdoor Unit......................................
Connection Diagram...........................................................................
5.1 System Layout..............................................................................
5.2 Wiring Diagram.............................................................................
5.3 Wiring Types and Distance...........................................................
Operation Description.........................................................................
6.1 Main Screen..................................................................................
6.2 Visitor Call......................................................................................
6.3 Monitor Function...........................................................................
6.4 Multimedia.....................................................................................
- 6.4.1 Image & Video Storage............................................................
- 6.4.2 Image & Video Review.............................................................
- 6.4.3 Voice Mail Function.................................................................
6.5 Intercom Function.........................................................................
6.6 Motion Detection...........................................................................
6.7 Schedule Do Not Disturb Function...............................................
6.8 Screensaver Function...................................................................
6.9 Wi-Fi Function (Optional)..............................................................
- 6.9.1 Add Device...............................................................................
- 6.9.2 Control the Monitor Through the App....................................
- 6.9.3 Call Forwarding Latency..........................................................
6.10 Setting Page................................................................................
Installation...........................................................................................
Precautions..........................................................................................
Information on E-Waste Handling and Management.......................
01
01
02
03
03
04
04
04
05
05
06
06
06
07
07
07
07
07
08
08
08
08
09
09
09
10
10
11
11
12
01
02
03
04
05
06
07
08
09
Please make sure to follow the instructions to prevent any danger or property losses.
WARNING AND CAUTION
Warning: Death or serious injury are expected.
Do not disassemble, install, or repair this product on your own accord.
Do not place the product near a hot or humid place.
Do not forcibly bend the cord or put a heavy object on the product.
Do not use water, thinner or a detergent used to wash oil products when you
wash the exterior.
Do not connect to other products while in use.
Make sure to clean it by using a dry cloth to prevent any breakdown or electric
shock.
If the product emits a peculiar noise, odor or smoke, immediately cut off the
power, and then contact the service center.
Do not put the plug in the socket with a wet hand.
Caution: An injury or property losses are expected
Make sure that dust or foreign substances are not gathered on the product.
Make sure to prevent foreign substances from entering the product.
Avoid direct rays of the sun or heating devices at a time of installation.
Install the product in a flat and stable place.
Pull the plug if the product is not used for a long time.
Do not unplug the micro SD card when recording, this generally will cause loss
of data.
• 10” capacitive touch screen monitor,1024*600 resolution IPS
• 1080P/720P/CVBS/AHD display & record
• Built-in WiFi module supports local and remote control via smart phone.
• GUI menu
• Up to 2 door stations,2 HD CCTV cameras,1 master monitor + 5 slave monitors
• Support opening the automatic gate
• Inner flash memory, support Micro SD card for storage(Max 128GB support)
• Auto&manual video/picture recording
• Point-to-point intercom (Addressable)and broadcast
• Support call forwarding function
• Support motion detection from door station or CCTV
• Leaving voice messages to visitors
• Scheduled do not disturb function
• Screensaver function (date & time display in standby mode)
• Selective 16 melodies
• Ringtone volume & talking volume adjustable
• Brightness, color and contrast adjustable
• Support DC 12V power input
1. FEATURES AND FUNCTIONS
1
Category
Specification
TFT LCD
10 inch digital TFT LCD
LCD resolution
1024(RGB) x 600
Supported video input signal type
1080P / 720P / CVBS
Connection with door station
Support two 4-wire door stations
Connection with extension monitor
Support five extension monitors
Connection with CCTV
Support two 2-wire CCTV input
Memory capacity
Inner Flash: Maximum 60 images, Maximum
10 videos and Micro SD card: 8G~ 128G
Indoor unit dimensions
260(W) x 165(H) x 20(D)(without wall bracket)
Outdoor unit dimensions
40(W) x 120(H) x 25(D) (without wall bracket)
2. SPECIFICATIONS
3. PACKING CONTENTS
Outdoor Panel Indoor Monitor 12V DC
Power Adapter
Wall Bracket
Angular
Bracket
2 Pin Power
Cable x 3
4 Pin Power
Cable x 6
User Manual
M 4x35 mm
Plastic Expansion Pipe
KA 4x35mm
Mounting Screw
2
3
No.
Part Name
Description
1
Screen
10” Digital touch screen
2
Microphone
Receive voice from the user
3
Do-not Disturb /
Leaving Indicator
White LED when home mode enable
Pink LED when mute function enable
Red LED when leaving mode enable
4
Micro SD Card Slot
Socket for Micro SD Card
5
Speaker
Generate sound for user
6
Interface
Connector provision
4. KNOW YOUR PRODUCT
4.1 Front And Rear details for indoor unit
No.
Part Name
Description
1
CCTV Input
Interface for CCTV 1 / CCTV 2
2
LAN Input
Interface for home router
3
Video Input
Interface for door station 1
4
Video Input
Interface for door station 2
5
Intercom Output
Interface for intercom output
6
Intercom Input
Interface for intercom input
7
CCTV Out
Interface for CCTV out
8
DC Power Input
Interface for DC power supply
9
Relaay Out
Interface for NO type lock
4
No.
Part Name
Description
1
LED Light
For night vision
2
Camera
Wide angle high quality camera
3
Speaker
To get the audio from Indoor monitor
4
Call Button
To ring call in indoor monitor
5
Microphone
To send audio to Indoor monitor
6
Terminal for Electronic Lock
To connect electronic lock
7
Terminal for Indoor Monitor
To connect indoor monitor with outdoor panel

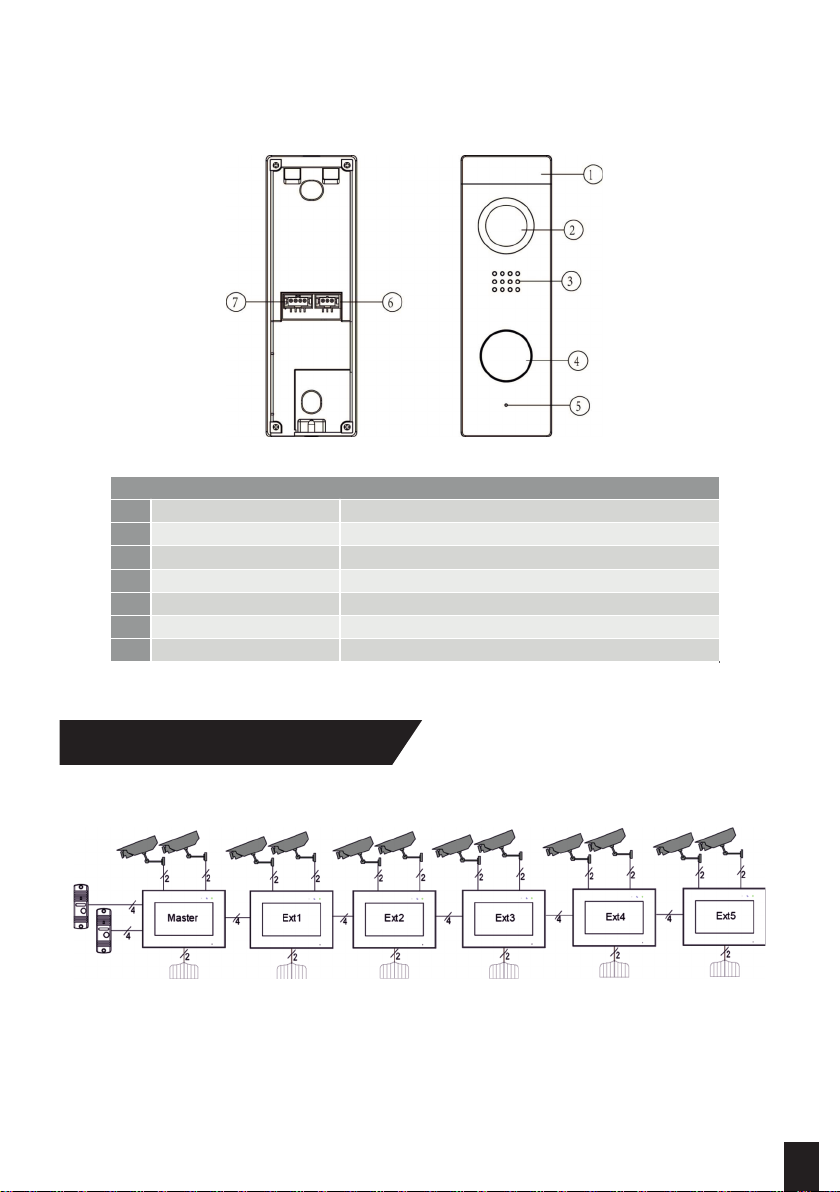

4.2 Front and rear details for outdoor unit
5. CONNECTION DIAGRAM
5.1 System Layout
5.2 Wiring Diagram
•Please be careful to wiring on polarity.
•Intercom wiring diagram with one monitor.
•Intercom wiring diagram with master monitor and extensions.
5
5.3 Wiring Types and Distance
Note: For seamless functionality, It is recommended to use 3+1 cable for long distance
installations.
6
6. OPERATION DESCRIPTION
6.1 Main Screen
Touch the screen anywhere in standby mode, the main page will be shown as follows:
It will show corresponding functions when pressing each icon on main screen.
6.2 Visitor Call
When door station calls in, the visitor's image will be shown on the monitor screen and you can
press [Talk] icon to talk with the visitor and press it again to terminate the talk.
Capture a
Record a Video Switch Between
Door Stations and
CCTV Cameras
Talk Release The
Electronic Lock
Call Transfer
Manually
Adjust display
parameters
(brightness/color/
contrast) and
volume
Open The
Automatic Door
Back to Main
Screen
During The Talk:
•You can record a video or capture a picture from the calling door station automatically
depending on the system setting.
•You can press [Switch] icon to switch to other door station or CCTV camera, and the current
talk will be terminated.
•You can press [Transfer] icon to transfer the current call to other extension monitors.
7
When you press the [Camera] icon on main screen, the system will enter monitor mode, and will
show image from the corresponding door station and CCTV camera.
Remark: The [Transfer] icon will be disabled in monitor mode.
6.4.1 Image & Video Storage
•The monitor can record images and videos with inner flash storage; It also support mirco SD
card
•When full, the newest image/video will automatically overwrite the oldest image/videO
6.4.2 Image & Video Review
Press [Memory] icon on main screen, you can review the image/video. The image/video list with
a red circle means that the image/video is not viewed. You can press the corresponding list
directly to review the image/video.
Remark:
• Micro SD card must be formatted by monitor before using
• Micro SD card is excluded in the package
• The videos include both the video recorded during monitoring and recorded during motion
detection
6.4.3 Voice Mail Function
Press [Setting] icon on main screen and enter [Voicemail] setting page, press [For visitor] icon
,and then you can record and review messages.
6.3 Monitor Function
6.4 Multimedia
Remark: The monitor support up to two voice messages for vistitor. When full, the newest
message will automatically overwrite the oldest message.
