Foreword:
Warning
Thank you for purchasing this Godox Product!
S30 Focusing LED Light is excellent for product shooting, photojournalistic and video
recording, etc. It creates stable light resource and even illumination for photography. This
light's brightness can be precisely adjusted with easy operation.
Features:
● With specially designed lens to gain soft and even light effect from center to
edge
● Adjustable focusing range and light brightness enable you to observe the
variation of shadow's hardness, dimension and edge contrast
● Precisely control the light and achieve more creative light effects when use in
combination with abundant accessories
● Three ways of power supply (5V/7.4V/15V) offer great convenience, portability
and wide application
● Large-sized LCD panel. Settings auto saved
Do not disassemble or modify. Should the product break down, send the defective
back to the authorized service center for inspection and maintenance.
Keep dry. Do not handle with wet hands, immerse in water, or expose to rain. Do not
place in high temperature or high humidity conditions.
Keep out of reach of children.
As this product adopts make and break device, please keep it easy to be used.
Disconnect from the power supply when it will not be used for an extended period.
If this product overheats, it will cease operation and resume working after cooling
down. This is due to the built-in overtemperature protection.
Parts
01. Lens
02. LCD Panel
03. Select Dial for Light Brightness
04. Power Switch
05. Select Dial for Focal Length
06. DC Power Socket
07. Direction Adjusting Bracket
08. Fixing Knob
09. Accessory Latch
Light
Brightness
Color
Temperature
LCD Panel
01
02
03
07
08
06
04
09
05
Battery
Indicator
- 09 - - 10 -
Foreword:
Warning
Thank you for purchasing this Godox Product!
S30 Focusing LED Light is excellent for product shooting, photojournalistic and video
recording, etc. It creates stable light resource and even illumination for photography. This
light's brightness can be precisely adjusted with easy operation.
Features:
● With specially designed lens to gain soft and even light effect from center to
edge
● Adjustable focusing range and light brightness enable you to observe the
variation of shadow's hardness, dimension and edge contrast
● Precisely control the light and achieve more creative light effects when use in
combination with abundant accessories
● Three ways of power supply (5V/7.4V/15V) offer great convenience, portability
and wide application
● Large-sized LCD panel. Settings auto saved
Do not disassemble or modify. Should the product break down, send the defective
back to the authorized service center for inspection and maintenance.
Keep dry. Do not handle with wet hands, immerse in water, or expose to rain. Do not
place in high temperature or high humidity conditions.
Keep out of reach of children.
As this product adopts make and break device, please keep it easy to be used.
Disconnect from the power supply when it will not be used for an extended period.
If this product overheats, it will cease operation and resume working after cooling
down. This is due to the built-in overtemperature protection.
Parts
01. Lens
02. LCD Panel
03. Select Dial for Light Brightness
04. Power Switch
05. Select Dial for Focal Length
06. DC Power Socket
07. Direction Adjusting Bracket
08. Fixing Knob
09. Accessory Latch
Light
Brightness
Color
Temperature
LCD Panel
01
02
03
07
08
06
04
09
05
Battery
Indicator
- 09 - - 10 -
Operation
Using the Video Light

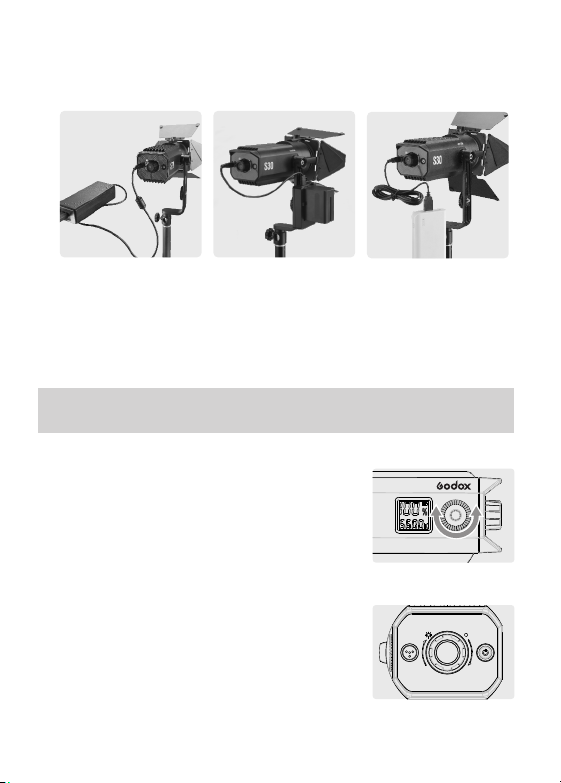

● There are three ways for power supply:
1. Power supplied by
DC adapter(15V/4A).
2. Power supplied by Li-ion
battery (Sony NP-F970/
F950/F930) (7.4V).
● Long press the ON/OFF Power Switch, the video light begins to giving out light.
● LCD panel shows the information.
3. Power supplied by power
bank with an USB cable
(5V/2A).
Note: The power of S30 is 30W when power supplied by 15V/4A DC adapter or 10W when power
supplied by li-ion battery (Sony NP-F970/F950/F930) or power bank (5V/2A).
Light Brightness Adjustment
● Turn the select dial to adjust the light brightness.
● The light brightness adjustable range is at 10%~100%.
Focal Length Adjustment
When turning the Select Dial for Focal Length
counterclockwise to the end, the lighting coverage is the
biggest; when turning the Select Dial for Focal Length
clockwise to the end, the lighting coverage is the smallest.
340°
Direction Adjusting Bracket
• This bracket can be rotated up by 340°.
• If the bracket is not tight enough after repetitive rotation,
please use the included wrench to fix it.
Note: 1. The LED spotlight will auto power off once powered on if the portable charger's
current is lower than 2A.
2. Fan start temperature: Fan 1 will start if the temperature is over 40°C and fan 2 will
start if over 45°C.
3. The LED spotlight will auto power off if the temperature is over 70°C.
1. Light Body 2. Barndoor Set 3. 5-meter Power Cord 4. Wrench 5. Adapter
6. 50cm Cable 7. 180cm Cable 8. USB Cable 9. Lithium Battery Box 10. Portable Bag
Included Items
