Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

2012 Chevrolet Tahoe and GMC Yukon/Yukon Denali

Hybrid M

In Brief ........................ 1-1

Initial Drive Information . . . . . . . . 1-1

Hybrid Features . . . . . . . . . . . . . . . 1-2

Performance and

Maintenance . . . . . . . . . . . . . . . . . 1-5

Seats and Restraints . . . . . . . . . 3-1

Front Seats . . . . . . . . . . . . . . . . . . . . 3-1

Airbag System . . . . . . . . . . . . . . . . . 3-2

Instruments and Controls . . . . 5-1

Controls . . . . . . . . . . . . . . . . . . . . . . . 5-1

Warning Lights, Gauges, and

Indicators . . . . . . . . . . . . . . . . . . . . 5-3

Information Displays . . . . . . . . . . 5-11

Vehicle Messages . . . . . . . . . . . . 5-12

Infotainment System . . . . . . . . . 7-1

Introduction . . . . . . . . . . . . . . . . . . . . 7-1

Climate Controls . . . . . . . . . . . . . 8-1

Climate Control Systems . . . . . . 8-1

Driving and Operating . . . . . . . . 9-1

Driving Information . . . . . . . . . . . . . 9-1

Starting and Operating . . . . . . . . . 9-2

Engine Exhaust . . . . . . . . . . . . . . . . 9-6

Automatic Transmission . . . . . . . 9-7

Drive Systems . . . . . . . . . . . . . . . . 9-10

Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-15

Towing . . . . . . . . . . . . . . . . . . . . . . . 9-16

Vehicle Care . . . . . . . . . . . . . . . . . 10-1

Vehicle Checks . . . . . . . . . . . . . . . 10-2

Bulb Replacement . . . . . . . . . . 10-14

Electrical System . . . . . . . . . . . . 10-16

Wheels and Tires . . . . . . . . . . . 10-18

Jump Starting . . . . . . . . . . . . . . . 10-33

Towing . . . . . . . . . . . . . . . . . . . . . . 10-38

Appearance Care . . . . . . . . . . . 10-42

Service and Maintenance . . . 11-1

Maintenance Schedule . . . . . . . 11-1

Recommended Fluids,

Lubricants, and Parts . . . . . . . 11-2

Technical Data . . . . . . . . . . . . . . . 12-1

Vehicle Data . . . . . . . . . . . . . . . . . . 12-2

Index ..................... i-1

Black plate (2,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

ii Introduction

The names, logos, emblems,

slogans, vehicle model names, and

vehicle body designs appearing in

this manual including, but not limited

to, GM, the GM logo, CHEVROLET,

GMC, the CHEVROLET and GMC

Truck Emblems, TAHOE, YUKON,

and DENALI are trademarks and/or

service marks of General Motors

LLC, its subsidiaries, affiliates,

or licensors.

This manual describes features that

may or may not be on your specific

vehicle either because they are

options that you did not purchase or

due to changes subsequent to the

printing of this owner manual.

Please refer to the purchase

documentation relating to your

specific vehicle to confirm each of

the features found on your vehicle.

For vehicles first sold in Canada,

substitute the name “General

Motors of Canada Limited”for

Chevrolet Motor Division and/or

GMC wherever it appears in this

manual.

Keep this manual in the vehicle for

quick reference.

Your hybrid SUV is designed to be

more fuel efficient than the standard

SUV, which results in reduced

carbon dioxide emissions.

Canadian Vehicle Owners

Propriétaires Canadiens

A French language copy of this

manual can be obtained from your

dealer or from:

On peut obtenir un exemplaire de

ce guide en français auprès du

concessionnaire ou à l'adresse

Helm, Incorporated

P.O. Box 07130

Detroit, MI 48207

1-800-551-4123

Numéro de poste 6438 de langue

française

www.helminc.com

Litho in U.S.A.

Black plate (3,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

Introduction iii

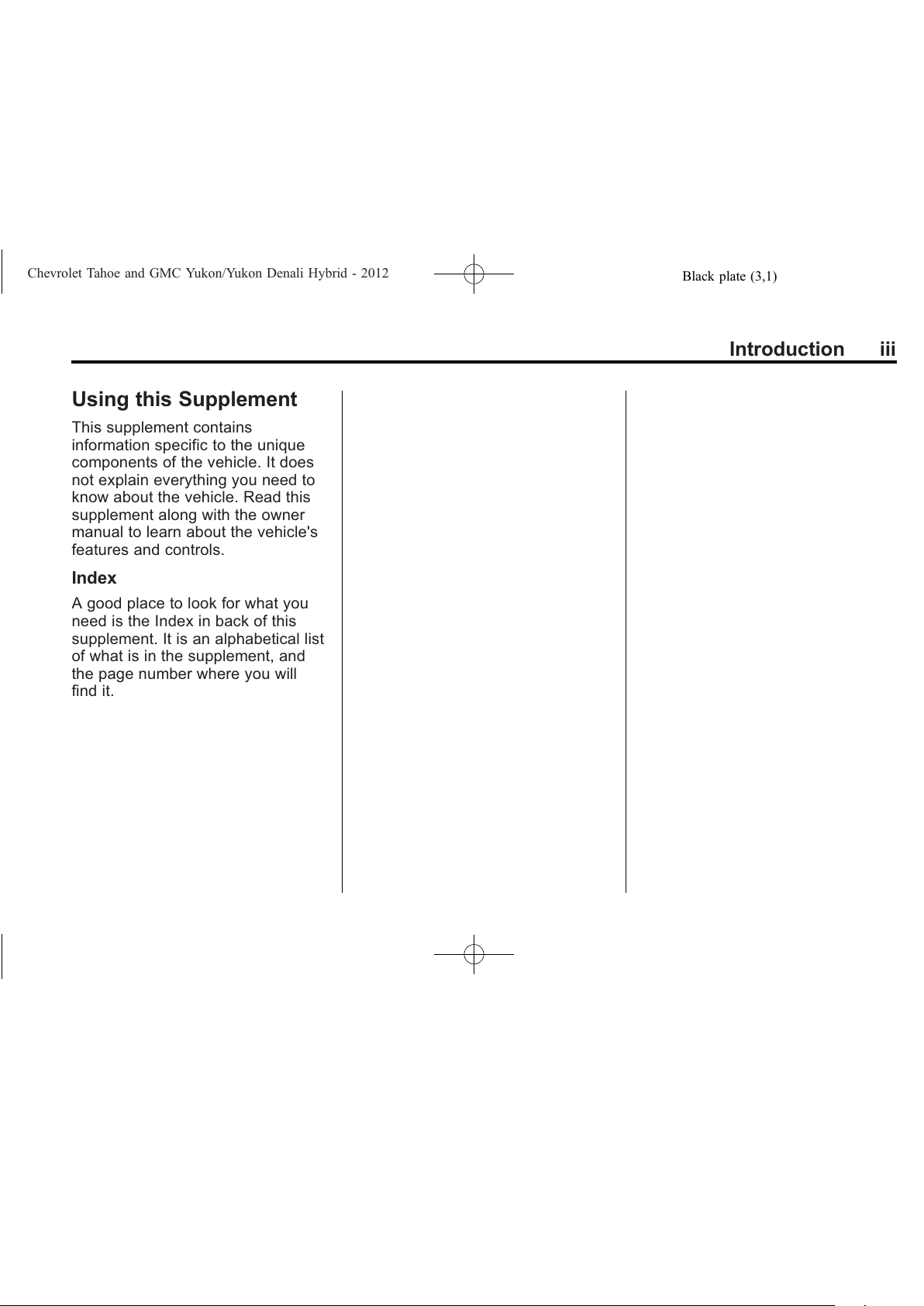

Using this Supplement

This supplement contains

information specific to the unique

components of the vehicle. It does

not explain everything you need to

know about the vehicle. Read this

supplement along with the owner

manual to learn about the vehicle's

features and controls.

Index

A good place to look for what you

need is the Index in back of this

supplement. It is an alphabetical list

of what is in the supplement, and

the page number where you will

find it.

Black plate (4,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

iv Introduction

2NOTES

Black plate (1,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

In Brief 1-1

In Brief

Initial Drive Information

Transmission . . . . . . . . . . . . . . . . . . 1-1

Four-Wheel Drive . . . . . . . . . . . . . 1-2

Hybrid Features

High Voltage Safety

Information . . . . . . . . . . . . . . . . . . 1-2

Fuel Economy Gauge . . . . . . . . . 1-3

Automatic Engine Start/Stop

Feature . . . . . . . . . . . . . . . . . . . . . . 1-3

Regenerative Braking . . . . . . . . . 1-4

Battery . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Service ....................... 1-5

Performance and Maintenance

Tire Sealant and

Compressor Kit . . . . . . . . . . . . . . 1-5

Initial Drive

Information

Transmission

Range Selection Mode

The Range Selection Mode switch

is located on the shift lever.

To enable the Range Selection

feature:

1. Move the column shift lever

to the M (Manual) position.

The current range will appear

next to the M. This is the highest

attainable range with all lower

gears accessible. As an

example, when 3 (Third) gear

is selected, 1 (First) through

3 (Third) gears are available.

2. Press the plus/minus buttons,

located on the steering column

shift lever, to select the desired

range of gears for current driving

conditions. See Automatic

Transmission Operation in the

owner manual.

Cruise control can be used while the

vehicle is in Range Selection Mode.

See Manual Mode on page 9‑9.

Black plate (2,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

1-2 In Brief

Four-Wheel Drive

If the vehicle has four-wheel drive,

you can send the engine's driving

power to all four wheels for extra

traction. Read the following before

using four-wheel drive.

Automatic Transfer Case

The transfer case knob is located

to the left of the instrument panel

cluster. You can choose among

five driving settings:

2m(Two-Wheel Drive High):

This setting is used for driving in

most street and highway situations.

AUTO (Automatic Four-Wheel

Drive): This setting is ideal for

use when road surface traction

conditions are variable.

4m(Four-Wheel Drive High):

Use the four-wheel high position

when you need extra traction, such

as on snowy or icy roads or in most

off-road situations.

4n(Four-Wheel Drive Low) :

This setting delivers extra torque.

You might choose Four-Wheel Drive

Low if you are driving off-road in

deep sand, deep mud, deep snow,

and while climbing or descending

steep hills.

N (Neutral): Shift the vehicle's

transfer case to N (Neutral) only

when towing the vehicle. See

Recreational Vehicle Towing on

page 10‑38 and “Towing the

Vehicle”in the owner manual.

See Four-Wheel Drive on

page 9‑10.

Hybrid Features

High Voltage Safety

Information

This vehicle has a standard

12-volt battery and a high voltage

hybrid battery. Only a trained

service technician with the proper

knowledge and tools should inspect,

test, or replace the hybrid battery.

See your dealer if the hybrid battery

needs service.

The 12-volt battery cables, in the

engine compartment, are clearly

labeled. In emergency situations,

first responders can cut those

cables to disable the high voltage

hybrid battery system.

Black plate (3,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

In Brief 1-3

Fuel Economy Gauge

Metric

English

This gauge shows when the vehicle

is operating at a fuel efficient point.

By modifying driving behavior to

increase the economy time during

driving, fuel mileage will be

improved.

See Fuel Economy Gauge on

page 5‑5.

Automatic Engine

Start/Stop Feature

Start the engine as you would any

other engine. See “Starting the

Engine”in the owner manual for

more information on starting.

The hybrid system provides very

quiet engine starting. If pulling a

trailer with trailer brakes, see Trailer

Towing on page 9‑16 for more

information.

Auto Stop

The vehicle has an Auto Stop

feature. After a successful engine

start, the engine may turn off and

operate in the Auto Stop mode.

Keep your foot firmly on the brake

pedal until you are ready for the

vehicle to move.

Black plate (4,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

1-4 In Brief

Engine OFF and AUTO STOP

modes are indicated on the

tachometer display. When the

tachometer needle indicates OFF,

the engine is not running and will

remain off until the ignition key is

placed in the START position or a

remote vehicle start is performed.

When the tachometer needle

indicates AUTO STOP, the hybrid

system is on, the engine is not

running, but may Auto Start at any

time without notice. See Tachometer

on page 5‑4for more information.

A chime will sound if the driver door

is opened while in Auto Stop as a

reminder that the ignition switch is

not in the LOCK/OFF position.

Always turn the ignition switch to

LOCK/OFF and remove the key

from the ignition switch when exiting

the vehicle.

Auto Start

The vehicle also has an Auto Start

feature. The engine will remain off

while in Auto Stop mode until

vehicle conditions require the

engine to run. The near-instant

starting of the engine from Auto

Stop mode is called Auto Start.

EV Mode

The vehicle also has an EV mode

which uses only the electric motor

to move the vehicle. With light

acceleration, the vehicle will drive in

EV mode. EV mode is unavailable

when the vehicle is out of fuel.

For more information on Auto Stop,

Auto Start, and EV Mode, see

Starting the Vehicle on page 9‑2.

Regenerative Braking

Regenerative braking enables the

electric drive motor to operate as a

generator when coasting or braking.

Energy from the moving vehicle

recharges the hybrid battery.

The hydraulic disc brakes work with

the regenerative braking to insure

effective braking.

The braking system is computer

controlled and blends the

regenerative braking with the

conventional hydraulic disc brakes

to meet any requirements for

deceleration. Because the controller

applies the hydraulic brakes through

its high pressure accumulator, you

may occasionally hear the motor

driven pump when it recharges

the system. This is normal.

Black plate (5,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

In Brief 1-5

In the event of a controller problem,

the brake pedal may be harder to

push and the stopping distance may

be longer.

See Regenerative Braking on

page 9‑15.

Battery

This vehicle has a standard

12-volt battery and a high voltage

hybrid battery. When a new

standard 12-volt battery is needed,

see your dealer for one that has the

replacement number shown on the

original battery's label. Only a

trained service technician with the

proper knowledge and tools should

inspect, test, or replace the hybrid

battery. See your dealer if the hybrid

battery needs service. See Battery

on page 10‑13.

Service

Never try to do your own service on

hybrid components. You can be

injured and the vehicle can be

damaged if you try to do your own

service work. Service and repair of

these hybrid components should

only be performed by a trained

service technician with the proper

knowledge and tools. See Doing

Your Own Service Work on

page 10‑2.

Performance and

Maintenance

Tire Sealant and

Compressor Kit

This vehicle has a tire sealant and

compressor kit that can be used to

seal small punctures in the tread

area of the tire. Significant sidewall

damage will require the tire to be

replaced.

See Tire Sealant and Compressor

Kit on page 10‑25 for complete

operating information.

Black plate (6,1)

Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2012

1-6 In Brief

2NOTES

Otros manuales para 2012 Tahoe

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Automóvil de GMC

GMC

GMC Envoy 2006 Manual de usuario

GMC

GMC SIERRA 1996 Manual de usuario

GMC

GMC 2009 Yukon XL Manual de usuario

GMC

GMC 2010 Savana 1500 Cargo Manual de usuario

GMC

GMC 2010 Equinox Manual de usuario

GMC

GMC 2004 YUKON DENALI Manual de usuario

GMC

GMC 1997 Safari Manual de usuario

GMC

GMC 2007 Acadia Manual de usuario

GMC

GMC Yukon XL Denali 2015 Instrucciones de montaje

GMC

GMC Envoy XL 2003 Manual de usuario

GMC

GMC 1995 Suburban Manual de usuario

GMC

GMC Corvette 1984 Instrucciones de montaje

GMC

GMC Sierra 2000 Manual de usuario

GMC

GMC 2007 Sierra Classic Manual de usuario

GMC

GMC HUMMER EV 2022 Manual de usuario

GMC

GMC 1995 Jimmy Manual de usuario

GMC

GMC 2016 Yukon XL Denali Manual de usuario

GMC

GMC 2012 GMC Savana Manual de usuario

GMC

GMC 1989 Light Duty Truck Instrucciones de funcionamiento

GMC

GMC SIERRA DENALI Manual de lista de piezas

GMC

GMC Denali 2004 Manual de usuario

GMC

GMC 2011 GMG Canyon Manual de usuario

GMC

GMC Typhoon and Syclone Manual de usuario

GMC

GMC 1997 Sonoma Manual de usuario

Manuales populares de Automóvil de otras marcas

Toyota

Toyota 2000 Tundra Manual de usuario

CITROËN

CITROËN DS4 DSign Manual de usuario

Lexus

Lexus 2015 CT 200h Manual de usuario

Cadillac

Cadillac CTS 2008 Manual de usuario

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manual de usuario

Porsche

Porsche Boxster S Manual de usuario

KIAM

KIAM SPORTAGE 2014 Manual de lista de piezas

Mercury

Mercury 1998 Mystique Manual de usuario

Mercury

Mercury 2007 Mariner Manual de usuario

Mazda

Mazda 2007 Mazdaspeed 3 Guía

Mazda

Mazda 2014 CX-5 Manual de usuario

Chevrolet

Chevrolet 2012 Malibu Manual de usuario

Cadillac

Cadillac 2010 Escalade Manual de usuario

Skoda

Skoda FABIA RS - ANNEXE 118 Manual de usuario

Seat

Seat toledo Manual de usuario

PEUGEOT

PEUGEOT 206 CC Manual de usuario

SSANGYONG

SSANGYONG ACTYON 2010.01 Manual de usuario

Renault

Renault Master Manual de usuario
