GigaTera SUFA-M Manual de usuario
!
1
SUFA-M
User Guide
LED Sports Flood Lighting
Document Revision – V2.0_E
⏏SUFA-M 1200W (200W x 6ea)
Safety precautions
1. Electrical work must be performed by a qualified licensed electrician.
2. Disconnect or turn off power before installation or servicing.
3. Do not take apart or modify the product.
4. Do not drop the product or apply a strong impact to it.
5. The manufacturer or the seller do not bear liability for damage caused by inappropriate use or application.
6. Contact the manufacturer or the seller for inquiry when there is a problem with the product.
If the external flexible cable or cord of this luminaire is damaged,
it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
!
2
!
User Guide
SUFA-M 1K2
LED Sports Flood Lighting
KMW INC.
183-6, Yeongcheon-ro, Hwaseong-si, Gyeonggi-do, South Korea
!
LED Module Dimension
mm (inch)
Size (W x L x H) / Weight
9.1 x 11.8 x 74.9 (Inch) / 77.2 lb
231 x 300 x 1,920 (mm) / 35.0 Kg
Driver Dimension
Size (W x L x H) / Weight
18.5 x 6.0 x 7.2 (Inch) / 25.3 lb
470 x 151.2 x 181.7 (mm) / 11.5 Kg
!
!
3
!
User Guide
SUFA-M 1K2
LED Sports Flood Lighting
KMW INC.
183-6, Yeongcheon-ro, Hwaseong-si, Gyeonggi-do, South Korea
!
Installation Instruction
1
Basically, we provide ssembled SFM-1200W with prevent fall wire.
2
Connect DC wire, before assemble fixture to cross arm.
!
4
!
User Guide
SUFA-M 1K2
LED Sports Flood Lighting
KMW INC.
183-6, Yeongcheon-ro, Hwaseong-si, Gyeonggi-do, South Korea
!
Installation Instruction
3
Assemble fixture to cross arm, tighten M12(4ea) hexa bolt up and down.
4
Assemble all fixture to cross arm.
!
5
!
User Guide
SUFA-M 1K2
LED Sports Flood Lighting
KMW INC.
183-6, Yeongcheon-ro, Hwaseong-si, Gyeonggi-do, South Korea
!
Installation Instruction
5
At the bottom of the pole, driver cabinet installed.
6
DC wire assemble to driver inside driver cabinet. (Red + / Black - | White + / Green -)
!
6
!
User Guide
SUFA-M 1K2
LED Sports Flood Lighting
KMW INC.
183-6, Yeongcheon-ro, Hwaseong-si, Gyeonggi-do, South Korea
!
Installation Instruction
7
AC wire assemble to driver inside driver cabinet.
8

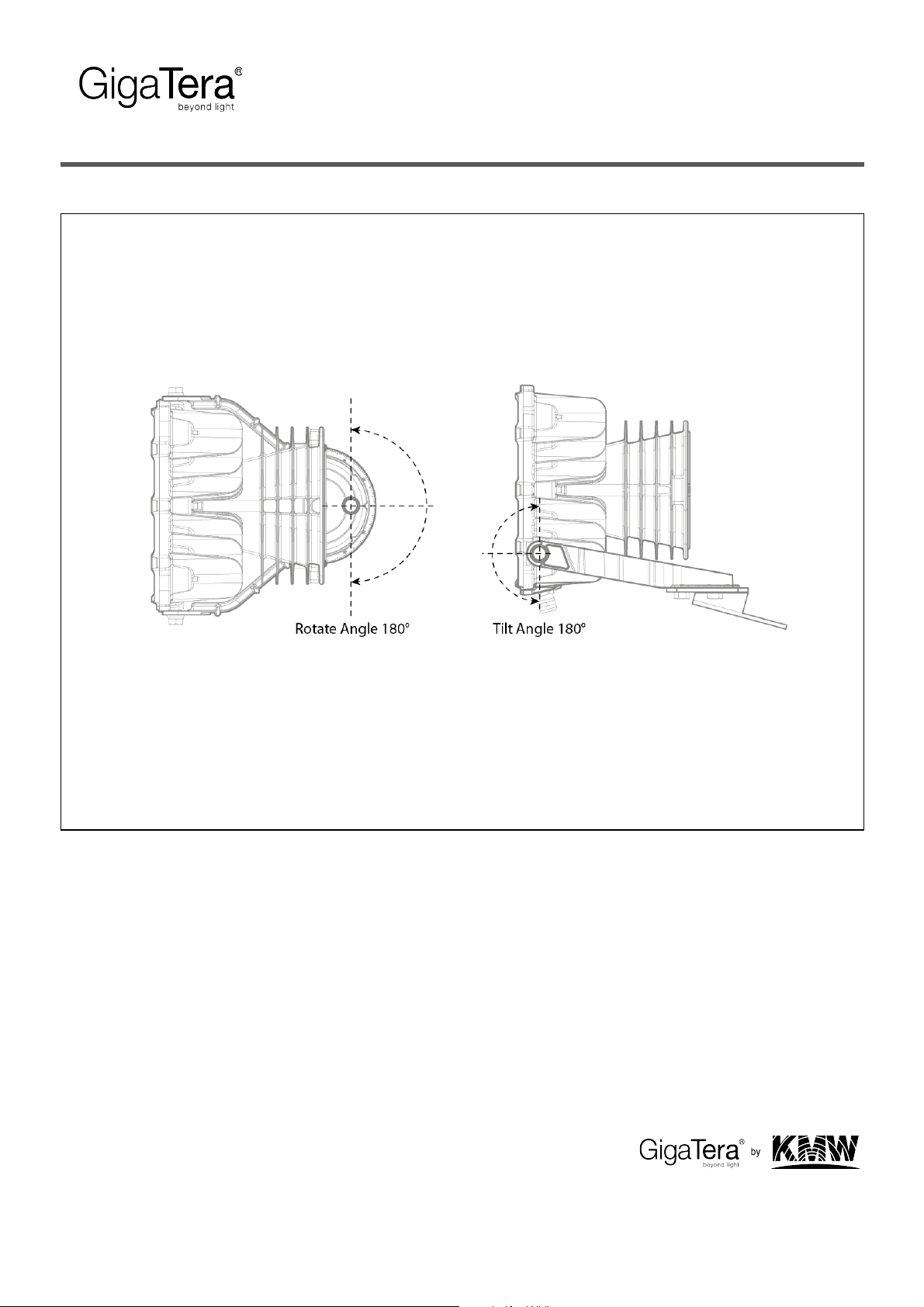

Aiming fixture to wanted direction.
!
7
!
User Guide
SUFA-M 1K2
LED Sports Flood Lighting
KMW INC.
183-6, Yeongcheon-ro, Hwaseong-si, Gyeonggi-do, South Korea
!
Installation Instruction
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Copyright © 2017 KMW INC. All rights reserved. / www.kmw.co.kr
The information in this document is subject to change without notice. / Document Revision V2.0 / 2017.04.11!
