GV-N4464D/ GV-N4464T/
GV-N4464T-P
User's Manual
GeForce™4 MX440-8X Graphics Accelerator
Rev. 101
12MD-N4464-101
Copyright
© 2003 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in
any from without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on motherboard, this may void the warranty of this motherboard.
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make
a commitment to update the information ontained herein.
GV-N4464 Series Graphics Accelerator - 2 -
English
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum system requirement .................................................................... 3
2. Hardware Installation........................................................................... 4
2.1. Unpacking .................................................................................................. 4
2.2. Board layout ............................................................................................... 5
2.3. Hardware installation .................................................................................. 8
3. Software Installation .......................................................................... 10
3.1. Win®XP driver and utilities installation ..................................................... 10
3.1.1. Operating system requirement ..................................................................... 10
3.1.2. DirectX installation ........................................................................................ 11
3.1.3. Driver installation .......................................................................................... 13
3.1.4. Utilities on driver CD ..................................................................................... 15
3.1.5. Taskbar icon ................................................................................................. 17
3.1.6. Display properties pages .............................................................................. 20
3.1.7. nView properties pages ................................................................................ 25
3.2. Win®98/98SE / Win®2000 / Win®ME driver installation ........................... 29
3.3. BIOS flash utility ....................................................................................... 29
4. Troubleshooting Tips ......................................................................... 30
5. Appendix ...........................................................................................31
5.1. How to reflash the BIOS ........................................................................... 31
5.2. Resolutions and color depth table (In Windows®XP) ............................... 32
Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by NVIDIA®GeForce™4 MX440-8X Graphics Processing Unit (GPU)
•Supports AGP 8X/ 4X/ 2X/ 1X
•275MHz core clock and 500MHz DDR memory clock speed
•64MB DDR memory accelerates the latest 3D games
•64-bit memory interface
•2-pixel pipeline architecture
•Supports DirectX 8.1
•Supports TV-Out connector
•Supports DVI-I connector (For GV-N4464D only)
1.2. Minimum system requirement
•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz
class processor or higher
•One available AGP3.0 compliant slot or better
•Operating Systems Win®98/98SE / Win®2000 / Win®ME / Win®XP
•64MB system memory
•50MB of available disk space for full installation
•CD-ROM or DVD-ROM drive
GV-N4464 Series Graphics Accelerator - 4 -
English
2. Hardware Installation
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect
them against damage from static electricity, you should follow some precautions
whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the power
supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator should
be wearing an anti-static wristband, grounded at the same point as the anti-static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage to
your card. Be sure there are no shipping and handling damages on the card before proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD.
In order to ensure your graphics card working correctly, please use official Gigabyte
BIOS only. Use none official gigabyte BIOS might cause problem on the graphics
card.
2.1. Unpacking
The GV-N4464 Series package contains the following:
The GV-N4464D, GV-N4464T or GV-N4464T-P graphics accelerator
GV-N4464 Series user's manual
NVIDIA Series driver and utility CD
Power DVD CD
S-video cable x 1
DVI-I to D-Sub connector (For GV-N4464D only)
Hardware Installation- 5 -
English

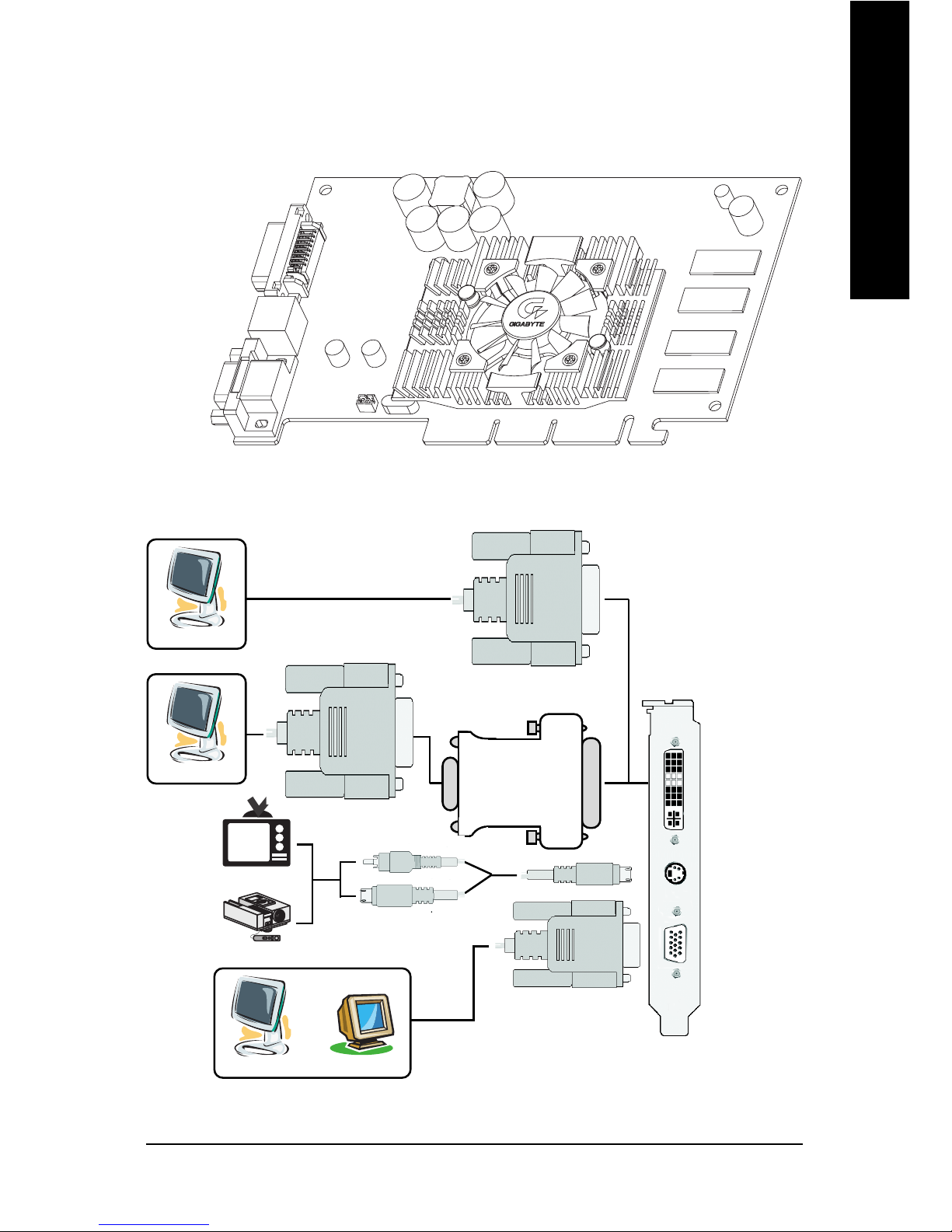

2.2. Board layout
1) GV-N4464D
TV-out
VGA Monitor
Connector
(15pin)
DVI-I Connector
NTSC / PAL TV
Projector
Analog LCD Monitor Analog Monitor
OR
VGA Output
AV Output
S-VideoOutput
Analog LCD Monitor
Digital LCD Monitor
DVI Output
DVI-I to D-Sub Connector
VGA Output
TV-Out
VGA Monitor
Connector
(15pin)
DVI-I Connector
GV-N4464 Series Graphics Accelerator - 6 -
English

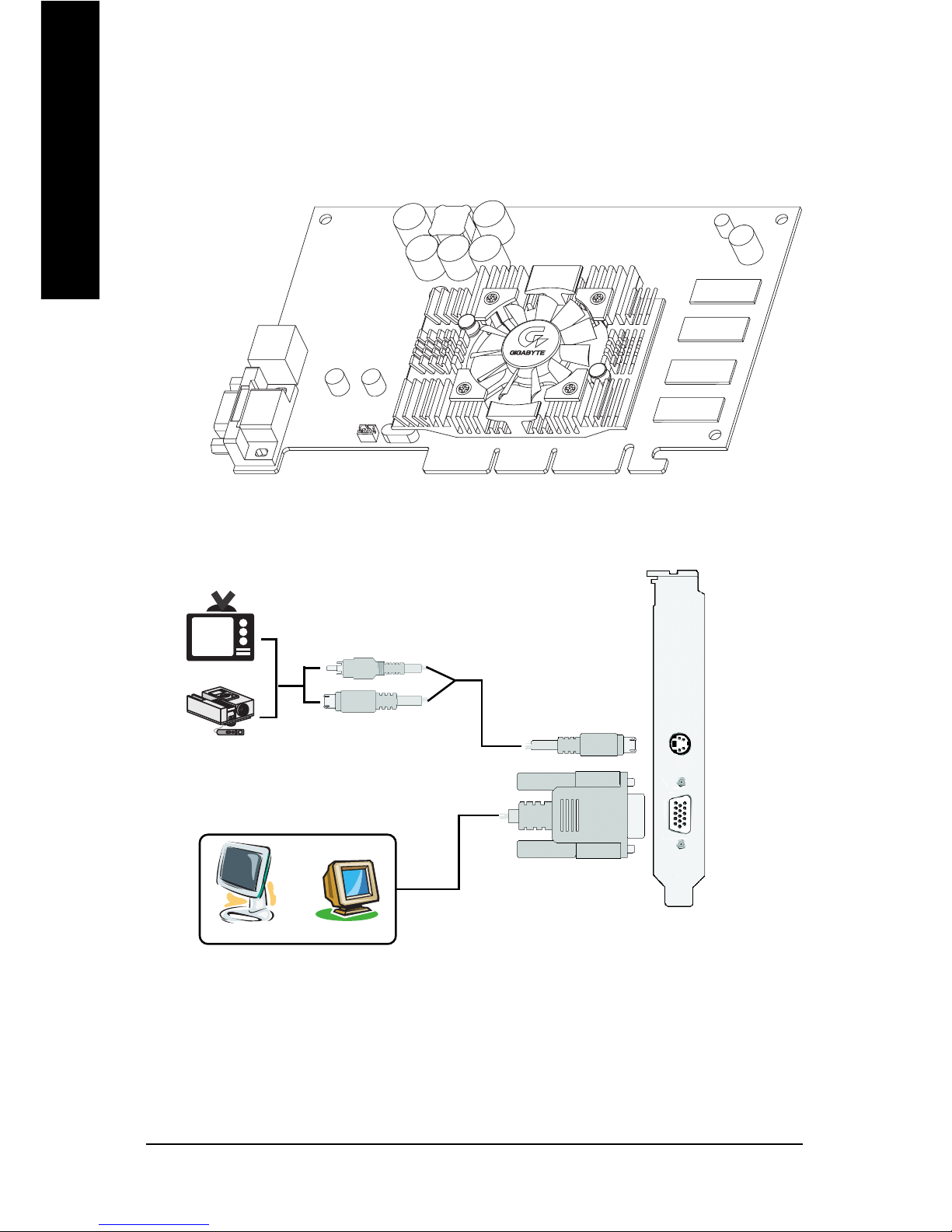

2) GV-N4464T
TV-Out
VGA Monitor
Connector
(15pin)
TV-out
VGA Monitor
Connector
(15pin)
AV Output
NTSC / PAL TV
Projector
S-VideoOutput
Analog LCD Monitor Analog Monitor
OR
VGA Output
Hardware Installation- 7 -
English

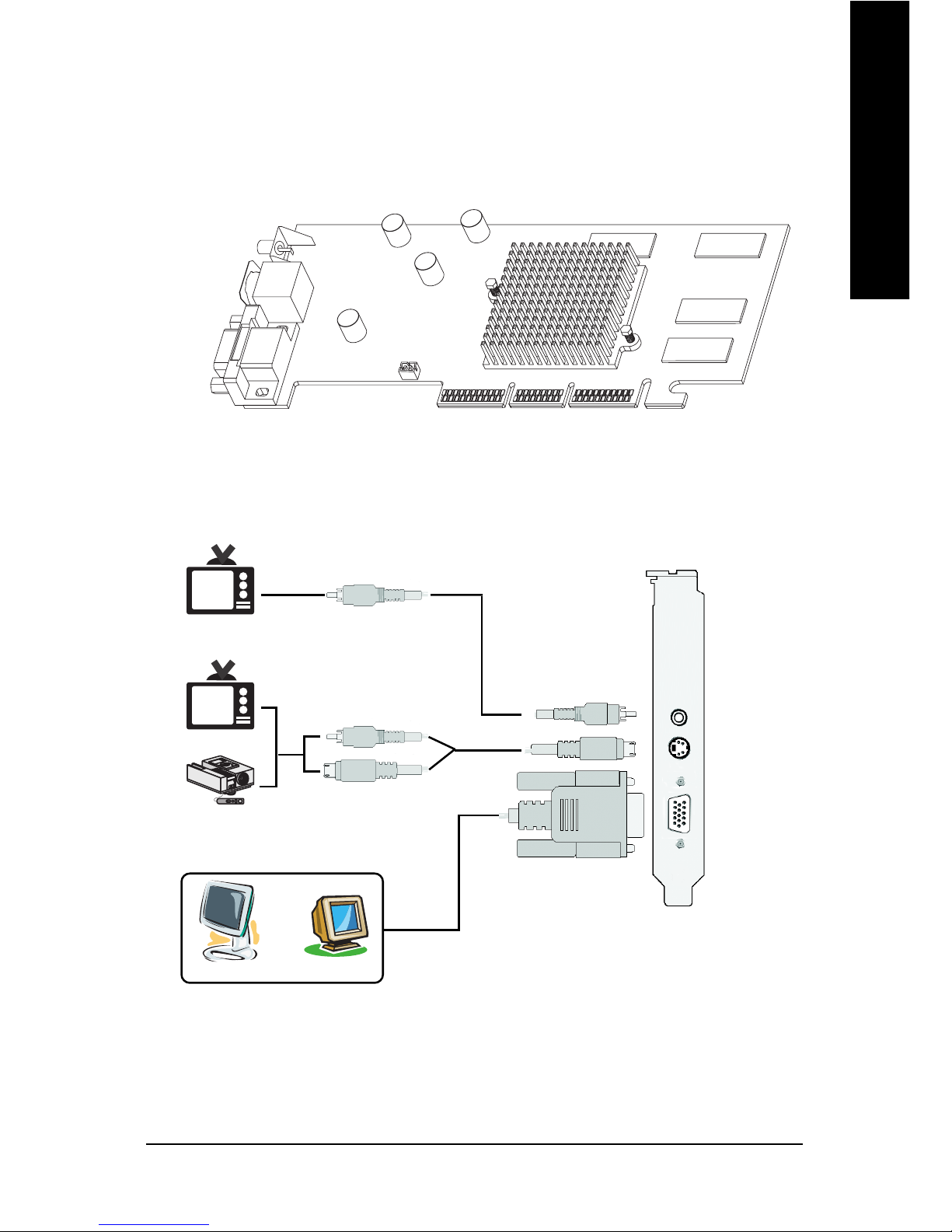

3) GV-N4464T-P
TV-Out
VGA Monitor
Connector
(15pin)
S-Video
TV-out
VGA Monitor
Connector
(15pin)
AV Output
NTSC / PAL TV
Projector
S-Video Output
Analog LCD Monitor Analog Monitor
OR
VGA Output
S-Video Connector
AV Output
NTSC / PAL TV
GV-N4464 Series Graphics Accelerator - 8 -
English

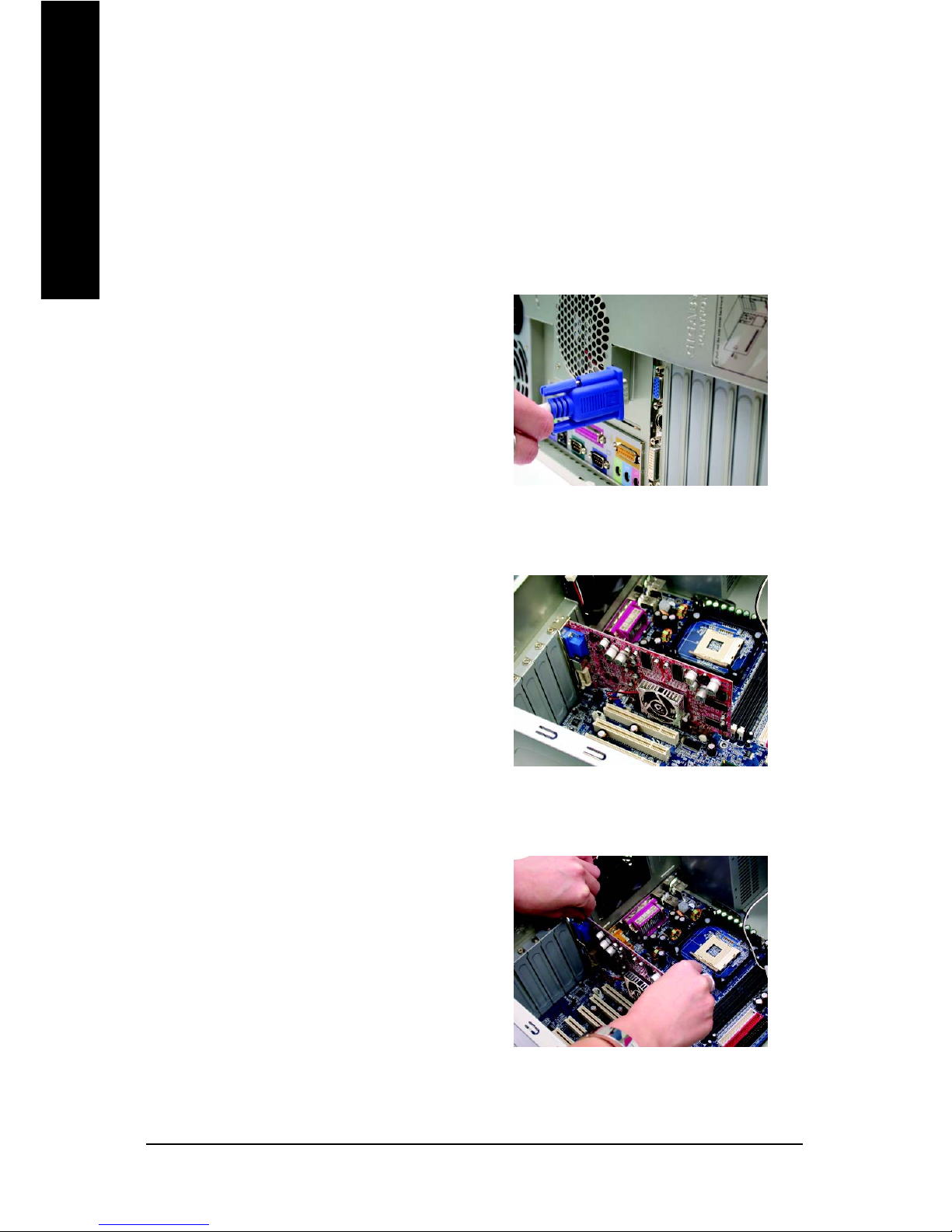

2.3. Hardware installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics
accelerator card.
To install your graphics accelerator card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help
in removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to
disable it on the motherboard. For more
information, see you computer
documentation.
Hardware Installation- 9 -
English

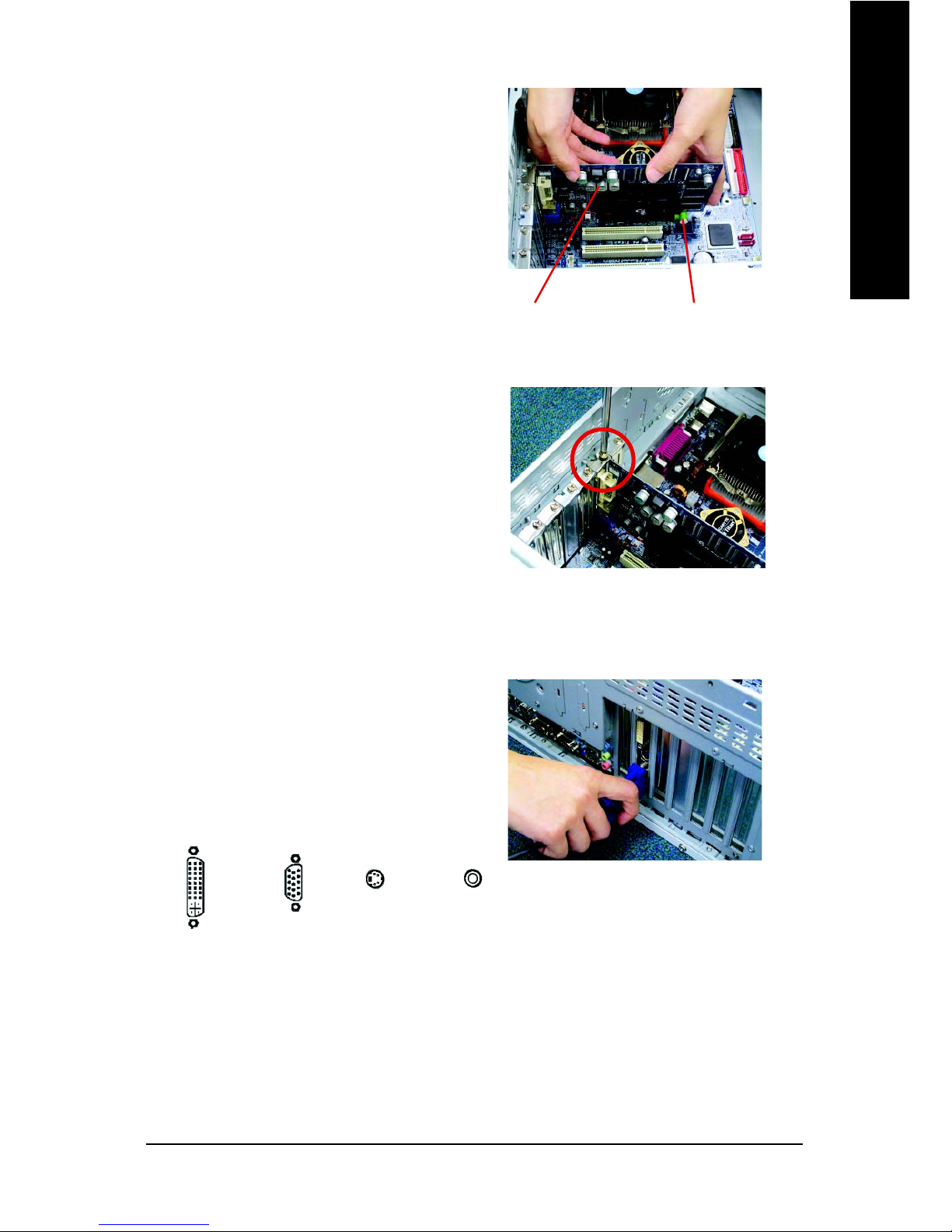

4. Locate the AGP slot. If necessary, remove
the metal cover from this slot; then align
your graphics card with the AGP slot, and
press it in firmly until the card is fully eated.
5. Replace the screw to fasten the card in
place, and replace the computer cover.
6. Plug the display cable into your card; then
turn on the computer and monitor. If your
graphics card came with a DVI connector,
you can connect a flat panel display to the
appropriate connector, as shown below...
You are now ready to proceed with the installation of the graphics card driver. For detailed
instructions, select your operating system from the list below.
To TV or VCR
To VGA Monitor
AGP slotGraphics card
To Flat Panel Display
(For GV-N4464D only)
S-Video
(For GV-N4464T-P only)
GV-N4464 Series Graphics Accelerator - 10 -
English
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Win®98/98SE / Win®2000 / Win®ME / Win®XP drivers is very simple.
When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN
window (if it does not show up, run "D:\setup.exe"). Then you can follow the guides to
setup your graphics card driver. (Please follow the subsection 3.1.3 "Driver installation"
to install the driver for your graphics accelerator.)
3.1. Win®XP driver and utilities installation
3.1.1. Operating system requirement
•When loading the graphics card drivers for the system, please make sure your
system has installed DirectX 8 or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS,
ALI or VIA chipsets, please install the appropriate driver program for that
motherboard. Or please contact your motherboard nearest dealer for motherboard
driver.
