How To Install a Server into a Tank

G152

Installing Server

Installation

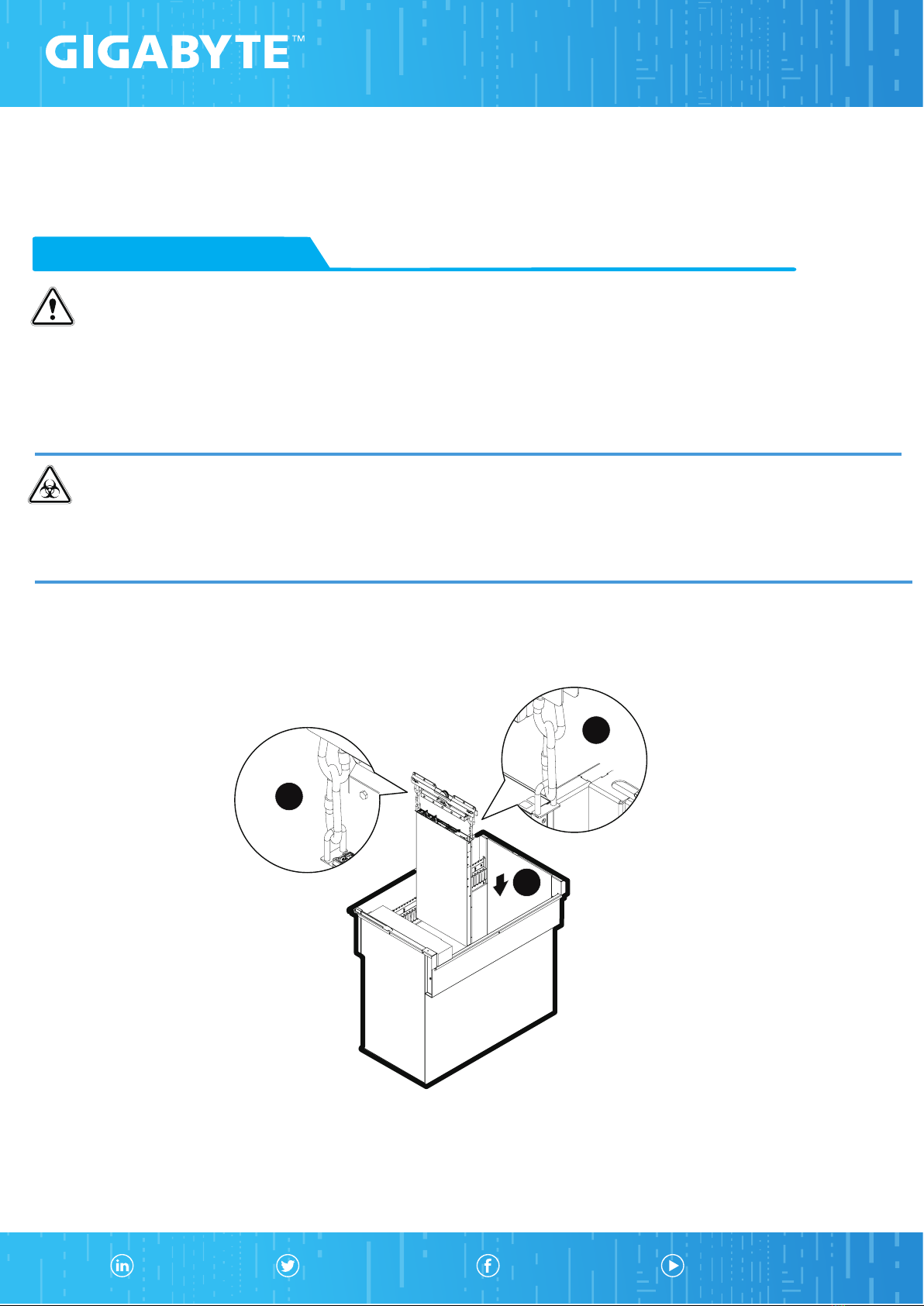

1 Attach the two carabiners to server handles.

2 Put the server into the tank vertically.

 Strongly recommended to use gloves when handling the coolant.

 Before handling coolant, handlers must read the material safety data sheet (MSDS) for their safety.

 The thermal pad contains Indium foil, so it is strongly recommended to use gloves

when replacing the thermal pad.

DANGER!

CAUTION!

 Make sure the crane can handle at least 60 KG before installing the server into a tank.

 Only licensed professionals are authorized to access the restricted access location.

 The power supply fan is disabled by default, so the server must be immersed in the fluid before powering on.

 Consult with immersion cooling tank vendor to ensure compatibility and read their tank manual thoroughly.

 Do not install a GPU into the system without consulting GIGABYTE first, doing so may cause

compatibility issues.

Giga Computing GIGABYTEChannel@GIGABYTEServer GIGABYTEofficial

Installing Optional Handles

2

2

3

1

1

NOTE! The optional handles are only for Asperitas tank.

1 Attach the handles to server.

2 Secure the handles with screws.

3 Install server into the tank.

Giga Computing GIGABYTEChannel@GIGABYTEServer GIGABYTEofficial

Learn more about GIGABYTE server, visit www.gigabyte.com/Enterprise

* All specifications are subject to change without notice. Please visit our website for the latest information.

* All other brands, logos and names are property of their respective owners.

© 2023 Giga Computing Technology Co., Ltd. All rights reserved.

Engineered by

How To Install a Thermal Pad to CPU

Installing Thermal Pad

Installation

1 Place the thermal pad on the top of CPU.

 Strongly recommended to use gloves and mask when handling the thermal pad.

 The thermal pad contains Indium foil, so it is strongly recommended to use gloves

when replacing the thermal pad.

DANGER!

2 Install the CPU heatsink.

When installing the heatsink to CPU, use a Torx T20 screwdriver to tighten 4 captive nuts in sequence as 1-4.

The screw tightening torque: 10 ± 0.5 kgf-cm.

4

3

1

2
