GA-MA790GP-DS4H

AM2+/AM2 socket motherboard for

AMD PhenomTM FX processor/AMD PhenomTM X4 processor/

AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/

AMD AthlonTM processor/AMD SempronTM X2 processor/

AMD SempronTM processor

User's Manual

Rev. 1001

12ME-MA790GP4H-1001R

Motherboard

GA-MA790GP-DS4H

Jul. 23, 2008

Motherboard

GA-MA790GP-DS4H

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classifications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For instructions on how to use GIGABYTE's unique features, read or download the

information on/from the Support\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com.tw

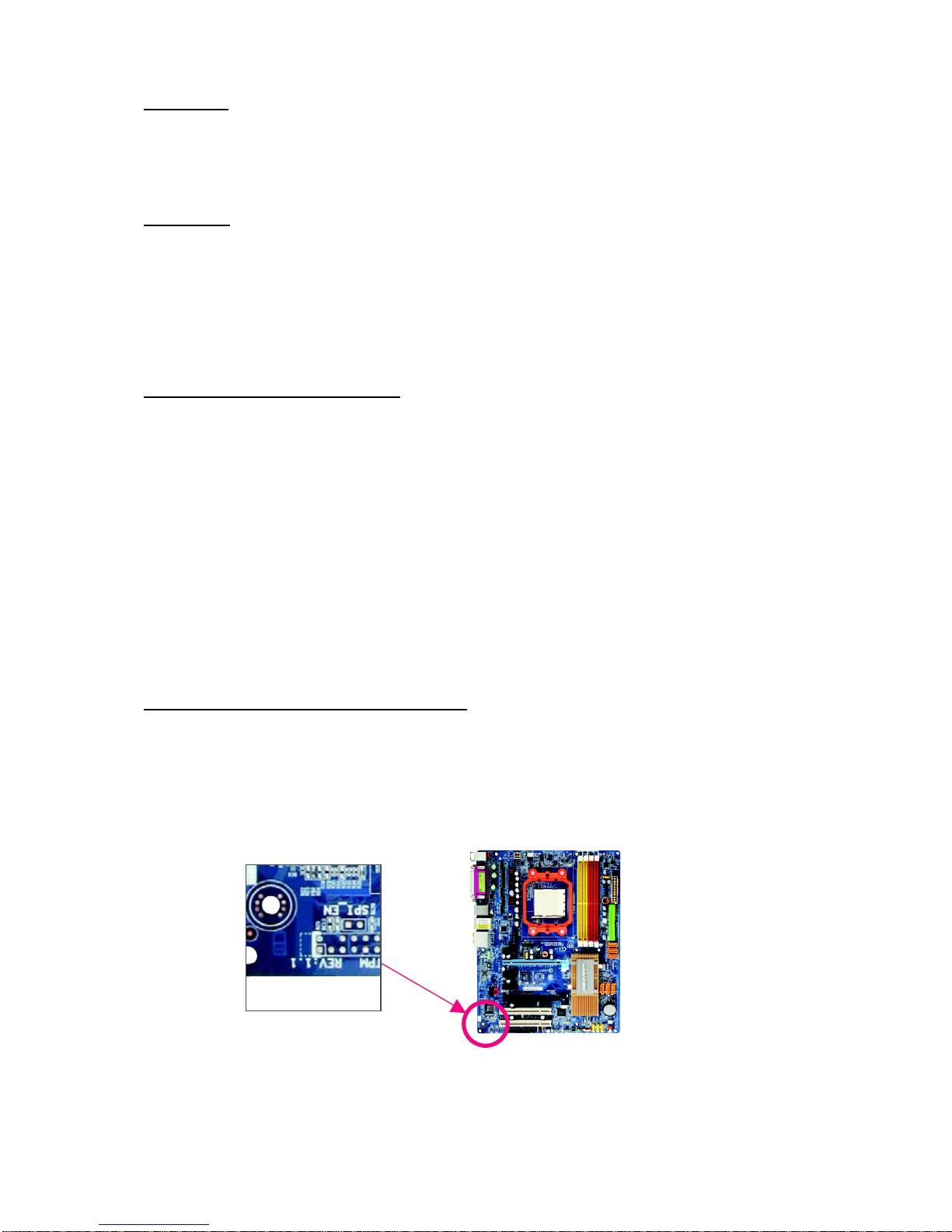

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents ................................................................................................................. 6

Optional Items................................................................................................................. 6

GA-MA790GP-DS4H Motherboard Layout .................................................................... 7

Block Diagram................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Installation Precautions ..................................................................................... 9

1-2 Product Specifications .................................................................................... 10

1-3 Installing the CPU and CPU Cooler .............................................................. 13

1-3-1 Installing the CPU ................................................................................................ 13

1-3-2 Installing the CPU Cooler ................................................................................... 15

1-4 Installing the Memory ..................................................................................... 16

1-4-1 Dual Channel Memory Configuration ................................................................ 16

1-4-2 Installing a Memory ............................................................................................. 17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Enabling the ATI Hybrid CrossFireXTM Function ............................................ 20

1-7 Configuring an ATI CrossFireXTM System ...................................................... 21

1-8 Back Panel Connectors ................................................................................. 22

1-9 Internal Connectors ........................................................................................ 25

Chapter 2 BIOS Setup................................................................................................. 37

2-1 Startup Screen................................................................................................ 38

2-2 The Main Menu .............................................................................................. 39

2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 41

2-4 Standard CMOS Features ............................................................................. 45

2-5 Advanced BIOS Features .............................................................................. 47

2-6 Integrated Peripherals ..................................................................................... 50

2-7 Power Management Setup ............................................................................. 53

2-8 PnP/PCI Configurations................................................................................. 55

2-9 PC Health Status ........................................................................................... 56

2-10 Load Fail-Safe Defaults................................................................................... 58

2-11 Load Optimized Defaults................................................................................. 58

2-12 Set Supervisor/User Password ..................................................................... 59

- 5 -

2-13 Save & Exit Setup ......................................................................................... 60

2-14 Exit Without Saving ....................................................................................... 60

Chapter 3 Drivers Installation ...................................................................................... 61

3-1 Installing Chipset Drivers ............................................................................... 61

3-2 Software Applications ..................................................................................... 62

3-3 Driver CD Information .................................................................................... 62

3-4 Hardware Information ..................................................................................... 63

3-5 Contact Us ..................................................................................................... 63

Chapter 4 Unique Features ......................................................................................... 65

4-1 Xpress Recovery2 ......................................................................................... 65

4-2 BIOS Update Utilities..................................................................................... 70

4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 70

4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 73

4-3 EasyTune 5 Pro ............................................................................................. 74

Chapter 5 Appendix .................................................................................................... 75

5-1 Configuring SATA Hard Drive(s) .................................................................... 75

5-1-1 Configuring the Onboard SATA Controller ......................................................... 75

5-1-2 Making a SATA RAID/AHCI Driver Diskette for W indows XP ........................ 81

5-1-3 Installing the SATA RAID/AHCI Driver and Operating System ...................... 82

5-2 Configuring Audio Input and Output ................................................................. 87

5-2-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 87

5-2-2 Installing the S/PDIF In and Out Cable (Optional) ............................................ 89

5-2-3 Enabling the Dolby Home Theater Function .................................................... 91

5-2-4 Configuring Microphone Recording ................................................................... 92

5-2-5 Using the Sound Recorder ................................................................................. 94

5-3 Troubleshooting ............................................................................................... 95

5-3-1 Frequently Asked Questions ............................................................................. 95

5-3-2 Troubleshooting Procedure ................................................................................ 96

Regulatory Statements ................................................................................................. 98

- 6 -

Box Contents

GA-MA790GP-DS4H motherboard

Motherboard driver disk

User's Manual

Quick Installation Guide

One IDE cable and one floppy disk drive cable

Four SATA 3Gb/s cables

2-port USB 2.0 bracket

I/O Shield

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51R)

2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-01R)

2-port SATA power cable (Part No. 12CF1-2SERPW-01R)

COM port cable (Part No. 12CF1-1CM001-32R)

S/PDIF in and out cable (Part No. 12CR1-1SPINO-11R)

LPT port cable (Part No. 12CF1-1LP001-01R)

•The box contents above are for reference only and the actual items shall depend on product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 7 -

GA-MA790GP-DS4H Motherboard Layout

Socket AM2+/AM2

GA-MA790GP-DS4H

DDR2_1

DDR2_2

DDR2_3

DDR2_4

FDD

F_PANEL

SYS_FAN2

PWR_LED

M_BIOS

B_ BIOS

CD_IN

IT8718

CODEC

AMD 790GX

RTL

8111C

SPDIF_IO

AMD SB750

PCIEX1_1

PCI1

PCI2

PCIEX1_2

PCIEX16_1

PCIEX1_3

F_USB1

F_USB2

PCIEX8_1

F_USB3

F_1394_1

COM

F_USB4

TSB43AB23

SATA2_3

SATA2_1

LPT

F_1394_2

SATA2_0

SATA2_2

ATX

IDE

SATA2_4

SATA2_5

PWR_FAN

KB_MS

USB

LAN

F_AUDIO

AUDIO

BATTERY

ATX_12V_2X4

USB

1394

HDMI

CLR_CMOS

CPU_FAN

OPTICAL

SYS_FAN1

DVI

VGA

SidePort

Memory

- 8 -

Block Diagram

(Note 1) Simultaneous output for DVI-D and HDMI is not supported.

(Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1

slot. The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot. When PCIEX8_1 is populated with a PCI Express

graphics card, the PCIEX16_1 slot will operate at up to x8 mode.

AMD Socket

AM2+/AM2

CPU

CPU CLK+/-(200 MHz)

Hyper Transport 3.0

3 PCI Express x1

PCI Express Bus

AMD 790GX

DDR2 1066/800/667 MHz DIMM

Dual Channel Memory

6 SATA 3Gb/s

ATA-133/100/66/33

IDE Channel

PCIe CLK

(100 MHz)

PCIe CLK

(100 MHz)

LPC BUS

PCI Express x16

AMD SB750 12 USB Ports

GFX CLK (100 MHz)

D-Sub

DVI-D or HDMI (Note 1)

2 PCI

PCI Bus

3 IEEE 1394a

TSB43AB23

RJ45

RTL

8111C

LAN

LPT Port

Floppy

COM Port

PS/2 KB/Mouse

IT8718

1 PCI Express x16 (Note 2 )

x1 x1

2 PCI Express x8 (Note 2)

Dual BIOS

x16

DDR3 SidePort

Memory

Line-Out

MIC

Line-In

SPDIF In

SPDIF Out

Side Speaker Out

Center/Subwoofer Speaker Out

Surround Speaker Out

CODEC

Hardware Installation- 9 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and first touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Chapter 1 Hardware Installation

GA-MA790GP-DS4H Motherboard - 10 -

1-2 Product Specifications

CPU Support for Socket AM2+/AM2 processors:

AMD PhenomTM FX processor/AMD Phenom TM X4 processor/

AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/

AMD AthlonTM processor/AMD SempronTM X2 processor/

AMD SempronTM processor

(Go to GIGABYTE's website for the latest CPU support list.)

Hyper Transport Bus 5200 MT/s

Chipset North Bridge: AMD 790GX

South Bridge: AMD SB750

Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 1066 (Note 2)/800/667 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Intergrated Memory 128MB DDR3 SidePort memory

Audio Realtek ALC889A codec

High Definition Audio

2/4/5.1/7.1-channel

Support for Dolby® Home Theater (Note 3)

Support for S/PDIF In/Out

Support for CD In

LAN Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 4)

1 x PCI Express x16 slot, running at x8 (PCIEX8_1) (Note 4)

(The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireXTM

technology, ATI CrossFireXTM technology and conform to PCI Express 2.0

standard.)

(The PCI Express x8 slot conform to PCI Express 2.0 standard.)

3 x PCI Express x1 slots

2 x PCI slots

Storage Interface South Bridge:

- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

- 6 x SATA 3Gb/s connectors supporting up to 6 SA TA 3Gb/s devices

- Support for SATA RAID 0, RAID 1, RAID 5, RAID 10 and JBOD

iTE IT8718 chip:

- 1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394 T.I. TSB43AB23 chip

Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket

connected to the internal IEEE 1394a headers)

USB Integrated in the South Bridge

Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets

connected to the internal USB headers)

Otros manuales para GA-MA790GP-DS4H

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-8IPE1000 Series Manual de usuario

Gigabyte

Gigabyte GA-8PE667 Pro Manual de usuario

Gigabyte

Gigabyte GA-G41MT-S2 Manual de usuario

Gigabyte

Gigabyte GS-R12P4S Manual de usuario

Gigabyte

Gigabyte GA-Z97N-Gaming 5 Manual de usuario

Gigabyte

Gigabyte GA-B250-FinTech Manual de usuario

Gigabyte

Gigabyte GA-880GMA-UD2H Manual de usuario

Gigabyte

Gigabyte R281-3C0 Manual de usuario

Gigabyte

Gigabyte GA-EG41MFT-US2H Manual de usuario

Gigabyte

Gigabyte GA-H270-Gaming 3 Manual de usuario

Gigabyte

Gigabyte GA-8I915P Dual Graphic Manual de usuario

Gigabyte

Gigabyte Z690 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte GA-Z87X-UD3H Manual de usuario

Gigabyte

Gigabyte GA-Z97-D3H Manual de usuario

Gigabyte

Gigabyte GA-X38-DQ6 Manual de usuario

Gigabyte

Gigabyte GA-PICO3455 Manual de usuario

Gigabyte

Gigabyte A520 AORUS ELITE Manual de usuario

Gigabyte

Gigabyte GA-Z77-HD3 Manual de usuario

Gigabyte

Gigabyte GA-8IDXR-A Manual de usuario

Gigabyte

Gigabyte GA-6UASL1 Manual de usuario

Gigabyte

Gigabyte X399 AORUS Gaming 7 Manual de usuario

Gigabyte

Gigabyte GA-7ZMMC Manual de usuario

Gigabyte

Gigabyte GA-7VCSV Manual de usuario

Gigabyte

Gigabyte B550 UD AC Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
