Gigabyte GA-H61MA-D2V Manual de usuario

GA-H61MA-D2V

User's Manual

Rev. 2001

12ME-61MAD2V-2001R

Motherboard

GA-H61MA-D2V

Dec. 16, 2011

Motherboard

GA-H61MA-D2V

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-H61MA-D2V Motherboard Layout ............................................................................5

GA-H61MA-D2V Motherboard Block Diagram ...............................................................6

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions ................................................................................... 7

1-2 Product Specications..................................................................................... 8

1-3 Installing the CPU .......................................................................................... 10

1-4 Installing the Memory .....................................................................................11

1-5 Installing an Expansion Card..........................................................................11

1-6 Back Panel Connectors ................................................................................. 12

1-7 Internal Connectors ....................................................................................... 13

Chapter 2 BIOS Setup..................................................................................................19

2-1 Startup Screen............................................................................................... 19

2-2 The Main Menu.............................................................................................. 20

2-3 M.I.T. .............................................................................................................. 21

2-4 System ........................................................................................................... 28

2-5 BIOS Features ............................................................................................... 29

2-6 Peripherals..................................................................................................... 31

2-7 Power Management....................................................................................... 32

2-8 Save & Exit .................................................................................................... 34

Chapter 3 Drivers Installation .......................................................................................35

Regulatory Statements ............................................................................................. 36

- 5 -

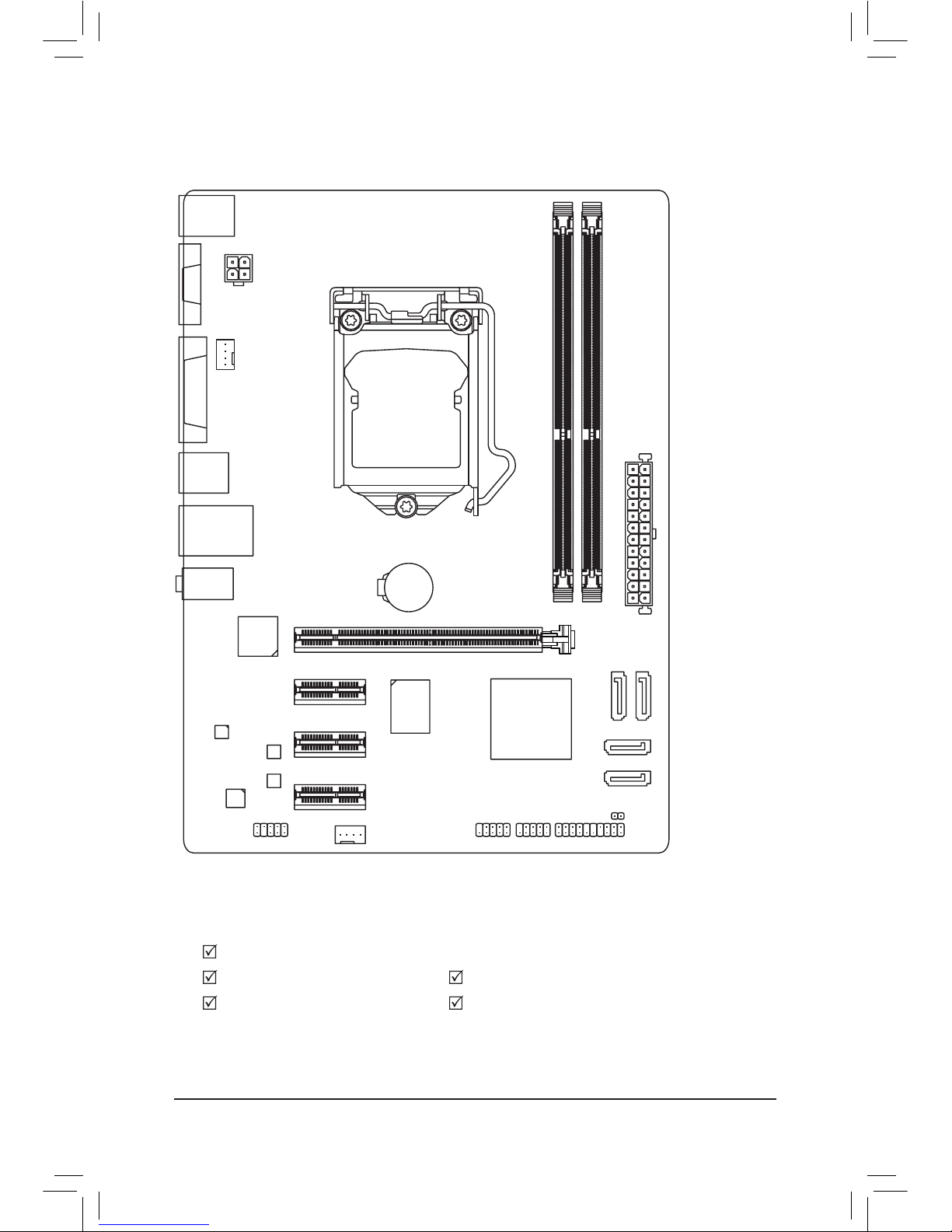

GA-H61MA-D2V Motherboard Layout

Box Contents

GA-H61MA-D2V motherboard

Motherboard driver disk Two SATA cables

User's Manual I/O Shield

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

KB_MS_USB

CPU_FAN

LGA1155

ATX

GA-H61MA-D2V

F_AUDIO

AUDIO

B_BIOS

DDR3_1

DDR3_2

BAT

F_PANEL

ATX_12V

Intel®H61

SATA2

R_USB30

CODEC CLR_CMOS

VGA

DVI

USB_LAN

PCIEX1_3

F_USB1

F_USB2

iTE

IT8728

Realtek/

Atheros

GbE LAN

SYS_FAN

M_BIOS

Etron

EJ168

SATA2

PCIEX1_2

PCIEX1_1

PCIEX16

- 6 -

GA-H61MA-D2V Motherboard Block Diagram

PS/2 KB/Mouse

LGA1155

CPU

Intel®H61

PCIe CLK

(100 MHz)

PCI Express Bus

CPU CLK+/- (100 MHz)

1 PCI Express x16

Dual BIOS

8 USB 2.0/1.1

LPC

Bus

DDR3 1333/1066/800 MHz

PCI Express Bus

PCIe CLK

(100 MHz)

iTE

IT8728

3 PCI Express x1

4 SATA 3Gb/s

D-Sub

DVI-D

DMI 2.0

x16

Dual Channel Memory

x1 x1

Line Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line In (Rear Speaker Out)

CODEC

LAN

RJ45

Realtek/

Atheros

GbE LAN

Etron

EJ168

2 USB 3.0/2.0

FDI

- 7 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

Prior to installation, make sure the chassis is suitable for the motherboard.•

Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or•

warranty sticker provided by your dealer. These stickers are required for warranty validation.

Always remove the AC power by unplugging the power cord from the power outlet before•

installing or removing the motherboard or other hardware components.

When connecting hardware components to the internal connectors on the motherboard,•

make sure they are connected tightly and securely.

When handling the motherboard, avoid touching any metal leads or connectors.•

It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-•

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

Prior to installing the motherboard, please have it on top of an antistatic pad or within an•

electrostatic shielding container.

Before unplugging the power supply cable from the motherboard, make sure the power sup-•

ply has been turned off.

Before turning on the power, make sure the power supply voltage has been set according to•

the local voltage standard.

Before using the product, please verify that all cables and power connectors of your hard-•

ware components are connected.

To prevent damage to the motherboard, do not allow screws to come in contact with the•

motherboard circuit or its components.

Make sure there are no leftover screws or metal components placed on the motherboard or•

within the computer casing.

Do not place the computer system on an uneven surface•

Do not place the computer system in a high-temperature environment.•

Turning on the computer power during the installation process can lead to damage to sys-•

tem components as well as physical harm to the user.

If you are uncertain about any installation steps or have a problem related to the use of the•

product, please consult a certied computer technician.

- 8 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1155 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H61 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Dual channel memory architecture

Support for DDR3 1333/1066/800 MHz memory modules

Support for non-ECC memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio Realtek/VIA HD audio codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module and

enable the multi-channel audio feature through the audio driver.

LAN 1 x Realtek/Atheros GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* The support PCI Express 3.0, you must install an Intel 22nm CPU.

3 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface Chipset:

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB Chipset:

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

1 x Etron EJ168 chip:

- Up to 2 USB 3.0/2.0 ports on the back panel

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

- 9 -

Internal

Connectors

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

4 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE IT8728 chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System fan speed control

* Whether the CPU/System fan speed control function is supported will depend on

the CPU/System cooler you install.

BIOS 2 x 32 Mbit ash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for ON/OFF Charge

Bundled

Software Norton Internet Security (OEM version)

Operating

System Support for Microsoft®Windows 7/Vista/XP

Form Factor Micro ATX Form Factor; 24.4cm x 17.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

- 10 -

1-3 Installing the CPU

Installing the CPU

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Alignment KeyAlignment Key

LGA1155 CPU Socket

Pin One Corner of the CPU Socket

Notch

LGA1155 CPU

Triangle Pin One Marking on the CPU

Read the following guidelines before you begin to install the CPU:

Make sure that the motherboard supports the CPU.•

(Go to GIGABYTE's website for the latest CPU support list.)

Always turn off the computer and unplug the power cord from the power outlet before installing•

the CPU to prevent hardware damage.

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may•

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

Apply an even and thin layer of thermal grease on the surface of the CPU.•

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-•

age of the CPU may occur.

Set the CPU host frequency in accordance with the CPU specications. It is not recommended •

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graph-

ics card, memory, hard drive, etc.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-7PCSL Manual de usuario

Gigabyte

Gigabyte GA-P31-S3G Manual de usuario

Gigabyte

Gigabyte GA-Z270P-D3 Manual de usuario

Gigabyte

Gigabyte GA-P55-UD4P Manual de usuario

Gigabyte

Gigabyte GA-GC330UD Manual de usuario

Gigabyte

Gigabyte GA-Z97N-WIFI Manual de usuario

Gigabyte

Gigabyte GA-Z170MX-Gaming 5 Manual de usuario

Gigabyte

Gigabyte MB10-DS Series Manual de usuario

Gigabyte

Gigabyte GA-EP31-DS3LP Manual de usuario

Gigabyte

Gigabyte GA-G41MT-D3PT Manual de usuario

Gigabyte

Gigabyte GA-8I848E-L Manual de usuario

Gigabyte

Gigabyte GA-BX2000 Manual de usuario

Gigabyte

Gigabyte GA-EX58-DS4 Manual de usuario

Gigabyte

Gigabyte GA-EP35C-DS3R Manual de usuario

Gigabyte

Gigabyte GA-IMB460N Manual de usuario

Gigabyte

Gigabyte GA-Z77X-UP4 TH Manual de usuario

Gigabyte

Gigabyte GA-H61M-HD2 Manual de usuario

Gigabyte

Gigabyte GA-8ICMT Manual de usuario

Gigabyte

Gigabyte GA-P31-S3G Manual de usuario

Gigabyte

Gigabyte GA-8I945GMF Manual de usuario

Gigabyte

Gigabyte GA-H170M-D3H Manual de usuario

Gigabyte

Gigabyte GA-K8A480M-9 Manual de usuario

Gigabyte

Gigabyte GA-X99-Gaming G1 WIFI Manual de usuario

Gigabyte

Gigabyte GA-6VM7-4I Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
